CWTWD1U779Passive Entry System (Tuner)

• • • • User’s Manual MODEL No.: TWD1U779 The radio frequency keyless entry system has the following functions. 1. Locking and unlocking the doors without mechanical key. 2. Sounding a panic alarm during vehicle is not running. This system consists of RF Tuner, transmitters, and BCM. This tuner has the following function. A tuner receives the RF signal from the air pressure monitor transmitter. A tuner demodulates received signal. Then, output digital data to BCM. The RF Tuner (EUT) is supplied 12V from BCM. It is designed to operate on a single fixed frequency RF 314.975MHz by amplitude modulation. It receives unique identification code and function code transmitted from transmitters. After receiving RF signal, demodulation IC in Tuner demodulates RF signal from transmitters. And then driving circuit in Tuner outputs the demodulated signal to BCM. .Basic specifications Operating supply voltage 9.0V ~ 16.0V Operating supply current < 50mA Stand-by current < 2.5mA Operating ambient temperature -45 o C to +85 o C FCC / IC This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

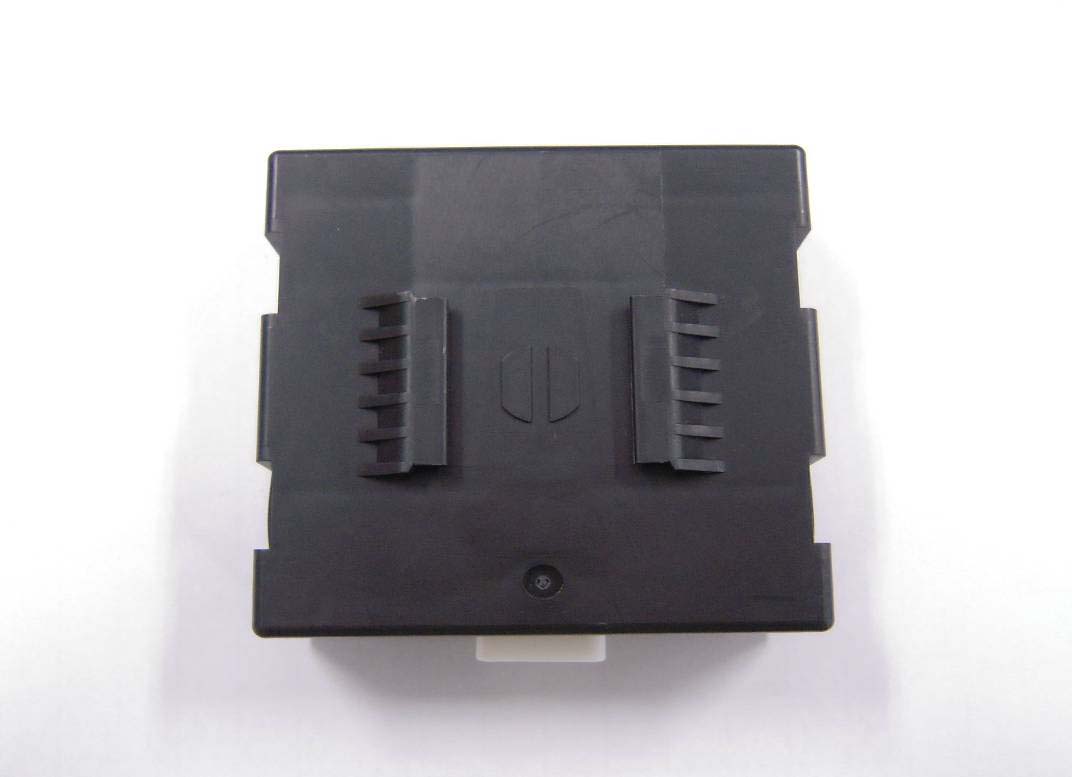

External Photo ALPS ELECTRIC CO., LTD. Tuner FCC ID: CWTWD1U779 IC: 1788D-FWD1U779 Front Rear External Photo ALPS ELECTRIC CO., LTD. Tuner FCC ID: CWTWD1U779 IC: 1788D-FWD1U779 Right Left External Photo ALPS ELECTRIC CO., LTD. Tuner FCC ID: CWTWD1U779 IC: 1788D-FWD1U779 Top Bottom

FCC ID : CWTWD1U779 IC ID : 1788D-FWD1U779 MODEL NAME : TWD1U779 ALPS ELECTRIC CO.,LTD. MADE IN JAPAN THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Internal Photo ALPS ELECTRIC CO., LTD. Tuner FCC ID: CWTWD1U779 IC: 1788D-FWD1U779 Front Rear

Test report No. : 30CE0142-HO-01-A Page : 2 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 6 SECTION 5: Radiated Emission ............................................................................................ 7 APPENDIX 1: Photographs of test setup............................................................................... 8 Radiated Emission ......................................................................................................................... 8 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ....................................................... 9 APPENDIX 2: Data of EMI test ........................................................................................... 10 Radiated Emission ....................................................................................................................... 10 APPENDIX 3: Test instruments ........................................................................................... 12 Test report No. : 30CE0142-HO-01-A Page : 3 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa, Osaki-city, Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Tuner Model No. : TWD1U779 Serial No. : Refer to Section 4.2 Receipt Date of Sample : January 30, 2010 Country of Mass-production : Japan Condition of EUT Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: TWD1U779 (referred to as the EUT in this report) is the Tuner. This tuner receives the RF output signal from the FOB (Transmitter) in response to several switch operations. Moreover, this tuner receives RF signal from tire pressure monitor transmitter via RF antenna, and outputs demodulated digital data to the BCM. Clock frequency(ies) in the system : 29.507MHz (Oscillator circuit) Equipment Type : Super heterodyne Frequency of Operation : 314.975MHz Intermediate Frequency : 0.2337MHz Local Oscillator Frequency : 314.741333MHz Antenna Type : Internal antenna (Monopole) Power Supply : DC +12V FCC15.111(b ) The receiving antenna (of this EUT) is installed inside the EUT and cannot be removed (permanently attached). Therefore, Radiated emission test was performed. Test report No. : 30CE0142-HO-01-A Page : 4 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2009, final revised on December 2, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Conducted emission IC: RSS-Gen 7.2.2 Receiver N/A N/A N/A *1) FCC: ANSI C63.4: 2003 8. Radiated emission measurements Radiated emission IC: RSS-Gen 4.10 Receiver N/A 17.6dB 288.001MHz, QP Horizontal Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. 3.3 Addition to standard Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Radiated emission Radiated emission (10m*)(+dB) (3m*)(+dB) (1m*)(+dB) Test room (semi- anechoic chamber) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 2.7dB 4.8dB 5.0dB 2.9dB 4.8dB 5.0dB 3.9dB 4.5dB 4.4dB No.2 - - - 3.5dB 4.8dB 5.1dB 4.0dB 4.3dB 4.2dB No.3 - - - 3.8dB 4.6dB 4.7dB 4.0dB 4.5dB 4.4dB No.4 - - - 3.5dB 4.4dB 4.9dB 4.0dB 4.6dB 4.5dB *10m/3m/1m = Measurement distance Radiated emission test(3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 30CE0142-HO-01-A Page : 5 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 2973C-1 19.2 x 11.2 x 7.7m 7.0 x 6.0m No.1 Power source room No.2 semi-anechoic chamber 655103 2973C-2 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 semi-anechoic chamber 148738 2973C-3 12.0 x 8.5 x 5.9m 6.8 x 5.75m No.3 Preparation room No.3 s…

Text truncated - open the document above for the full version.

Test report No. : 30CE0142-HO-01-A Page : 10 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2010/02/01 Company : Alps Electric Co., Ltd. Report No. : 30CE0142-HO-01 Kind of EUT : TPMS/Keyless Tuner Power : DC 12V Model No. : TWD1U779 Temp./Humi. : 20deg.C. / 38% Serial No. : 10012701 Engineer : Kazufumi Nakai Mode / Remarks : Rx 314.975MHz, Worst-axis(Hori:X , Vert:X) LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 30.00022.1QP18.2-22.018.30100Hori.40.021.7Noise Floor 30.00022.1QP18.2-22.018.30100Vert.40.021.7Noise Floor 111.09724.8QP12.3-21.016.1146400Hori.43.527.4 111.09823.6QP12.3-21.014.9166100Vert.43.528.6 288.00127.9QP19.6-19.128.40324Hori.46.017.6 288.00224.0QP19.6-19.124.513100Vert.46.021.5 314.74123.2QP15.3-19.019.527100Hori.46.026.5 314.74122.3QP15.3-19.018.6338100Vert.46.027.4 629.48321.5QP20.4-18.423.50100Hori.46.022.5Noise Floor 629.48321.5QP20.4-18.423.50100Vert.46.022.5Noise Floor 944.22421.0QP23.4-16.527.90100Hori.46.018.1Noise Floor 944.22421.0QP23.4-16.527.90100Vert.46.018.1Noise Floor Test report No. : 30CE0142-HO-01-A Page : 11 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2010/02/01 Company : Alps Electric Co., Ltd. Report No. : 30CE0142-HO-01 Kind of EUT : TPMS/Keyless Tuner Power : DC 12V Model No. : TWD1U779 Temp./Humi. : 20deg.C. / 38% Serial No. : 10012701 Engineer : Kazufumi Nakai Mode / Remarks : Rx 314.975MHz, Worst-axis(Hori:X , Vert:X) LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:AV CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 10002000 0 10 20 30 40 50 60 70 80 90 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 1258.96543.6PK24.8-31.237.20100Hori.73.936.7Noise Floor 1258.96543.4PK24.8-31.237.00100Vert.73.936.9Noise Floor 1258.96530.6AV24.8-31.224.20100Hori.53.929.7Noise Floor 1258.96530.6AV24.8-31.224.20100Vert.53.929.7Noise Floor Test report No. : 30CE0142-HO-01-A Page : 12 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-02 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-06902 RE 2009/08/17 * 12 MOS-22 Thermo-Hygrometer Custom CTH-201 0003 RE 2009/02/05 * 12 MJM-05 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-03 Spectrum Analyzer Agilent E4448A MY44020357 RE 2009/11/20 * 12 MTR-03 Test Receiver Rohde & Schwarz ESCI 100300 RE 2009/04/14 * 12 MBA-02 Biconical Antenna Schwarzbeck BBA9106 VHA91032008 RE 2009/10/05 * 12 MLA-02 Logperiodic Antenna Schwarzbeck USLP9143 201 RE 2009/10/05 * 12 MCC-12 Coaxial Cable Fujikura/Agilent - - RE 2009/02/16 * 12 MAT-07 Attenuator(6dB) Weinschel Corp 2 BK7970 RE 2009/11/12 * 12 MPA-09 Pre Amplifier Agilent 8447D 2944A10845 RE 2009/09/02 * 12 MHA-06 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D 254 RE 2010/01/19 * 12 MCC-47 Microwave Cable 1G- 26.5GHz Suhner SUCOFLEX104 295123(5m) / 287573(1m) RE 2009/11/19 * 12 MPA-10 Pre Amplifier Agilent 8449B 3008A02142 RE 2009/09/14 * 12 The expiration date of the calibration is the end of the expired month. All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. As for some calibrations performed after the tested dates, those test equipment have been controlled by means of an unbroken chains of calibrations. Test Item: RE: Radiated emission

Test report No. : 30CE0142-HO-01-A Page : 8 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 30CE0142-HO-01-A Page : 9 of 12 Issued date : February 3, 2010 FCC ID : CWTWD1U779 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
