CWTWDU623Passive Entry System transceiver

CONTENTS 1. PREFACE 2. PASSSIVE ACCSESS ENTRY FUNCTIONALITY 2.1. Door Unlocking 2.2. Engine Start 2.3. Engine Stop 2.4. Door Locking (Push switch) 3. ACTIVE ACCESS ENTRY FUNCTIONALITY 3.1. Door Unlocking 3.2. Engine Start 3.3. Engine Stop 3.4. Door Locking 4. ENTRY SYSTEM OPTIONS 4.1. System Schematic 4.2. Modules 4.2.1. FOB ECU 4.2.2. Entry System ECU 5. SYSTEM CHARACTERISTICS 5.1. Antenna Areas 5.2. Exciter Locations 5.3. Switch Input Locations (Door handle, Touch sensor) 6. ELECTRICAL CHARACTERISTICS 6.1. FOB 6.2. Entry System ECU FCC WARNING NOTICE 1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk unlocking / locking (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk unlocking / locking • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required) 2.Passsive Accsess Entry Functionality A proximity sensor located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pull / touch the door handle (sensing of door handle switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Proximity sensor LF RF FOB 2.2.Engine Start • User pushes / operate the engine start button / knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorize the response. • Engine controller ECU receives the authorization for engine strat. • Start the engine. Figure 3 2.3.Engine Stop • User pushes / operate the engine stop button / knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RF FOB 2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 3.Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influencei on the active entry system. 3.4.Door Locking Same functionality as the current one. 4.Entry System Options 4.1.System Schematic 4.2.Modules 4.2.1.FOB ECU 4.2.2.Entry System ECU OTHER ECUS LF (>2Kbps) RF (>4Kbps) Local Bus ECUECUECU Body Bus ENTRY SYSTEM ECU FOB 125kHz 315MHz FOB RF Amp LF Amp ASIC Z X Y Lock Unlock Trunk Key lock Emergency key (Transponder) 125kHz 315MHz ENTRY SYSTEM ECU MCU FT handle BT handle FH handle BH handle Trunk lid Engine start Body Bus Local Bus RF Amp LF Exciter LF Exciter LF Exciter LF Exciter LF Exciter LF Exciter Interior FTBTFHBH Trunk 315MHz 125kHz 5.System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : max. 5 (min. 2), however, it is depending on the type of the vehicle. Number of the interior exciters: 1 (1-Dimmension) or 2 (2-Dimension required) Figure 6 Exterior antenna functionality: • Unlock / lock doors and trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior FT BT 5.2.Exciter Locations Exterior exciters: 2 doors and 1 trunk Interior exciters: 1 driver’s sheet 2 column / shift lever (X-Y 2-Dimension) Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Exterior Interior FT BT 5.3.Switch Input Locations (Door handle, Touch sensor) There are some kind of sensors, for instance the door handle contact switch and touch sensor, will be used as a triggering for unlocking and open the door. Switch inputs: 2 doors and 1 trunk Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). FT BT 6.Electrical Characteristics 6.1.FOB • ASK / FSK modulation • Operating supply voltage 2.1V to 4.0V (3.0V Battery) • Operating supply current < 7mA • Stand-by current < 10.0uA • Operating ambient temperature -20 o C to +60 o C • Antenna direction 3-Dimension (X, Y, Z), to be considered • Battery life 2 Years (Low battery indication is considered) 6.2.Entry System ECU • Operating supply voltage 10.5V to 16.0V • Operating supply current < 15mA (20mA to 30mA) • Stand-by current < 4mA • Operating ambient temperature -40 o C to +85 o C • FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter…

Text truncated - open the document above for the full version.

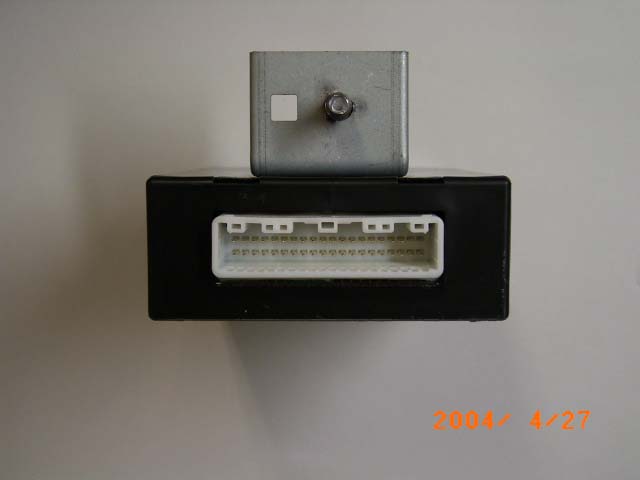

Alps Electric Co., Ltd. FCC ID: CWTWDU623 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWDU623 Front Rear Alps Electric Co., Ltd. FCC ID: CWTWDU623 Side A Side B

Label Control UNIT (TFWD1U623) *The way of attaching FCC ID is “Carving”

Alps Electric Co., Ltd. FCC ID: CWTWDU623 Internal Photo Front Rear Alps Electric Co., Ltd. FCC ID: CWTWDU623 Tuner – Front with shield Tuner – Front without shield Alps Electric Co., Ltd. FCC ID: CWTWDU623 Tuner – Rear

Test report No. : 24GE0135-HO-1 Page : 1 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 24GE0135-HO-1 Applicant : Alps Electric Co., Ltd. Type of Equipment : Passive Entry System (Control Unit) Model No. : TFWD1U623 Test standard : FCC Part 15 Subpart C : 2003 Section 15.209 FCC Part 15 Subpart B : 2003 Section 15.109 FCC ID : CWTWDU623 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : March 5, 2004 Tested by : Kenichi Adachi EMC Service Approved by : Naoki Sakamoto Group Leader of EMC Service Test report No. : 24GE0135-HO-1 Page : 2 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information.......................................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................3 SECTION 3: Test specification, procedures & results ...................................................................4 SECTION 4: Operation of E.U.T. during testing............................................................................6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ....................................8 SECTION 6: -26dB Bandwidth (Reference data) ...........................................................................8 APPENDIX 1: Photographs of test setup.........................................................................................9 Radiated Magnetic Field Strength (Transmitting) .............................................................9 Radiated emission (Transmitting / Receiving)...................................................................10 Worst Case Position/Transmitting(Horizontal : Angle A/ Vertical: Angle B) ...............11 APPENDIX 2: Test Instruments.....................................................................................................12 APPENDIX 3: Data of EMI test .....................................................................................................13 Radiated Emission (Control unit)/Transmitting ...............................................................13 -26dB Bandwidth..................................................................................................................15 99% Occupied Bandwidth...................................................................................................16 Radiated Emission (Control unit)/Receiving .....................................................................17 Test report No. : 24GE0135-HO-1 Page : 3 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa-city Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Passive Entry System (Control Unit) Model No. : TFWD1U623 Serial No. : 2 Country of Manufacture : Japan Receipt Date of Sample : March 3, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Alps Electric Co., Ltd., Model No: TFWD1U623 is the Passive Entry System (Control Unit). The control unit of the passive entry system is a transmitter of 125kHz. Equipment Type : Transceiver Rating : DC 12.0V (Car battery) Temperature of operation : -40 deg. C. -+85 deg. C. Other Clock frequency : 65.14MHz, 16MHz, 32.768kHz Tx section Number of Channel 1 Frequency Characteristics 125kHz Modulation Amplitude Information antenna External (Bar antenna) Country of Manufacture Japan Rx section Type of Receiver Single Super Heterodyne Receiving Frequency 315MHz Local Oscillator Frequency 325.7MHz Intermediate Frequency 10.7MHz Information antenna Integral (monopole) FCC 15.31 (e) This test was performed with the New Battery. FCC Part 15.203 Antenna requirement Bar Antenna(Tx section) is installed inside the vehicle door and users cannot detach it from vehicle. Therefore, the equipment complies the requirement. Test report No. : 24GE0135-HO-1 Page : 4 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2003 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements. Test Specification : FCC Part 15 Subpart B : 2003 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators Section 15.109 Radiated emission limits Remarks : This equipme…

Text truncated - open the document above for the full version.

Test report No. : 24GE0135-HO-1 Page : 9 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated Magnetic Field Strength (Transmitting) Front Rear Test report No. : 24GE0135-HO-1 Page : 10 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Radiated emission (Transmitting / Receiving) Front Rear Test report No. : 24GE0135-HO-1 Page : 11 of 18 Issued date : March 22, 2004 FCC ID : CWTWDU623 Revised Date : May 17, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position/Transmitting(Horizontal : Angle A/ Vertical: Angle B) Angle A Angle B Angle C
