CWTWDU633Vehicle Entry System Transmitter

CONTENTS 1. PREFACE 2. PASSSIVE ACCSESS ENTRY FUNCTIONALITY 2.1. Door Unlocking 2.2. Engine Start 2.3. Engine Stop 2.4. Door Locking (Push switch) 3. ACTIVE ACCESS ENTRY FUNCTIONALITY 3.1. Door Unlocking 3.2. Engine Start 3.3. Engine Stop 3.4. Door Locking 3.5. Trunk Open 4. ENTRY SYSTEM OPTIONS 4.1. System Schematic 4.2. Modules 4.2.1. FOB ECU 4.2.2. Entry System ECU 5. SYSTEM CHARACTERISTICS 5.1. Antenna Areas 5.2. Exciter Locations 5.3. Switch Input Locations (Door handle) 6. ELECTRICAL CHARACTERISTICS 6.1. FOB 6.2. Entry System ECU FCC WARNING NOTICE 1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk open (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk open • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required) 2.Passsive Accsess Entry Functionality A handle sw located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pushes door handle sw. • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Door Handle SW LF RF FOB 2.2.Engine Start • User operates the engine start knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorize the response. • Engine controller ECU receives the authorization for engine strat. • Start the engine. Figure 3 2.3.Engine Stop • User operates the engine stop knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RF FOB 2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 3.Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influence on the active entry system. 3.4.Door Locking Same functionality as the current one. 3.5.Trunk Open Same functionality as the current one. 4.Entry System Options 4.1.System Schematic 4.2.Modules 4.2.1.FOB ECU 4.2.2.Entry System ECU OTHER ECUS LF (>2Kbps) Local Bus ECUECUECU Body Bus ENTRY SYSTEM ECU FOB 125kHz RF (>4Kbps) 315MHz FOB RF Amp LF Amp ASIC Z X Y Lock Unlock Trunk Emergency key (Transponder) 125kHz 315MHz ENTRY SYSTEM ECU MCU Dr Door handle As Door handle Trunk Push knob (Engine start knob) Body Bus Local Bus LF Exciter LF Exciter LF Exciter LF Exciter Room1 Dr As Trunk 125kHz Dr : Driver Door Antenna As : Assist Door Antenna Trunk : Bumper Antenna Exterior Antenna Room1: Console Antenna Room2: Inst. Antenna Room3: Trunk Antenna Interior Antenna LF Exciter LF Exciter Room2 Room3 Tuner signal Panic 5.System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : typ.3, however, it is depending on the type of the vehicle. Number of the interior exciters: max.4 (min.2) Figure 6 Exterior antenna functionality: • Unlock / lock doors. • Open trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior Dr As Back 5.2.Exciter Locations Exterior exciters: 3 doors Interior exciters: 1 Center Console 2 Inst panel 3 Trunk Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Exterior Interior Dr As Bumper 5.3.Switch Input Locations (Door handle) There are some switches, for instance the door handle contact switch will be used as a triggering for unlocking and open the door. Switch inputs: 3 doors Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Dr As Trunk 6.Electrical Characteristics 6.1.FOB • ASK / FSK modulation • Operating supply voltage 2.5V ~ 3.3V (3.0V Battery) • Operating supply current < 35mA • Stand-by current < 10.0uA • Operating ambient temperature -10 o C to +60 o C • Antenna direction 3-Dimension (X, Y, Z), to be considered • Battery life 1.5 Years (Low battery indication is considered) 6.2.Entry System ECU • Operating supply voltage 9.0V ~ 16.0V • Operating supply current < 55mA • Stand-by current < 4.0mA • Operating ambient temperature -30 o C to +80 o C • FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this devic…

Text truncated - open the document above for the full version.

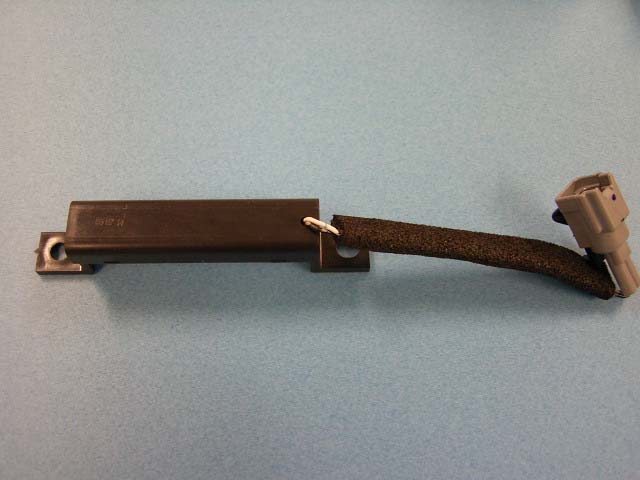

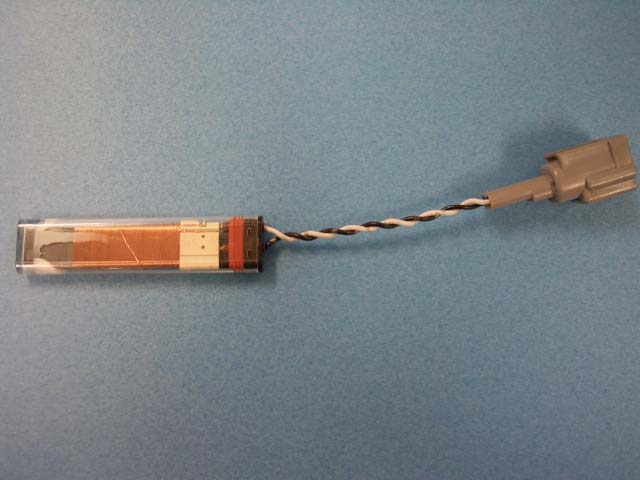

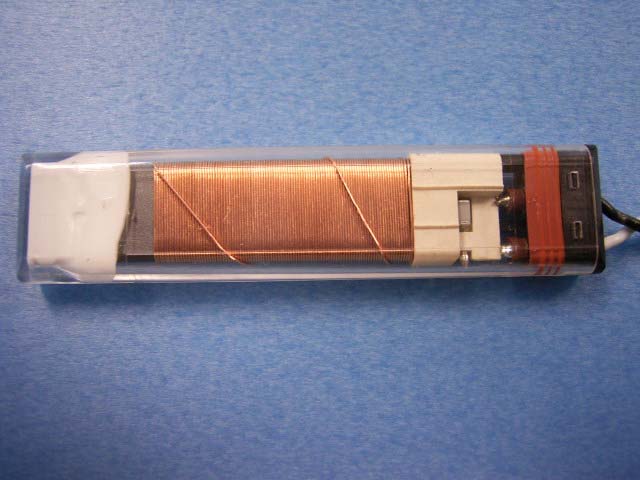

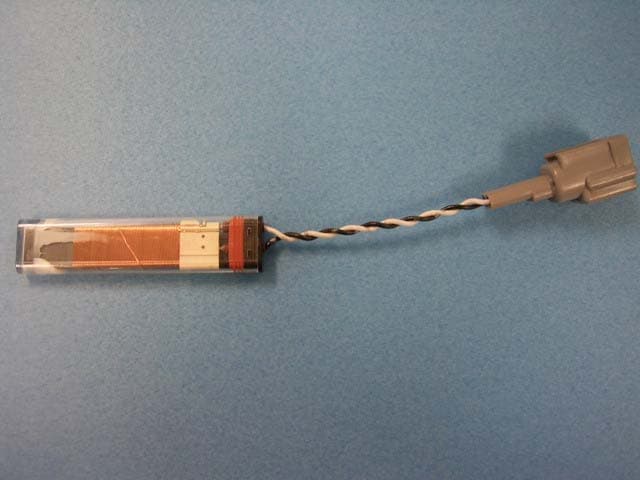

Alps Electric Co., Ltd. Antenna Photo External Photo Back Antenna Console Antenna Alps Electric Co., Ltd. Antenna Photo Dr_As Antenna In Lock Pit Antenna Alps Electric Co., Ltd. Antenna Photo Luggage Antenna Alps Electric Co., Ltd. Antenna Photo Internal Photo Internal detail_bottom Internal detail_top Alps Electric Co., Ltd. Antenna Photo Antenna Internal Photo

Alps Electric Co., Ltd. FCC ID: CWTWDU633 IC Number: 1788D-FWD1U633 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWDU633 IC Number: 1788D-FWD1U633 Front Rear Alps Electric Co., Ltd. FCC ID: CWTWDU633 IC Number: 1788D-FWD1U633 Left Side Right Side

Label Control UNIT (TWD1U633) *The way of attaching FCC ID is “Carving” 63 63

Alps Electric Co., Ltd. FCC ID: CWTWDU633 IC Number : 1788D-FWD1U633 Internal Photo PCB Top PCB Bottom Alps Electric Co., Ltd. FCC ID: CWTWDU633 IC Number : 1788D-FWD1U633 Tuner – Front with shield Tuner – Front without shield Alps Electric Co., Ltd. FCC ID: CWTWDU633 IC Number : 1788D-FWD1U633 Tuner – Rear with shield Tuner – Rear without shield

FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 1 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 EMI TEST REPORT Test Report No. : 26IE0397-YK-A Applicant : Alps Electric Co., Ltd. Type of Equipment : Passive Entry System (Control Unit) Model No. : TWD1U633 FCC ID : CWTWDU633 Test Standard : FCC Part15 Subpart B Section 15.109: 2006 FCC Part15 Subpart C Section 15.209: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. 4. The test results in this test report are traceable to the national or international standards. Date of test: May 9 and 11, 2006 Tested by: Makoto Hosaka Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 2 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Table of Contents Page 1 Applicant Information 3 2 Product Description 4 3 Test Specification, Procedures and Results 5 4 System Test Configuration 7 5 Radiated Emissions 8 6 26dB Bandwidth and Occupied Bandwidth 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test Data 15 APPENDIX 3: Test instruments 24 FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 3 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 1 Applicant Information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa, Osaki-shi, Miyagi-ken, 989-6181 JAPAN Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-23-3755 Contact Person : Katsuhiro Seino FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 4 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 2 Product Description Type of Equipment : Passive Entry System (Control Unit) Model No. : TWD1U633 Serial No. : 20060508 Rating : : DC12V (Car Battery) Country of Manufacture : Japan Receipt Date of Sample : May 9, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Model: TWD1U633 (referred to as the EUT in this report) is a Control Unit of Passive Entry System. The Passive Entry System is a system which locks, unlocks and can start engine only with the intelligent-key of the vehicle. Equipment type : Transceiver Operation temperature range : -30 ~ +80 deg. C. Other clock frequency : 32.768kHz, 16MHz, 65.14MHz (Crystal) Emission designation : A1D Tx section Frequency of operation : 125kHz Modulation : Amplitude Antenna type : External Bar antenna Rx section Frequency of operation : 315MHz Intermediate frequency : 10.7MHz Local frequency : 325.7MHz Type of receiver : Super Heterodyne Antenna type : Internal Bar antenna FCC Part15.31 (e) The power supply of the EUT is transformed to DC5.0V and provides stable voltage, DC5.0V constantly to Radio part. Therefore, the EUT complies with the power supply regulation. FCC Part15.111 (b) The receiving antenna is installed inside the EUT and cannot be removed. Therefore, the EUT complies with the requirement. FCC Part15.203 Antenna requirement It is impossible for users to replace the antenna because the antenna is a set with EUT and installed outside of the EUT inside the vehicle. Therefore, the EUT complies with the antenna requirement. FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 5 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3 Test Specification, Procedures and Results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2006 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements 3.2 Procedures & Results <Part 15 Subpart B> Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements FCC §15.107(a) & 207 N/A *1 N/A N/A Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements FCC §15.109(a) N/A 19.4dB (299.99MHz, QP, Vertical) Complied Antenna power conduction for receivers ANSI C63.4: 2003 12.1.5 Antenna-conducted power measurements FCC §15.111(a) N/A *2 N/A N/A <Part 15 Subpart C> Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207(a) AC Mains N/A *1 - N/A Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.209 Radiated N/A 18.5dB (PK, Horizontal) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.205 & 209 Radiated N/A 4.2dB (54.88MHz, QP, Vertical) Complied -26dB Bandwidth ANSI C63.4: 2003 Annex H.6 Occupied bandwidth measurements - Radiated N/A - Complied *1) The test is not applicable since the EUT has no AC mains. *2) The test is not applicable to the EUT since the EUT does not have antenna port. Note: UL Apex’s EMI Work Procedures No.QPM05. 3.3 Addition to…

Text truncated - open the document above for the full version.

FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 12 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Radiated emission (Receiving) FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 13 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Radiated emission (Transmitting) FCC ID : CWTWDU633 Test report No. : 26IE0397-YK-A Page : 14 of 24 Issued date : May 22, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Pre-check of worst position EUT: X-axis, Antenna: X-axis EUT: Y-axis Antenna: X-axis EUT: Z-axis, Antenna: X-axis EUT: Z-axis, Antenna: Y-axis EUT: Z-axis, Antenna: Z-axis
