CWTWDU722Vehicle Control Unit - Transmitter

CONTENTS 1. PREFACE 2. PASSSIVE ACCSESS ENTRY FUNCTIONALITY 2.1. Door Unlocking 2.2. Engine Start 2.3. Engine Stop 2.4. Door Locking (Push switch) 3. ACTIVE ACCESS ENTRY FUNCTIONALITY 3.1. Door Unlocking 3.2. Engine Start 3.3. Engine Stop 3.4. Door Locking 4. ENTRY SYSTEM OPTIONS 4.1. System Schematic 4.2. Modules 4.2.1. FOB ECU 4.2.2. Entry System ECU 5. SYSTEM CHARACTERISTICS 5.1. Antenna Areas 5.2. Exciter Locations 5.3. Switch Input Locations (Door handle) 6. ELECTRICAL CHARACTERISTICS 6.1. FOB 6.2. Entry System ECU FCC WARNING NOTICE 1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • • • • • • • • • • • • • • • • Door unlocking / locking (however, only for request by means of switch operation) Trunk unlocking / locking (however, only for request by means of switch operation) LF decoding RF encoding Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: Door unlocking / locking Trunk unlocking / locking Engine start (/ stop) LF encoding RF encoding Communication data encryption (cryptograph, anti-collision, rolling code and stuff) LF antenna unit control Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: Learning mode for programming the manufacturing data and stuff Data locking and password protection Diagnostic (based upon ISO9141 if required) 2.Passsive Accsess Entry Functionality A handle sw located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Door Handle SW Figure 1 2.1.Door Unlocking • • • • • User pushes door handle sw. ECU sends LF-challenge via exterior antenna. FOB sends RF-response to the ECU. Door unlocking status is engaged. Doors are opened. RF LF FOB Figure 2 2.2.Engine Start • • • • • • User operates the engine start knob. ECU sends LF-challenge via interior antenna. FOB sends RF-response to the ECU. Immobilizer ECU receives and authorize the response. Engine controller ECU receives the authorization for engine strat. FOB RF LF Start the engine. Figure 3 2.3.Engine Stop • • • • User operates the engine stop knob. ECU communicates with the other ECU for engine start request. Engine controller ECU receives the request. Stop the engine Figure 4 2.4.Door Locking (Push switch) • • • • • • User closes the door and pushes the switch (sensing of door locking switch). ECU sends LF-challenge via exterior antenna. FOB sends RF-response to the ECU. Door locking status is engaged. Doors are locked. (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 3.Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influence on the active entry system. 3.4.Door Locking Same functionality as the current one. 4.Entry System Options 4.1.System Schematic 125kHz FOB ENTRY SYSTEM ECU Body Bus ECUECUECU Local Bus RF (>4Kbps) 315MHz LF (>2Kbps) OTHER ECUS 4.2.Modules 4.2.1.FOB ECU 315MHz 125kHz Emergency key (Transponder) Panic Unlock Lock Y X Z ASIC LF Amp RF Amp FOB 4.2.2.Entry System ECU Room2 Room3 LF Excite r LF Excite r Interior Antenna Room1: Console Antenna Room2: Inst. Antenna Room3: Luggage Antenna Dr : Driver Door Antenna As : Assist Door Antenna Back : Backdoor Antenna (Trunk Antenna) 125kHz Exterior Antenna 315MHz Back AsDr Room1 LF Excite r LF Excite r LF Excite r LF Excite r RF Amp LocalBus BodyBus Push knob (Engine start knob) Dr Door handle As Door handle Back Door handle MCU ENTRY SYSTEM ECU 5.System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : typ.3, however, it is depending on the type of the vehicle. Number of the interior exciters: max.4 (min.2) Interior Exterior DrAs Back Figure 6 Exterior antenna functionality: • • • • • Unlock / lock doors and trunk. Activate / deactivate alarm system. Activate immobilizer Interior antenna functionality: Deactivate immobilizer Engine start 5.2.Exciter Locations Exterior exciters: 3 doors Interior exciters: 1 Center Console 2 Inst panel 3 Luggage Back Interior Exterior Dr As Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). 5.3.Switch Input Locations (Door handle) There are some switches, for instance the door handle contact switch will be used as a triggering for unlocking and open the door. Switch inputs: 3 doors Dr As Back Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). 6.Electrical Characteristics 6.1.FOB • • • • • • • • • • • • ASK / FSK modulation Operating supply voltage 2.5V ~ 3.3V (3.0V Battery) Operating supply current < 35mA Stand-by current < 10.0uA Operating ambient temperature -10 o C to +60 o C Antenna direction 3-Dimension (X, Y, Z), to be considered Battery life 1.5 Years (Low battery indication is considered) 6.2.Entry System ECU Operating supply voltage 9.0V ~ 16.0V Operating supply current < 55mA Stand-by current < 4.0mA Operating ambient temperature -30 o C to +80 o C FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause har…

Text truncated - open the document above for the full version.

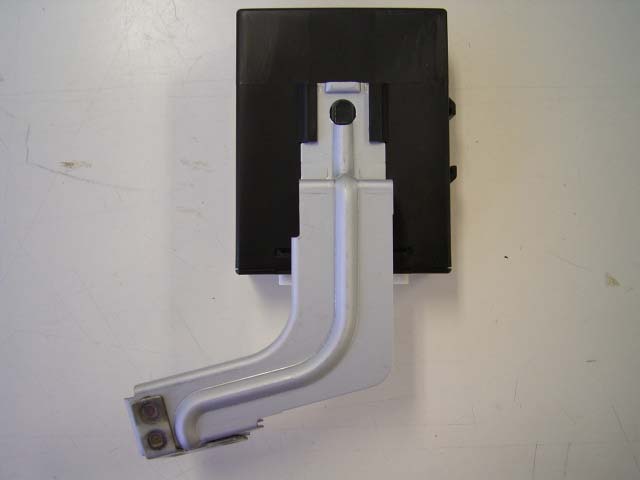

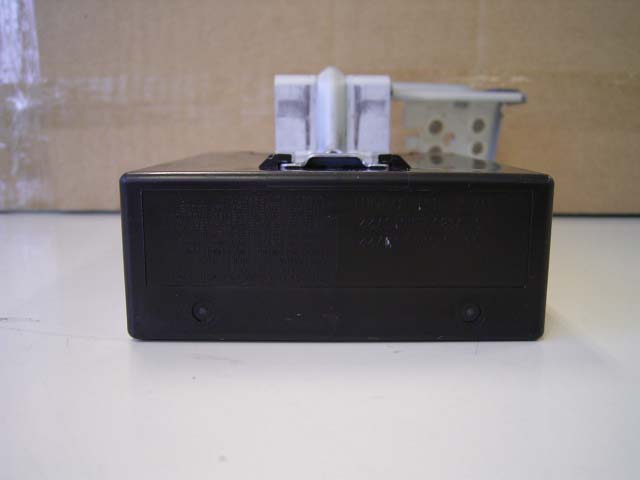

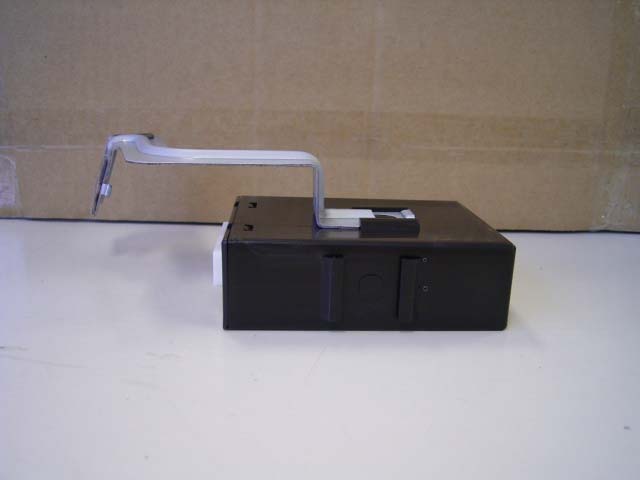

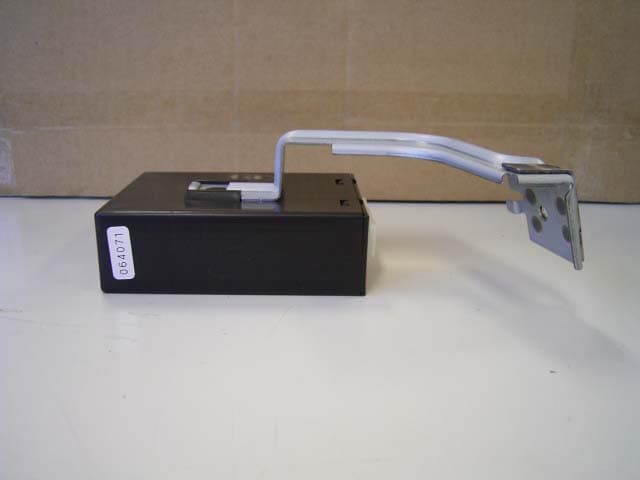

Alps Electric Co., Ltd. FCC ID: CWTWDU722 IC Number: 1788D-FWD1U722 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWDU722 IC Number: 1788D-FWD1U722 Front Rear Alps Electric Co., Ltd. FCC ID: CWTWDU722 IC Number: 1788D-FWD1U722 Left Side Right Side

Alps Electric Co., Ltd. Antenna Photo External Photo Back Antenna Console Antenna Alps Electric Co., Ltd. Antenna Photo Dr_As Antenna In Lock Pit Antenna Alps Electric Co., Ltd. Antenna Photo Luggage Antenna

Label Control UNIT (TWD1U722) 722 722 *The way of attaching FCC ID is “Carving”

Alps Electric Co., Ltd. FCC ID: CWTWDU722 IC Number : 1788D-FWD1U722 Internal Photo Front Alps Electric Co., Ltd. FCC ID: CWTWDU722 IC Number : 1788D-FWD1U722 Rear Tuner – Front with shield Tuner – Front without shield Alps Electric Co., Ltd. FCC ID: CWTWDU722 IC Number : 1788D-FWD1U722 Tuner – Rear

Alps Electric Co., Ltd. Antenna Photo Internal Photo Internal detail_bottom Internal detail_top Alps Electric Co., Ltd. Antenna Photo Antenna Internal Photo

Test report No. : 26AE0241-HO-1a Page : 2 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information.......................................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................3 SECTION 3: Test specification, procedures & results ...................................................................5 SECTION 4: Operation of E.U.T. during testing............................................................................8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ..................................10 APPENDIX 1: Photographs of test setup.......................................................................................11 Radiated emission.................................................................................................................11 Worst Case Position (X-axis/0 deg.)....................................................................................14 APPENDIX 2: Test Instruments.....................................................................................................15 APPENDIX 3: Data of EMI test .....................................................................................................16 Radiated Emission................................................................................................................16 -26dB Bandwidth..................................................................................................................20 99% Occupied Bandwidth...................................................................................................21 Test report No. : 26AE0241-HO-1a Page : 3 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa-city Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Katsuhiro Seino SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Passive Entry System (Control Unit) Model No. : TWD1U722 Serial No. : 064074 Country of Manufacture : Japan Receipt Date of Sample : September 27, 2005 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: TWD1U722 is Control Unit of Passive Entry System. It has a transmitting function of 125kHz and a receiving function of 315MHz. Equipment type : Transceiver Rating : DC 12.0V (Car battery) Temperature of operation : -40 deg. C. -+85 deg. C. Other Clock Frequency : 16MHz, 32.768kHz, 65.14MHz Tx section Frequency of Operation : 125kHz Modulation : Amplitude Antenna : External (LC antenna) Rx section Receiving Frequency : 315MHz Intermediate Frequency : 10.7MHz Antenna : Internal (Bar antenna) FCC 15.31 (e) The power supply of this EUT is transformed to DC5.0V and provides stable voltage (DC5.0V) constantly to Radio part. Therefore, this EUT complies with the requirement. FCC 15.111(b) The receiving antenna is installed inside the EUT and cannot be removed. Therefore, the EUT complies with the requirement in section 15.111(b). Test report No. : 26AE0241-HO-1a Page : 4 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) FCC15.203 Antenna requirement It is impossible for users to replace the antenna, because the antenna is a set with EUT and installed outside of EUT inside the vehicle. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 26AE0241-HO-1a Page : 5 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification/Title : FCC Part 15 Subpart C 2005 FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements FCC Part 15 Subpart B 2005 FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators Section 15.109 Radiated emission limits Remarks: This equipment adopted section 15.101(b) procedure- ｢ However, receivers indicated as being subject to Declaration of Conformity that are contained within a transceiver, the transmitter portion of which is subject to certification, shall be authorized under the verification procedure. ｣ 3.2 Procedures and results [FCC Part 15 Subpart C] No. Item Test Procedure SpecificationRemarks Worst margin Result 1 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section 15.209 Radiated <PK> 30.8dB 125.03kHz,0 deg. <AV> 33.2dB 125.03kHz, 0 deg. Complied 2 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section 15.205 FCC Section 15.209 Radiated 3.2dB 49.001MHz, QP Vertical (Max Antenna, X-axis) Complied 3 Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section 15.207(a) AC Mains only *1) N/A N/A Note: UL Apex’s EMI Work procedures No. QPM05 and QPM15. *1) This test is not applicable sinc…

Text truncated - open the document above for the full version.

Test report No. : 26AE0241-HO-1a Page : 11 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Radiated emission (Transmitting: 90kHz-30MHz) Front Rear Test report No. : 26AE0241-HO-1a Page : 12 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Radiated emission (Transmitting: 30-1000MHz) Front Rear Test report No. : 26AE0241-HO-1a Page : 13 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Radiated emission (Receiving) Front Rear Test report No. : 26AE0241-HO-1a Page : 14 of 21 Issued date : October 14, 2005 Revised date : November 11, 2005 FCC ID : CWTWDU722 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (Horizontal: X-axis/Vertical: X-axis) X-axis Y-axis Z-axis
