CWTWDU750Passive Entry System - Control Unit

Confidential CONTENTS 1.PREFACE .............................................................................................................................................2 2.PASSSIVE ACCSESS ENTRY FUNCTIONALITY...............................................................................3 2.1.Door Unlocking ............................................................................................................................................... 3 2.2.Engine Start.................................................................................................................................................... 4 2.3.Engine Stop .................................................................................................................................................... 4 2.4.Door Locking (Push switch) ............................................................................................................................ 5 3.ACTIVE ACCESS ENTRY FUNCTIONALITY......................................................................................6 3.1.Door Unlocking ............................................................................................................................................... 6 3.2.Engine Start.................................................................................................................................................... 6 3.3.Engine Stop .................................................................................................................................................... 6 3.4.Door Locking .................................................................................................................................................. 6 4.ENTRY SYSTEM OPTIONS .................................................................................................................7 4.1.System Schematic .......................................................................................................................................... 7 4.2.Modules .......................................................................................................................................................... 7 4.2.1.FOB ECU.............................................................................................................................................. 7 4.2.2.Entry System ECU ................................................................................................................................ 7 5.SYSTEM CHARACTERISTICS ............................................................................................................8 5.1.Antenna Areas................................................................................................................................................ 8 5.2.Exciter Locations ............................................................................................................................................ 9 5.3.Switch Input Locations (Door handle) ........................................................................................................... 10 6.ELECTRICAL CHARACTERISTICS ..................................................................................................11 6.1.FOB .............................................................................................................................................................. 11 6.2.Entry System ECU........................................................................................................................................ 11 FCC WARNING......................................................................................................................................12 NOTICE ..................................................................................................................................................12 Confidential 1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • • • • • • • • • • • • • • Door unlocking / locking (however, only for request by means of switch operation) LF decoding RF encoding Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: Door unlocking / locking Engine start (/ stop) LF encoding RF encoding Communication data encryption (cryptograph, anti-collision, rolling code and stuff) LF antenna unit control Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: Learning mode for programming the manufacturing data and stuff Data locking and password protection Diagnostic (based upon ISO9141 if required) Confidential 2.Passsive Accsess Entry Functionality A handle sw located on, for example the door handles and mirrors will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors Door Handle SW Figure 1 2.1.Door Unlocking User pushes door handle sw. • • • • • ECU sends LF-challenge via exterior antenna. FOB sends RF-response to the ECU. Door unlocking status is engaged. Doors are opened. RF LF FOB Figure 2 Confidential 2.2.Engine Start User operates the engine start knob. • • • • • • ECU sends LF-challenge via interior antenna. FOB sends RF-response to the ECU. Immobilizer ECU receives and authorize the response. Engine controller ECU receives the authorization for engine strat. FOB RF LF Start the engine. Figure 3 2.3.Engine Stop User operates the engine stop knob. • • • • ECU communicates with the other ECU for engine start request. Engine controller ECU receives the request. Stop the engine Figure 4 Conf…

Text truncated - open the document above for the full version.

Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 External Photo Front Rear Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 External Photo Left Right Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 External Photo Antenna Side A Antenna Side B

Confidential Label Control UNIT (TWD1U750) FCC ID：CWTWDU750 IC：1788D-FWD1U750 MODEL NAME：TWD1U750 ALPS ELECTRIC CO．，LTD． *The way of attaching FCC ID is “Carving”

Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 Internal Photo PWB Side A PWB Side B Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 Internal Photo Tuner Side A with Shield Tuner Side A without Shield Alps Electric Co., Ltd. FCC ID: CWTWDU750 IC Number: 1788D-FWD1U750 Internal Photo Tuner Side B

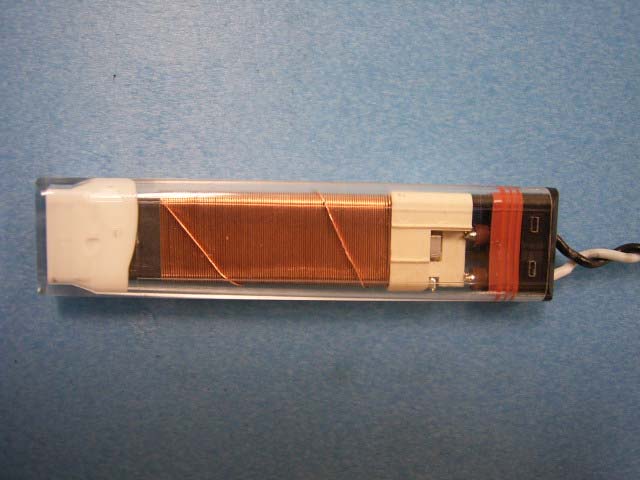

Antenna Specification Antenna Type Bar Antenna Antenna Gain Below –30dBi Photo and Dimension 79mm 19mm

FCC ID : CWTWDU750 Test report No. : 27FE0255-YK-A Page : 2 of 18 Issued date : February 23, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Radiated Emissions (Fundamental & Spurious) 7 6 Bandwidth 8 Contents of Appendixes 9 APPENDIX 1: Photographs of test setup 10 APPENDIX 2: Test Data 12 APPENDIX 3: Test instruments 18 FCC ID : CWTWDU750 Test report No. : 27FE0255-YK-A Page : 3 of 18 Issued date : February 23, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 1 Applicant Information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Furukawanakazato, Osaki-shi, Miyagi-ken, 989-6181 JAPAN Telephone Number : +81 229 23 5111 Facsimile Number : +81 229 23 3755 Contact Person : Katsuhiro Seino 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Passive Entry System (Control Unit) Model No. : TWD1U750 Serial No. : 173938 Rating : DC12V (Car Battery) Country of Manufacture : Japan Receipt Date of Sample : February 9, 2007 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model: TWD1U750 (referred to as the EUT in this report) is a Control Unit of Passive Entry System. The Passive Entry System is a system which locks, unlocks and can start engine only with the intelligent-key of the vehicle. Equipment type : Transceiver Clock frequency : 16MHz (Main), 32.768kHz (Sub), 65.14MHz (Crystal) Operation temperature range : -30 to +80 deg.C. <Transmitter> Frequency of operation : 125kHz Type of modulation : AM Antenna type : External bar Antenna connector type : None ITU code : A1D <Receiver> Frequency of operation : 315MHz Intermediate frequency : 10.7MHz Local frequency : 325.7MHz Type of receiver : Super heterodyne Antenna type : Internal bar Antenna connector type : None *FCC Part15.31 (e) The power supply of the EUT is transformed to DC5.0V and provides stable voltage, DC5.0V constantly to Radio part. Therefore, the EUT complies with the power supply regulation. *FCC Part15.203 It is impossible for users to replace the antenna because the antenna is a set with EUT and installed outside of the EUT inside the vehicle. Therefore, the EUT complies with the antenna requirement. FCC ID : CWTWDU750 Test report No. : 27FE0255-YK-A Page : 4 of 18 Issued date : February 23, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 3 Test Specification, Procedures and Results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2006 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209: Radiated emission limits, general requirements 3.2 Procedures & Results <Part 15 Subpart B> Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements FCC §15.107(a) & 207 N/A *1 N/A N/A Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements FCC §15.109(a) N/A 19.0dB (280.00MHz, Vertical) Complied Antenna power conduction for receivers ANSI C63.4: 2003 12.1.5 Antenna-conducted power measurements FCC §15.111(a) N/A *2 N/A N/A <Part 15 Subpart C> Item Test Procedure Specification Remarks Deviation Worst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207(a) - N/A *1 - N/A Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.209 Radiated N/A 14.7dB (Horizontal, AV) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.205 & 209 Radiated N/A 13.4dB (44.64MHz, Vertical, QP) Complied -26dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators - Radiated N/A - Complied *1) The test is not applicable since the EUT has no AC mains. *2) The test is not applicable to the EUT since the EUT does not have antenna port. Note: UL Apex’s EMI Work Procedures No.QPM05. * No addition, exclusion nor deviation has been made from the standard. FCC ID : CWTWDU750 Test report No. : 27FE0255-YK-A Page : 5 of 18 Issued date : February 23, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 3.3 Uncertainty Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Loop antenna is ±2.3dB. The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±4.3dB. The data listed in this test report has enough margin, more than site margin. 3.4 Test Location UL Apex Co., Ltd. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken 258-0124 JAPAN Telephone number : +81 465 77 1011 Facsimile number : +81 465 77 2112 NVLAP Lab. code : 200441-0 No. 1 test site has been fully described in a report submitted to FCC office, and accepted on August 26, 2005 (Registration No.: 95486). IC Registration No. : IC3489A No. 2 test site has been fully described in a report submitted to FCC office, and accepted on April 4,…
