CWTWE1G0003Straight Key FOB

Since this device is always used with vehicle, it is not sold to general end users separately. Therefore there is no user manual of this device by alone. The following statements must be described on the user manual of the vehicle; Immobilizer Function Ke yless Function UNLOCK Button LOCK Button Trunk Button User's Manual Transmitter is carried by the owner of the vehicle. It performs transmission through RF antenna to tuner, vehicle performs actions according to the signal. Unit Assy Immobi&Keyless communicates with the transponder in the hand unit when the user inserts the hand unit in the key cylinder, and it rotates Product name : Straight Key FOB Type : TWE1G0003 Lithium battery CR2032 typ. 3.0V / max 3.3V Battery Weight Operation of frequency RF : 433.92MHz LF: 125kHz When the user pushes UNLOCK, LOCK, and Trunk button of HAND UNIT, the RF electric wave is output, and TUNER receives it, and an open lock, the close lock of the door, and the signal of the trunk opening are out put. 0.030kg Operating temperature range -20~＋60 degree C Keyless -40~+85 degree C Immobilizer Operation Voltage HUND UNITUNIT ASSY IMMOBI ■CAUTION■ Procedure to check Model name, FCC ID and IC Number. 1. Remove the half cover with a flathead screwdriver. 2. Take out a PWB from the half cover. 3. FCC ID and IC Number are written on the button side of PWB. Procedure to check CE Marking. 1. Remove the half cover with a flathead screwdriver. 2. CE Marking is written on the inside of half cover. ・Give a shock. ・Get it wet. If it got wet, wipe and dry up. ・Disassembly and modification. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Replace only with the same or equivalent type -CAUTION - Do not exposed to excessive heat such as sunshine, fire or the like. -CAUTION - Danger of explosion if battery is incorrectly replaced. Please DO NOT the following. Engine is not started by failure of electronic parts. (Product can not receive the signal correctly) Pay attention to the following. ・It may not be operated when using the equipment of the same frequency band in the vicinity. half coverPWB Model name FCC ID and IC half cover CE Marking

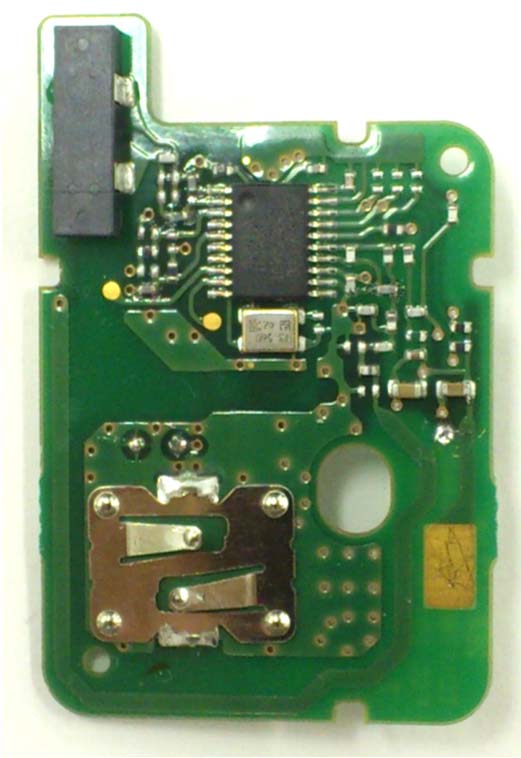

LabelFCC ID and IC Number are written on PWB inside the device.Opening the device and removing PWB are easy. IC:1788F-FWE1G0003 FCC ID:CWTWE1G0003 MODEL:TWE1G0003

Antenna

Test report No. : 10302204H-A-R1 Page : 2 of 17 Issued date : June 20, 2014 Revised date : June 26, 2014 FCC ID : CWTWE1G0003 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10302204H-A-R1 Revision Test report No. Date Page revisedContents - (Original) 10302204H-A June 20, 2014 - - 1 10302204H-A-R1 June 26, 2014 P. 9 Deletion of explanation about the mechanical key in Section 5. 1 10302204H-A-R1 June 26, 2014 P. 14 Addition of “Result pass” in -20dB bandwidth. 1 10302204H-A-R1 June 26, 2014 last page Deletion of photo of worst case position (mechanical key is inserted or not). Test report No. : 10302204H-A-R1 Page : 3 of 17 Issued date : June 20, 2014 Revised date : June 26, 2014 FCC ID : CWTWE1G0003 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 Duty Cycle ........................................................................................................................................ 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 14 APPENDIX 2: Test Instruments ················································································· 15 APPENDIX 3: Photographs of test setup ······································································· 16 Radiated emission ............................................................................................................................. 16 Worst case position ........................................................................................................................... 17 Test report No. : 10302204H-A-R1 Page : 4 of 17 Issued date : June 20, 2014 Revised date : June 26, 2014 FCC ID : CWTWE1G0003 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : ALPS ELECTRIC CO., LTD. Address : 6-3-36, Nakazato, Furukawa, Osaki-city, Miyagi-pref, 989-6181, Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-23-5129 Contact Person : Toshiya Ikarashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Straight Key FOB Model No. : TWE1G0003 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : June 13, 2014 Country of Mass-production : China, Japan, Czech Republic, and Malaysia Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: TWE1G0003 (referred to as the EUT in this report) is the Straight Key FOB. General Specification Clock frequencies in the system : 13.56MHz Radio Specification Radio Type : Transmitter Frequency of Operation : 433.92MHz Modulation : FSK Method of Frequency Generation : Crystal + PLL Operating temperature range : -20 to +60 deg. C Radio Type : Receiver Frequency of Operation : 125kHz Test report No. : 10302204H-A-R1 Page : 5 of 17 Issued date : June 20, 2014 Revised date : June 26, 2014 FCC ID : CWTWE1G0003 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on May 1, 2014 and effective June 2, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 4.9dB Vertical PK with Duty factor (Tx 433.92MHz) Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 4.3dB 4339.200MHz Horizontal PK with Duty factor (Tx 433.92MHz) Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Referenc…

Text truncated - open the document above for the full version.

Test report No. : 10302204H-A-R1 Page : 16 of 17 Issued date : June 20, 2014 Revised date : June 26, 2014 FCC ID : CWTWE1G0003 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10302204H-A-R1 Page : 17 of 17 Issued date : June 20, 2014 Revised date : June 26, 2014 FCC ID : CWTWE1G0003 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Below 1GHz Horizontal: X-axis/Vertical : Y-axis Above 1GHz Horizontal: X-axis/Vertical : Y-axis X-axis Y-axis Z-axis End of Report
