D6PHFD-20AT99LWireless Security Alarm System

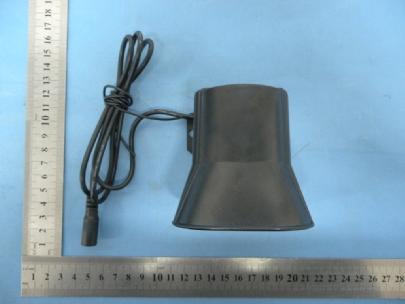

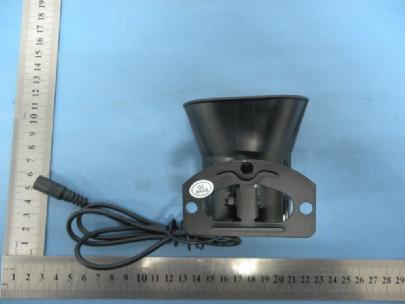

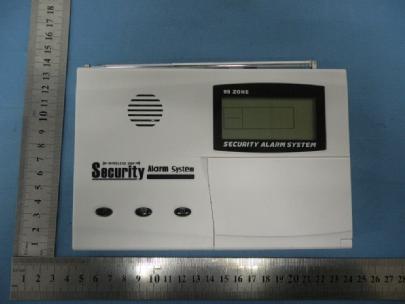

Wireless intelligent alarm system – user manual 0 I. Overview Thank you for choosing this intelligent wireless alarm system, please read the user manual carefully before installation and operation. The alarm system support most of the wireless detectors, it is easy use and install, It could make onsite alarm and dial the user phone number through telephone line when the alarm is activated. It is the ideal choice for family, villas, shopping malls, and office for anti-theft purpose. 1. The basic function of alarm system 1) The main panel supports most of wireless detectors, PIR, magnetic gap detector, infrared balusters, smoking and gas sensors, panic buttons etc. 2) The main panel supports up to 99 wireless alarm zones, wireless detectors are easy to register and use. 3) The main panel could preset 2 center alarm phone numbers and 6 alarm phone numbers. 4) Full keyboard operation. 5) Main panel supports wireless siren, keep sounding when alarming, the wireless siren would also send the confirmation sound when the system is armed or disarmed. 6) Users could set the system status(Arm, Disarm etc.) through the remote telephone by dialing the main panel’s number. 7) The main panel has high priority to make the alarm phone call, if the phone is used(not alarming)when the alarm is activated. 8) The main panel could record voice information, this voice would be played to alarm phone automatically when the alarm phone call is connected. 9) Onsite voice monitor through telephone form long distance. Wireless intelligent alarm system – user manual 1 10) Main panel supports wired/wireless siren, user could connect the wired/wireless siren to the main panel. 11) For security reason one password is used for remote access. 12) The main panel could make alarm when it keeps detecting the specified frequency interference for more than 5 seconds. 13) The main panel has anti-decode function, user could set disenable the wireless remote controller, then all controllers(include those possibly decoded) could not set the panel. 2. The main technical parameters: 1) Working power supply : DC 9-12V 2) Back-up battery : 7.2V (1.2V x6) Ni-MH rechargeable battery A. Static Current： Is< 5mA B. Alarm current: Ia<280mA 3) Wireless working frequency: Receive 315MHz Transmission(for wireless siren): 433.92 MHz 4) Wireless encoding: ASK 5) Wireless receiving sensitivity: -98dBm @ 12dB SINAD 6) The number of wireless zone: 99 7) The number of alarm phone number: 8 groups . 8) Wired/wireless alarm siren volume: ≥ 110dBspl 9) Operating temperature: -15 °C ~ +55 °C R.H. ≤ 90% 3. The basic kits of alarm system 1) Main panel (include battery) 1 set 2) Wireless door detector 2 sets 3) Wireless remote controller 2 pcs 4) Wireless siren 1 pc 5) User manual 1 set Wireless intelligent alarm system – user manual 2 II The installation of the alarm system 1. The structure of alarm main panel. 2. Installation of wireless detector 1) Installation of Magnetic Door and Window detectors. The principle of magnetic door detector is sense distance, when the gap of magnet and magnetron is increased to a certain distance, the magnetism decreases accordingly and the switch in the magnetron turns on and result from alarming .It can detect the opening of doors and windows. Magnet part is easy to install on the doors or windows, the other part then fixed on the door frames by adhesive tape. 2) Installation of P.I.R. P.I.R. could detect body in the certain range .Detection distance is from 5 to 15 meters (adjustable), Horizontal detection angle is 110 degrees, and vertical detection angle is 60 degrees. Adjusting the direction and distance to the suitable position and then fixing the detector on the wall or the furniture. Please be noted: the position and direction of the detector would affect the detection performance, please contact the suppliers if meet any difficulties when make the installation. 3) The usage of wireless remote controllers. The remote controller has four buttons: Away Arm Button , Home Arm button, Disarm Button, Panic Button, Pressing the arm button (away arm and home arm), the main panel will get into arm status instantly; when press the panic button, the main panel will alarm no matter what kind of status the main panel is in, Pressing disarm button would set the main panel in disarm status and abort the current alarm operation. Wireless intelligent alarm system – user manual 3 III The setting and usage of main panel 1. The basic setting of main panel It is necessary to make the related setting for user before using the system, The System setting procedure and format: If the operation is correct, the host would give one “Di...” beep to confirm, otherwise give “Di..Di” two beep to prompt the user. Following is the basic settings of the main panel, please be noted: those setting operation are all under the setting “ CF” disarm state. ＞Set alarm phone number Format: [#] + [1 ](1-6) + [12345678] (Tel number) +【#】 Description: Input 1-6 to set 1-6 group alarm phone number. But the sixth group phone number is only emergency use. ＞Delete alarm phone number Format: [#] + [1] (1-6) + [0] +【#】 Description: Input 1-6 to delete 1-6 group alarm phone number. ＞Set 1-2 group alarm center phone number Format: [#] + [7] (7-8) + [11223344] (center number) +【#】 Description: Input 7-8 to set 1-2 group alarm center phone number. ＞Delete alarm center phone number. Format: [#] + [7 ](7-8) + [0] +【#】 Description: Input 7-8 to delete 1-2 group alarm center phone number. ＞set or change the operation password. Format: [*] + [7] +[5858] (new password)+ [5858] (new password) +【*】 Description: set new password to 5858 ＞set the main panel user ID Format: 【*】+【0】+【012345】(user ID, 000000-999999) +【*】 Description: set user ID to 012345 when use the alarm center. Wireless intelligent alarm system – user manual 4 ＞Set ring times before answering the remote calling . Format: 【*】+【6】+【9】(0-9) +【*】 Description: Set ring times before answering the remote phone call, …
