D6PHFD-MC01WWireless Alarm Detector

1 Wireless alarm detector manual Instructions System Introduction Magnetic detector installation of the Door use a double-sided adhesive affix magnetic to the door and attach the door sensor box to the door frame, put the magnetic near the LED light side on the sensor box when installing, both of alignment, spacing the smaller the better. The Installation of Infrared Detector The theory of Infrared detector is that works by infrared signals send out by the human body, it can sense the body movements. Detection range is usually 5-12 meters. Infrared probe should be installed around 2.2 meters over the ground position and be aligned to detect regions. Infrared probe can only be installed in the room, not facing the sunlight. The location of infrared installation will affect the accuracy of detection. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: D6PHFD-MC01W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Hwafarda Smart Technology Co., Ltd SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Shenzhen Hwafarda Smart Technology Co., Ltd SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (March 17, 2012) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Hwafarda Smart Technology Co., Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: D6PHFD-MC01W Product name: Wireless alarm detector Model: HFD-MC01W, HFD-MC02W, HFD-MC03W, HFD-MC03D, HFD- PB01W, HFD-PB02W, HFD-PB03W, HFD-RC01W, HFD-RC02W, HFD-RC03W, HFD-RC05W, HFD-RC06W, HFD-HW01W, HFD-HW02W, HFD-HW03W, HFD- HW03WD, HFD-HW05W, HFD-HW06W, HFD-HW06WD We affirm that between SIEMIC and Shenzhen Hwafarda Smart Technology Co., Ltd , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature william wang / Marketing Manager Title: Marketing Manager Telephone: +86-755-83977681 Email: [email protected] Date: March 17, 2012

Shenzhen Hwafarda Smart Technology Co., Ltd SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 Shenzhen Hwafarda Smart Technology Co., Ltd SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 (March 17, 2012) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: D6PHFD-MC01W We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram Long-term confidential - Operation description Long-term confidential - Schematic Long-term confidential The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature william wang / Marketing Manager Title: Marketing Manager Telephone: +86-755-83977681 Email: [email protected] Date: March 17, 2012 Company Name: Shenzhen Hwafarda Smart Technology Co., Ltd Address: Floor 3, Yaqingju Building, Guangya-yuan Industrial Zone, Bantian Street, Longgang District, Shenzhen City, China

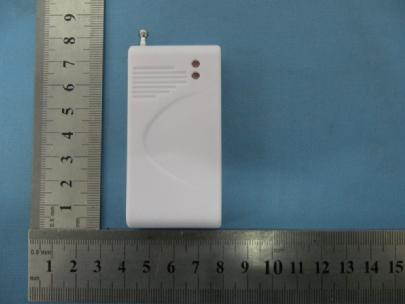

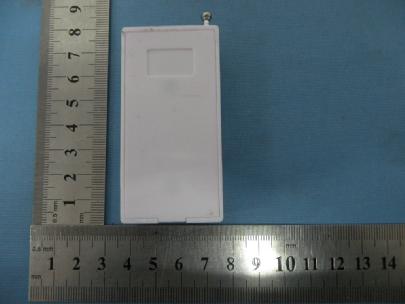

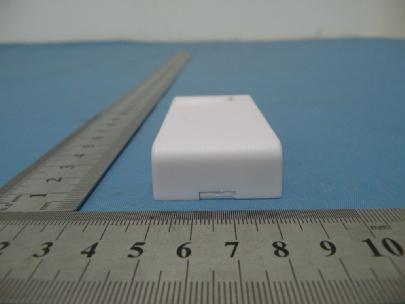

Full View Top View Top View Bottom View Front View Left View Rear View Right View

FCC ID: D6PHFD-MC01W

Label Location

Top View Bottom View ANTENNA

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China. FCCID: D6PHFD-MC01W Page 1 of 32 TEST REPORT FCC ID: D6PHFD-MC01W Applicant : Shenzhen Hwafarda Smart Technology Co., Ltd Address : Floor 3, Yaqingju Building, Guangya-yuan Industrial Zone, Bantian Street, Longgang District, Shenzhen City, China Equipment under Test (EUT): Name : Wireless alarm detector Model : HFD-MC01W, HFD-MC02W, HFD-MC03W, HFD-MC03D, HFD-PB01W, HFD-PB02W, HFD-PB03W, HFD-RC01W, HFD-RC02W, HFD-RC03W, HFD-RC05W, HFD-RC06W, HFD-HW01W, HFD-HW02W, HFD-HW03W, HFD-HW03WD, HFD-HW05W, HFD-HW06W, HFD-HW06WD Standards : FCC PART 15, SUBPART C : 2010 (Section 15.231) Report No. : STE120312232 Date of Test : March 10-15, 2012 Date of Issue : March 16, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE120312232 FCCID: D6PHFD-MC01W Page 2 of 32 TABLE OF CONTENT Description Page 1 General Information---------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility-----------------------------------------------------------------------4 2 EMC Equipment List-----------------------------------------------------------------------------------4 3 Test Procedure---------------------------------------------------------------------------------------------5 4 Summary of Measurement---------------------------------------------------------------------------6 Occupied bandwidth----------------------------------------------------------------------------------------6 5 Radiation Emission------------------------------------------------------------------------------------7 5.1 Duty cycle-------------------------------------------------------------------------------------------7 5.2 Radiation Emission Limits(15.209&231)---------------------------------------------------13 5.3 Test Setup-----------------------------------------------------------------------------------------13 5.4 Test Procedure-----------------------------------------------------------------------------------15 5.5 Test Equipment Setting For emission test.est Result----------------------------------16 5.6 Test Condition------------------------------------------------------------------------------------16 5.7 Test Result----------------------------------------------------------------------------------------16 6 Occupied bandwidth---------------------------------------------------------------------------------20 6.1 Test limit-------------------------------------------------------------------------------------------20 6.2 Method of measurement-----------------------------------------------------------------------20 6.3 Test Setup-----------------------------------------------------------------------------------------20 6.4 Test Results---------------------------------------------------------------------------------------20 7 Transmission time------------------------------------------------------------------------------------22 7.1 Test limit-------------------------------------------------------------------------------------------22 7.2 Method of measurement-----------------------------------------------------------------------22 7.3 Test Setup-----------------------------------------------------------------------------------------22 7.4 Test Results---------------------------------------------------------------------------------------22 8 Band Edge Check-------------------------------------------------------------------------------------24 8.1 Test limit-------------------------------------------------------------------------------------------24 Please refer section15.231 and section 15.205.------------------------------------------------24 8.2 Test Procedure-----------------------------------------------------------------------------------24 8.3 Test Setup-----------------------------------------------------------------------------------------24 8.4 Test Result----------------------------------------------------------------------------------------24 9 Antenna Requirement-------------------------------------------------------------------------------25 9.1 Standard Requirement-------------------------------------------------------------------------25 9.2 Antenna Connected Construction-----------------------------------------------------------25 9.3 Result-----------------------------------------------------------------------------------------------25 10 Photographs of Test Setup------------------------------------------------------------------------26 11 Photographs of EUT---------------------------------------------------------------------------------28 Report No.:STE120312232 FCCID: D6PHFD-MC01W Page 3 of 32 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : Wireless alarm detector Model No. : HFD-MC01W, HFD-MC02W, HFD-MC03W, HFD-MC03D, HFD-PB01W, HFD-PB02W, HFD-PB03W, HFD-RC01W, HFD-RC02W, HFD-RC03W, HFD-RC05W, HFD-RC06W, HFD-HW01W, HFD-HW02W, HFD-HW03W,HFD-HW03WD, HFD-HW05W, HFD-HW06W, HFD-HW06WD DIFF : Only different in appearance, th…

Text truncated - open the document above for the full version.

Photographs-Radiated Emission Test Setup in Chamber Below 1GHz Above 1GHz
