DBZDBWireless Microphone Transmitter

DSW System DR Receiver/DB Transmitter INSTRUCTION MANUAL Rio Rancho, NM, USA www.lectrosonics.com Fill in for your records: Serial Number: Purchase Date: Essential Setup Steps 1) Install receiver modules, antennas and connect to a power supply (see page 6) 2) Generate an encryption key (see page 20) 3) Install transmitter batteries and antennas (see page 15) 4) Transfer encryption key to transmitters (see page 20) 5) Identify and set operating frequencies on the receiver using Smart Tune TM (see page 21) (the procedure includes transferring frequency settings to the transmitters) 6) Attach microphones and adjust transmitter input gain (see page 22) 7) Verify operation with a walk test through the area where the system will be used DSW Digital Wireless System LECTROSONICS, INC. 2 DSW Digital Wireless System Rio Rancho, NM 3 Introduction DSW (Digital Secure Wireless) is designed for no-com- promise applications where performance and security are the highest priority. A completely new digital architecture was developed for the DSW wireless system. Extended operating range rivals the best analog and Digital Hybrid Wire- less ® systems, with remarkable audio quality and only 2.5 ms of latency. The system operates on standard UHF FCC Part 74 frequencies (TV channel band). 256-bit encryption is applied to the transmitted signal stream for security against eavesdropping. The algo- rithm conforms to the AES 256-CTR standard. DR Modular Receiver The DR receiver is a 1RU modular, six-channel design with a host mainframe that contains the DSP, micro- processor, antenna multicoupler and control interface. Receiver modules are installed on either side of the mainframe. No tools are required to remove and install the receiver modules. Each module will tune across a 25.6 MHz range. Antenna ports on the rear panel accept input from remote antennas, with a “loop-thru” output to another mainframe. A high quality internal multicoupler distrib- utes the RF signal to the receiver modules. For rack mount installations, a kit is available to mount antenna inputs (BNC connectors) on the receiver front panel using a coaxial cable routed through the receiver chassis to the rear panel connections. DB Belt Pack Transmitter The DB belt pack transmitter is encased in a solid machined aluminum housing with a membrane switch panel and backlit LCD interface. The servo bias input circuitry will work with a wide variety of microphones and line level sources, Input gain is adjustable over a wide range in 1 dB steps to optimize the signal to noise ratio and dynamics of the audio. The transmitter tunes across the entire frequency range of the DSW system, from 470 MHz to 691 MHz. Table of Contents Essential Setup Steps ..........................................................1 Introduction ............................................................................3 Receiver Front Panel .............................................................4 Headphone output ...............................................................4 LCD and control Interface ....................................................4 Encryption key and settings transfer port .............................4 USB Port ..............................................................................4 Comm LED ..........................................................................4 Alert LED .............................................................................4 Power LED ...........................................................................4 Receiver Rear Panel ..............................................................5 Antenna connections ...........................................................5 Audio Outputs ......................................................................5 Ethernet Port ........................................................................5 AES Word Clock ..................................................................5 RS-232 Port .........................................................................5 Antenna Cable Front Panel Pass-thru ..................................5 Power Supply .......................................................................5 Hardware Installation ............................................................6 Receiver Modules ................................................................6 Antenna Connections ...........................................................6 Audio Output Wiring - Analog ...............................................6 Audio Output Wiring - AES3 Digital ......................................7 Connections for Computer Interface ....................................7 RS-232 Port Pinouts ............................................................7 Ethernet Port ........................................................................7 Receiver LCD Interface .........................................................8 Navigating the Menus ..........................................................9 Menu Map and Icons .........................................................10 Software Installation ...........................................................13 Windows Installation ..........................................................13 Mac Installation ..................................................................14 Connecting to a Network ....................................................14 Using DHCP for IP Address Assignment ...........................14 DB Transmitter .....................................................................15 Features and Functions .....................................................15 DB Transmitter LCD Interface ............................................15 Powering On in Operating Mode ........................................16 Powering On in Standby Mode ..........................................16 Powering Off ......................................................................16 Power Menu ...............…

Text truncated - open the document above for the full version.

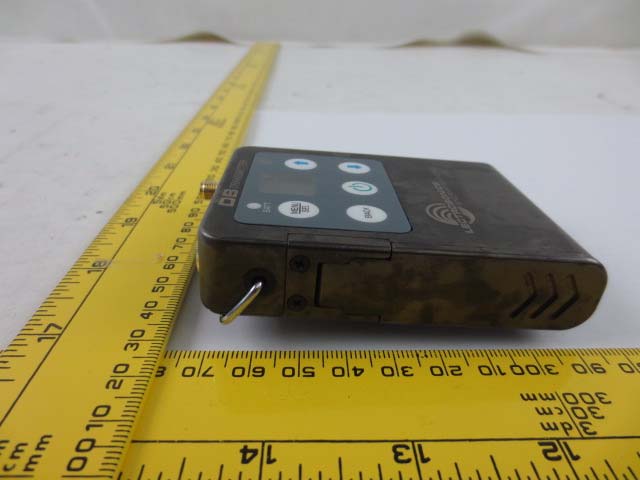

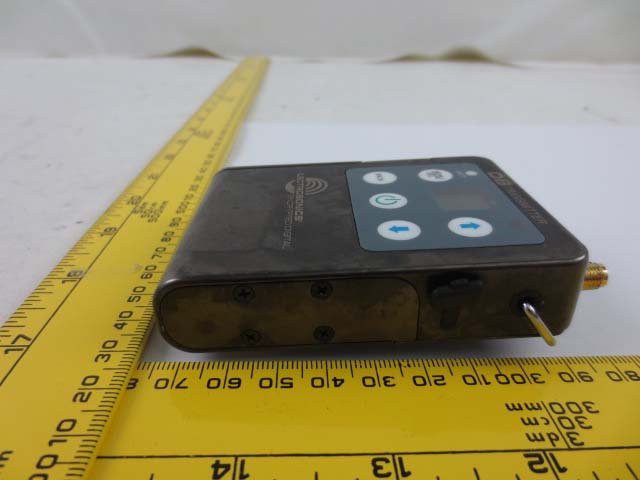

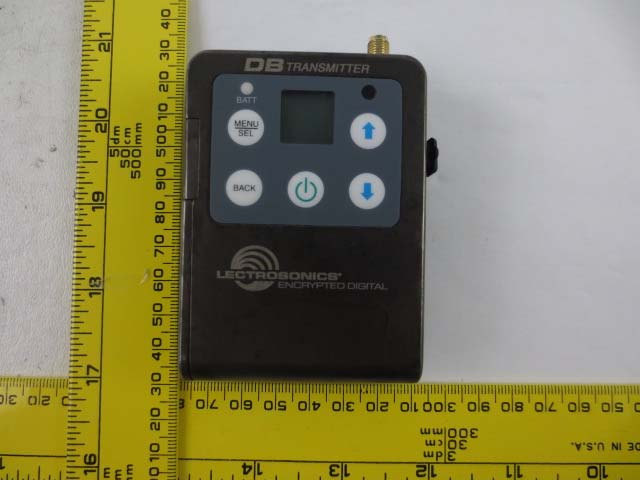

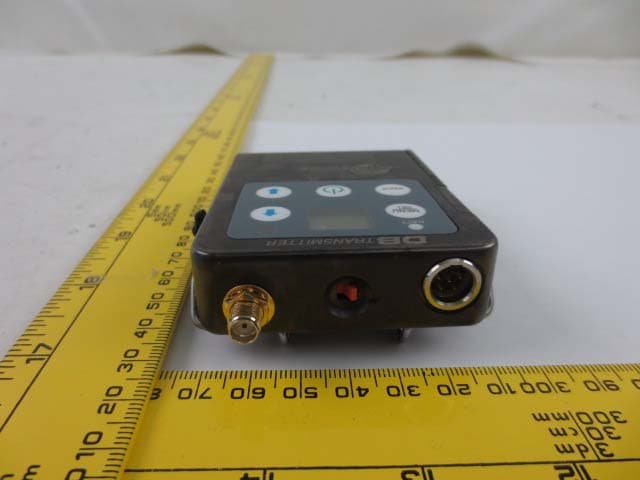

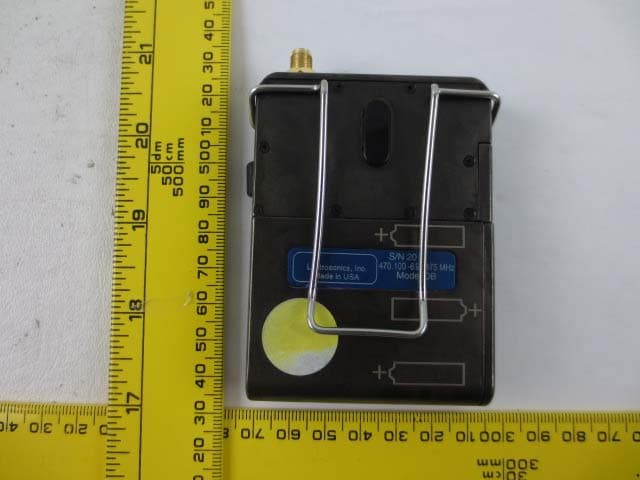

Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 36 of 44 FCC Part 74H/IC RSS-123 Test Report 12 Exhibit C- EUT Photos 12.1 EUT- Top View 12.2 EUT- Bottom View Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 37 of 44 FCC Part 74H/IC RSS-123 Test Report 12.3 EUT – Front View 12.4 EUT – Rear View Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 38 of 44 FCC Part 74H/IC RSS-123 Test Report 12.5 EUT – Left Side View 12.6 EUT – Right Side View

S/N XXXXXX Model: DB IC: 8024A-DB FCC ID: DBZDB Lectrosonics, Inc. Made in USA 470.100-691.175 MHz Lectrosonics DB Transmitter Label sample and location DB digital transmitter engraving 7 Oct 2013 BCJ first version 5 Mar 2014 BCJ updated to final layout

Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 39 of 44 FCC Part 74H/IC RSS-123 Test Report 12.7 EUT – EUT Open Top Board View 12.8 EUT Open Bottom Board Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 40 of 44 FCC Part 74H/IC RSS-123 Test Report 12.9 Main Board Top View (Shielded View) 12.10 Main Board Bottom View (Shielded View) Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 41 of 44 FCC Part 74H/IC RSS-123 Test Report 12.11 Main Board Top View (Unshielded View) 12.12 Main Board Bottom View (Unshielded View) Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 42 of 44 FCC Part 74H/IC RSS-123 Test Report 12.13 EUT– Bottom Board Top View 12.14 EUT Bottom Board Bottom View Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 43 of 44 FCC Part 74H/IC RSS-123 Test Report 12.15 EUT Accessary – Antenna AMM19 12.16 EUT Accessory – Antenna AMM22 Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 44 of 44 FCC Part 74H/IC RSS-123 Test Report 12.17 EUT Accessory – Antenna AMM25 --- END OF REPORT ---

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) SAR EVALUATION REPORT For Lectrosonics, Inc. 581 Laser Road, Rio Rancho, NM 87124, USA FCC ID: DBZDB IC: 8024A-DB Model: DB Report Type: Original Report Product Type: Digital Wireless Microphone Transmitter Prepared By: Simon Ma Report Number: R1407293-SAR Report Date: 2015-01-12 Reviewed By: Bo Li RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Lectrosonics Inc. FCC ID: DBZDB, IC: 8024A-DB Report Number: R1407293-SAR SAR Evaluation Report Page 2 of 78 Summary of Test Results Rule Part(s): FCC §2.1093; IC RSS-102; Issue 4 Test Procedure(s): FCC KDB 447498 D01; IEEE 1528; RSS-102 Device Category: Exposure Category: Portable Device General Population/Uncontrolled Exposure Device Type: Portable Device Modulation Type: 8PSK TX Frequency Range: 470-608 MHz; 614-698 MHz Maximum Conducted Power Tested: 17.969 dBm Antenna Type(s) Tested: External Antenna Body-Worn Accessories: Microphone, Belt Clip Face-Head Accessories: None Battery Type (s) Tested: Two AA batteries Max. SAR Level (s) Measured: Operating Channel Position Level (W/Kg) Middle CH Back Side Touch 0.397 Lectrosonics Inc. FCC ID: DBZDB, IC: 8024A-DB Report Number: R1407293-SAR SAR Evaluation Report Page 3 of 78 TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................ 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 6 1.2 EUT TECHNICAL SPECIFICATION .................................................................................................................... 6 2 TEST FACILITY .................................................................................................................................................. 7 3 REFERENCE, STANDARDS AND GUIDELINES .......................................................................................... 8 3.1 SAR LIMITS .................................................................................................................................................... 8 4 EQUIPMENT LIST AND CALIBRATION ..................................................................................................... 10 4.1 EQUIPMENT’S LIST & CALIBRATION INFO .................................................................................................... 10 5 SAR MEASUREMENT SYSTEM VERIFICATION ..................................................................................... 11 5.1 SYSTEM ACCURACY VERIFICATION .............................................................................................................. 11 5.2 SAR SYSTEM VERIFICATION SETUP AND PROCEDURE .................................................................................. 11 5.3 LIQUID AND SYSTEM VALIDATION ................................................................................................................ 12 6 EUT TEST STRATEGY AND METHODOLOGY ......................................................................................... 13 6.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ........................................................... 13 6.2 CHEEK/TOUCH POSITION .............................................................................................................................. 14 6.3 EAR/TILT POSITION....................................................................................................................................... 14 6.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................................. 15 6.5 SAR EVALUATION PROCEDURE .................................................................................................................... 16 6.6 TEST METHODOLOGY ................................................................................................................................... 16 7 DASY4 SAR EVALUATION PROCEDURE .................................................................................................. 17 7.1 POWER REFERENCE MEASUREMENT ............................................................................................................. 17 7.2 AREA SCAN ................................................................................................................................................... 17 7.3 ZOOM SCAN .................................................................................................................................................. 18 7.4 POWER DRIFT MEASUREMENT ....................................................................................................................... 18 7.5 Z-SCAN ......................................................................................................................................................... 18 8 DESCRIPTION OF TEST SYSTEM ................................................................................................................ 19 8.1 MEASUREMENT SYSTEM DIAGRAM .............................................................................................................. 20 9 SAR MEASUREMENT RESULTS .................................................................................................................. 29 9.1 TEST ENVIRONMENTAL CONDITIONS ........................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 74H IC RSS-123, ISSUE 2 TEST AND MEASUREMENT REPORT For Lectrosonics, Inc. 581 Laser Road NE, PO Box 15900, Rio Rancho, NM 87124, USA FCC ID: DBZDB IC: 8024A-DB Report Type: Original Report Product Type: Digital Wireless Microphone Transmitter Prepared By Isaac Aguilar Report Number R1407293-74 Rev D Report Date 2015-01-05 Reviewed By Suhaila Khushzad Engineering Manager Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 2 of 44 FCC Part 74H/IC RSS-123 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................... 5 1.2 MECHANICAL DESCRIPTION OF EUT ................................................................................................................. 5 1.3 OBJECTIVE ......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................... 5 1.5 TEST METHODOLOGY ........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY .......................................................................................................................... 5 1.7 TEST FACILITY ................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION ................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE ................................................................................................................................ 8 2.3 EQUIPMENT MODIFICATIONS ............................................................................................................................. 8 2.4 SPECIAL EQUIPMENT ......................................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT............................................................................................................................. 8 2.6 EUT INTERNAL CONFIGURATION DETAILS ........................................................................................................ 8 2.7 POWER SUPPLY LIST AND DETAILS.................................................................................................................... 8 2.8 INTERFACE PORTS AND CABLES ........................................................................................................................ 8 3 SUMMARY OF TEST RESULTS ........................................................................................................................ 9 4 FCC §2.1093 & IC RSS-102 – RF EXPOSURE ................................................................................................ 10 4.1 APPLICABLE STANDARDS ................................................................................................................................ 10 4.2 RESULT ............................................................................................................................................................ 10 5 FCC §74.861 & IC RSS-123 §5.1 – RF OUTPUT POWER .............................................................................. 11 5.1 APPLICABLE STANDARDS ................................................................................................................................ 11 5.2 TEST PROCEDURE ............................................................................................................................................ 11 5.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 11 5.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 12 5.5 TEST RESULTS ................................................................................................................................................. 12 6 FCC §74.861(E) (5)(6) & IC RSS-123 §5.3 - EMISSION BANDWIDTH & MASK ...................................... 15 6.1 APPLICABLE STANDARDS ................................................................................................................................ 15 6.2 TEST PROCEDURE ............................................................................................................................................ 15 6.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 16 6.4 TEST ENVIRONMENTAL CONDITIONS ..........................................................…

Text truncated - open the document above for the full version.

Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 34 of 44 FCC Part 74H/IC RSS-123 Test Report 11 Exhibit B- Test Setup Photos 11.1 Radiated Emissions below 1 GHz – Front View 11.2 Radiated Emissions below 1 GHz – Side View Lectrosonics, Inc. FCC ID: DBZDB, IC: 8024A-DB, Model: DB Report Number: R1407293-74 Rev D Page 35 of 44 FCC Part 74H/IC RSS-123 Test Report 11.3 Radiated Emissions above 1 GHz – Front View 11.4 Radiated Emissions above 1 GHz – Side View

Lectrosonics Inc. FCC ID: DBZDB, IC: 8024A-DB Report Number: R1407293-SAR SAR Evaluation Report Page 67 of 78 16 Appendix G – Test Setup Photos 16.1 Back Side Touch to the Flat Phantom Setup Photo for Antenna 1 (470.1-537.575 MHz) 16.2 Back Side Touch to the Flat Phantom Setup Photo for Antenna 2(537.6-614.375 MHz) Lectrosonics Inc. FCC ID: DBZDB, IC: 8024A-DB Report Number: R1407293-SAR SAR Evaluation Report Page 68 of 78 16.3 Back Side Touch to the Flat Phantom Setup Photo for Antenna 3 (614.4-691.175 MHz)
