DBZLMAEWIRELESS MICROPHONE TRANSMITTER

LMa Frequency-Agile UHF Belt-Pack Transmitter Featuring Digital Hybrid Wireless ™ Technology US Patent 7,225,135 INSTRUCTION MANUAL Rio Rancho, NM, USA www.lectrosonics.com Fill in for your records: Serial Number: Purchase Date: LMa LECTROSONICS, INC. 2 Frequency-Agile UHF Belt-Pack Transmitter Rio Rancho, NM 3 Table of Contents Introduction .............................................................................................................................................................................................4 Digital Hybrid Technology .....................................................................................................................................................................4 Frequency Agility...................................................................................................................................................................................4 Wide-Band Deviation ............................................................................................................................................................................4 Long Battery Life ...................................................................................................................................................................................4 Servo Bias Input and Wiring .................................................................................................................................................................4 Input Limiter ..........................................................................................................................................................................................5 No Pre-Emphasis/De-Emphasis ...........................................................................................................................................................5 Pilot Tone Squelch ................................................................................................................................................................................5 LMa Block Diagram ...............................................................................................................................................................................5 Controls and Functions .........................................................................................................................................................................6 Input Jack ..............................................................................................................................................................................................6 Power ON/OFF Switch ..........................................................................................................................................................................6 Power LED ............................................................................................................................................................................................6 Frequency Select Switches ...................................................................................................................................................................6 Modulation LEDs ...................................................................................................................................................................................6 Audio Level ...........................................................................................................................................................................................6 Antenna .................................................................................................................................................................................................6 Belt Clip .................................................................................................................................................................................................6 Battery Installation .................................................................................................................................................................................7 Operating Instructions ...........................................................................................................................................................................8 Selecting the Compatibility Mode ..........................................................................................................................................................8 Attaching a Microphone or Musical Instrument and Adjusting Audio Levels .........................................................................................8 Adjusting the Transmitter Frequency .....................................................................................................................................................9 5-Pin Input Jack Wiring ........................................................................................................................................................................10 Microphone RF Bypassing ..................................................................................................................................................................10 Line Level Signals ...............................................................................................................................................................................10 Microphone Cable Terminationfor Non-Lectrosonics Microphones ................................................................................................11 Wiring Hookups for Different Sources ...............................................................................................................................................12 Compatible Wiring for Both Servo Bias Inputs and Earlier Transmitt…

Text truncated - open the document above for the full version.

April 10, 2008 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 Re: Confidentiality for submittal information regarding FCC ID number DBZLMAE PRODUCT: Wireless Microphone transmitter operating under part 74. Dear Sirs: Lectrosonics, Inc. requests that the material in the Parts List, Block Diagram, Schematics, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Lectrosonics, Inc. submits the following. Short term confidential files External Photographs ExtPho DBZLMAE.pdf Internal Photographs IntPho DBZLMAE.pdf Test Setup TSup DBZLMAE.pdf User Manual UserMan DBZLMAE.pdf Permanent Confidential files Block Diagram Conf BlkDia DBZLMAE.pdf Parts List Conf PartList DBZLMAE.pdf Operational Description Conf OpDes DBZLMAE.pdf Schematic Conf Schem DBZLMAE.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Parts List, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: DBZLMAE ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and detailed Parts List. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Lectrosonics, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Lectrosonics, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Lectrosonics, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

April 10, 2008 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 Re: Short-term Confidentiality request for submittal information regarding FCC ID DBZLMAE PRODUCT: Wireless Microphone transmitter operating under part 74. Dear Sirs: Lectrosonics, Inc. requests that the following information be withheld from public disclosure until 45 days after the Grant of Equipment Authorization in accordance with DA-04-1705 of the Commission’s public notice. Short term confidential files External Photographs ExtPho DBZLMAE.pdf Internal Photographs IntPho DBZLMAE.pdf Test Setup TSup DBZLMAE.pdf User Manual UserMan DBZLMAE.pdf Permanent Confidential files Block Diagram Conf BlkDia DBZLMAE.pdf Parts List Conf PartList DBZLMAE.pdf Operational Description Conf OpDes DBZLMAE.pdf Schematics Conf Schem DBZLMAE.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

April 11, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Lectrosonics. Inc. has authorized Scot Rogers of Rogers Labs. Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs. Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR47. This Authorization is in effect until otherwise notified in writing. President Lectrosonics, Inc.

April 10, 2008 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 Equipment: FCC ID: DBZLMAE FCC Rules: Part 2 and 74 The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. It is requested that the information contained in the Block Diagram, Parts List, Operational Description, and Schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Short Term Confidential Request Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: Short term confidential files External Photographs ExtPho DBZLMAE.pdf Internal Photographs IntPho DBZLMAE.pdf Test Setup TSup DBZLMAE.pdf User Manual UserMan DBZLMAE.pdf Permanent Confidential Request Lectrosonics Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, CFR47 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Permanent Confidential files Block Diagram Conf BlkDia DBZLMAE.pdf Parts List Conf PartList DBZLMAE.pdf Operational Description Conf OpDes DBZLMAE.pdf Schematics Conf Schem DBZLMAE.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

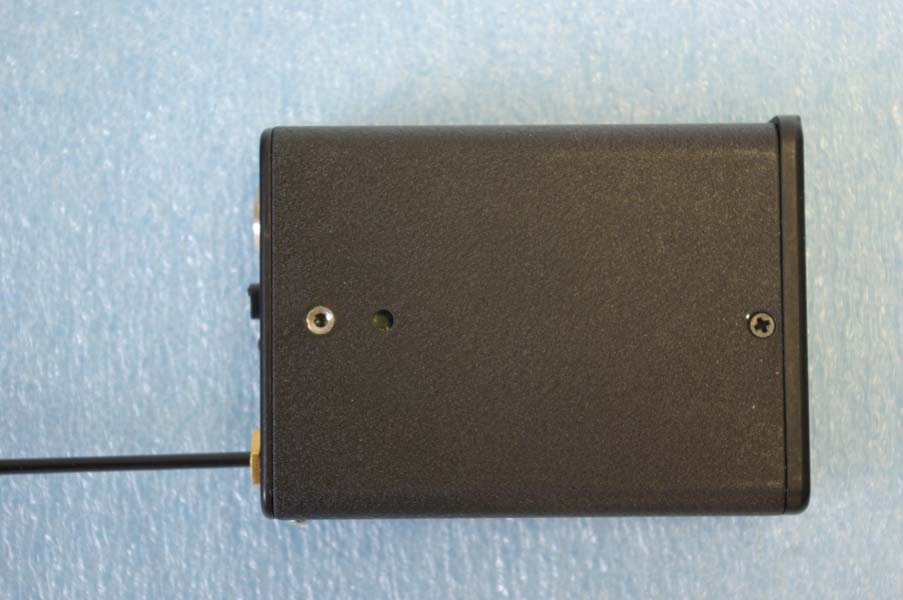

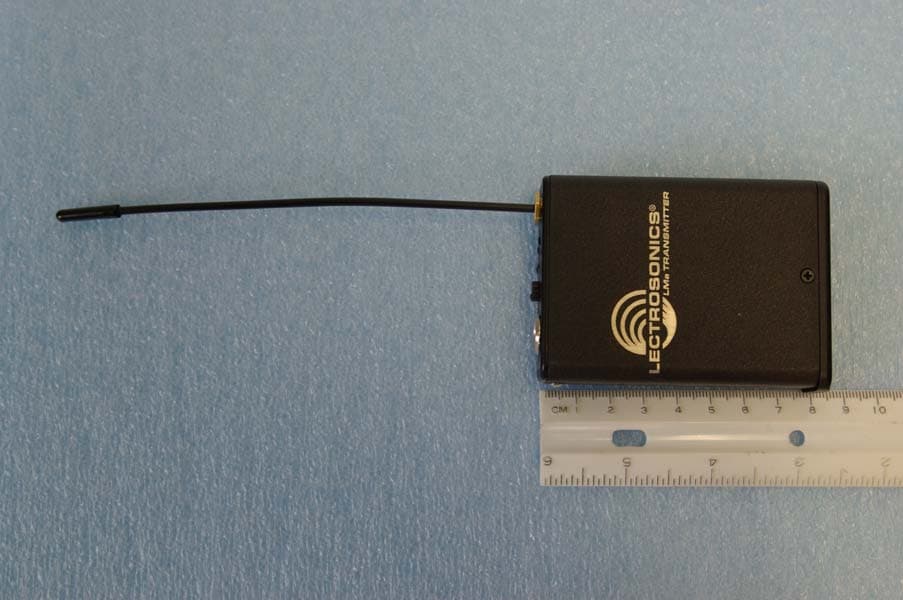

Rogers Labs, Inc. Lectrosonics, Inc. 4405 W. 259th Terrace Model: LMa FCC ID#: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 3 File: ExtPho DBZLMAE Date: April 10, 2008 External Photographs of EUT Rogers Labs, Inc. Lectrosonics, Inc. 4405 W. 259th Terrace Model: LMa FCC ID#: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 2 of 3 File: ExtPho DBZLMAE Date: April 10, 2008 Rogers Labs, Inc. Lectrosonics, Inc. 4405 W. 259th Terrace Model: LMa FCC ID#: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 3 of 3 File: ExtPho DBZLMAE Date: April 10, 2008

SMQA housing with marking for Blocks 470-20 for FCC testing PN 26721-1 9 April 2008 BCJ FCC Type Approval Marking: Block 470-20: DBZLMAE BLOCK: xx SN: 1234 LMa FCCID:DBZLMAE Lectrosonics, Inc. Made in U.S.A. Belt clip side FREQUENCY 1.6MHz100kHz MODES: 100, 200, MODE 3, 400, IFB, MODE 6 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 1 2 3 4 5 6 7 8 9 A B C D E F

TUNE-UP PROCEDURE EQUIPMENT REQUIRED Audio signal generator capable of producing signals of -60 dBV to +10 dBV into 600 ohms at frequencies of 10 Hz to 50 kHz. Used in development: Audio Precision ATS-1. RF spectrum analyzer with sensitivity of -100 dBm or better, a frequency range of 10 MHz to 1.5 GHz or wider, a terminating impedance of 50 ohms, and capability of handling an input level of + 25 dBm without overload or significant distortion. Used in development: Hewlett Packard 8560E. Frequency counter covering 10 MHz to 806 MHz with an accuracy of +/- 100 Hz and readout to the nearest 10 Hz or better. This function may be resident on many higher end spectrum analyzers. Used in development: Boonton 8200 and Hewlett Packard 8560E. Deviation meter capable of measuring frequency deviation from 0 to +/-100 kHz at 470 MHz to 806 MHz with an RF power level of +25 dBm or less in an FM system modulated by audio frequencies from 10 Hz to 50 kHz. The unit should also have a demodulated audio output. Used in development: Boonton Model 8200. Digital multimeter capable of measuring current to at least 400 ma and voltage to 10 VDC with an accuracy of 3% or better. Used in development: Fluke Model 85. Audio analyzer capable of measuring audio distortion to 0.05% or less over a frequency range of at least 10 Hz to 50 kHz. The unit should also have an output of residual distortion to an external measurement device. Used in development: Audio Precision ATS-1. Oscilloscope with good audio response and sensitivity of at least 10 mv/cm with associated high impedance probe is also needed for evaluation of residual distortion. Used in development: Tektronix Model 224. Power supply for bench top use capable of supplying 1.5 VDC at 600 ma of current is needed. Both current and voltage should be metered. The supply should also have a variable current limit adjustment. Used in development: Leader Model LPS-15SL. RF power meter or 50 ohm RF probe and associated meter capable of measuring RF power to 806 MHz at power levels to +25 dBm to an accuracy of 5% is also required. Many higher-end spectrum analyzers have this capability available as part of the cursor functions. Used in development: Hewlett Packard 8560E and Hewlett Packard 437B. AC RMS voltmeter with a range of at least +20 dBV to -60 dBV (10 Vrms to 1 mVrms) readable to within +/- 3% is needed. Used in development: Audio Precision ATS-1. RECOMMENDED TEST FIXTURES An audio cable with a 5 pin Switchcraft plug on one end. The other end should be appropriate to the audio signal generator. Note that DMMs may read inaccurately in RF fields. GENERAL NOTES The tuning capacitors are small and have a very small tuning socket. An alignment tool, which fits the tuning capacitors, is a must. VOLTAGE CHECK & CPU PROGRAMMING Substitute the power supply for the battery. The supply should be current limited to 900 ma to protect the SM from shorts and over current due to misalignment. Set the supply for 1.5 VDC and connect it to the SM. Check current draw, it should be about 100 ma. Check +3.3 volt, +6 volt, +1.8 volt and –3 volt supplies. If all voltages look good, connect programmer to J3 and program CPU. CHECKING THE POWER INDICATOR After programming, the current drain should 75 ma or less, nominally 65 ma with only the power LED illuminated. The green battery indicator LED located on the top panel should be brightly lit. Adjust the power supply voltage downward while watching the Power LED. The LED should change to red at 6.2 volts. This completes the power indicator checks. PREPARATION All alignment and adjustment is done with the power supply set to 9 VDC and current limited at 200 ma. A 9-volt supply should be connected to the battery contacts. Interconnect the RF output to the spectrum analyzer with a 2' to 3' length of reasonably good 50-ohm coaxial cable. The cable should be plugged into P1 and TP11 (GND). SET BLOCK Use a jumper to short J2 pin-7 to pin-1. This puts the unit in the setup mode. Use the frequency switches to select the “Block” the unit is to operate on. Set S3 (MSB) to “2”, and S2 (LSB) “1 thru 9” for Block 21 thru 29. Remove the jumper to save the setting. OSCILLATOR ALIGNMENT Change the FREQ switches (S3 and S2) to “FF”. With a DMM measure the voltage at TP5. Adjust C102 in the VCO for a reading of 2.9 to 3.0 VDC. The RF output of the transmitter will now be enabled since the PLL (phase locked loop) is now locked. Change the FREQ switches to “00”. Measure the voltage at TP5, it should be between .6 and 1.2 VDC. FREQUENCY ADJUSTMENT Use a jumper to short J2 pin-7 to pin-1. Set S3 to “F”, and adjust S2 until the frequency counter shows the correct frequency (+/- 2 KHz). Remove the jumper to save the setting. AUDIO ADJUSTMENT Connect the audio output of the deviation meter to the audio analyzer and set the analyzer to measure distortion. To set the audio level and distortion it is necessary to disable the DSP emulation and pilot tone. To do this, install the jumper to short J2 pin-7 to pin-1. Set SW3 to “D” and SW2 to “0”, then remove the jumper. That disables the DSP emulation. Now install the jumper, change SW2 to “1”, and remove the jumper. This removes the pilot tone. Set the FREQ switches to “80”, this sets the frequency of the unit in the center of the block. Apply an audio signal to the mic input connector. Use a 250 Hz tone and adjust the level until the two audio level indicator LEDs (D5, D6) are green. Use the audio analyzer to monitor the audio out of the modulation meter. Adjust R7 for minimum distortion of the audio signal. Use the jumper to short J2 pin-7 to pin-1. Set SW3 to “5”, this will cause the DSP to generate a 1KHz tone at frequency “80”. Adjust SW2 to set the deviation to 100 KHz. Set SW3 to “4”, This will generate a 1KHz tone on frequency “00”. Adjust SW2 for a deviation of 100 KHz. Set SW3 to “6” to generate a 1KHz tone on frequency “FF”. Adjust SW2 for 100 KHz deviation. Now remove the jumper to save the settings. LIMITER …

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Lectrosonics, Inc. 4405 W. 259th Terrace Model: LMa FCC ID#: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 1 File: RFExp DBZLMAE Date: April 9, 2008 MPE CalculatorLectrosonicsLmaTest 080313B MPE uses EIRP for calculation. . EIRP is based on TX power added to the antenna gain in dBi dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)0 Output Power dBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)503(Watts)0.1000Antenna Gain (dBd)-2.17 (dBm)20.00 Cable Loss (dB)0.0Antenna minus cable (dBi)0.00 Calculated ERP (mw) 60.674EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 100.000Radiated (EIRP) dBm20.000 ERP = EIRP - 2.17 dB Occupational Limit Radiated (ERP) dBm17.830 1.67667 mW/cm 2 General Public Limit 0.33533 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5001.6766666670.335333333 1,500-10,00051 EIRPDistanceDistanceS milliwattscminches mW/cm 2 100.00050.0019.690.00318 100.00040.0015.750.00497 100.00030.0011.810.00884 100.00025.009.840.01273 100.00020.007.870.01989 100.00015.005.910.03537 100.00014.005.510.04060 100.00013.005.120.04709 100.00012.004.720.05526 100.00011.004.330.06577 100.00010.003.940.07958 100.0009.003.540.09824 100.0008.003.150.12434 100.0007.002.760.16240 100.0006.002.360.22105 100.0005.752.260.24069 100.0005.502.170.26307 100.0005.001.970.31831 100.0004.901.930.33143 100.0003.001.180.88419 100.0002.500.981.27324 100.0002.200.871.64416 100.0002.000.791.98944 100.0001.000.397.95775 100.0000.500.2031.83099 Frequency (MHz) Occupational Limit minimum Distance (cm) General Public Limit minimum distance (cm) 300-1,5002.204.90 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP (mW)

NVLAP Lab Code: 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. 4405 West 259 TH Terrace Model: LMa FCC ID: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74h Page 1 of 27 Revision 1 File: LMA TstRpt Date: April 10, 2008 APPLICATION SUBMITTAL REPORT FOR GRANT OF CERTIFICATION MODEL: LMa FCC ID: DBZLMAE Frequency Range: 470.1 – 537.5 MHz Wireless Microphone Transmitter Operating under rule of CFR47 Part 74, Subpart H FOR LECTROSONICS, INC. 581 Laser Road Rio Rancho, NM 87124 Test Report Number: 080313B Authorized Signatory Scot D. Rogers NVLAP Lab Code: 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. 4405 West 259 TH Terrace Model: LMa FCC ID: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74h Page 2 of 27 Revision 1 File: LMA TstRpt Date: April 10, 2008 ENGINEERING TEST REPORT FOR APPLICATION for GRANT of CERTIFICATION For LECTROSONICS, INC. 581 Laser Road Rio Rancho, NM 87124 Larry Fisher Vice President of Engineering Model: LMa Transmitter Wireless Microphone Transmitter Frequency: 470.1 - 537.5 MHz FCC ID: DBZLMAE Test Date: March 13, 2008 Certifying Engineer Scot D. Rogers ROGERS LABS, INC. 4405 West 259TH Terrace Louisburg, KS 66053 Telephone (913) 837-3214 Facsimile (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code: 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. 4405 West 259 TH Terrace Model: LMa FCC ID: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN: P544 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74h Page 3 of 27 Revision 1 File: LMA TstRpt Date: April 10, 2008 Table of contents TABLE OF CONTENTS.................................................................................................... 3 FORWARD....................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS................................................................. 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................... 5 ENVIRONMENTAL CONDITIONS.................................................................................... 5 2.1033(C) APPLICATION FOR CERTIFICATION ............................................................ 6 EQUIPMENT TESTED...................................................................................................... 7 EQUIPMENT FUNCTION AND TESTING PROCEDURES .............................................. 7 EQUIPMENT AND CABLE CONFIGURATIONS ............................................................. 8 Radiated Emission Test Procedure .........................................................................................................................8 LIST OF TEST EQUIPMENT ............................................................................................ 8 2.1046 RADIO FREQUENCY POWER OUTPUT ............................................................. 9 Measurements Required ..........................................................................................................................................9 Test Arrangement.....................................................................................................................................................9 Results........................................................................................................................................................................10 2.1047 MODULATION CHARACTERISTICS ................................................................... 10 Measurements Required ..........................................................................................................................................10 Test Arrangement.....................................................................................................................................................10 Modulation Characteristic Results .........................................................................................................................11 Figure one Audio Frequency Response Characteristics.........................................................................................11 Figure two Deviation Characteristics .....................................................................................................................11 Figure three Frequency Response of Audio low Pass Filter ..................................................................................12 2.1049 OCCUPIED BANDWIDTH.................................................................................... 12 Measurements Required ..........................................................................................................................................12 Test Arrangement.....................................................................................................................................................12 Figure four Occupied Bandwidth Measurement with 2500 Hz input ....................................................................13 Figure five Occupied Bandwidth Measurement with 21,000 Hz input..................................................................13 Occupied Bandwidth Results...................................................................................................................................14 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS......................................... 14 Measurements Required ..........................................................................................................................................14 Test Arrangement......................................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Lectrosonics, Inc. 4405 W. 259th Terrace Model: LMa FCC ID#: DBZLMAE Louisburg, KS 66053 Test #: 080313B SN…
