DBZM4TDigital Modulation Transmission System

Digital IEM System INSTRUCTION MANUAL Rio Rancho, NM, USA www.lectrosonics.com Fill in for your records: Serial Number: Purchase Date: QUADRA LECTROSONICS, INC. 2 Table of Contents Safety Notes ..........................................................................3 System Overview ..................................................................4 Receiver Operation ...............................................................5 Receiver Menus ....................................................................6 Selecting 2-channel or 4-channel Operation .....................6 2-channel Operation .............................................................7 4-channel operation .............................................................8 Split 4-channel operation .....................................................9 Receiver: Body Placement ................................................12 Receiver Accessories ........................................................12 Transmitter Front Panel .....................................................14 Transmitter Rear Panel .......................................................14 Initial Setup .........................................................................15 Powering the Unit ON and OFF .........................................15 LCD ......................................................................................15 Audio Signal Monitoring ....................................................15 Transmitter Menus ..............................................................16 Selecting 2-channel or 4-channel Operation .....................16 Tuning ...............................................................................16 Input Type ..........................................................................16 Audio Trim .........................................................................16 Lock Setup ........................................................................17 Factory Default Reset .......................................................17 Rack Mount Hardware ........................................................18 Dual Rack-Mount Instructions ...........................................18 Single Rack-Mount InstructionsFirmware Updates ........21 Transmitter Accessories ....................................................22 Specifications .....................................................................22 Digital IEM System Rio Rancho, NM 3 Excessive sound levels can cause permanent hearing damage. 1. Always adjust the volume to the lowest level be- fore listening to unknown transmissions. 2. Use the lowest reasonable level consistent with hearing safety. 3. Don’t use high sound levels in the earphone to overcome high ambient sound levels. That is ab- solutely foolish! Demand and use high isolation earphones. 4. Don’t expose your ears to sound levels that cause them to ring. If your ears do ring after exposure, think of it as a warning bell telling you not to do that again. OSHA (Occupational Safety Health Administration) guidelines on the maximum allowable time exposure to sound pressure levels that will cause hearing dam- age are as follows: 8 hours at 90 dB SPL 4 hours at 95 dB SPL 2 hours at 100 db SPL 1 hour at 105 dB SPL 30 mins at 110 dB SPL 15 mins at 115 dB SPL NEVER expose your ears to 120 dB SPL or higher! Damage will occur. Safety Notes FCC Notice NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that which the receiver is connected • Consult the dealer or an experienced radio/TV tech- nician for help Changes or modifications to this equipment not ex- pressly approved by Lectrosonics, Inc. could void the user’s authority to operate it. Industry Canada Notices Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept interference, including interference that may cause undesired operation of the device. This device has been designed to operate with the antenna listed below, and having a maximum gain of 6 dB. Antennas not included in this list or having a gain greater than 6 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. • Lectrosonics M4T Antenna; P/N 21422 • Linx Technologies model ANT-916-CW-HWR-RPS To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communica- tion. QUADRA LECTROSONICS, INC. 4 System Overview The Quadra system provides an entirely new level of audio and RF performance in a wireless monitor system. The combination of analog or digital input capability, ultra-low latency 24 bit, 48 kHz audio, digital RF modulation and discrete four channel mixing capa- bility make the Quadra a truly unique IEM product for mission-critical, professional applications. The system is designed for line level analog audio signals and AES/EBU digital audio input signals. 48kHz/24-bit audio, ru…

Text truncated - open the document above for the full version.

December 17, 2010 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 Re: Confidentiality for submittal information regarding FCC ID number DBZM4T PRODUCT: Digital Transmission System operating under part 15.247 Dear Sirs: Lectrosonics, Inc. requests that the material in the Block Diagram, Schematics, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Lectrosonics, Inc. submits the following information. Permanent Confidential files Block Diagram Conf BlkDia M4T.pdf Operational Description Conf OpDes M4T.pdf Schematics Conf Schem M4T1.pdf Schematics Conf Schem M4T2.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: DBZM4T 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and Block diagram. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4 5 6 7 8 4. Explanatio The materi transmittin variety of c 5. Explanatio Disclosure who have d additional advantage , 6. Identificat The inform made avail 7. Identificat disclosure To the kno heretofore. disclosures protection technolog y 8. Justificati available f This mater relatively f manufactu is importa n knowledge Should you Thank you Sincerely, Scot Roge r on of the degr ial for which co ng equipment th competing sou on of how disc e would, in effe designed the eq unwarranted in , not available tion of any me mation for whic lable to third p tion of whethe e of the inform owledge of thos . While the ge s in industry an sought is narro y. on of the peri for public disc rial should not frequently, disc ring technique nt that the desig e of the design u require any fu u for your consi rs ree to which th onfidentiality i hat is offered o urces. closure of the ect, give away quipment and t nsight into the to Lectrosonic easures taken ch confidential arties except p er the informa mation to third se preparing th neral theory of nd standards gr owly drawn an od during whi closure: be disclosed f o closure of the d s that could ha gn not be made to compromise further informa ideration in thi he information is sought is em on a highly com information c the fruits of th the manufactur state of the pro s, Inc. b y the submit treatment is so pursuant to non ation is availab d parties: his application, f operation of t roups as well a nd pertains to ce ich the submit or at least 25 y design informa ave an adverse e available to u e the applicatio ation, please co is matter. n concerns a s mployed in the d mpetitive basis could result in e labors of Lec ring process. D oduct developm tting party to ought is kept c n-disclosure agr ble to the pub the informati o this equipment as in rule makin ertain specific tting party as ears. While i m ation would lea competitive ef unauthorized p ons for which t ontact the unde service that is design and man . Customers fo n substantial c ctrosonics, Inc. Disclosure wou ment, thereby a prevent unau onfidential by reements. lic and the ex t on has not been t has been the s ng proceedings implementatio serts that the mprovements in ad to insights in ffect for many ersons who m i the equipment rsigned. sub ject to com nufacture of th or this equipme competitive ha .’s engineering uld also offer c allowing comp uthorized discl Lectrosonics, tent of any pr n disclosed pub subject of num s of the FCC, th ons of this radio material shou n design are m nto both design years to come. ight attempt to will be emplo y mpetition: his ent have a arm: g personnel, competitors etitors an losure: Inc. and not revious blicly erous he o uld not be made n and . As such, it use yed.

April 11, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Lectrosonics. Inc. has authorized Scot Rogers of Rogers Labs. Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs. Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR47. This Authorization is in effect until otherwise notified in writing. President Lectrosonics, Inc.

Decembe Office o f Federal C Columbi Applica n Re: Shor PRODUC Dear Sirs Lectroson disclosur DA-04-1 Short te r External Internal P Test Setu User Man Perman e Block Di Operation Schemati Schemati Should y Thank yo Sincerely Scot Rog er 17, 2010 f Engineerin Communicat a, MD 2104 nt: Lectro 581 L Rio R rt-term Confi CT: Digita s: nics, Inc. req re until 45 da 705 of the C rm confiden Photograph Photographs up nual ent Confide iagram nal Descript ics ics you require a ou for your c y, gers g and Techn tions Comm 46 osonics, Inc. Laser Road Rancho, NM fidentiality re al Transmiss quests that th ays after the Commission ntial files s Short Term s Short Term Short Term Short Term ential files C o tion Co Co Co any further in consideration ROG 4405 Wes Louisburg nology ission . 87124 equest for su sion System he following Grant of Eq ’s public not m Conf ExtP m Conf IntPh m Conf TSup m Conf User onf BlkDia M onf OpDes M onf Schem1 M onf Schem2 M nformation, p n in this mat GERS st 259 th Terrac , KS 66053 ubmittal info operating un g information quipment Au tice. Pho M4T.pdf ho M4T.pdf p M4T.pdf rMan M4T.p M4T.pdf M4T.pdf M4T.pdf M4T.pdf please conta tter. S LAB ce ormation rega nder CFR47 n be withhel uthorization i f f pdf act the under BS, IN arding FCC 15.247 ld from publ in accordanc rsigned. NC. ID: DBZM4 lic ce with 4T

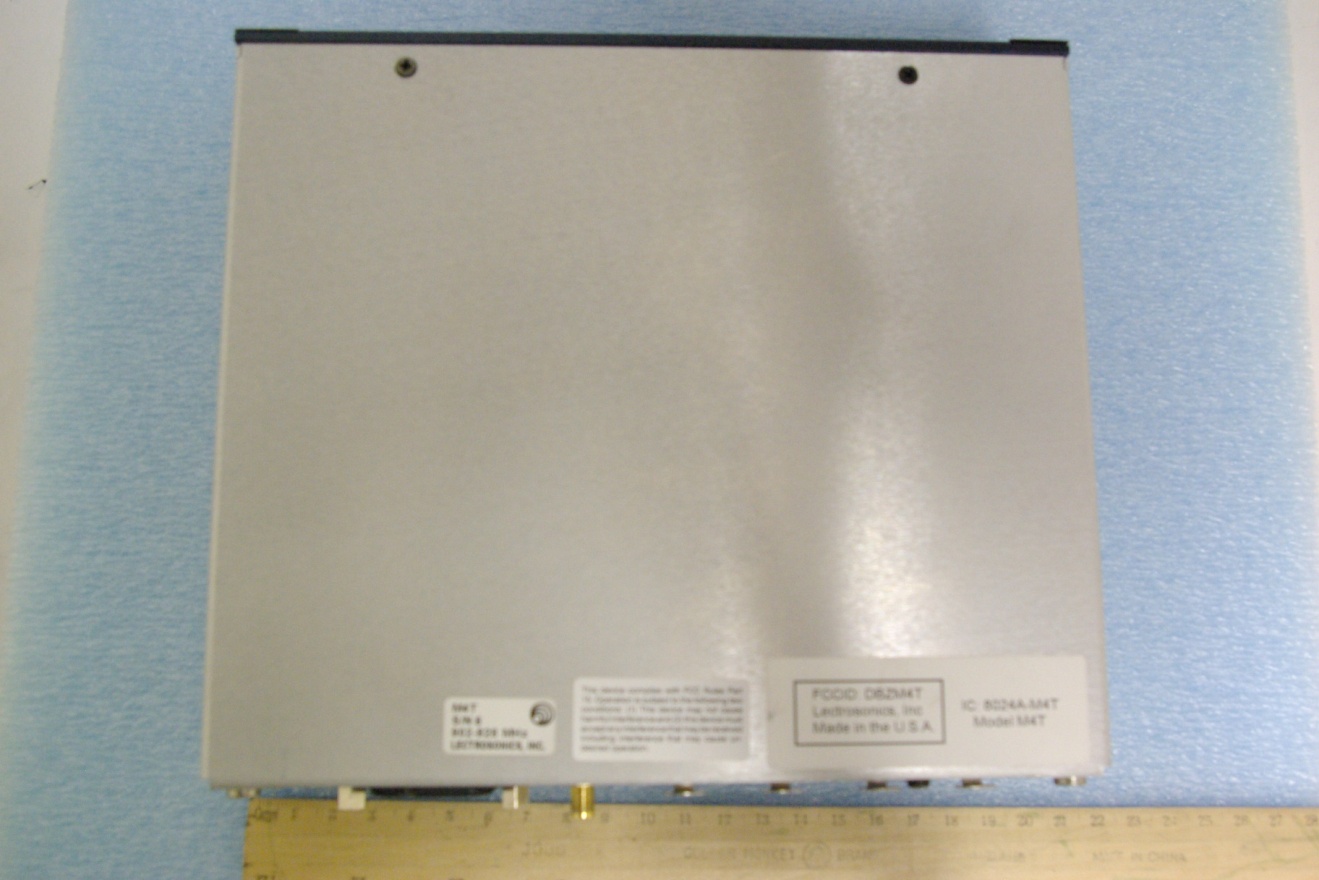

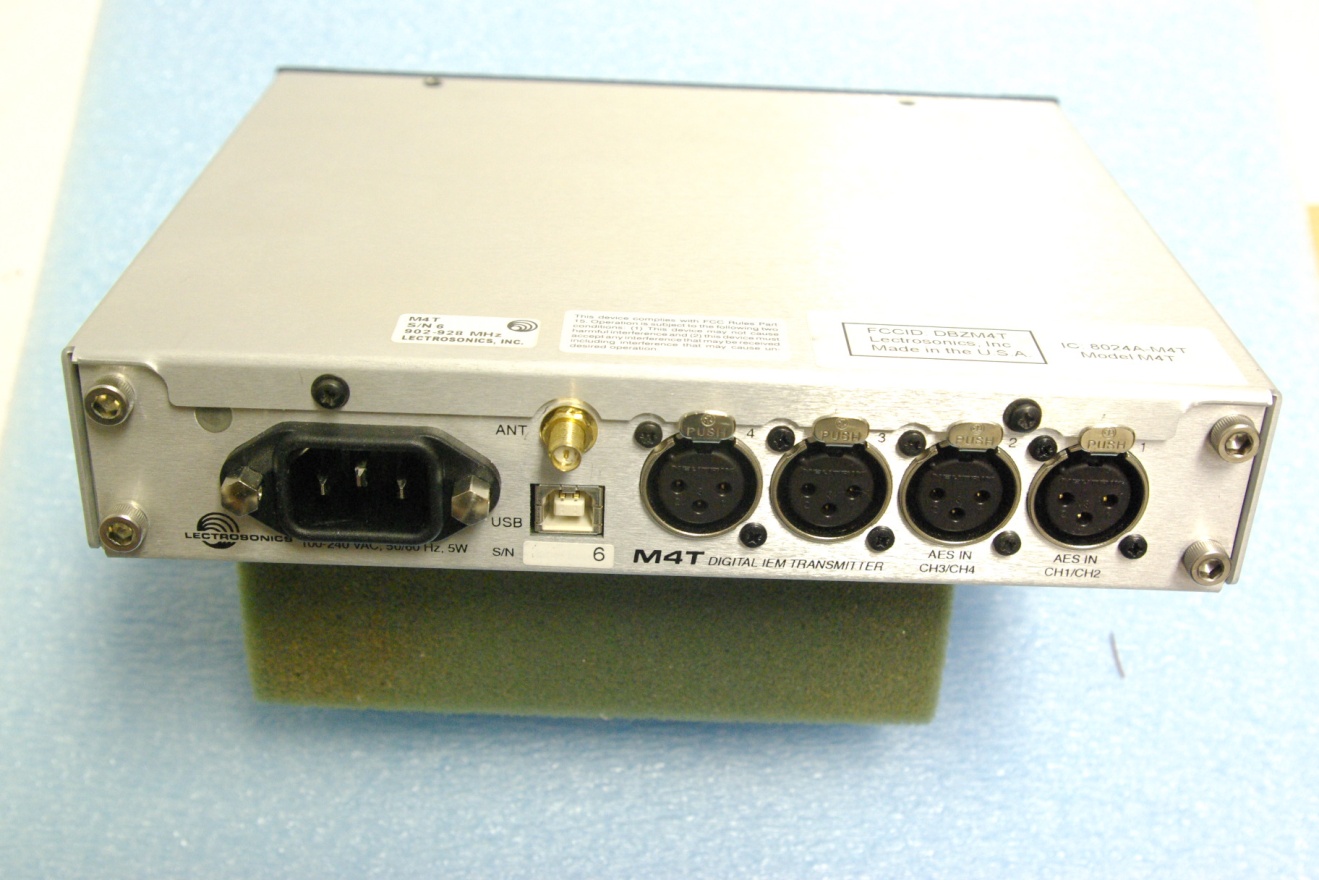

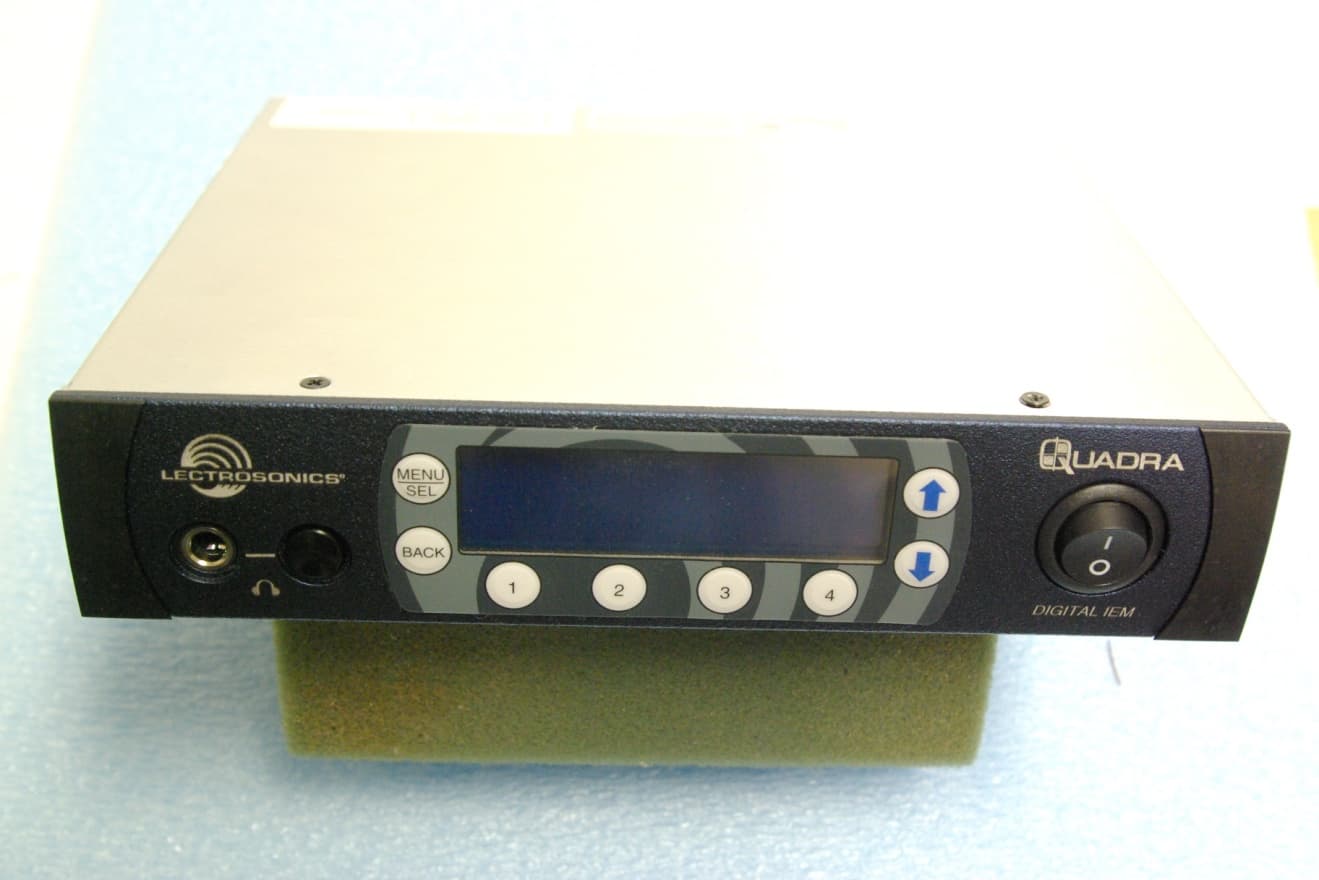

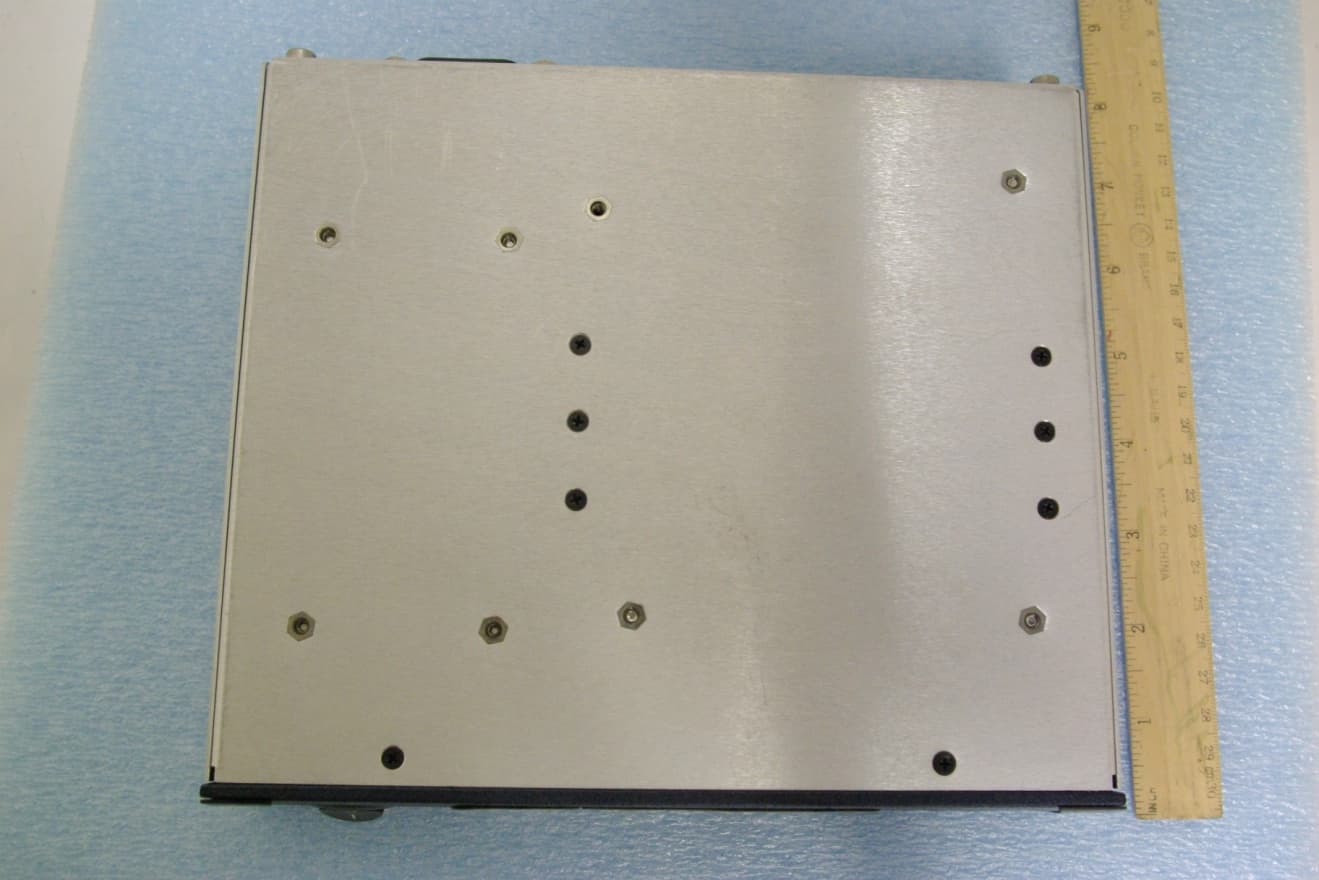

Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 1 of 2 Revision 1 File: Short Term Conf ExtPho M4T Date: 12/17/2010 Equipment photographs Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 2 of 2 Revision 1 File: Short Term Conf ExtPho M4T Date: 12/17/2010

Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 1 of 1 Revision 1 File: LabelSmp M4T Date: 12/16/2010 ID label information Label Placement

Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 1 of 4 Revision 1 File: Short Term Conf IntPho M4T Date: 12/17/2010 Internal photographs Main and sub Board with shield and cables Main and sub Board Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 2 of 4 Revision 1 File: Short Term Conf IntPho M4T Date: 12/17/2010 Main Board Main Board Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 3 of 4 Revision 1 File: Short Term Conf IntPho M4T Date: 12/17/2010 Sub Board Sub Board Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 4 of 4 Revision 1 File: Short Term Conf IntPho M4T Date: 12/17/2010 Boards located inside enclosure

Lectrosonics Standard Test & Alignment Procedure Part number(s):M4THardware version(s):17427x (Baseband board) & 17396b (Radio board)Firmware version(s):0.0 Common name(s):4 channel, digital transmitterAuthor(s):Derek Jasnoch, Rodney Wildhagen, & Cruz GarciaTest procedure versi on:01.00 Date:29 Sept 2010 Initial setup: Radio board & LCD display connected to baseband board All audio signal measurements made with a 22Hz HPF and a 22kHz LPF to keep 60kHz pollution out of the measurements. All voltage measurements referenced to circuit common All DUT (transmitter) audio signal inputs and test receiver audio signal outputs are differential Logic Probe equipped with Pulse Memory (Meterman LP25A or equivalent) used in Bit error test All Reciever audio signal measurements taken with 300Ω load resistors from XLR pin 2 to XLR pin 1 and from XLR pin 3 to XLR pin 1. "Factory" mode contains an expanded menu for product testing. To enter factory mode, push and hold front panel MENU/SEL button while powering up DUT This test requires a test receiver wired for access to the bit error signal (baseband board TP24) It is noteworthy that the USB port is useful only for upgrading firmware. Firmware is updated using the LecNet2 D4 update Utility AES Input me as ur e d t hu a AJ A Vi de o Sys t e ms , ADA4 4 - Channe l Bi-directional Audio A/D and D/A Converter, Dip switch Setting are 1,0,3,0. StepMeasurement name & descriptionMeasurement result (Typ) Test segment #10 of 40 10Current draw measurement & Program FPGA IC Note This need only be performed at the factory the first time it is powered up, when FPGA IC is replaced, or when a firmware update is desired and confirmed to be appropriate. 15VDC, 1A current limit, at baseband board VCC (VCC — is circuit common) 10.10Measure current draw30 to 800 mA NoteExpected current draw values are: FPGA not programmed (?) FPGA programmed (410) NoteDriver is required. It is packaged in with the LecNet2 software disc du jour NoteCommand line utility is located at S:/DTBACK/UTIL/D4UP 10.20Connect PC to baseband board J3 (rear panel mi ni USB port) 10.30Use prescribed GUI tool to program FPGA S:\DTBACK\UTIL\D4UP 10.40Remove USB, PC to DUT connecti on 20Current draw measurement post programming NoteThis need only be performed if the FPGA programing status has changed since test step #20 Prerequisite(s) 15VDC, 1A current limit, in at baseband board VCC (VCC — is circuit common) FPGA IC programmed 20.10Verify LCD display backlight appears to be appropriateback light on 20.20Measure current draw30 to 800 mA(410) Note The goal here is only to be sure the DUT is on and is not burning up with fever, a tighter tolerance current measurement will be made later. Test segment #20 of 40 30Supply rail, reference voltage, and reference oscillator (infrastructure) measurements Prerequisite(s) 15VDC, 1A current limit in at baseband board VCC (VCC — is circuit common) FPGA IC programmed 30.10.10Measure DC voltage at baseband board:TP21 +15.25 to +16.75 VDC (+16.0) 30.10.20TP 2 6 -15.75 to -14.25 VDC (-15.0) 30.10.30TP 2 0 +3.135 to +3.465 VDC (+3.0) Lectrosonics Standard Test & Alignment Procedurefile:///C:/Documents and Settings/bobc/My Documents/rogers/quadra/zip... 1 of 412/14/2010 2:20 P M 30.10.40TP7 (+1.2V) +1.14 to +1.26 VDC (+1.2) 30.10.50TP23 (+5V) +4.75 to +5.25 VDC (+5.0) LCD contrast (no adustment for this)TP 19 +3.75 to +4.25 VDC (4.0) 30.20.10Measure DC voltage at radio board:TP11 (+5V) +4.75 to +5.25 VDC (+5.0) 30.20.20 TP 1 2 (VCC_RF) +2.755 to +3.045 VDC (+2.9) 30.20.30 TP 1 3 (VCC_OSC) +3.135 to +3.465 VDC (+3.3) 30.30.10 Measure reference oscillator signal (36.864MHZ_TO_FPGA) at radio board J1-11 with 10:1 oscilloscope probe BW ≥ 100MHz using RF spectrum analyzer with 50Ω input Ζ. TP14 Frequency (MHz) 36.859 to 36.871(36.864) 30.30.20Amplitude-18 to +2 dBm(-15) 30.30.30Verify first 5 harmonics are at least 3dB below the fundamentalSpectral purity(-11) 40Transmitter Set up 40.10 Transmitter set up: Lock Setup = Unlocked, 2/4 Chans. = 4 Channels, AES3 modes = 1 & 2 Analog, 3 & 4 Analog, Audio Trim = +00 (all 4 channels) 50Carrier signal measurements Prerequisite(s) FPGA IC programmed Note There is a function called "Mod.Level" in the expanded "Factory Mode" menu that permits carrier signal level (power) to be adjustment as necessary. 50.10 Press front pannel Menu/Sel button whi l e appl yi ng 15VDC, 1A current l i mi t, i n at baseband board VCC to enter i nto factory mode. (VCC — i s ci rcui t common) 50.20.10Measure carrier signal power for RF channels 1 thu 4 at antenna port RF channel 1 to 4 21 to 23 dBm(+22) 50.30Transmi tter set up: Test Mode "Nul l " 50.40.10Measure carrier signal frequency at antenna portRF channel 4 923.899 to 923.909 MHz (923.904) 50.40.20RF channel 3 916.987 to 916.997 MHz (916.992) 50.40.30RF channel 2 912.379 to 912.389 MHz (912.384) 50.40.40RF channel 1 907.771 to 907.781 MHz (907.776) 60Baseband signal measurements Prerequisite(s) 15VDC, 1A current limit, in at baseband board VCC (VCC — is circuit common) FPGA IC programmed Transmi tter set up: Test Mode "audi o" 60.10.10Measure and note signal amplitude at radio board:TP10 (I+)480 to 740 Vp-p(575) 60.10.20TP7 (I-)480 to 740 Vp-p(575) 60.10.30TP4 (Q+)480 to 740 Vp-p(575) 60.10.40TP6 (Q-)480 to 740 Vp-p(575) 60.20Verify that baseband signals measured in test sub-step #60.10 are within 20mV of each other Test segment #30 of 40 70Bit error test Prerequisite(s) 15VDC, 1A current limit, in at baseband board VCC (VCC — is circuit common) FPGA IC programmed 70.10 Receiver set up: Lock Setup = Unlocked, 2/4 Chans. = 4 Channels, AES3 modes = 1 & 2 Analog, 3 & 4 Analog, Audio Lev. = +8 (all 4 channels) 70.20.10Connect two Antenna to the Receiver antenna ports. Lecto part # 21422 Lectrosonics Standard Test & Alignment Procedurefile:///C:/Documents and Settings/bobc/My Documents/rogers/quadra/zip... 2 of 412/14/2010 2:20 P M 70.20.30 Connect the output of the transmitter to the test equipment testing RF Si…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 1 of 1 Revision 1 File: RFExp M4T Date: 12/16/2010

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. SN 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.247), RSS-210 Date: December 3, 2010 Revision 1 File: Lectrosonics M4T TstRpt 101116m4t Page Page 1 of 39 SUBMITTAL APPLICATION REPORT FOR FCC And INDUSTRY CANADA GRANT OF CERTIFICATION FOR Model: M4T 906.624 - 925.056 MHz Digitally Modulated Transmitter FCC ID: DBZM4T IC: 8024A-M4T FOR LECTROSONICS, INC. 581 Laser Road Rio Rancho, NM 87124 Test Report Number: 101116m4t Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. SN 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.247), RSS-210 Date: December 3, 2010 Revision 1 File: Lectrosonics M4T TstRpt 101116m4t Page Page 2 of 39 Engineering Test Report For Application of Grant of Certification FOR CFR47, PART 15C - Intentional Radiators Paragraph 15.247 and Industry Canada, RSS-210 Digitally Modulated Transmitter For LECTROSONICS, INC. 581 Laser Road Rio Rancho, NM 87124 Larry Fisher President Model: M4T Frequency 906.624 - 925.056 MHz FCC ID#: DBZM4T IC: 8024A-M4T Test Date: November 16, 2010 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Fax: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. SN 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.247), RSS-210 Date: December 3, 2010 Revision 1 File: Lectrosonics M4T TstRpt 101116m4t Page Page 3 of 39 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 ENVIRONMENTAL CONDITIONS.................................................................................. 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 APPLICABLE STANDARDS .......................................................................................... 7 EQUIPMENT TESTED .................................................................................................... 7 EQUIPMENT FUNCTION ............................................................................................... 7 EQUIPMENT CONFIGURATION .................................................................................... 7 TEST SITE LOCATIONS ................................................................................................ 8 LIST OF TEST EQUIPMENT .......................................................................................... 8 UNITS OF MEASUREMENTS AND TEST PROCEDURE ............................................. 9 AC Line Conducted Emission Test Procedure .................................................................................................. 9 Radiated Emission Test Procedure ..................................................................................................................... 9 UNINTENTIONAL “GENERAL” EMISSIONS .............................................................. 10 AC Line Conducted EMI ................................................................................................................................... 10 Figure One AC Line Conducted Emissions Line 1............................................................................................ 11 Figure Two AC Line Conducted Emissions Line 2 ........................................................................................... 11 AC Line Conducted Emissions Data ................................................................................................................. 12 Summary of Results for AC Line Conducted Emissions ................................................................................ 12 General Radiated EMI....................................................................................................................................... 13 Figure Three Plot of General Radiated Emissions ............................................................................................. 14 Figure Four Plot of General Radiated Emissions .............................................................................................. 14 Figure Five Plot of General Radiated Emissions ............................................................................................... 15 Figure Six Plot of General Radiated Emissions ................................................................................................. 15 Figure Seven Plot of General Radiated Emissions ............................................................................................ 16 General Radiated Emissions Data from EUT .................................................................................................... 16 Summary of Results for General Radiated Emissions .................................................................................... 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Lectrosonics, Inc. SN 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.247), RSS-210 Date: December 3, 2010 Revision 1 Fi…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 1 of 2 Revision 1 File: Short Term Conf TSup M4T Date: 12/17/2010 Test setup photographs Rogers Labs, Inc. Lectrosonics, Inc. SN: 6 4405 W. 259th Terrace Model: M4T FCC ID: DBZM4T Louisburg, KS 66053 Test #: 101116m4t IC: 8024A-M4T Phone/Fax: (913) 837-3214 Test to: CR47 Parts 2 and 15.247, RSS-210 Page 2 of 2 Revision 1 File: Short Term Conf TSup M4T Date: 12/17/2010
