DBZUT700WIRELESS MICROPHONE TRANSMITTER

UT700 ENCRYPTED DIGITAL UHF HANDHELD TRANSMITTER LECTROSONICS, INC. Rio Rancho, NM www.lectrosonics.com OPERATING INSTRUCTIONS and trouble-shooting guide 2 UT700 LECTROSONICS, INC. INTRODUCTION The 700 Series wireless system provides a combination of outstanding audio quality and secure encryption. This unique combination makes the 700 Series equally suitable for high-end studio and stage applications, and for corporate and govern- ment applications where security is a concern. Several advantages are provided by a digital wireless system: • A digital radio system provides outstanding signal to noise ratio. • The signal to noise ratio of a digital radio system stays constant all the way out to the end of the usable range of RF signal strength. • A DSP controlled analog limiter provides superior level control. • Eavesdropping is extremely difficult due to the secure encryption. The UT700 is an integral microphone/transmitter with an internal antenna. The antenna is a dipole type utilizing the two printed circuit boards as the elements. The housing is composed of durable PVC, machined to a natural, comfortable shape. Internal mechanical parts are machined aluminum and brass. Only the UT700 transmitters are covered in this manual. Companion receivers are covered in separate manuals. TABLE OF CONTENTS The UT700 transmitter is FCC type accepted under Part 74: 470-608MHz and 614-802MHz INTRODUCTION................................................................................................... 2 GENERAL TECHNICAL DESCRIPTION............................................................. 3 CONTROLS AND FUNCTIONS........................................................................... 6 VARIMIC CONTROLS ........................................................................................... 8 BATTERY INSTALLATION.................................................................................. 10 OPERATING INSTRUCTIONS........................................................................... 11 OPERATING NOTES........................................................................................... 11 ADJUSTING THE TRANSMITTER FREQUENCY............................................ 11 TROUBLESHOOTING......................................................................................... 12 SPECIFICATIONS AND FEATURES................................................................. 14 SERVICE AND REPAIR...................................................................................... 15 RETURNING UNITS FOR REPAIR.................................................................... 15 WARRANTY........................................................................................... Back cover 3 Digital Frequency Agile UHF Hand-held Transmitter Rio Rancho, NM – USA GENERAL TECHNICAL DESCRIPTION GENERAL The 700 series encrypted digital wireless microphones use an all-digital communications link for excellent sound quality and data security. In the transmitter, the audio first passes through a DSP-controlled dual envelope analog limiter. The signal is then digitized and fed to a DSP (digital signal processor). The DSP uses a proprietary audio encoding scheme to lower the bit rate and provide the high entropy required for secure encryption. The bit stream is then encrypted, appor- tioned into packets, and sent over the air using a proprietary digital modulation scheme. In the receiver, the digital baseband signal is demodulated to recover the original bit clock and data stream. The DSP separates out the packet headers and decrypts the audio data. The audio data is then decoded to recover the original audio signal. DSP-CONTROLLED DUAL ENVELOPE ANALOG LIMITER In order to make the very best use of the high quality A/D converter, microphone audio is limited in the analog domain first before being sampled. The DSP controls this process, but because the limiting is done in analog, levels near the converter’s maximum may be used without fear of clipping. The limiter has a fast attack, but different release characteristics, depending on the nature of the signal that drove the input into limiting. Brief transients result in a fast decay, to avoid “pumping” effects, while sustained loud signals result in a slower decay, to keep distortion to a minimum. The result is a transparent-sounding limiter with excellent low distortion characteristics. DIGITAL SIGNAL PROCESSING AND MODULATION The preamplified and limited audio signal is converted to digital using a 24-bit A/D converter and fed to the DSP. Within the DSP, the audio is encoded to reduce the bit rate and increase entropy in the data stream prior to encryp- tion. The data stream is then encrypted and apportioned into packets, delimited by packet headers. The complete bit stream is modulated onto the carrier using a modified pi/4 DQPSK (differential quadrature phase shift keying) method. This modulation method makes efficient use of the RF spectrum and is easy to demodulate reliably. Phase Locked Loop Freq Switches 11001001 A-D Converter Digital Signal Processor Shunt Limiter Bicolor Modulation LEDs Microprocessor 9V Battery Switching Power Supply +3.3v +1.8v +9v -3v 50 Isolator Audio Bicolor Power LED Audio Level Input Amp LF Rolloff Digital Modulator RF Amp Dual Envelope Limiter EncodeEncrypt Voltage Controlled Oscillator Encryption Key Link Preamp Mic Element Preamp Level Tone 4 UT700 LECTROSONICS, INC. RF OUTPUT SECTION Intermodulation (IM) occurs in the final amplifier stages of conventional transmitters when the transmitters are within a few feet of each other. This can create serious problems in multichannel wireless systems when an IM signal falls on the carriers, IF frequencies, local oscillator and image frequencies of the systems being operated. To eliminate this problem in the UT700, the modulated radio signal passes through a circular isolator before entering the antenna. The circular isolator functions like a “one-way check valve” to al…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ U7400 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 1 DBZUT700BlkDia.doc 2/23/2004 Block Diagram for UT 700.

February 24, 2004 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 FRN 0007-0674-81 Re: Confidentiality for submittal information regarding FCC ID number DBZ UT700 PRODUCT: Wireless Microphone transmitter operating under part 74. Dear Sirs: Lectrosonics, Inc. requests that the material in the Printed Circuit Board Layout, Schematics, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Lectrosonics, Inc. submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Printed Circuit Board layout, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: DBZ UT700 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and detail printed circuit board layout. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Lectrosonics, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Lectrosonics, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Lectrosonics, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

March 2, 2004 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 FRN: 0007-0674-81 Project number: 250UC4 Equipment: FCC ID: DBZ UT700 FCC Rules: Part 2 and 74 Gentlemen: A copy of the requested information is shown below. Based upon an initial review of your application, we have the following questions: 1. PARTS LIST: Please submit the Part List. It was not received. 2. CONFIDENTIALITY: The Printed Circuit Board Layout was not received. Please submit or revise the Confidentiality Request to not list the layout as confidential. The parts list for the unit has been uploaded to your web site. The artwork for the printed circuit board is included with the schematics, which should be help confidential. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

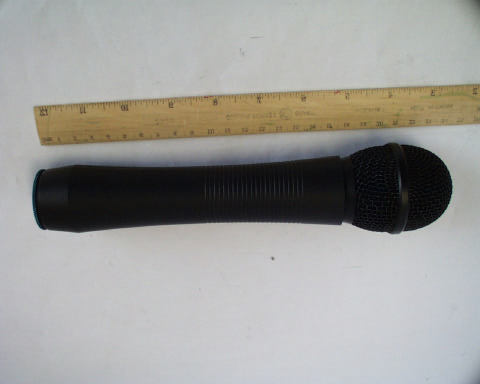

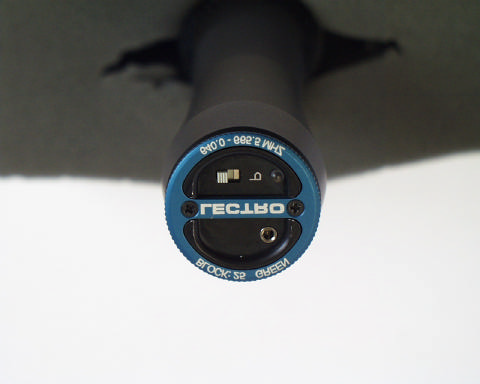

ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 2 DBZUT700Photos.doc 2/23/2004 Equipment photographs for UT 700. ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 2 of 2 DBZUT700Photos.doc 2/23/2004

ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 1 DBZUT700Label.doc 2/23/2004 FCC ID label information for UT 700.

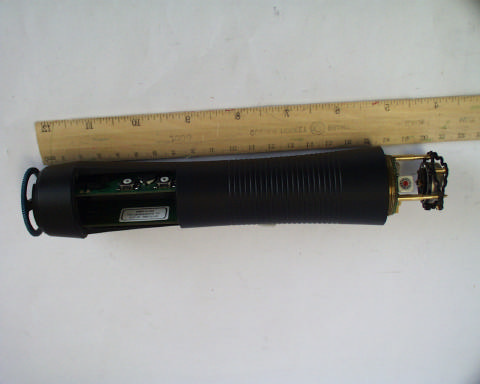

ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 3 DBZUT700IntPhoto.doc 2/23/2004 Internal construction photographs for UT700. Audio PCB ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 2 of 3 DBZUT700IntPhoto.doc 2/23/2004 RF PCB. ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 3 of 3 DBZUT700IntPhoto.doc 2/23/2004

LECTROSONICS TEST & ALIGNMENT PROCEDURE 1 MODEL: UT700 Audio Board REV: 17302 DATE: 25 FEB 2004 PAGE: 1 of 2 FIRMWARE VER: 1.0 Setup: Preamp gain pot (R16) to min. (CCW). 3.5VDC in measured at J4-3. MEASUREMENT. TEST CONDITIONS TYPICAL MEASUREMENT RESULT Input Voltage; +3.5 Vdc measured at J4-3 (+/- 0.10) Current Draw before programming: MAX 70mA Reference Voltages . Measure DC voltage at: U16 Pin 1 (C10) 1.8VDC (+/- 0.1) U15 Pin 6 (C28) -3.2VDC (+/- 0.2) J3 Pin2 +3.5VDC (+/- 0.2S) Program Processor: Program Microprocessor and apply label. (FACTORY ONLY) Current Draw after programming: 75mA (+/- 5ma) 9VDC TO J4-1. Power Up LED Test: Power D.U.T. down and back up: Observe operation of LED’s D5, D6 and D9 as follows: All 3 LED’s RED. After approximately 1 second: D2 GREEN, D5 and D6 OFF Noise Floor. Preamp gain pot to Max. Measure noise level @ TP4. Approx. – 74dBV (+/- 2.0) Measure noise level @ TP5. Approx. – 57dBV (+/- 2.0) Preamp gain pot to Min. Measure noise level @ TP4. Approx. – 80dBV (+/- 4.0) Measure noise level @ TP5. Approx. – 80dBV (+/- 4.0) Reference Voltages . Measure DC voltage at: TP3 0.0VDC (+/- 0.001) TP4 1.525VDC (+/- 0.004) TP5 1.525VDC (+/- 0.004) Limiter output test: 1kHz , –27BV audio signal coupled into mic jack J1- 2 through a 33?F capacitor ( “+” side of cap toward input). -20 -10 LED test: -27dBV 250Hz into DUT D5 GREEN, D6 OFF -17dBV 250Hz into DUT D5 GREEN, D6 GREEN -8dBV 250Hz into DUT D5 RED, D6 GREEN Frequency Response: Use 250Hz reference. Ratio Analyzer. Measured at TP4 40Khz -5.1dbr (+/-0.5) 20Khz +0.6dBr (+/- 0.2) 10Khz +0.3dBr (+/- 0.2) 1Khz +0.1dBr (+/- 0.2 100Hz -0.4dBr (+/- 0.2) Mic Gain Pot Test: -55dBV in at J1. Gain Pot R16 at Minimum. Ratio Audio Analyzer. Measure at TP4. Mic Gain Pot to Mid and Measure Level Approx. 29 dBr (+/- 2.0) Mic Gain Pot to Max and Measure Level Approx. 35 dBr (+/- 3.0) NOTE: Return Mic Gain Pot to Minimum after test. Set SW1 and SW2 to FF. 1 Test condition changes are in bold type. Measurement results are typical and do not indicate ‘specs’ unless min., max., or a range is specified. Small deviations from these ‘typical’ values does not constitute malfunction. Measurement result values apply only if this procedure (including initial setup) is followed. Void where prohibited by law. MODEL: UT700 RF Board REV: 17301 DATE: 25 FEB 2004 PAGE: 2 of 2 Setup: Connect RF board to audio board, apply 9 vdc to battery contacts. Measure RF output at J2, J4 (J4 is Gnd). Turn power switch S3 ON (up position). MEASUREMENT. TEST CONDITIONS TYPICAL MEASUREMENT RESULT Check current draw: <110 ma Check VCO control voltage: Audio Bd. S1, S2 (F,F) <3 vdc Audio Bd. S1, S2 (0, 0) >1 vdc Measure output power: +17 dbm To adjust output power: Install jumper from J7-1 to J7-7 on audio board, set S1 to “A” and adjust power with S2. After adjustment, remove jumper. Set operating frequency: Operating freq. +/- 1.5 Khz To adjust frequency: Install jumper from J7-1 to J7-7 on audio board, set S1 to “F” and adjust frequency with S2. After adjustment, remove jumper. Carrier NULL: >25 db below lower sideband To adjust carrier NULL: Install jumper from J7-1 to J7-7 on audio board, set S1 to “0” and adjust S2 for best NULL. Set S1 to “1” and adjust S2 for best NULL. Repeat S1 “0 and 1 adjustments until best NULL has been achieved. After adjustment, remove jumper. This completes the alignment.

RF Board |------------------------------------------------------------------------------- ----------------| |Bill Of Materials for 17301.sch on Tue Mar 02 08:13:02 2004 | |------------------------------------------------------------------------------- ----------------| |PART NUMBER|QTY|PART DESC |REF-DES |PART-TYPE |SPECIAL NOTE | |-----------+---+----------------------------+--------+----------------+-------- ----------------| |51029 |1 |SWITCH\SPDT\NKK 12AS12AV |S3 |!SW\SPDT\ NKAS12A| | |21704 |1 |CONNECTOR\PC PIN\.050 |J3 |CON\.05\7P\ .705 | | | | |CENTERS\7P\.705LENGTH\MALE | | | | |21705 |1 |CONNECTOR\PC PIN\.050 |J5 |CON\.05\8P\ .705 | | | | |CENTERS\8P\.705LENGTH\ MALE | | | | |P1112 |1 | |B1 |CON\9VBAT\ T195 | | |21519 |3 |CONNECTOR\RECEPTICAL\PCB\.02|J1-2 J4 |CON\EYELET\ RF | | | | |5 SQ PIN\FEMALE | | | | |SCC100PH%5 |4 |CAP SMD 100PF 5% NPO 0402 |C36 C46 |SCC100PH%5 | | | | | |C69 C98 | | | |SCC10M6V3 |2 |CAP SMD 10M Y5V 0805 6.3V |C23 C25 |SCC10M6V3 | | |SCC10PH%P5 |3 |CAP SMD 10PF ±0.5P NPO 0402 |C4 C11 |SCC10PH%P5 | | | | | |C41 | | | |SCC12PH%P5 |1 |CAP SMD 12PF ±5% NPO 0402 |C29 |SCC12PH%5 | | |SCC15PH%5 |1 |CAP SMD 15PF 5% NPO 0402 |C49 |SCC15PH%5 | | |SCC1M |1 |CAP SMD 1MFD +80/-20% 50V |C31 |SCC1M | | | | |0805 | | | | |SCC1M16V |3 |CAP SMD 1M X7R 0805 16V |C6 C13 |SCC1M16V | | | | | |C35 | | | |SCC1N2 |4 |CAP SMD 1N2F 5% NPO 0805 |C24 C75 |SCC1N2 | | | | | |C111 | | | | | | |C113 | | | |SCC1NH%10 |11 |CAP SMD 1nF 10% NPO 0402 |C3 C17 |SCC1NH%10 | | | | | |C21 C28 | | | | | | |C30 | | | | | | |C38- 39 | | | | | | |C55-57 | | | | | | |C109 | | | |SCC1P%P1 |1 |CAP SMD 1PF TOL 0.1pF 0805 |C15 |SCC1P%P1 | | |SCC1P8%P1 |1 |CAP SMD 1.8PF TOL 0.1pF |C10 |SCC1P8%P1 | | | | |0805 | | | | |SCC220PH%5 |2 |CAP SMD 220PF 5% NPO 0402 |C96-97 |SCC220PH%5 | | |SCC22PH%5 |3 |CAP SMD 22PF 5% NPO 0402 |C40 C50 |SCC22PH%5 | | | | | |C71 | | | |SCC2PH%P25 |2 |CAP SMD 2PF +-.25PF NPO 0402|C54 C66 |SCC2PH%P25 | | |SCC390PH%5 |4 |CAP SMD 390PF 5% NPO 0402 |C20 C76 |SCC390PH%5 | | | | | |C110 | | | | | | |C112 | | | |SCC3PH%P25 |2 |CAP SMD 3PF ±0.25PF NPO 0402|C7 C62 |SCC3PH%P25 | | |SCC47N |1 |CAP SMD 47 N 10% 0805 X7R |C65 |SCC47N | | |SCC4M7A10V |2 |CAP SMD 4.7M X7R 1206 |C48 C64 |SCC4M7A10V | | |SCC5PH%P25 |3 |CAP SMD 5PF +-.25PF NPO 0402|C9 C51 |SCC5PH%P25 | | | | | |C53 | | | |SCC6PH%P5 |1 |CAP SMD 6PF ±0.5P NPO 0402 |C33 |SCC6PH%P5 | | |SCC82PH%5 |1 |CAP SMD 82PF 5% NPO 0402 |C18 |SCC82PH%5 | | |SCCM1H10V%1|23 |CAP SMD 0.1uF, 10V, 10%, |C1-2 C5 |SCCM1H10V%10 | | |0 | |X5R, 0402 |C8 C12 | | | | | | |C16 C19 | | | | | | |C22 C26 | | | | | | |C32 C37 | | | | | | |C42 C44 | | | | | | |C47 C52 | | | | | | |C58-59 | | | | | | |C67- 68 | | | | | | |C70 C72 | | | | | | |C74 C120| | | |SCCP4%P1 |1 |CAP SMD 0.4PF TOL 0.1pF |C43 |SCCP4%P1 | | | | |1.4mm sq | | | | |SCT10MB16V |1 |CAP SMD 10uF TANT 16V |C60 |SCT10MB16V | | |SCT1MA16V |1 |CAP SMD 1uF 10% TANT 16V |C45 |SCT1MA16V | | |SCT2M2A10V |1 |CAP SMD 2.2uF TANT 10V |C63 |SCT2M2A10V | | |SCT68MD20V+|1 |CAP SMD 68uF TANT 20V LOW |C61 |SCT68MD20V+LE | | |LE | |ESR | | | | |SDG4003 |1 |DIODE SMD RLR4003 1AMP 200V |D10 |SDG4003 | | |SDS130 |1 |DIODE,MBRS130LT3,SCHOTTKY, |D1 |SDS130 | | | | |1AMP,30V | | | | |SDV1204-199|1 |DIODE,VARACTOR,SMV1240-199 |D2 |SDV1204- 199 | | |SIA7301 |2 |IC OP AMP SINGLE UNIVERSAL |U13- 14 |SIA7301 | | | | |30V RAIL TO RAIL SOT23- 5 | | | | |SIAAD8606 |2 |IC OP AMP, 8nV, 5.5V, |U2 U12 |SIAAD8606 | | | | |65uVos, 10 MHz, RR in&out, | | | | | | |1nF load, Micro 8 | | | | |SIP887 |1 |IC, STEP-DOWN VOLTAGE |U11 |SIP887 | | | | |CONVERTER | | | | |SIP2985/1V8|1 |IC, LD REG, 1.8V, SOT23-5 |U7 |SIP2985/1V8 | | |SIP2985/3V |1 |IC, LD REG, 3.0V, SOT23-5 |U6 |SIP2985/3V | | |SIR8026 |1 |I.C. ,PLL, Fractional N, |U4 |SIR8026 | | | | |DUAL, 2.5 and 0.5 GHZ, | | | | | | |PHILIPS SA8026DH | | | | |SIR8345 |1 |IC, UHF QUADRATURE |U1 |SIR8345 | | | | |MODULATOR, SSOP16 | | | | |SLC100 NA |1 |IND SMD 100nH 0805 |L3 |SLC100NA | | |SLC12NA |2 |IND SMD 12nH, 0805 |L9 L18 |SLC12NA | | |SLC15NA |3 |IND SMD 15nH, 0805 |L2 L5 |SLC15NA | | | | | |L10 | | | |SLC33NA |1 |IND SMD 33nH, 0805 |L4 |SLC33NA | | |SLC47N |1 |IND SMD 47nH |L12 |SLC47N | | |SLC47NA |3 |IND SMD47nH, 0805 |L7-8 L13|SLC47NA | | |SLFBEAD3 |4 |FERRITE BEAD, SMT, |L1 L11 |SLFBEAD3 | | | | |120@100MHz, 0805 |L14-15 | | | |SLP47UG |1 |INDUCTOR,47UH,FERRITE,POWER,|L6 |SLP47UG | | | | |SMD | | | | |SRA0R |2 |RESISTOR SMD 1\10W 0805 0 |L17 L24 |SRA0R | | | | |OHM | | | | |SRA1R |1 |RESISTOR SMD 1\ 10W 0805 1 |R14 |SRA1R | | |SRA30R1 |1 |RESISTOR SMD 1\ 10W 0805 |R38 |SRA30R1 | | | | |30.1 OHM | | | | |SRH100K |2 |RESISTOR SMD 1\16W 0402 100K|R19 R61 |SRH100K | | |SRH100R |6 |RESISTOR SMD 1\16W 0402 100 |R17-18 |SRH100R | | | | |Ohm |R24 R27 | | | | | | |R32 R39 | | | |SRH10K |12 |RESISTOR SMD 1\16W 0402 10K |R3-4 |SRH10K | | | | | |R9-10 | | | | | | |R16 R21 | | | | | | |R35 R40 | | | | | | |R52-54 | | | | | | |R56 | | | |SRH10R |1 |RESISTOR SMD 1\ 16W 0402 10 |R49 |SRH10R | | | | |Ohm | | | | |SRH18K2 |3 |RESISTOR SMD 1\16W 0402 |R6 R31 |SRH18K2 | | | | |18.2K |R34 | | | |SRH1K |1 |RESISTOR SMD 1\16W 0402 1K |R11 |SRH1K | | |SRH200R |5 |RESISTOR SMD 1\16W 0402 200 |R13 R30 |SRH200R | | | | |Ohm |R36-37 | | | | | | |R42 | | | |SRH2K |1 |RESISTOR SMD 1\16W 0402 2K |R58 |SRH2K | | |SRH2K21 |13 |RESISTOR SMD 1\16W 0402 |R1-2 |SRH2K21 | | | | |2.21K |R25-26 | | | | | | |R33 | | | | | | |R45-48 | | | | | | |R50-51 | | | | | | |R55 R94 | | | |SRH2K32 |1 |RESISTOR SMD 1\16W 0402 |R5 |SRH2K32 | | | | |2.32K | | | | |SRH301R |1 |RESISTOR SMD 1\ 16W 0402 301 |R20 |SRH301R | | | | |Ohm | | | | |SRH33K2 |1 |RESISTOR SMD 1\16W 0402 |R57 |SRH33K2 | | | | |33.2K | | | | |SRH35K7 |1 |RESISTOR SMD 1\16W 0402 |R15 |SRH35K7 | | | | |35.7K | | | | |SRH3K32 |4 |RESISTOR SMD 1\16W 0402 |R8 R12 |SRH3K32 | | | | |3.32K |R29 R43 | | | |SRH3K74 |1 |RESISTOR SMD 1\ 16W 0402 |R22 |SRH3K74 | | | | |3.74K | | | | |SRH49R9 |1 |RESISTOR SMD 1\16W 0402 49.9|R23 |SRH49R9 | | |SRH5K11 |1 |RESISTOR SMD 1\ 16W 0402 |R…

Text truncated - open the document above for the full version.

TEST REPORT For APPLICATION of CERTIFICATION for LECTROSONICS, INC. 581 Laser Road Rio Rancho, NM 87124 Larry Fisher Vice President of Engineering MODEL: UT 700 NAME: Wireless Microphone Transmitter FREQUENCY: 537.6 – 608.0, 614.0 - 793.5 MHz FCC ID: DBZ UT 700 Test Date: February 16, 2004 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259 TH Terrace Louisburg, KS 66053 PHONE: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Lectrosonics, Inc. 4405 West 259 TH Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCC ID DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74 Page 2 of 21 DBZUT700 Testrpt.DOC 2/23/2004 TABLE OF CONTENTS FORWARD: 3 APPLICABLE STANDARDS & TEST PROCEDURES 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION: 4 2.1046 RF POWER OUTPUT 6 Measurements Required: 6 Test Arrangement: 7 Results: 8 2.1047 MODULATION CHARACTERISTICS 8 Measurements Required: 8 Test Arrangement: 9 Results: 10 2.1049 OCCUPIED BANDWIDTH 10 Measurements Required: 10 Test Arrangement: 10 Results: 12 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 Measurements Required: 12 Test Arrangement: 12 Results: 13 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 13 Measurements Required: 13 Test Arrangement: 13 Results : 15 2.1055 FREQUENCY STABILITY 15 Measurements Required: 15 Test Arrangement: 16 Results: 17 APPENDIX 18 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Lectrosonics, Inc. 4405 West 259 TH Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCC ID DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74 Page 3 of 21 DBZUT700 Testrpt.DOC 2/23/2004 FORWARD: The following information is submitted for consideration in obtaining a Grant of Certification per Code of Federal Regulations, Title 47. Applicable Standards & Test Procedures a) In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2002, Part 2, Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.925, 2.926, 2.1031 through 2.1057, and applicable paragraphs of Part 74 the following is submitted. b) Test procedures used are the established Methods of Measurement of Radio-Noise Emissions as described in ANSI 63.4- 1992 and TIA/EIA 603. List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Lectrosonics, Inc. 4405 West 259 TH Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCC ID DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74 Page 4 of 21 DBZUT700 Testrpt.DOC 2/23/2004 HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 100 kHz 300 kHz Peak 2.1033(C) Application for Certification: (1) The full name and mailing address of the manufacturer of the device and the applicant for certification. Lectrosonics, Inc. 581 Laser Road Rio Rancho, NM 87124 (2) FCC identifier. DBZ UT 700 (3) A copy of the installation and operating instructions to be furnished the user. Refer to the instruction manual furnished with this application for details. (4) Type or types of emission. 160KQ2E (5) Frequency range. 537.6 to 608.0 MHz and 614.0 to 793.5 MHz. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Lectrosonics, Inc. 4405 West 259 TH Terrace MODEL: UT 700 Louisburg, KS 66053 Test #: 040130 FCC ID DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 & 74 Page 5 of 21 DBZUT700 Testrpt.DOC 2/23/2004 (6) Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. The output power is factory set to 50 mW (nominal). The EUT has no provision for operator variation of the output power. (7) Maximum power rating as defined in the applicable part(s) of the rules. As stated in CFR 47, 74.861(e)(ii), the maximum permissible output power allowed is 250 mW. (8) The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. The EUT final amplification stage runs at 3.5 volts with 30 mA current for a power requirement of 105 mW. (9) Tune-up procedure over the power range, or at specific operating power levels. Refer to the tune-up procedure furnished with this application for details. (10) A schematic diagram and a description of all circuitry and devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation, and for limiting power. Refer to the schematics furnished with this application for details. (11) A photograph or drawing of the equipment identification plate or label shows the information to be placed thereon. Refer to the FCC identification label information furnished with this application for details. (12) Photographs (8'' x 10'') of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are m…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. LectroSonics Inc. 4405 W. 259th Terrace MODEL: UT700 Louisburg, KS 66053 Test #: 040130 FCCID#: DBZ UT700 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 74 Page 1 of 1 DBZUT700TstPhot.doc 2/23/2004 Test setup photographs for UT 700.
