DEO-MT-IMMO-03Unit Assy - Immobilizer

MOTOTECH CO., LTD. Title Certification Request Document Project Name Drawn Model Name Released Made by 1 PRODUCT SPECIFICATION AND MANUAL 2012.05 BUYER / PROJECT SANGYONG / MT-IMMO-03 BUYER MODEL PART No. COMPANY Mototech Co,. MAKER/NATION Mototech Co,./Republic of Korea DRAFT PART Research Center DRAFTER MOTOTECH CO., LTD. Title Certification Request Document Project Name Drawn Model Name Released Made by 2 Table of Contents 1. CONTENTS ............................................................................................................ 3 3. SPECIFICATION .................................................................................................. 4 4. DESCRIPTION ....................................................................................................... 5 MOTOTECH CO., LTD. Title Certification Request Document Project Name Drawn Model Name Released Made by 3 1. Contents  IMMOBILIZER Name Unit Ass’y IMMOBILIZER Use Encryption code communication ( protect thief) Summary 1. Immobilizer can protect vehicle thief 2. Encryption code communication between transponder of transmitter and immobilizer Composition Bobbin ( Coil ) 2. ELECTRONIC CHARACTERISTICS  IMMOBILIZER Name Unit Ass’y Immobilizer Operational operating temperature range : -30°C / +80°C Storage temperature -40°C / +85°C Operational voltage range 6V to 16V Operational voltage range for CAN 6V to 18V Dark Current 1.0mA MOTOTECH CO., LTD. Title Certification Request Document Project Name Drawn Model Name Released Made by 4 3. SPECIFICATION  IMMOBILIZER Antenna COIL INDUCTANCE 440uH ± 20 COIL TURNS 89T COIL WIRE RICH WIRE (TBD) MODULATION ASK INPUT/OUTPUT FREQUENCY 134.2kHz ± 4KHz/PWM ANT CABLE TWIST - RICH WIRE (TBD)  Transponder FREQUENCY 134.2kHz ± 4KHz OPERATION TEMP -40°C - +85°C MOTOTECH CO., LTD. Title Certification Request Document Project Name Drawn Model Name Released Made by 5 4. DESCRIPTION  System construction of Immobilizer 그림 1. Immobilizer Unit Block Diagram 그림 2. Immobilizer Unit System Block Diagram OBD Connect or Cluster HS_CAN_High HS_CAN_Low Diagnosis CAN (KWP2000) Control by EMS Status Lamp control by EMS EMS IMMO Immobilizer Authentication Immobilizer Authentication Transponder Authentication IGN1 11 BAT. Fuse B+ MOTOTECH CO., LTD. Title Certification Request Document Project Name Drawn Model Name Released Made by 6 (1) A car key is inserted into a key-lock body and the key is put IGN_ON position, Immobilizer UNIT accomplishes the DIAGNOSIS. (2) After completing the DIAGNOSIS, UNIT FCC (Federal Communications Commission) WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Sep. 29, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, MOTOTECH Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Unit Assy - Immobilizer, MT-IMMO-03 , FCC ID: DEO-MT-IMMO-03) Sincerely, Ban-seok Choi Research Engineer MOTOTECH Co., Ltd. #68-26, Mannyeon-ro, Jeongnam-myeon, Hwasong-si, Gyeonggi-do, Korea

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 Sep. 29, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: DEO-MT-IMMO-03 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Ban-seok Choi / Research Engineer Contact information / address: 031-305-0682 / #68-26, Mannyeon-ro, Jeongnam-myeon, Hwaseong-si, Gyeonggi-do, Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 Sep. 29, 2014 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: DEO-MT-IMMO-03 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. Ext Photo - e.g. Int Photo - e.g. Test Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : Ban-seok Choi / Research Engineer Contact information / address: 031-305-0682 / #68-26, Mannyeon-ro, Jeongnam-myeon, Hwaseong-si, Gyeonggi-do, Korea

MOTOTECH Co., Ltd. #68-26, Mannyeon-ro, Jeongnam-myeon, Hwaseong-si, Gyeonggi-do, Korea Date: Sep. 29, 2014 SIEMIC 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: DEO- MT-IMMO-03 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from MOTOTECH Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Ban-seok Choi Research Engineer

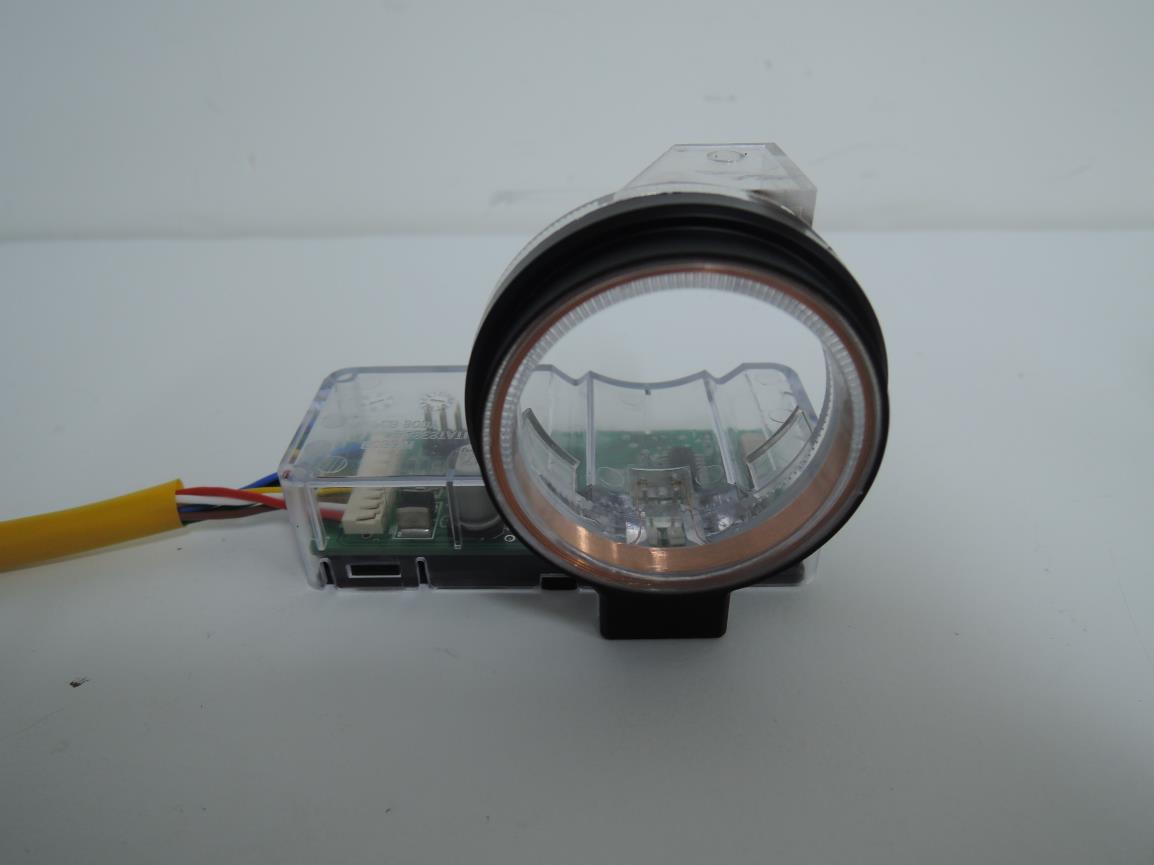

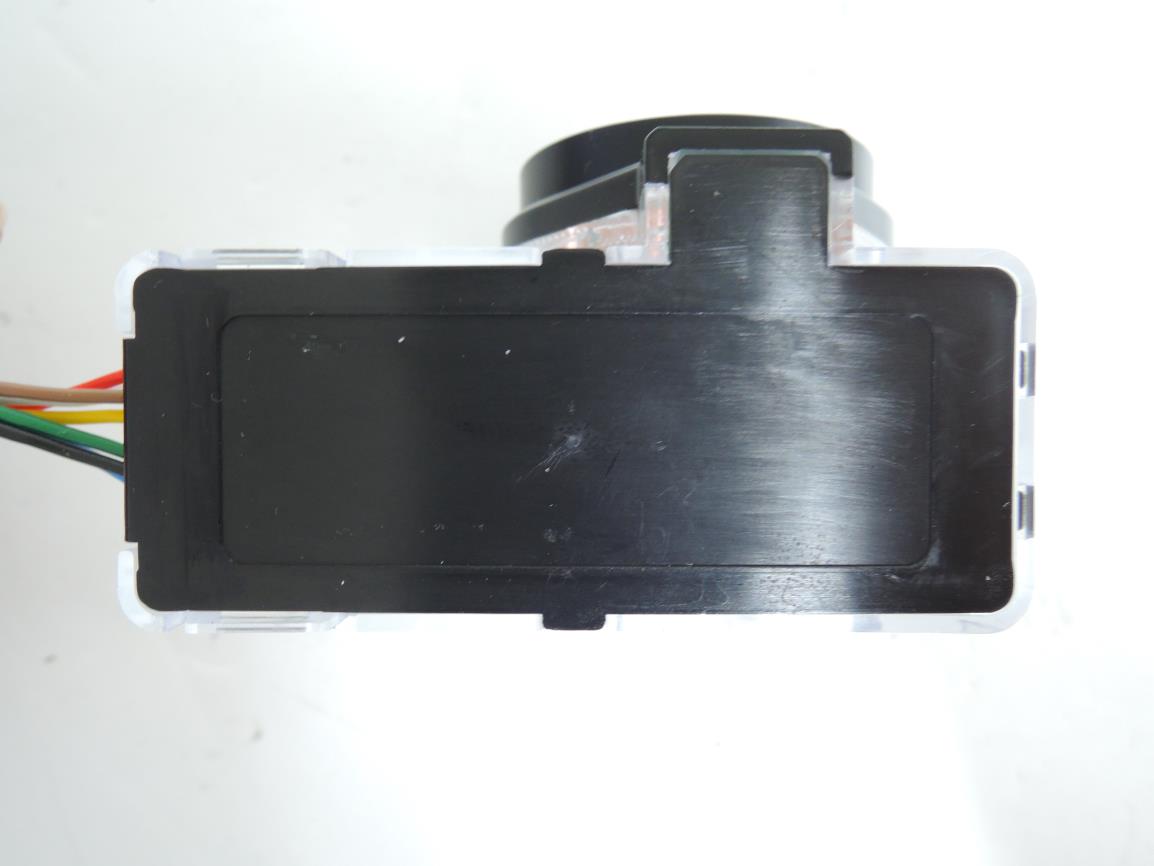

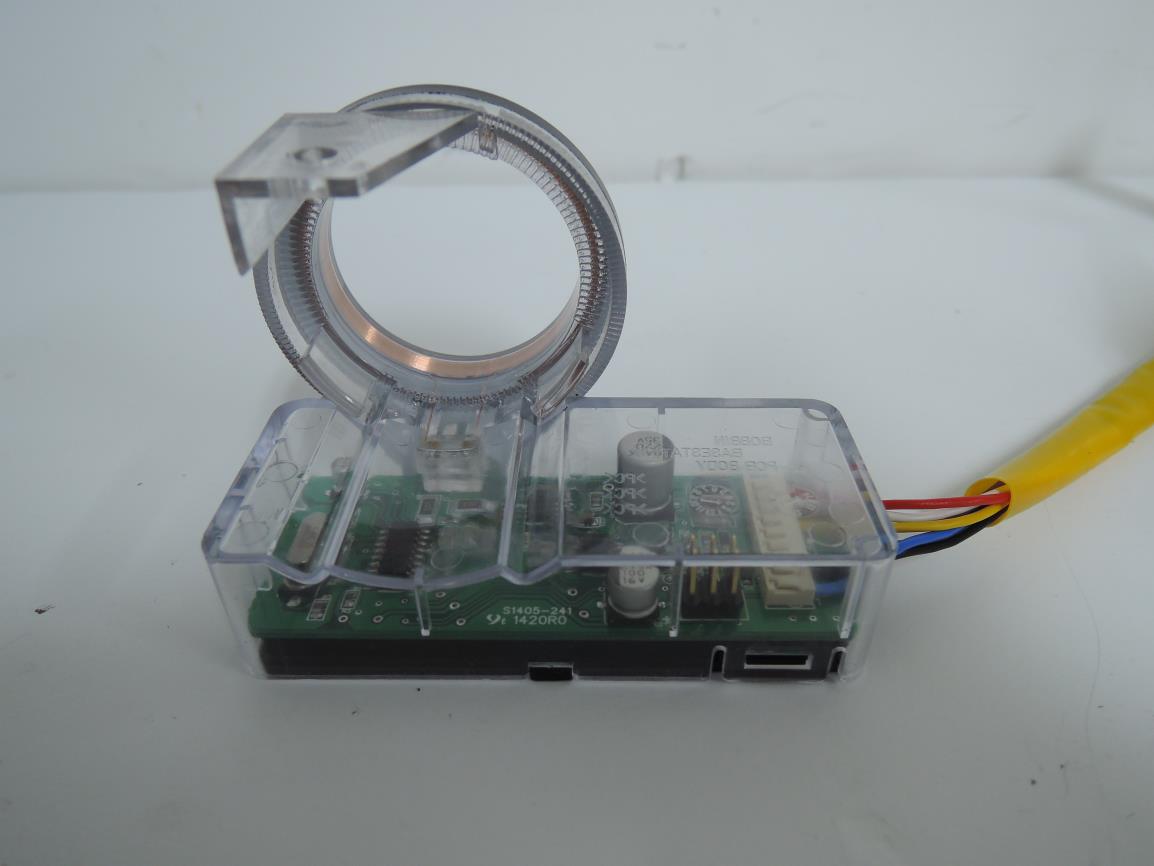

FCCID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. UNIT ASSY-IMMOBILIZER MODEL : MT-IMMO-03 FCC ID : DEO-MT-IMMO-03 LOT NO MOTOTECH Co., Ltd. Made in Korea REAR OF EUT

FCCID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: DEO-MT-IMMO-03 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 2 / 13 Copyright ○ C 2014, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1409-1248 Sep. 29, 2014 Initial issue FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 3 / 13 Copyright ○ C 2014, DT&C Co., Ltd. CONTENTS 1. Equipment information ............................................................. 4 1.1 Equipment description ............................................................ 4 1.2 Support equipments ............................................................... 4 2. Information about test items .................................................... 5 2.1 Operating mode ..................................................................... 5 2.2 Tested frequency .................................................................... 5 2.3 Auxiliary equipment ................................................................ 5 2.4 Tested environment ................................................................ 5 2.5 EMI Suppression Device(s)/Modifications .............................. 5 3. FACILITIES AND ACCREDITATIONS ........................................ 6 3.1 FACILITIES ............................................................................ 6 3.2 EQUIPMENT .......................................................................... 6 4. Test Report ................................................................................ 7 4.1 Summary of tests ................................................................... 7 4.2 Transmitter requirements........................................................ 8 4.2.1 20dB Bandwidth ................................................................. 8 4.2.2 Radiated Emissions ........................................................... 9 4.2.3 AC Line Conducted Emissions .......................................... 11 APPENDIX I ................................................................................. 12 FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 4 / 13 Copyright ○ C 2014, DT&C Co., Ltd. 1. Equipment information 1.1 Equipment description FCC Equipment Class Part 15 Low Power Transmitter Below 1705 kHz (DCD) Equipment type Unit Assy - Immobilizer Equipment model name MT-IMMO-03 Equipment add model name N/A Equipment serial no. Identical prototype Frequency band 134.2kHz Power DC 12 V(Car Battery) Antenna type Fixed type(Low frequency Antenna) 1.2 Support equipments Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - - - - - - - - - - - Note: The above equipments were supported by manufacturer. FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 5 / 13 Copyright ○ C 2014, DT&C Co., Ltd. 2. Information about test items 2.1 Operating mode Operating Mode Continuous transmitting mode 2.2 Tested frequency Item TX RX Frequency 134.20 kHz 134.20 kHz 2.3 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note - - - -. - 2.4 Tested environment Temperature : 23 ~ 24 o C Relative humidity content : 39 ~ 53 % R.H. Details of power supply : DC 12 V(Car Battery) 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing → None FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 6 / 13 Copyright ○ C 2014, DT&C Co., Ltd. 3. FACILITIES AND ACCREDITATIONS 3.1 FACILITIES The semi anechoic chamber and conducted measurement facility used to collect the radiated and conducted test data are located at the 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935. The site is constructed in conformance with the requirements. - Semi anechoic chamber registration Number: 596748 3.2 EQUIPMENT Radiated emissions are measured with one or more of the following types of antennas: loop, tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide horn. Spectrum analyzers with pre-selectors and peak, quasi-peak detectors are used to perform radiated measurements. Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test Receivers. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 7 / 13 Copyright ○ C 2014, DT&C Co., Ltd. 4. Test Report 4.1 Summary of tests FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 Test Items 2.1049 N/A 20 dB Bandwidth N/A Radiated C 15.209 RSS-Gen [7.2.5] Radiated Emission FCC 15.209 limits C 15.207 RSS-Gen [7.2.4] AC Conducted Emissions FCC 15.207 limits AC Line Conducted NA Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: ANSI C-63.4 2009 FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 8 / 13 Copyright ○ C 2014, DT&C Co., Ltd. 4.2 Transmitter requirements 4.2.1 20dB Bandwidth - Procedure: The 20 dB bandwidth is measured with a spectrum analyzer connected via a receiving antenna placed near the EUT while the EUT is operating. Tested Frequency(kHz) Test Results(kHz) 134.20 4.491 FCC ID : DEO-MT-IMMO-03 DEMC1408-03296 Report No.: DRTFCC1409-1248 TRF-RF-204(01)110221 Page 9 / 13 Copyright ○ C 2014, DT&C Co., Ltd. 4.2.2 Radiated Emissions - Limit: FCC Part 15.209(a) & RSS-GEN, section 7.2.5 Frequency [MHz] Field Strength [uV/m] Measurement Distance [Meters] 0.009 ~ 0.490 2400/F(kHz) 300 0.490 ~ 1.705 24000/F(kHz) 30 1.705 ~ 30 30 30 30 ~ 88 100 3 88 ~ 216 150 3 216 ~ 960 200 3 Above 960 500 3 ** Except as provided in 15.209(g), fundamental emissions from intentional radiators op…
