DI29910Computime Producer 2002 RF

TABLE OF CONTENTS Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installing Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Setting The Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Features And Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Key Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Programming Device Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Programming TV/VCR Combo Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Manufacturer’s Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Setup Codes for Audio Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Setup Codes for Audio Cassette Decks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Setup Codes for Audio Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Setup Codes for Audio Turntables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Setup Codes for Cable Converters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Setup Codes for CD Players . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Setup Codes for DAT Recorders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Setup Codes for Home Automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Setup Codes for LD Players . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Setup Codes for Misc. Audio Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Setup Codes for Satellite Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Setup Codes for TV/VCR Combos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Setup Codes for VCRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Setup Codes for Video Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Searching For Your Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Programming A Learning Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Deleting A Function From A Learning Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using Volume Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Programming Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Programming Volume Unlock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Using Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Programming A Favorite Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Programming A Master Power Key With Instant Channel Selection. . . . . . . . . . . . . . . . . . 35 Clearing A Macro. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Re-Assigning Device Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Using Keymover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Programming Keymover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Restoring Keymover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Using Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Programming Favorite Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Using The Home Theater Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Control Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Programming The Home Theater Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Operating The Home Theater Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Using Commercial Skip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Programming Commercial Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Operating Commercial Skip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Restoring Factory Defa…

Text truncated - open the document above for the full version.

FCC ID: IMP9910 IC: 1700-IMPHK9P Block diagram of the URC-9910B00 RF Remote Control Micro-controller 8 Bit Keypad input EEPROM 8.000 MHz Clock Low Voltage Detector 32.768 KHz Real Time Clock Infrared learner Liquid Crystal Display Infrared (IR) transmitter Light Emitting Diode (LED) back-light 430.0 MHz Oscillator/Transmitter Liquid Crystal Display (LCD) Driver Modem-download (300 Baud rate)

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 1 July 12, 2002 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Request for Certification of the Computime Limited Computime Producer 2002 RF Model: URC-9910B01 FCC ID: DI29910 Gentlemen: We have enclosed a package for the certification of the Computime Limited Computime Producer 2002 RF Model: URC-9910B01. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

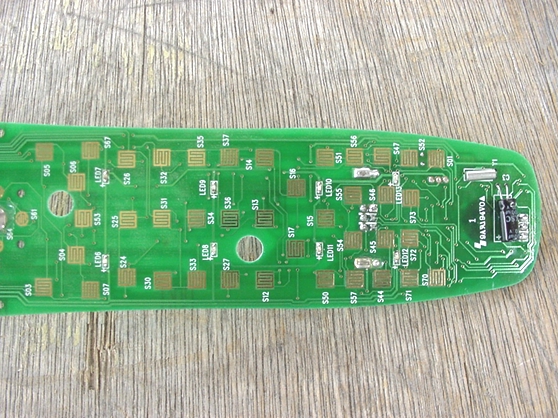

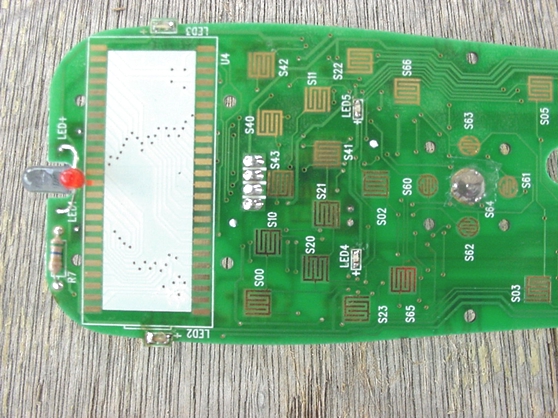

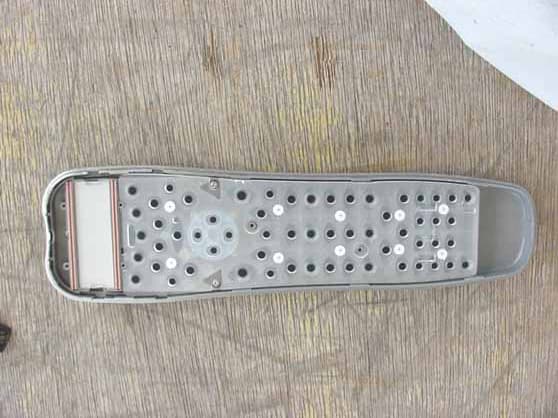

FCC ID: DI29910 IC: 1700-DI2KH9P Description of the URC-9910B00 RF Remote Control The URC-9910B00 RF is a universal remote control that allows users to operate audio/video (A/V) equipment using radio frequency (RF) or infrared (IR) signals. When used in conjunction with the 8-in-1 Command Center receiver, this remote control can operate audio/video equipment with 100 feet, not necessarily in line of sight with respect to the user. The URC-9910B00 RF can also be used as a stand-alone IR remote control unit, and can control up to eight A/V devices. This device is part of an extensive line of infrared and RF remote control products that Universal Electronics Inc. designs, manufactures, and sell in the United States and abroad.

TECHNOLOGY SM Designed with This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. URC-9910B00 www.oneforall.com Made in China FCC ID : DI29910 IC : 1700-IMPKH9P

FCC ID: IMP9910 IC: 1700-IMPKH9P Description of the URC-9910B00 RF Remote Control The URC-9910B00 RF is a universal remote control that allows users to operate audio/video (A/V) equipment using radio frequency (RF) or infrared (IR) signals. When used in conjunction with the 8-in-1 Command Center receiver, this remote control can operate audio/video equipment with 100 feet, not necessarily in line of sight with respect to the user. The URC-9910B00 RF can also be used as a stand-alone IR remote control unit, and can control up to eight A/V devices. This device is part of an extensive line of infrared and RF remote control products that Universal Electronics Inc. designs, manufactures, and sell in the United States and abroad.

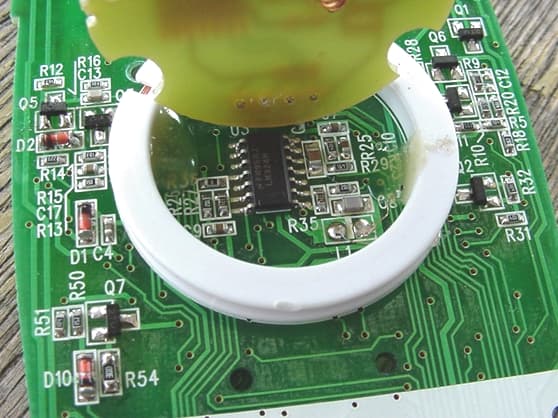

1234 A B C D 4321 D C B A 11 UEIS-102651 19-Aug-200211:07:06H:\DESKTOP\Agile\10265_1.sch Title Size:Number: Date:File: Revision: Sheetof Time: A RF Transmitter Module Drawn By:Design by: This document contains information which is confidential and proprietary to Universal Electronics Inc. CONFIDENTIAL: Universal Electronics Inc. 6101 Gateway Drive Cypress, CA 90630 Phone 714-820-1000 FAX 714-820-1010 C18 2pF R8 4.7K R7 10K Q11 MMBTH10L R27 1K C23 5.6pF C20 3.9pF C19 100pF L5 100nH 4 WJ RF Test IR OUT C21 0.1 uF VDD VC1 1.0-3.0 pF L4 100nH L6 0.05uH 5 6 4 U4B 4011 12 13 11 U4D 4011 1 2 3 U4A 4011 8 9 10 VCC 14 GND 7 U4C 4011 430.000 MHz OSCILLATOR or 5pF VDD VDD IROUT RF Test DOCUMENT REVISION STATUS ECO#ZONEREV.DESCRIPTION OF CHANGEChgd. ByDATEAPPR.DATE 08/16/02 1C21 = 0.1 uF to reduce VDD noise.H.M.08/12/02J.M.08/16/02

FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALIFORNIA, 92823 • PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART C TEST REPORT for COMPUTIME PRODUCER 2002 RF MODEL: URC-9910B01 Prepared for COMPUTIME LIMITED 21-22/F., SPECTRUM TOWER, 53 TUNG TO ROAD, KWUN TONG, KIN, HONG KONG Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 18, 2002 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 10 15 2 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALIFORNIA, 92823 • PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALIFORNIA, 92823 • PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets E Laboratory Recognitions LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALIFORNIA, 92823 • PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Computime Producer 2002 RF Model: URC-9910B01 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630 Customer: Computime Limited 21-22/F., Spectrum Tower, 53 Hung To Road, Kwun Tong, Kin, Hong Kong Test Date: July 10, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz The EUT is battery powered only and cannot be connected to the AC public mains. Thus, this test was not performed. 2 Radiated RF Emissions, 10 kHz - 4300 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231 FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALIFORNIA, 92823 • PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Computime Producer 2002 RF Model: URC-9910B01. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231. FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALIFORNIA, 92823 • PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Computime Limited Esther Ho Marketing Director – Wireless & Convergence Universal Electronics, Inc. Jesse Mendez Electrical Engineer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on July 10, 2002. 2.5 Disposition of the Test Sample The test sample has not been returned to Computime Limited as of July 18, 2002. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC-ID: DI29910 Report Number: B20711D1 114 OLINDA DRIVE, BREA, CALI…
