DI2AEP3081In Home Display

1 Smart Energy In-Home Display Instruction Manual Model No.AEP 3081 2 CONTENTS PRODUCT OV ERVIEW............................................................................................................... ...............................3 SAFETY INSTRUCTIONS ............................................................................................................ .................................3 INSTALLATION ................................................................................................................... ........................................5 BACKLIGHT ...................................................................................................................... .........................................5 NAVIGATION BUTTONS ............................................................................................................. ..............................5 HOME SCREEN .................................................................................................................... .....................................6 MENU ........................................................................................................................... ..............................................6 Usage menu ..................................................................................................................... ....................................7 Forecast menu.................................................................................................................. ...................................7 System menu.................................................................................................................... ....................................8 Settings menu .................................................................................................................. ....................................9 MESSAGES ...................................................................................................................... .........................................9 PRICE .......................................................................................................................... ............................................ 11 SPECIFICATIONS................................................................................................................. ................................... 12 FCC DECLARATION................................................................................................................ .............................. 13 ETL DECLARATION ................................................................................................................ ................................ 15 3 PRODUCT OVERVIEW The Computime In-Home Display unit shows your current usage rate, a history of your energy usage and a forecast of your energy usage based on the data it collects. The smart ZigBee™ technology enables the unit to communicate with your utility company so you can receive messages specific to your utility and your selected consumer program. SAFETY INSTRUCTIONS Purpose and correct use: • Read these instructions carefully and keep in a safe place for future reference. • All manual/safety instructions and electricity supplier’s regulations must be adhered to. • Only connect this unit to a UL/ETL approved 5- volt DC power supply provided by manufacturer. • Do not install this unit at an altitude of over 2000 meters (6560 ft). • This stand alone electronic unit should only be us ed in dry, closed living and office spaces. Do not place the unit in a bathroom or area of excessi ve moisture. Do not allow the unit to get wet. • Place the unit in an easy-to-reach position where you can comfortably reach the buttons and view the screen. • Do not expose the unit to temperatures below 5 ° C (41 °F) or above 40 ° C (104 °F) , humidity above 90% or pollution above level 2. • Do not expose the unit to voltage beyond 90V-260V AC. • Clean the unit with a dry, soft cloth. Do not use solvents or aggressive cleaning agents. The manufacturer accepts no responsibility for damage caused by non-observance of these instructions. 4 5 INSTALLATION 1. Plug the power adapter into the adapter socket on the left-hand side of the unit. 2. Pull out the table stand on the back of the unit and place the unit on a firm, flat surface near a power source. 3. Insert the plug into a 120 or 220 V wall socket. BACKLIGHT Press any button to turn on the backlight. Note: If the backlight has turned off, you need to press an y button to turn it on again before you can enter the menus. NAVIGATION BUTTONS The navigation button s are as follows: Throughout this manual, the buttons to press in order to access the onscreen commands will be referred to as (1), (2), (3), (4). 1 2 3 4 6 HOME SCREEN The Home screen is the main display screen. It shows a rate label (.e.g. Low, Medium, High, or Critical), the current power consumption and the cost per hour. From the Home screen, you can access the system menu, current price of your electricit y, messages from your utility company, and your current meter reading. MENU The Menu page provides navigation to the Usage, Forecast, System and Settings menu pages. To view one of these pages, press (3) or (4) to select the de sired page and press (2) to view it. Press (1) to return to the Home Screen. 7 Usage menu To view your energy usage: 1. Enter the ‘Usage’ menu. 2. Press (3) or (4) to select one of the following options and press (2) to view the data: • ‘Today’ – Shows the energy usage and cost for today. • ‘Last 24 Hours’ – Shows th e energy usage and cost for the previous 24 hours. • ‘Last 30 Days’ – Shows the energy consumption and cost for the last 30 days. Forecast menu To view your energy forecast: 1. Enter the ‘Forecast’ menu. 2. Press (3) or (4) to select one of the following options and press (2) to view the data: • ‘Today vs 30-Day Average’ – Shows today’s energy usa…

Text truncated - open the document above for the full version.

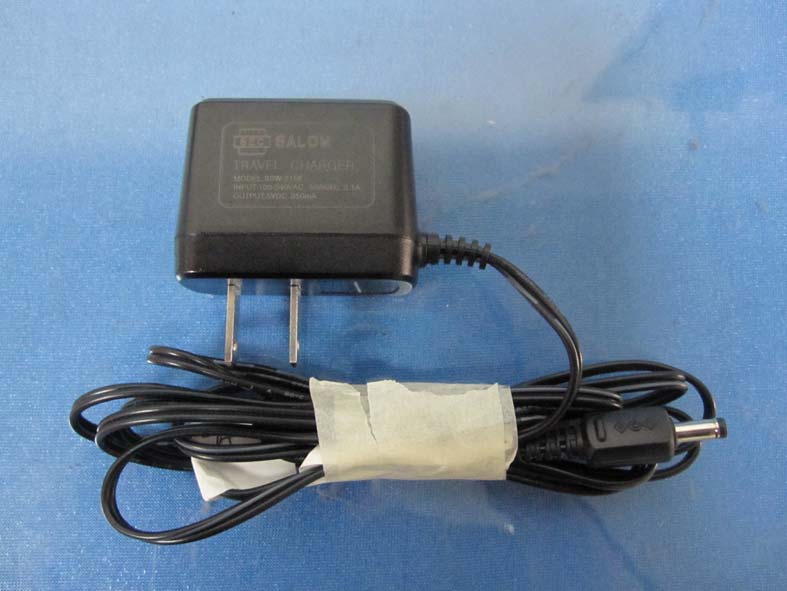

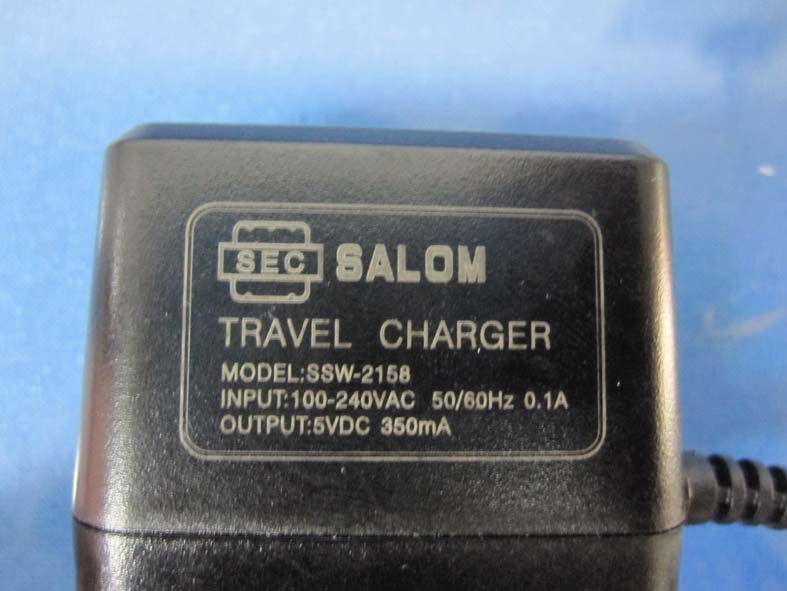

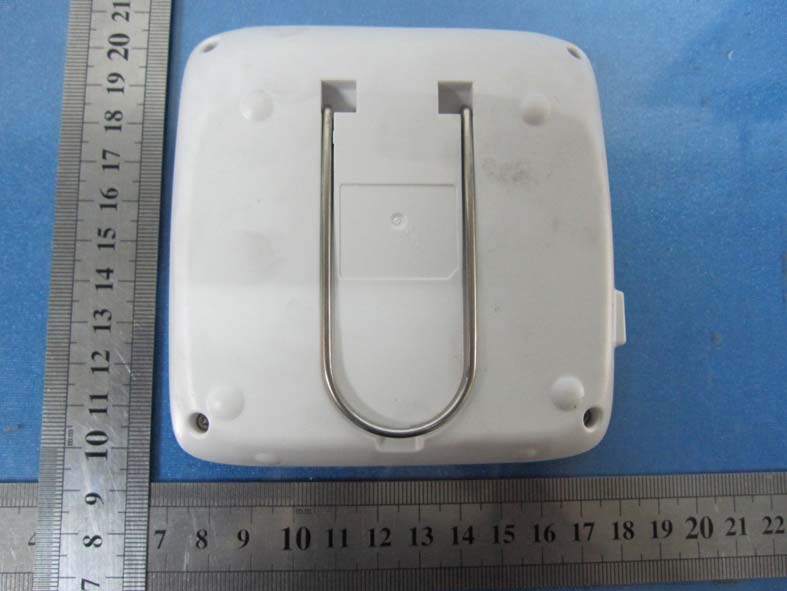

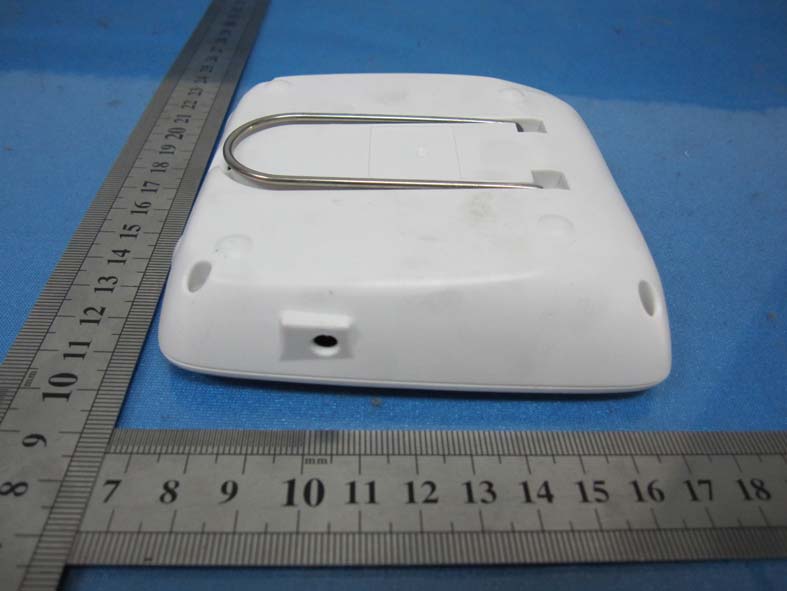

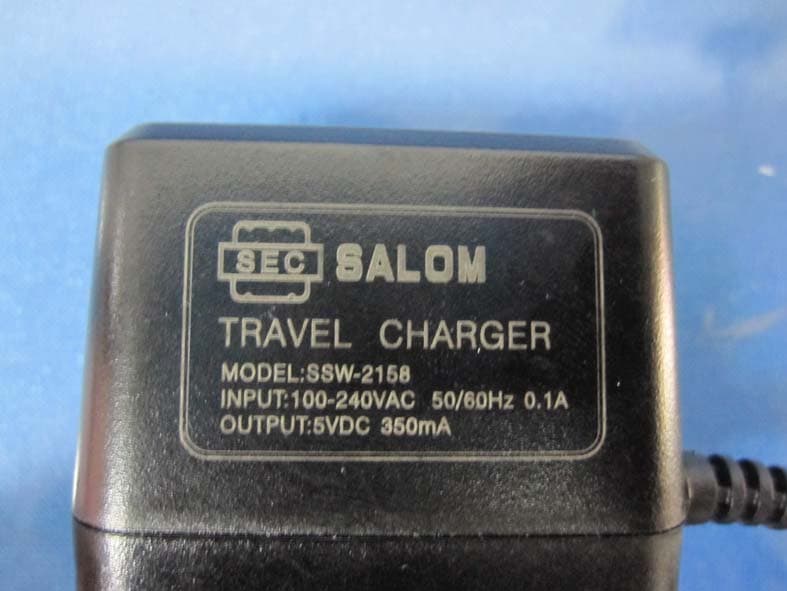

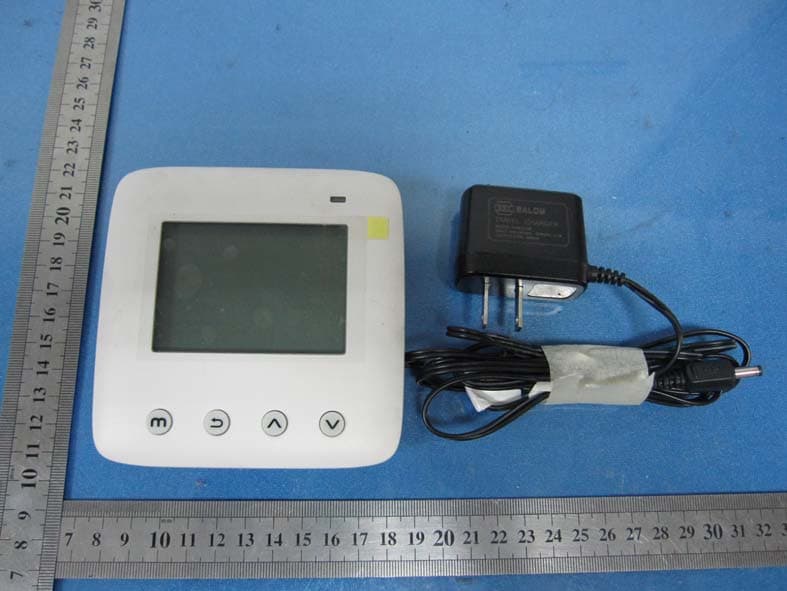

External Photos

Internal Photos

FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No......................: FCC ID............................................. : WE10100017 DI2AEP3081 Compiled by ( position+printed name+signature)..: File administrators Wenliang Li Supervised by ( position+printed name+signature)..: Test Engineer Eric Zhang Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Nov 11, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Computime Ltd. Address ............................................: 17/F, Great Eagle Centre, 23 Harbour Road, Wanchai, Hong Kong Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: In Home Display Trade Mark .......................................: / Model/Type reference.......................: AEP3081 Listed Models ..................................: / Result................................................: Positive V1.0 Page 2 of 44 Report No.: WE10100018 T E S T R E P O R T Test Report No. : WE10100017 Nov 11, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : In Home Display Model /Type : AEP3081 Listed Models : / Applicant : Computime Ltd. Address : 17/F, Great Eagle Centre, 23 Harbour Road, Wanchai, Hong Kong Manufacturer Computime Ltd. Address : Computime Technology Park. Dan Zhu Tou Cun,BuJi Longgang Region ShenZhen,GuangDong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 44 Report No.: WE10100018 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. NOTE 6 3. TEST ENVIRONMENT............................................................... 6 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Test Description 8 3.6. Statement of the measurement uncertainty 9 3.7. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 11 4.1. AC Power Conducted Emission 11 4.2. Radiated Emission 14 4.3. Maximum Peak Output Power 21 4.4. Power Spectral Density 22 4.5. Band Edge Compliance of RF Emission 25 4.6. Spurious RF Conducted Emission 30 4.7. 6dB Bandwidth 33 4.8. Antenna Requirement 37 5. TEST SETUP PHOTOS OF THE EUT .......................................... 38 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 39 V1.0 Page 4 of 44 Report No.: WE10100018 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.4-2009: American National Standard for Methods of Measurement of Radio-Noise Emissions From Low Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devices V1.0 Page 5 of 44 Report No.: WE10100018 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Oct 26, 2010 Testing commenced on : Nov 05, 2010 Testing concluded on : Nov 11, 2010 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 5V from AC Adapter 2.3. Short description of the Equipment under Test (EUT) 2.4GHz (In Home Display (AEP3081)) For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. The Applicant provides AT command to control the EUT for staying in continous transmitting and receiving mode for testing. There are sixteen channels of EUT, and the test carried out at the channel 11(lowest), channel 18(middle) and channel 26 (highest) channels. Channel Frequency Channel Frequency 11 2405 MHz 19 2445 MHz 12 2410 MHz 20 2450 MHz 13 2415 MHz 21 2455 MHz 14 2420 MHz 22 2460 MHz 15 2425 MHz 23 2465 MHz 16 2430 MHz 24 2470 MHz 17 2435 MHz 25 2475 MHz 18 2440 MHz 26 2480 MHz V1.0 Page 6 of 44 Report No.: WE10100018 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. :…
