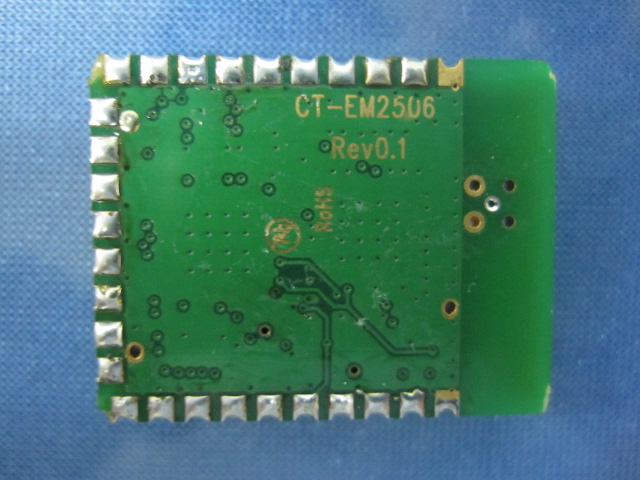

DI2CT-EM2506ZigBee Module

CT-EM2506 ZigBee Ready RF Transceiver Modules Computime Ltd. All rights reserved Confidential Page 1 of 16 ZigBee- Ready SoC RF Transceiver Modules CT- EM2506 Series Specification CT-EM2506 ZigBee Ready RF Transceiver Modules Computime Ltd. All rights reserved Confidential Page 2 of 16 Table of Content 1. General Description ..................................................................................................................3 2. Applications ..............................................................................................................................3 3. Features .....................................................................................................................................3 4. Absolute Maximum Ratings .....................................................................................................4 5. Recommended Operating Conditions .......................................................................................4 6. Electrical Specifications............................................................................................................4 7. Introduction...............................................................................................................................6 8. Typical application block ..........................................................................................................6 9. Pin Assignment .........................................................................................................................7 10. Pin Description......................................................................................................................7 11. Block Diagram ......................................................................................................................9 12. Circuit Description ................................................................................................................9 13. SIF Module Programming and Debug Interface .................................................................10 14. Power Management.............................................................................................................10 15. RF Frequency, Output Power Levels and Data Rates ......................................................... 11 16. Antenna Design Considerations ..........................................................................................12 17. Product Approvals...............................................................................................................13 18 Mechanical Dimension .......................................................................................................15 19 Ordering Information ..........................................................................................................16 20 Document Revision History ................................................................................................16 CT-EM2506 ZigBee Ready RF Transceiver Modules Computime Ltd. All rights reserved Confidential Page 3 of 16 ZigBee- Ready SoC RF Transceiver Modules 1. General Description The CT-EM2506 SoC RF Transceiver Modules is a compact surface mounted module specially designed for Ember’s ZigBee™ protocol stack for wireless networks, EmberZNet, based on IEEE 802.15.4 standard in the 2.4GHz world-wide ISM band. It provides 16 channels and compliant PHY and MAC layers. The complete module is only 25.4 x 32.4 x 4.1mm. They both integrate a 2.4GHz, IEEE 802.15.4-compliant transceiver with a 16-bit XAP2b microprocessor and a FEM. They consist of integrated Flash and RAM memory and peripherals. A number of peripherals such as GPIO, UART, SPI, I2C, ADC, and general purpose timers are integrated to support user-defined applications. 2. Applications Home automation & building control Home appliances & alarms Monitoring of remote systems Lighting controls Sensor data capturing 3. Features ƒ Integrated PCB trace antenna ƒ IEEE 802.15.4 compliant PHY and MAC layer ƒ 12MHz XAP2b 16-bit microcontroller core ƒ 128kB Flash and 5kB RAM, emulation EEPROM ƒ 17 GPIO , 4 channel 12 bit ADC ƒ UART, SPI, I 2 C and debug interfaces ƒ External 32.768 kHz real time clock or internal RC oscillator for timer ƒ 16 channels in the 2.4 GHz ISM band ƒ On-chip regulator for 2.7-3.6V operation, three sleep low power modes ƒ -15dBm------20dBm output power, SW controlled CT-EM2506 ZigBee Ready RF Transceiver Modules Computime Ltd. All rights reserved Confidential Page 4 of 16 4. Absolute Maximum Ratings Parameter Test Conditions Min. Max. Unit Regulator voltage (VDD_PADS) - 0.3 3.6 V Voltage on any GPIO[16:0], SIF_CLK, SIF_MISO, SIF_MOSI, nSIF_LOAD, OSC32A, OSC32B, nRESET - 0.3 VDD_PADS+ 0.3 V Storage temperature - 40 + 140 °C Under no circumstances should the absolute maximum ratings given above be violated. Stress exceeding one or more of the limiting values may cause permanent damage to the device. 5. Recommended Operating Conditions Parameter Test Conditions Min. Typ. Max. Unit Regulator input voltage (VDD_PADS) 2.7 3.6 Core input voltage (VDD_24MHZ, VDD_VCO, VDD_RF, VDD_IF, VDD_PADSA, VDD_FLASH, VDD_PRE, VDD_SYNTH, VDD_CORE) 1.7 1.8 1.9 V Temperature range - 40 + 85 °C 6. Electrical Specifications T = 25°C, VCC = 3.0V, fo = 2450Mhz, if nothing else stated. Parameter Min. Typ. Max Unit Condition / Note Operating frequency 2400 2483.5MHz Programmable in 5 MHz steps for IEEE 802.15.4 compliance Number of channels 16 For IEEE 802.15.4 compliance Channel spacing 5 MHz For IEEE 802.15.4 compliance Input/output impedance 50 Ohm Data rate 250 kbit/s DSSS chip rate 2 Mc/s Frequency stability +/-40 ppm Transmit power -15 20 dBm Programmable from software CT-EM2506 ZigBee Ready RF Transceiver Modules Computime Ltd. All rights reserved Confidential Page 5 of 16 Parameter Min. Typ. Max Unit Condition / Note Sensitivity -98 dBm PER = 1% Boost Mode Adjacent channel rejection +/-5 MHz 35/35 dB IEEE 802.15.4 signal at - 82…
