DI2RCSIT-TXRemote Control

50D0098 RCSITE Installation & Operating Manual Rel 0 Dec 2005 Page 1 of 10 Ambient Technologies A Division Of Monessen Hearth Systems RCSIT Thermostatic On/Off, Flame Height Adjustment Remote Control for S.I.T 820 Valve (with Stepper Motor) INSTALLATION AND OPERATING INSTRUCTIONS This remote control system provides a safe, reliable and user-friendly remote control for millivolt valve gas appliances, and flame height adjustment. The system can be manually or thermostatically turned on and off with the transmitter. Always check the appliance home owner’s manual for additional information, or warnings regarding accessory installation before connecting this remote control system. Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the dealer from whom you purchased the kit or Ambient Technologies Technical Support at 1 800 398 6195. Do not attempt to install any part of the kit unless all parts are in good condition. Please keep this booklet for future reference. CONTENTS OF KIT Description Qty Transmitter 1 Battery Alkaline AAA (for Transmitter) 3 Receiver (Assembly) consists of : 1 Receiver Box Battery Alkaline AA 4 Slide Button-Black (On/RS/Off) 1 Plug-In Wiring Assembly for SIT mV Valve– 22” Inches 1 Plug-In Wiring Assembly for SIT Hi/Lo Regulator – 10” Inches 1 Velcro (Loop and Hook) 1 Installation Instructions 1 #6 ¾” Screws, Zinc 2 FEATURES/SPECIFICATIONS • Thermostatic Control • Battery Powered Transmitter & Receiver • Easy Battery Access • Low battery Indication for Transmitter and receiver • Battery Powered Receiver • Three Flame Height Setting • Child Proof Lock-out • 16 Security Codes • 6 hour Shut Down (Optional) on receiver • Quick Disconnect Wiring Assembly • Reset Button for transmitter 50D0098 RCSITE Installation & Operating Manual Rel 0 Dec 2005 Page 2 of 10 Ambient Technologies A Division Of Monessen Hearth Systems WARNING Important Safety Information • Read this manual thoroughly prior to installing, programming or operating any remote control. • This remote control system is designed for use with a millivolt gas valve system. Do not use this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current. • This remote control system requires three (3) “AAA” alkaline batteries to power the transmitter. The receiver is powered by four (4) AA Alkaline batteries. • Wiring must conform to appliance requirement and building codes/ordinances as required by local and national code authorities having jurisdiction. • Do not short (or jumper) across the gas valve terminals to test the remote control installation. This could damage the unit and void the warranty. • This remote control system should only be used as described in this manual. Any other use is not recommended and will void the warranty. NOTE Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the transmitter to stabilize to room temperature before accurate room temperatures are displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for accurate temperature readings to appear on the LCD display. WARNING Turn appliance OFF and allow to cool before installing or servicing. DO NOT connect 110-120 VAC wiring to the milli-volt gas control valve. The remote operator must be installed exactly as outlined in these instructions. Read all instructions completely before attempting installation. Follow instructions carefully during installation. Any modification of components will void the warranty and may cause a fire hazard. WARNING Turn appliance OFF (at the appliance or remote receiver) if you are away from your house for an extended period of time. Never leave anything on top of the surface of the transmitter. 50D0098 RCSITE Installation & Operating Manual Rel 0 Dec 2005 Page 3 of 10 Ambient Technologies A Division Of Monessen Hearth Systems INSTALLATIONS Remote Receiver: The remote receiver may be installed in the appliance per the appliance homeowner’s manual. Refer to the Homeowner’s Manual for special installation instructions. Failure to follow the installation instructions found in the appropriate Homeowner’s Manual will void the warranty and may cause a fire hazard. This system comes with an 22 inch two-wire assembly labled “FOR MILLVOLT VALVE ONLY, TP/TH” and an 10 inch four-wire assembly labeled “SIT VALVE ONLY”. Insert the white terminals into the back of the receiver. The terminal wire blocks can only be installed one way and do not force the terminal plugs into the receiver. Connect the wiring terminal two (2) ¼” female spade terminals to the appliance valve and four-pin connector to SIT valve. Refer to the appropriate Homeowner’s Manual for proper wiring connections to the appliance. Your appliance may have other options to connect wiring from receiver. WARNING STOP: Make sure SIT valve is correct. If not wired correctly, this could cause damage to receiver. Make sure that the wires do not contact the appliances any place other than at the terminals. Exposure to temperatures higher than 105C (250ºF) may cause the receiver to malfunction and cause possible fire hazard. 50D0098 RCSITE Installation & Operating Manual Rel 0 Dec 2005 Page 4 of 10 Ambient Technologies A Division Of Monessen Hearth Systems Back of the Transmitter Battery Door Tab Remote Transmitter : Installing Batteries: The remote transmitter uses three (3) “AAA” batteries. To install batteries, 1. Press down the battery door tab and pull out to remove the battery door. 2. Install the batteries as indicated on transmitter. 3. Close the battery door by snapping in place. 4. When three batteries are installed, the transmitter will initialize for 10 seconds and then is ready for use. 5. The batteries should be replaced at least once every 6 months or when the low battery icon indicator is displayed. Setting Privacy (DIP) Switch on Receiver and Transmitter: The remote receiver and transmitter…

Text truncated - open the document above for the full version.

Web Site: www.computime.com E-Mail: [email protected] AGENCY AUTHORIZATION LETTER FCC ID: DI2RCSIT-TX Date: Apr 3, 2007 To whom it may concern: We, the undersigned, hereby authorize SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD of China to act on our behalf, as our agent in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, Any act carried out by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, _____ ______ Philip Chung/ Reliability Manager Computime Limited Phone: (852) 2260 0300 FAX: (852) 2790 3996 E-mail: [email protected]

Shenzhen Huatongwei International Inspection Co.,Ltd Keji S,12 th ,Road,Hi-tech Industrial Park, Shenzhen, Guangdong, China Tel: 0755-26748099 Fax: 0755-26748089 http://www.szhtw.com.cn 1) Confidentiality does note appear to be requested. Kindly confirm this is not required or provide an appropriate cover letter. Response: This application not require for confidentiality. 2) Regarding IC labelling, a dash is only allowed between the CN number and UPN number. Please correct as currently the device can not be listed as shown on the labelling exhibit. Response: The label has revised. 3) Please note that IC requires 3 items on the label, (model, applicant, and Certification No. as Certified). The label does not appear to contain the applicant for this application. Please revise. Response: The label has revised. 4) Some information in the application supports operation of 350.12 MHz. Other information suggests 350 +/- 300 kHz which would imply a nominal operation of 350 MHz. Please confirm which nominal frequency is correct so this can be listed appropriately on the Certificate. Response: The product work frequency is 350.12MHz. 5) The device is portable and according to ANSI C63.4 should be tested while positioned in each of 3 axis to obtain worse case emissions. It does not appear this has been done. Please review and correct as necessary. Response: Pls see the page 12, clause 5.1 in the report. 6) Please explain photos in the test report from 21 – 26. These photos do not appear to be of the EUT. Response: The photos have replaced. 7) This device appears to operate off both manual and automatic activations. Manual activations appear acceptable. However automatic activations may require operation under 15.231(e) or 15.231(a) depending on how they behave. Please explain if turn on transmission (or turn off transmission) will repeat every 3 minutes, or does this only occur once until the turn off command is sent. If the transmission will only occur once per event (i.e. turn on only will TX once until turn off command is sent) – then 15.231(a) operation is considered acceptable. Response: The transmission will only occur once per event. 8) Please explain if the low battery detection only sends a single Transmission or does this repeat? Repeat transmission would be subject to 15.231(e). Response: The low battery detection only sends a single Transmission.

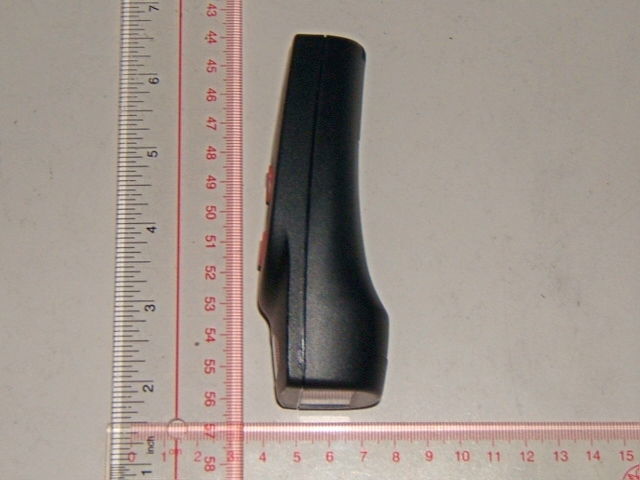

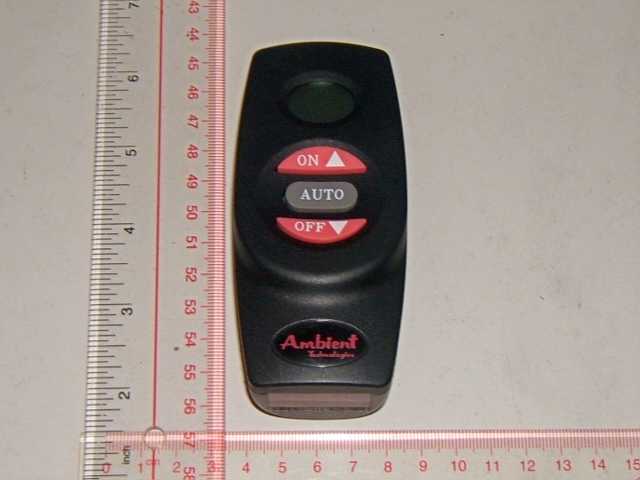

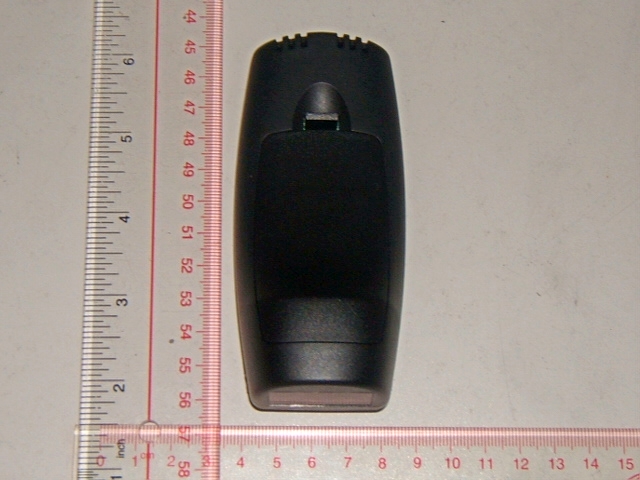

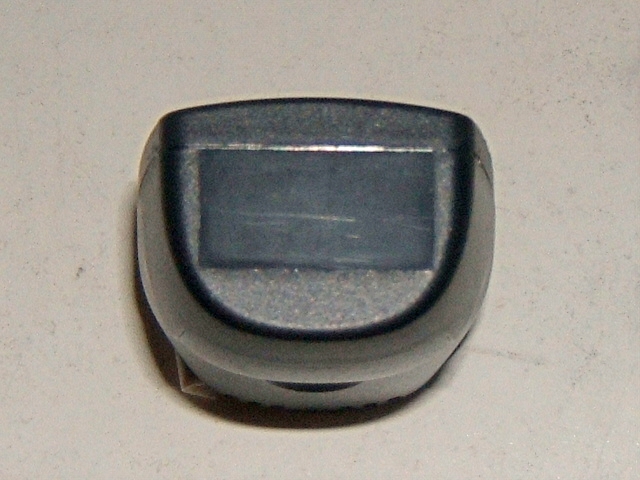

Top View of EUT Bottom View of EUT Front View of EUT Back View of EUT Left View of EUT Right View of EUT

Applicant: Computime Limited Model: RCSIT-TX FCC ID: DI2RCSIT-TX IC: 1700A-RCSITTX

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06110004 FCC ID: IN2TX71 IC: 3558A-HCT02 DATE: 03/17/2007 Internal Photos of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06110004 FCC ID: IN2TX71 IC: 3558A-HCT02 DATE: 03/17/2007

Theory of Operation Product : Fireplace controller Model Number: RCSIT-TX EMITTER DESCRIPTION 1. Emitter Power Voltage: D.C 3.3V 2. Basic Frequency: 32.768KHZ 3. Emissive Frequency: 350MHZ Modulating manner: AM 4. Work process: a. Power supply and Low Battery detect. 3XAAA batteries for power supply. U1, regulate the voltage to 3.3V. Battery detect circuit detect the input voltage to MCU. b. System reset. When the reset button is pressed, the system will be reset. c. Temperature detect. Measure the temperature through a thermistor(TH1) get the signal to MCU. d. Input, settings, display and RF signal output. MCU get the settings input from rubber keys. Then display the message on LCD display. MCU encode the address setting and the command code, then send the signal out to RF transmit unit. The signal is modulated with 350MHz carrier frequency and sent out through antenna.
