50D0096 Rev 0 Aug 2005 Page 1 of 10 Ambient Technologies A Division Of Monessen Hearth Systems RCSTEB Thermostatic On/Off and Blower Remote Control– 120VAC INSTALLATION AND OPERATING INSTRUCTIONS This remote control system provides a safe, reliable and user-friendly remote control for millivolt valve gas appliances and blower speed adjustment. The system can be manually or thermostatically turned on and off with the transmitter. Always check the appliance home owner’s manual for additional information, or warnings regarding accessory installation before connecting this remote control system. Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the dealer from whom you purchased the kit or Ambient Technologies Technical Support at 1 800 398 6195. Do not attempt to install any part of the kit unless all parts are in good condition. Please keep this booklet for future reference. CONTENTS OF KIT Description Qty Transmitter 1 Battery Alkaline AAA (for Transmitter) 3 Receiver (Assembly) consists of : 1 Receiver Box AC Adaptor for Receiver Slide Button-Black (On/RS/Off) 1 Wall Cover Plate-Black 1 Wire Nuts 2 Plug-In Wiring Assembly – 22” Inches 1 Velcro (Loop and Hook) 1 Installation Instructions 1 Screws (for fireplace system control covers) 2 FEATURES/SPECIFICATIONS • Easy Access Thermostatic Control • Battery Powered Transmitter • Low battery Indication for Transmitter • Compact 120 VAC Adapter with 30” wire • Three Speed Control for Blower • Programmable Timer to turn blower on and off • Child Proof Lock-out • 16 Security Codes • 6 hour Shut Down (Optional) • Quick Disconnect Wiring Assembly • Reset Button 50D0096 Rev 0 Aug 2005 Page 2 of 10 Ambient Technologies A Division Of Monessen Hearth Systems WARNING Important Safety Information • Read this manual thoroughly prior to installing, programming or operating any remote control. • This remote control system is designed for use with a millivolt gas valve system with blower. Do not use this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current. • This remote control system requires three (3) “AAA” alkaline batteries to power the transmitter. The receiver is powered by external AC Adapter. • Wiring must conform to appliance requirement and building codes/ordinances as required by local and national code authorities having jurisdiction. • Do not short (or jumper) across the gas valve terminals to test the remote control installation. This could damage the unit and void the warranty. • This remote control system should only be used as described in this manual. Any other use is not recommended and will void the warranty. NOTE Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the transmitter to stabilize to room temperature before accurate room temperatures are displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for accurate temperature readings to appear on the LCD. WARNING Turn appliance OFF and allow to cool before installing or servicing. DO NOT connect 110-120 VAC wiring to the milli-volt gas control valve. The remote operator must be installed exactly as outlined in these instructions. Read all instructions completely before attempting installation. Follow instructions carefully during installation. Any modification of components will void the warranty and may cause a fire hazard. WARNING Turn appliance OFF (at the appliance or remote receiver) if you are away from your house for an extended period of time. Never leave anything on top of the surface of the transmitter. INSTALLATIONS Remote Receiver: The remote receiver may be installed in the appliance per the appliance homeowner’s manual. Refer to the Homeowner’s Manual for special installation instructions. Failure to follow the installation instructions found in the appropriate Homeowner’s Manual will void the warranty and may cause a fire hazard. 50D0096 Rev 0 Aug 2005 Page 3 of 10 Ambient Technologies A Division Of Monessen Hearth Systems This system comes with an 22 inch wire assembly labled “MV VALVE”. Insert the white terminal into the back of the receiver. The terminal wire block can only be installed one way and do not force the terminal plug into the receiver. Connect the wiring terminal two (2) ¼” female spade terminals to the appliance valve. Refer to the appropriate Homeowner’s Manual for proper wiring connections to the appliance. Your appliance may have other options to connect wiring from receiver. For applications longer than 22 inches, use 18 gauge wire, 105ºC rated, with no splices. Connect to the two (2) 1/4“ female spade wiring terminals and wire can be no longer than 20 feet. WARNING Speed control module and thermal sensor must be removed before installing receiver and applying the AC power. Failure to do so may cause the part damage and void the warranty. Without removing the control module and thermal sensor, they and RCSTEB both will try to operate the blower at the same and may cause unexpected blower operation or damage. Before connecting the blower with the receiver, always DISCONNECT SPEED CONTROL MODULE AND THERMAL SENSOR from your fireplace if they exist as displayed in following diagram: 120VAC BLOWER WHITE GREEN 120VAC BLOWER PLUG BLACK MV VALVE TP TP/TH THERMAL SENSOR BLACK BLACK 120VAC FOR RECEIVER MALE FEMALE MALE FEMA LE WHITE BLACK 120VAC SPEED CONTROL MALE FEMA LE BLACK BLACK BLACK RECEIVER Connect the two 30” long 18AWG wires labled “110VAC FAN ONLY” between receiver and blower as shown in the follwing diagram as well. 50D0096 Rev 0 Aug 2005 Page 4 of 10 Ambient Technologies A Division Of Monessen Hearth Systems Back of the Transmitter Battery Door Tab WARNING STOP: Make sure 120VAC fan and MV valve are correct. If not wired correctly, this could cause damage to receiver. Make sure that the wires do not contact the appliances any place other than at the terminals. Exposure…

Text truncated - open the document above for the full version.

50D0096 Rev 0 Aug 2005 Page 1 of 10 Ambient Technologies A Division Of Monessen Hearth Systems RCSTEB Thermostatic On/Off and Blower Remote Control– 120VAC INSTALLATION AND OPERATING INSTRUCTIONS This remote control system provides a safe, reliable and user-friendly remote control for millivolt valve gas appliances and blower speed adjustment. The system can be manually or thermostatically turned on and off with the transmitter. Always check the appliance home owner’s manual for additional information, or warnings regarding accessory installation before connecting this remote control system. Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the dealer from whom you purchased the kit or Ambient Technologies Technical Support at 1 800 398 6195. Do not attempt to install any part of the kit unless all parts are in good condition. Please keep this booklet for future reference. CONTENTS OF KIT Description Qty Transmitter 1 Battery Alkaline AAA (for Transmitter) 3 Receiver (Assembly) consists of : 1 Receiver Box AC Adaptor for Receiver Slide Button-Black (On/RS/Off) 1 Wall Cover Plate-Black 1 Wire Nuts 2 Plug-In Wiring Assembly – 22” Inches 1 Velcro (Loop and Hook) 1 Installation Instructions 1 Screws (for fireplace system control covers) 2 FEATURES/SPECIFICATIONS • Easy Access Thermostatic Control • Battery Powered Transmitter • Low battery Indication for Transmitter • Compact 120 VAC Adapter with 30” wire • Three Speed Control for Blower • Programmable Timer to turn blower on and off • Child Proof Lock-out • 16 Security Codes • 6 hour Shut Down (Optional) • Quick Disconnect Wiring Assembly • Reset Button 50D0096 Rev 0 Aug 2005 Page 2 of 10 Ambient Technologies A Division Of Monessen Hearth Systems WARNING Important Safety Information • Read this manual thoroughly prior to installing, programming or operating any remote control. • This remote control system is designed for use with a millivolt gas valve system with blower. Do not use this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current. • This remote control system requires three (3) “AAA” alkaline batteries to power the transmitter. The receiver is powered by external AC Adapter. • Wiring must conform to appliance requirement and building codes/ordinances as required by local and national code authorities having jurisdiction. • Do not short (or jumper) across the gas valve terminals to test the remote control installation. This could damage the unit and void the warranty. • This remote control system should only be used as described in this manual. Any other use is not recommended and will void the warranty. NOTE Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the transmitter to stabilize to room temperature before accurate room temperatures are displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for accurate temperature readings to appear on the LCD. WARNING Turn appliance OFF and allow to cool before installing or servicing. DO NOT connect 110-120 VAC wiring to the milli-volt gas control valve. The remote operator must be installed exactly as outlined in these instructions. Read all instructions completely before attempting installation. Follow instructions carefully during installation. Any modification of components will void the warranty and may cause a fire hazard. WARNING Turn appliance OFF (at the appliance or remote receiver) if you are away from your house for an extended period of time. Never leave anything on top of the surface of the transmitter. INSTALLATIONS Remote Receiver: The remote receiver may be installed in the appliance per the appliance homeowner’s manual. Refer to the Homeowner’s Manual for special installation instructions. Failure to follow the installation instructions found in the appropriate Homeowner’s Manual will void the warranty and may cause a fire hazard. 50D0096 Rev 0 Aug 2005 Page 3 of 10 Ambient Technologies A Division Of Monessen Hearth Systems This system comes with an 22 inch wire assembly labled “MV VALVE”. Insert the white terminal into the back of the receiver. The terminal wire block can only be installed one way and do not force the terminal plug into the receiver. Connect the wiring terminal two (2) ¼” female spade terminals to the appliance valve. Refer to the appropriate Homeowner’s Manual for proper wiring connections to the appliance. Your appliance may have other options to connect wiring from receiver. For applications longer than 22 inches, use 18 gauge wire, 105ºC rated, with no splices. Connect to the two (2) 1/4“ female spade wiring terminals and wire can be no longer than 20 feet. WARNING Speed control module and thermal sensor must be removed before installing receiver and applying the AC power. Failure to do so may cause the part damage and void the warranty. Without removing the control module and thermal sensor, they and RCSTEB both will try to operate the blower at the same and may cause unexpected blower operation or damage. Before connecting the blower with the receiver, always DISCONNECT SPEED CONTROL MODULE AND THERMAL SENSOR from your fireplace if they exist as displayed in following diagram: 120VAC BLOWER WHITE GREEN 120VAC BLOWER PLUG BLACK MV VALVE TP TP/TH THERMAL SENSOR BLACK BLACK 120VAC FOR RECEIVER MALE FEMALE MALE FEMA LE WHITE BLACK 120VAC SPEED CONTROL MALE FEMA LE BLACK BLACK BLACK RECEIVER Connect the two 30” long 18AWG wires labled “110VAC FAN ONLY” between receiver and blower as shown in the follwing diagram as well. 50D0096 Rev 0 Aug 2005 Page 4 of 10 Ambient Technologies A Division Of Monessen Hearth Systems Back of the Transmitter Battery Door Tab WARNING STOP: Make sure 120VAC fan and MV valve are correct. If not wired correctly, this could cause damage to receiver. Make sure that the wires do not contact the appliances any place other than at the terminals. Exposure…

Text truncated - open the document above for the full version.

~8577504.sch-1 - Fri Jun 23 16:39:36 2006

~8577504.sch-1 - Fri Jun 23 16:39:36 2006

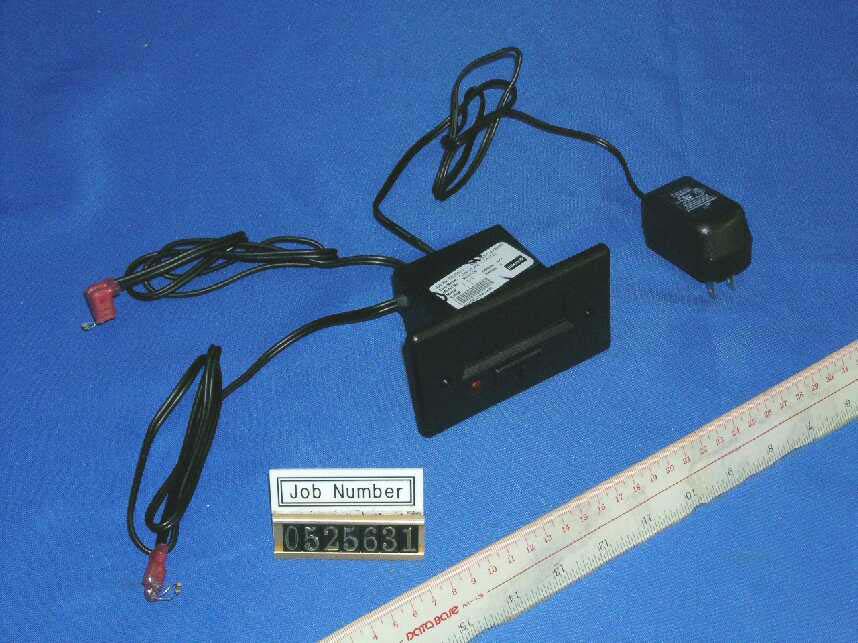

Test Setup FCC ID : DI2RCSTEB-RX External Photo - Front External Photo - Rear

Test Setup FCC ID : DI2RCSTEB-RX External Photo - Front External Photo - Rear

FCC ID : DI2RCSTEB-RX IC : 1700A-RCSTEBRX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Ambient Technologies Model : RCSTEB-RX MADE IN CHINA 400%

FCC ID : DI2RCSTEB-RX IC : 1700A-RCSTEBRX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Ambient Technologies Model : RCSTEB-RX MADE IN CHINA 400%

Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 9 Internal Photo - 10 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 11 Internal Photo - 12 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 13 Internal Photo - 14

Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 9 Internal Photo - 10 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 11 Internal Photo - 12 Test Setup FCC ID : DI2RCSTEB-RX Internal Photo - 13 Internal Photo - 14

Critical Component of MHNSTEB(RX) Component Part Number Description MULT FUNCTION BOARD HT7144-1 U2 Power supply SLIDE SWITCH SW2 Control output DIP switch(4) SW1 Differentiate address code PIC16F628A U1 Decode the RF signal and output control SIP5 J3 ON board program IRLML2402 Q3 Output PWM singal to control the MOC3012M to adjust the blower speed IRLL2705 Q4,Q5 Output Control AC INTERFACE BOARD Optoisolator MOC3012M U1 Drive triac BTA16 BTA16 Q2 Drive blower SIP3 J1 Provide power and PWM singal from Multi- board CON2 J2 Connect the blower RF Board 2SC3838 Q10 This component work with L3,C22,C27 and other components is generate 350MHz center frequency MCP6242 U3 Amplify the signal received And compare signal

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:25-Aug-2005Sheet of File:D:\MONESSEN\Receiver\MHNSTEB\RE SCH\MULT.DdbDrawn By: 2 1 C3 0.1UF 3.3V 3.3V 3.3V VOUT 3 TAB 4 GND 1 VIN 2 U2HT7144-1 LED S1-1 8 S1-4 5 S1-2 7 S1-3 6 S2-1 4 S2-2 3 S2-3 2 S2-4 1 SW2 SK23D08 2 1 R40 1K DATA IN ANTENNA.SCH 6V3.3V 1 2 3 4 5 J3 SIP5 3.3V CC_OFF_SW CC_ON_SW POWER SUPPLY DECODING & OUTPUT CONTROL ON/OFF 2 1 C1 0.1UF BLOWER ON/OFF1 /MCLR CC_OFF CC_LO CC_HI CC_OFF_SW CC_ON_SW 1 2 3 4 8 7 6 5 SW1 DIPSWITCH 4POS CC_ON_SW CC_OFF_SW 2 1 R41 10K RA0 17 RA1 18 RA2 1 RA3 2 RA4 3 RA5/MCLR 4 RB7 13 RB6 12 RB5 11 RB4 10 RB2 8 RB1 7 RB0 6 RB3/CCP 9 VDD 14 VSS 5 RA7/OSC1 16 RA6/OSC2 15 U1 PIC16F628A CC_ONA0 A1 A2 A3 LOW_BATT A0 A1 A2 A3 ON/OFF2 2 1 R19 470K 2 1 R20 470K 2 1 R21 470K 2 1 R35 470K 2 1 R43 470K 2 1 R42 470K 3.3V 3.3V 3.3V 2 1 C4 100UF 2 1 C2 100UF 1 3 2 Q3 IRLML2402 /MCLR PWM 1 2 3 J1 NP PWM K A D1 LED 2 1 R18 100K D 4 G 1 D 2 S 3 Q4 IRLL2705 ON/OFF1 ON/OFF1 ON/OFF D 4 G 1 D 2 S 3 Q5 IRLL2705 ON/OFF2 1 2 J2 35978-0220 MHNSTEB SCH FOR MONESSEN 11 AC INTERFACE BOARD UL REVISION.sch-1 - Thu Aug 25 10:00:41 2005

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:25-Aug-2005Sheet of File:D:\MONESSEN\Receiver\MHNSTEB\RE SCH\MULT.DdbDrawn By: 2 1 C3 0.1UF 3.3V 3.3V 3.3V VOUT 3 TAB 4 GND 1 VIN 2 U2HT7144-1 LED S1-1 8 S1-4 5 S1-2 7 S1-3 6 S2-1 4 S2-2 3 S2-3 2 S2-4 1 SW2 SK23D08 2 1 R40 1K DATA IN ANTENNA.SCH 6V3.3V 1 2 3 4 5 J3 SIP5 3.3V CC_OFF_SW CC_ON_SW POWER SUPPLY DECODING & OUTPUT CONTROL ON/OFF 2 1 C1 0.1UF BLOWER ON/OFF1 /MCLR CC_OFF CC_LO CC_HI CC_OFF_SW CC_ON_SW 1 2 3 4 8 7 6 5 SW1 DIPSWITCH 4POS CC_ON_SW CC_OFF_SW 2 1 R41 10K RA0 17 RA1 18 RA2 1 RA3 2 RA4 3 RA5/MCLR 4 RB7 13 RB6 12 RB5 11 RB4 10 RB2 8 RB1 7 RB0 6 RB3/CCP 9 VDD 14 VSS 5 RA7/OSC1 16 RA6/OSC2 15 U1 PIC16F628A CC_ONA0 A1 A2 A3 LOW_BATT A0 A1 A2 A3 ON/OFF2 2 1 R19 470K 2 1 R20 470K 2 1 R21 470K 2 1 R35 470K 2 1 R43 470K 2 1 R42 470K 3.3V 3.3V 3.3V 2 1 C4 100UF 2 1 C2 100UF 1 3 2 Q3 IRLML2402 /MCLR PWM 1 2 3 J1 NP PWM K A D1 LED 2 1 R18 100K D 4 G 1 D 2 S 3 Q4 IRLL2705 ON/OFF1 ON/OFF1 ON/OFF D 4 G 1 D 2 S 3 Q5 IRLL2705 ON/OFF2 1 2 J2 35978-0220 MHNSTEB SCH FOR MONESSEN 11 AC INTERFACE BOARD UL REVISION.sch-1 - Thu Aug 25 10:00:41 2005
