RM520C / RM540C RM520S / RM540S User Guide Dra v2 Getting Started This guide provides an overview of RM520C, RM540C, RM520S, and RM540S units. RM520C, RM540C, RM520S, and RM540S Overview These remote monitor units (RMU) are typically used to monitor assets for oil and gas applicaons. All units are powered by 4 AA baeries. Models: Model Analog Inputs Switch Control Radio RM520C 3 Yes Cellular RM540C 2 not used Cellular RM520S 3 Yes Satellite RM540S 2 not used Satellite Bluetooth interface is acvated by placing magnet near right side of unit. Blue LED will illuminate to indicate Bluetooth is acve. ISED Canada Statements and Warnings: FCC Statements and Warning: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to comply with FCC RF Exposure requirements, this device must be installed to provide at least 20cm separation from the human body at all times. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. “L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage ; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.” In order to comply with ISED RF Exposure requirements, this device must be installed to provide at least 20cm separation from the human body at all times. “Afin de se conformer aux exigences d'exposition RF ISED, cet appareil doit être installé pour fournir au moins 20cm de séparation du corps humain en tout temps. This device complies with the Canadian ICES-003 Class A specifications. CAN ICES-003(A) / NMB-003 (A). Cet appareil numérique de la Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

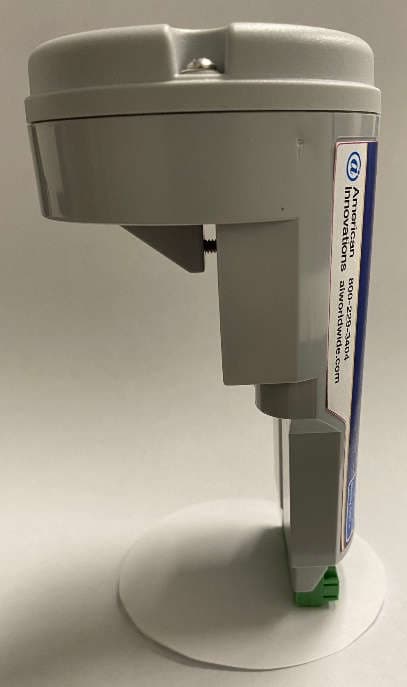

RM520C and RM540C External Images: shown with RM520C label

Grey = 70% Black Blue = Pantone 299 C Blue = Pantone 290 C Date: 09/25/2023 Prepared By: Chris V. Jones Label, Product, Test Point, RM520C Part Number: 161612-000 Rev. 6 Yellow = Pantone 107 C Indicates cutting dieline DO NOT PRINT! Blue = Pantone 300 C Blue = Pantone 281 C Yellow = Pantone 109 C White = Pantone White CBlack = Pantone Black C Red = Pantone 7417 C Violet = Pantone Violet C Orange = Pantone 716 C Wake/Cong. RM520C 800-229-3404aiworldwide.com Relay Ctrl + Relay Ctrl - Shunt + Shunt - Cal/Ref 2 Ref 1Pipe 2 Pipe 1 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: POLYESTER: AUTOTEX XE FINE F207 (UV PRINTABLE), 8 MIL THK. 2. ADHESIVE: 3M 9471, 2 MIL THK. 3. ALL FONTS SHALL BE HELVETICA NEUE LT STD UNLESS OTHERWISE SPECIFIED 4. LINEAR TOLERANCE +/-.010 INCHES. .120 CLEAR WINDOW 2.77 1.85 91° 91° 2X R.09 .760 1.118 2X 1.379 1.3° 1.3° 3.83 C L Black White Yellow Orange Wht/Violet Violet Wht/Blue Blue FCC ID: DJU626733, IC: 2466B-626733CONTAINS FCC ID: XMR202005BG95M5, IC: 10224A-2020BG95M5

Grey = 70% Black Blue = Pantone 299 C Blue = Pantone 290 C Date: 09/20/2023 Prepared By: Chris V. Jones Label, Product, Test Point, RM540C Part Number: 161623-000 Rev. 6 Yellow = Pantone 107 C Indicates cutting dieline DO NOT PRINT! Blue = Pantone 300 C Blue = Pantone 281 C Yellow = Pantone 109 C White = Pantone White CBlack = Pantone Black C Red = Pantone 7417 C Green = Pantone 361 C Orange = Pantone 716 C Wake/Cong. RM540C 800-229-3404aiworldwide.com Cal/Ref 2 Ref 1 Pipe 1 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: POLYESTER: AUTOTEX XE FINE F207 (UV PRINTABLE), 8 MIL THK. 2. ADHESIVE: 3M 9471, 2 MIL THK. 3. ALL FONTS SHALL BE HELVETICA NEUE LT STD UNLESS OTHERWISE SPECIFIED 4. LINEAR TOLERANCE +/-.010 INCHES. .120 CLEAR WINDOW 2.77 1.85 91° 91° 2X R.09 .760 1.118 2X 1.379 1.3° 1.3° 3.83 C L Black Yellow Orange FCC ID: DJU626733, IC: 2466B-626733CONTAINS FCC ID: XMR202005BG95M5, IC: 10224A-2020BG95M5

Product label design, Model/HVIN: RM520C Product label design, Model/HVIN: RM540C Product label location: Product label Product label

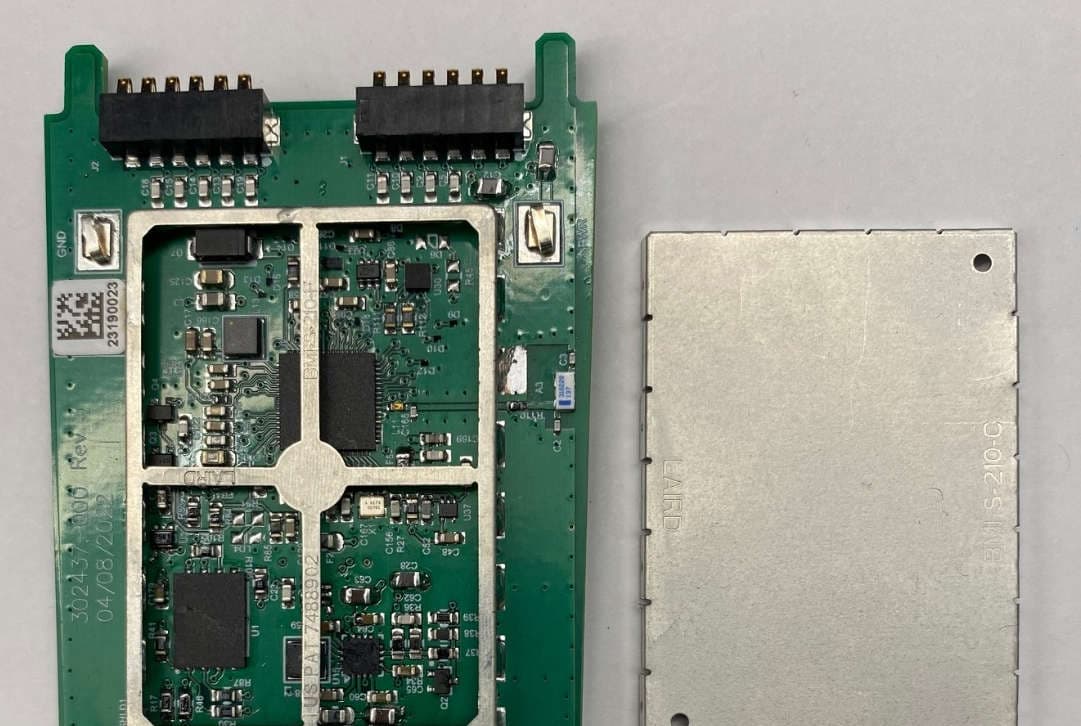

RM520C and RM540C Internal Images: Main PCA for RM520C, RM540C, RM520S, and RM540S Baery Contact PCA for RM520C, RM540C, RM520S, and RM540S Radio PCA for RM520C and RM540C
