DJU626734Remote Monitor

Grey = 70% Black Blue = Pantone 299 C Blue = Pantone 290 C Date: 09/25/2023 Prepared By: Chris V. Jones Label, Product, Test Point, RM520S Part Number: 161616-000 Rev. 6 Yellow = Pantone 107 C Indicates cutting dieline DO NOT PRINT! Blue = Pantone 300 C Blue = Pantone 281 C Yellow = Pantone 109 C White = Pantone White CBlack = Pantone Black C Red = Pantone 7417 C Violet = Pantone Violet C Orange = Pantone 716 C Wake/Cong. RM520S 800-229-3404aiworldwide.com Relay Ctrl + Relay Ctrl - Shunt + Shunt - Cal/Ref 2 Ref 1Pipe 2 Pipe 1 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: POLYESTER: AUTOTEX XE FINE F207 (UV PRINTABLE), 8 MIL THK. 2. ADHESIVE: 3M 9471, 2 MIL THK. 3. ALL FONTS SHALL BE HELVETICA NEUE LT STD UNLESS OTHERWISE SPECIFIED 4. LINEAR TOLERANCE +/-.010 INCHES. .120 CLEAR WINDOW 2.77 1.85 91° 91° 2X R.09 .760 1.118 2X 1.379 1.3° 1.3° 3.83 C L Black White Yellow Orange Wht/Violet Violet Wht/Blue Blue FCC ID: DJU626734, IC: 2466B-626734CONTAINS FCC ID: Q639603N, IC: 4629A-9603N

Grey = 70% Black Blue = Pantone 299 C Blue = Pantone 290 C Date: 09/20/2023 Prepared By: Chris V. Jones Label, Product, Test Point, RM540S Part Number: 161618-000 Rev. 6 Yellow = Pantone 107 C Indicates cutting dieline DO NOT PRINT! Blue = Pantone 300 C Blue = Pantone 281 C Yellow = Pantone 109 C White = Pantone White CBlack = Pantone Black C Red = Pantone 7417 C Green = Pantone 361 C Orange = Pantone 716 C Wake/Cong. RM540S 800-229-3404aiworldwide.com Cal/Ref 2 Ref 1 Pipe 1 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: POLYESTER: AUTOTEX XE FINE F207 (UV PRINTABLE), 8 MIL THK. 2. ADHESIVE: 3M 9471, 2 MIL THK. 3. ALL FONTS SHALL BE HELVETICA NEUE LT STD UNLESS OTHERWISE SPECIFIED 4. LINEAR TOLERANCE +/-.010 INCHES. .120 CLEAR WINDOW 2.77 1.85 91° 91° 2X R.09 .760 1.118 2X 1.379 1.3° 1.3° 3.83 C L Black Yellow Orange FCC ID: DJU626734, IC: 2466B-626734CONTAINS FCC ID: Q639603N, IC: 4629A-9603N

Product label design, Model/HVIN: RM520S Product label design, Model/HVIN: RM540S Product label location: Product label Product label

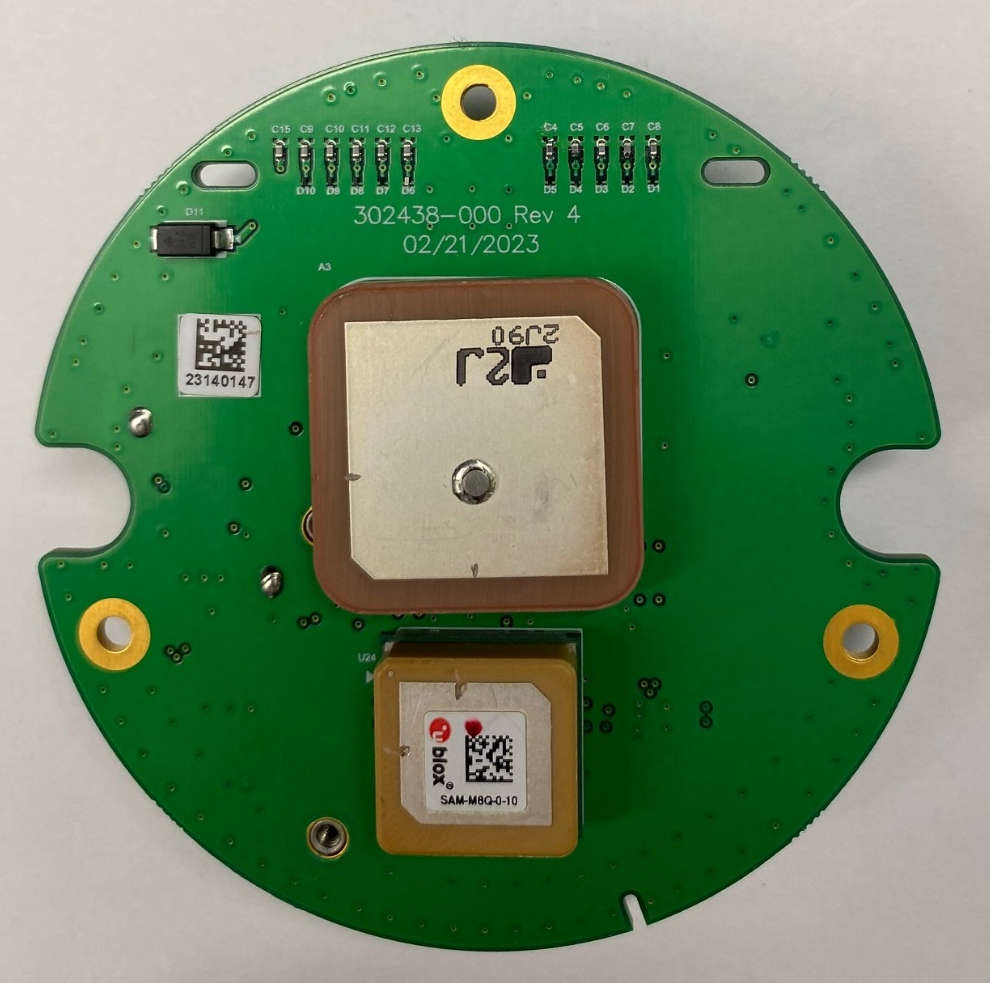

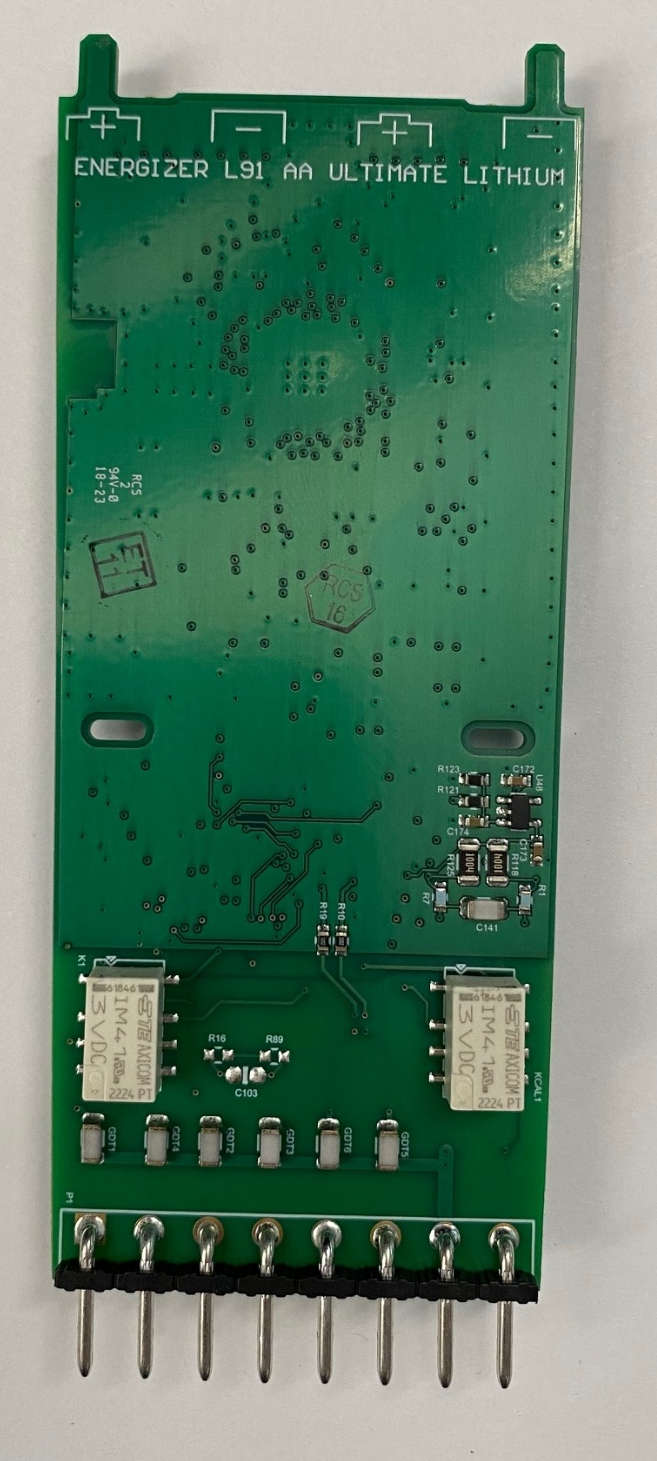

RM520S and RM540S Internal Images: Main PCA for RM520C, RM540C, RM520S, and RM540S Baery Contact PCA for RM520C, RM540C, RM520S, and RM540S Radio PCA for RM520S and RM540S

Project #: PRJ0040425 Company: American Innovations Models (HVINs): RM520S, RM540S RF Exposure Evaluation Report Prepared for: American Innovations 12211 Technology Blvd. Austin, TX 78727 By Nemko USA, Inc. 1601 North A.W. Grimes Blvd., Suite B Round Rock, Texas 78665 October 24, 2023 Written by Larry Finn Laboratory Manager PRJ0040425, RM520S, RM540S Nemko USA, Inc. Page 2 of 7 Table of Contents 1.0 Maximum Permissible Exposure Evaluation (Supplements the test report.) ....................................................... 3 1.1 Applicable Documents .................................................................................................................................... 3 1.2 Criteria ............................................................................................................................................................ 3 1.3 Report Summary ............................................................................................................................................. 3 1.4 FCC RF Exposure Exemption ......................................................................................................................... 4 1.5 TCB Guidance for Collocate Radios Transmitting Simultaneously ............................................................... 4 1.6 FCC Collocation Evaluation ........................................................................................................................... 5 1.7 ISED RF Exposure Limits .............................................................................................................................. 6 1.8 ISED Collocation Evaluation .......................................................................................................................... 6 NOTICE: (1) This Report must not be used to claim product endorsement, by ANAB, NIST, the FCC or any other Agency. This report also does not warrant certification by ANAB or NIST. (2) This report shall not be reproduced except in full, without the written approval of Nemko USA, Inc. (3) The significance of this report is dependent on the representative character of the test sample submitted for evaluation and the results apply only in reference to the sample tested. The manufacturer must continuously implement the changes shown herein to attain and maintain the required degree of compliance. PRJ0040425, RM520S, RM540S Nemko USA, Inc. Page 3 of 7 1.0 Maximum Permissible Exposure Evaluation (Supplements the test report.) The measured power is considered for the intended use of the device and resulting RF exposure to the user. 1.1 Applicable Documents Table 1.1.1: Applicable Documents Document Title RSS-102 Issue 5 am1 Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) KDB 447498 D04 Interim General RF Exposure Guidance v01 RF EXPOSURE PROCEDURES AND EQUIPMENT AUTHORIZATION POLICIES FOR MOBILE AND PORTABLE DEVICES OET Bulletin 65 Edition 97-01 Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields 1.2 Criteria Section Reference Test Detail FCC 47 CFR Part 1 I, 1.1310 // RSS-102, Issue 5 am1 Radiofrequency radiation exposure limits 1.3 Report Summary This report summarizes RF Exposure evaluation of collocated radios in the RM520S and RM540S device. The following two radios are collocated in the device: BLE (2.4GHz) transmitter – FCC ID DJU626734, IC ID: 2466B-626734 Iridium Satellite Transmitter – FCC ID Q639603N, IC ID: 4629A-9603N The EUT is fixed when operated, with the user no closer than 20cm from the antenna during transmission. Worst case duty cycle operation and antenna gains were considered for this evaluation. PRJ0040425, RM520S, RM540S Nemko USA, Inc. Page 4 of 7 1.4 FCC RF Exposure Exemption 447498 D04 Interim General RF Exposure Guidance v01 was used as a basis for RF exposure requirements. The SAR-Based Exemption per 1.1307(b)(3)(i)(B) was considered for each radio based on the calculations below. Maximum power (P, EIRP) was obtained from the MPE and Test reports for each of the radios being considered. Table 1 below outlines the Maximum Permissible Exposure Limits (MPE). Table 1: FCC Limits for RF Exposure 1.5 TCB Guidance for Collocate Radios Transmitting Simultaneously For all transmitters that operate simultaneously, sum the following ratios of the individual transmitters: - P / Pth for transmitters meeting exclusion thresholds of option B - ERP / ERPth for transmitters meeting exclusion thresholds of option C - RF Exposure measured value / RF Exposure limit for transmitters evaluated through measurement The total must be less than 1.0 - If not then it will require measurements one or more of the excluded transmitters PRJ0040425, RM520S, RM540S Nemko USA, Inc. Page 5 of 7 1.6 FCC Collocation Evaluation Radio Band Frequency Conducted Power Antenna Gain P(EIRP) Power Density Uncontrolled PD Limit P/P limit - - MHz dBm dBi mW mW/cm² mW/cm² - Q639603N Iridium 1616 31.7 3 295.12* 0.059 1.000 0.059 DJU-626733 2.4GHz 2400 13.826 1.7 35.69 0.01 1.000 0.007 *Power corrected for 10% duty cycle of Iridium device (Worst-case transmission) Table 2: Worst-Case Collocation Radio Combination The highlighted lines above in Table 2 represent the worst-case combination of simultaneously transmitting collocated radios. Radio Q639603N DJU626733 Total Exposure Ratio (TER) Limit Result Band Iridium WLAN 2.4GHz, P/P limit 0.059 0.007 0.066 1 Pass Table 3: Total Exposure Ratio (TER) Table 3 shows the summation of the exposure ratios (P/P limit ). The total summation of all P/P limit values is < 1, as such, the device meets RF exposure requirements. PRJ0040425, RM520S, RM540S Nemko USA, Inc. Page 6 of 7 1.7 ISED RF Exposure Limits For compliance to Canada, RF Exposure levels were evaluated against the limits se forth in RSS -102. Power Density limits were used per Table 4 of RSS-102. Each collocated radio was evaluated against the power density limit, and the …
