DK4MH9026BKCordless Telephone

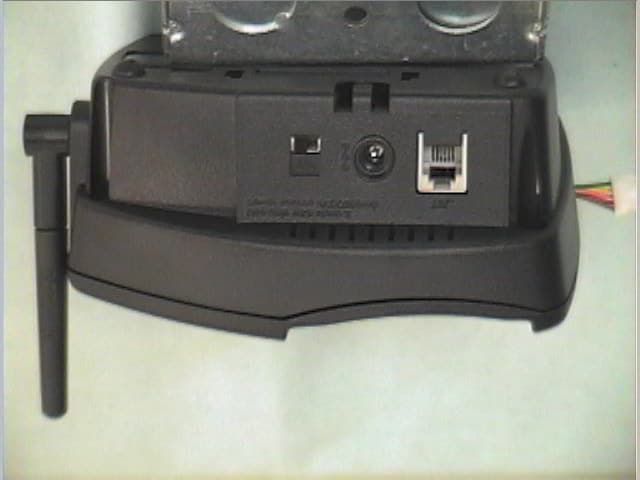

EUT’S PHOTOGRAPHS (EXTERNAL)

EUT’S PHOTOGRAPHS (INTERNAL)

SCHEMATICS

Intertek Testing Services APPLICATION FOR FCC CERTIFICATION GVC Corporation 900 MHz DSSS Cordless Telephone Model: MH9026BK FCC ID: DK4MH9026BK Job # J99007969 Number of Pages: 14 Date of Report: April 28, 1999 This report shall not be reproduced except in full, without written approval of Intertek Testing Services. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples on this report is dependent on the representative of the samples tested. k:\..\fcc\15247ds.cer FCC Part 15 DSSS Cert, Ver 8/98 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 GVC Corporation, 900 MHz DSSS Digital Cordless TelephoneDate of Test: 4/1/99 - 4/27/99 FCC ID: DK4MH9026BK Report # J99007969FCC Part 15.247 DSSS Certification ii Table of Contents 1.0 Summary of Tests ........................................................................................................................... 1 2.0 General Description ........................................................................................................................ 2 2.1Product Description ............................................................................................................. 2 2.2Related Submittal(s) Grants.................................................................................................2 2.3Test Methodology................................................................................................................ 3 2.4Test Facility ......................................................................................................................... 3 3.0 System Test Configuration ............................................................................................................ 4 3.1Support Equipment.............................................................................................................. 4 3.2Block Diagram of Test Setup .............................................................................................. 4 3.3Justification ......................................................................................................................... 5 3.4Software Exercise Program ................................................................................................. 5 3.5Mode of Operation During Test .......................................................................................... 5 3.6Modifications Required for Compliance ............................................................................. 5 3.7Additions, deviations and exclusions from standards .......................................................... 5 4.0 Measurement Results ..................................................................................................................... 6 4.1Maximum Conducted Output Power at Antenna Terminals................................................ 6 4.2Minimum 6 dB RF Bandwidth ........................................................................................... 8 4.3Maximum Power Density Reading ...................................................................................... 9 4.4Out of Band Conducted Emissions.................................................................................... 10 4.5Out of Band Radiated Emissions ....................................................................................... 10 4.6Transmitter Radiated Emissions in Restricted Bands ........................................................ 10 4.7AC Line Conducted Emission ........................................................................................... 11 4.10Radiated Emissions from Digital Section of Transceiver (Transmitter), .......................... 12 4.11Radiated Emissions from Receiver Section of Transceiver (L.O. Radiation), .................. 12 4.12Processing Gain Measurements ......................................................................................... 13 4.13Transmitter Duty Cycle Calculation and Measurements.................................................... 13 5.0 Appendices .................................................................................................................................... 14 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 GVC Corporation, 900 MHz DSSS Digital Cordless TelephoneDate of Test: 4/1/99 - 4/27/99 FCC ID: DK4MH9026BK Report # J99007969FCC Part 15.247 DSSS Certification 1 1.0 Summary of Tests GVC Corporation - Model No.: MH9026BK FCC ID: DK4MH9026BK TESTREFERENCERESULTS Max. Output power15.247(b)Pass 6 dB Bandwidth15.247(a)(2)Pass Max. Power Density15.247(d)Pass Out of Band Antenna Conducted Emission15.247(c)Pass Out of Band Radiated Emission15.247(c)N/A Radiated Emission in Restricted Bands15.35(b)(c)Pass AC Conducted Emission15.207Pass Radiated Emission from Digital Part15.109Pass Radiated Emission from Receiver L.O.15.109Not Applicable Processing Gain Measurements15.247(e)Provided by applicant Antenna Requirement15.203Pass* * EUT has non-detachable antenna. Test Engineer: Date: April 29, 1999 Cleveland Kwan Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 GVC Corporation, 900 MHz DSSS Digital Cordless TelephoneDate of Test: 4/1/99 - 4/27/99 FCC ID: DK4MH9026BK Report # J99007969FCC Part 15.247 DSSS Certification 2 Telco Manager: Date: April 29, 1999 C.K. Li Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 GVC Corporation, 900 MHz DSSS Digital Cordless TelephoneDate of Test: 4/1/99 - 4/27/99 FCC ID: DK4MH9026BK Report # J99007969FCC Part 15.247 DSSS Certification 3 2.0 General Description 2.1Product Description The GVC Model No.: MH9026BK is a 900 MHz DSSS digital cordless telephone. A pre-production version of the sample was received on April 1, 1999 in good condition. Overview of 900 MHz DSSS Cor…

Text truncated - open the document above for the full version.

Appendices: Appendix A Maximum Output Power Plots Appendix B 6 dB BANDWIDTH Appendix C MAXIMUM POWER DENSITY Appendix D OUT OF BAND ANTENNA CONDUCTED EMISSION Appendix E RADIATED EMISSION IN RESTRICTED BANDS
