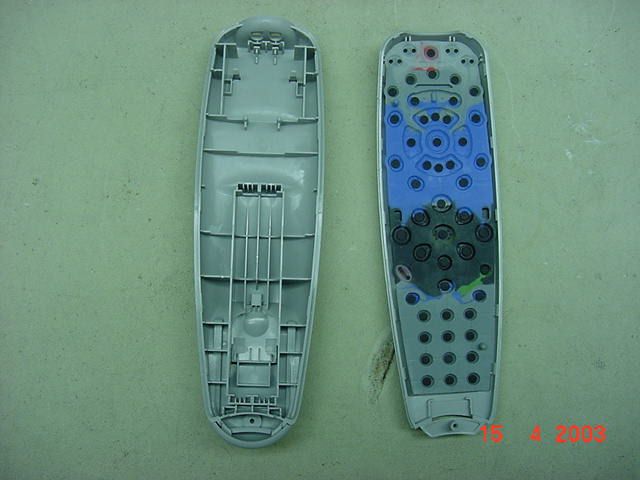

DKNFSK01Remote Control

REGULATORYFACTORS WIRELESSREMOTECONTROL This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device may void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the use is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experience radio/TV technician for help. SAFETYINSTRUCTIONS Yo umustkeep safety in mind while using this device. Keep these and any other instructions for future reference. INSTALLATION Observe Warnings: Carefully follow all warnings on the device and in the operating instructions. Heat: DO NOT place the device near heat sources such as radiators, stoves, heat registers, or other appliances that produce heat. CARE ANDUSE Cleaning: DO NOT use liquid, abrasive, solvent, or aerosol cleaners. Use a damp cloth for cleaning. When Not in Use: Remove the batteries if this device is to be left unattended or unused for a long period of time. Refer servicing to qualified personnel when a solid object or liquid has fallen onto or into the device. DO NOT attempt to service this device. Refer all servicing to qualified personnel. Opening covers other than the battery cover will void the warranty. inside_front_cover_dishpvr.fm Page 0 Friday, January 24, 2003 10:11 AM

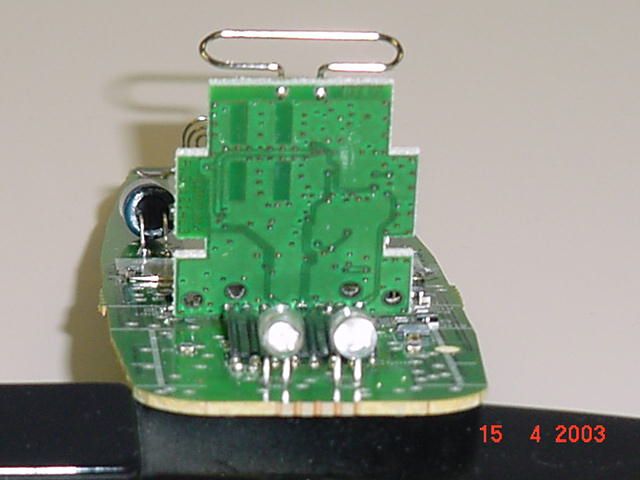

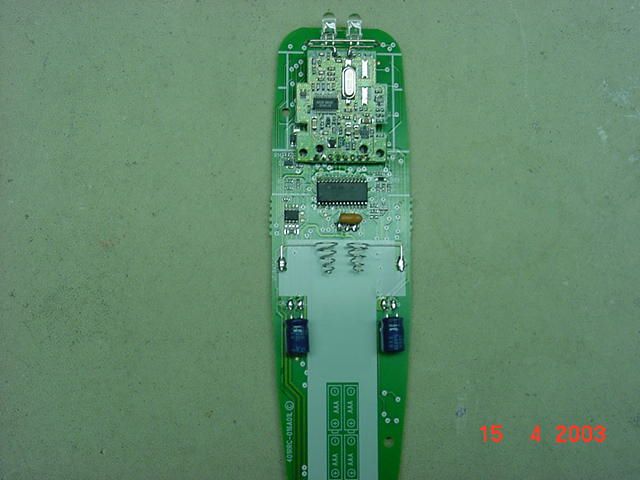

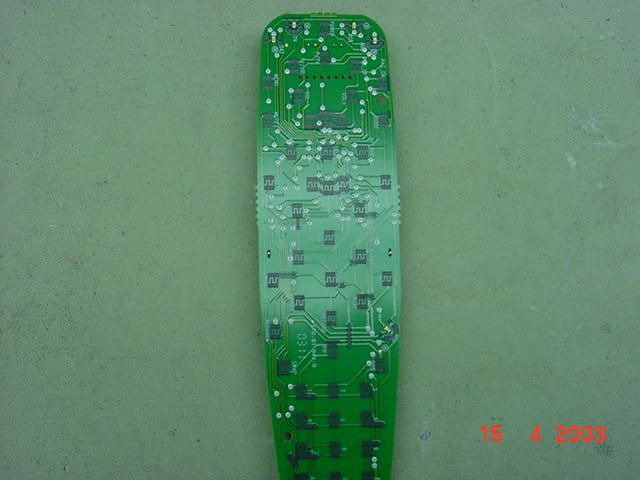

FSK UHF Circuit Block Diagram U Reg RFIC RFMD RF2512 Control Logic RF Power Set Crstal 5.77218 Mhz Transitor Switch Low Pass Filter 3.3 VDC Internal Antenna TX Enable U Reg Enable 4 each AAA Batteries PLL Enable / On Data Input Main Transmitter Board

EchoStar Technologies Corporation 94 Inverness Circle East Englewood, CO 80112 (303) 723-1000 May 6, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Echostar Technologies Corporation would like the following documents regarding this submission for FCC ID: DKNFSK01 to be kept confidential. Schematics Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Mathew Aschenberg, Agency Engineer

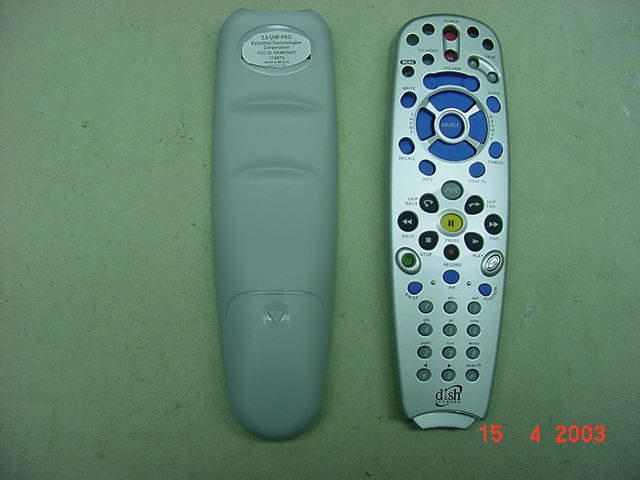

2.0 REMOTE BOTTOM CASE LABEL

EMC EMISSIONS - TEST REPORT (Full) Test Report No. BC300163 Issue Date: Tue 04/Mar/2003 Model / Serial No. DKNFSK01/ SN: EMC0303 Product Type FSK UHF Remote control Client Echostar Technologies Manufacturer Echostar Technologies License holder Echostar Technologies P. O. Box 9021 Address Littleton, Co 80120 Test Criteria Applied FCC CFR47 Part 15.231 Test Result PASS Test Project Number References BC300163 Total Pages Including Appendices: 26 Title 47 CFR 15: RADIO FREQUENCY DEVICES Reviewed By : Todd Seeley Approved By : Robert Cresswell INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, Industry Canada and VCCI. Project File: BC300163 Page 2 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 26 Directory 2 Test Regulations 3 General Remarks 3 Test-setup Photographs 4 - 7 Appendix A Test Data Sheets and Test Equipment Used 8 - 20 Appendix B Test Plan/Constructional Data Form 21 - 21 Appendix C Measurement Protocol/Test Procedures 22 - 26 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 10-Feb-2003 Testing Start Date: 10-Feb-2003 Testing End Date: 5-Mar-2003 Project File: BC300163 Page 3 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. ICES-003 Emission Test Results: Conducted Emissions, Powerline - N/A Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Conducted Emissions, Data I/O (Ethernet, RJ11, etc.) - N/A Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - Test Result Minimum limit margin 2.98 dB at 369.54 MHz Maximum limit exceeding dB at MHz Remarks: GENERAL REMARKS: Mode of Operation: For each button press, the main remote control board will send three data packets to the UHF transmitter board at the specified rate. Key code packets contain 26 bit encoded key codes and will be sent every 100 ms after a short preamble. After three packets are sent, a 3 bit Maintain packet (plus preamble) will be sent every 100 ms until the button is released or 3 minutes, whichever is shorter. Special Operation: The remote software was modified to remove the 3 -minute time out, and to trans mit only key code packets. Key code packets represent the worst case emission from the remote. Modifications required to pass: NONE Test Specification Deviations: Additions to or Exclusions from: None Project File: BC300163 Page 4 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 5 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 6 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 7 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 8 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Appendix A Test Data Sheets and Test Equipment Used Radiated Electromagnetic Emissions Test Report #: Bc300163 Run 02 Test Area: Pinewood Site 1 (3m) Temperature: 24.2 °C Test Method: FCC Part 15.209 Test Date: 10-Feb-2003 Relative Humidity: <26 % EUT Model #: DKNFSK01 EUT Power: 6VDC Air Pressure: 80 kPa EUT Serial #: EMC0303 Page: 1 of 4 Manufacturer: Echostar Level Key EUT Description: FSK UHF Remote control Pk – Peak Nb – Narrow Band Notes: pass 2 main, pass 4 xmter. Qp – QuasiPeak Bb – Broad Band Av - Average FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dB\m) (dB) (dBuV/m) (m) (DEG) FCC B (< 1GHz) FCC B (> 1GHz) No emissions found: 0 Deg, vertical No emissions found: 90 Deg, vertical No emissions found: 180 Deg, vertical No emissions found: 270 Deg, vertical No emissions found: 0 Deg, horizontal NO emissions found: 90 Deg, horizontal No emissions found: 180 Deg, horizontal No emissions found: 270 Deg, horizontal No emissions found 30 - 200 MHz Rotated table 360 Deg. 369.50 88.5 Qp 4.7 / 1…

Text truncated - open the document above for the full version.

EMC EMISSIONS - TEST REPORT (Full) Test Report No. BC300163 Issue Date: Tue 04/Mar/2003 Model / Serial No. DKNFSK01/ SN: EMC0303 Product Type FSK UHF Remote control Client Echostar Technologies Manufacturer Echostar Technologies License holder Echostar Technologies P. O. Box 9021 Address Littleton, Co 80120 Test Criteria Applied FCC CFR47 Part 15.231 Test Result PASS Test Project Number References BC300163 Total Pages Including Appendices: 26 Title 47 CFR 15: RADIO FREQUENCY DEVICES Reviewed By : Todd Seeley Approved By : Robert Cresswell INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, Industry Canada and VCCI. Project File: BC300163 Page 2 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 26 Directory 2 Test Regulations 3 General Remarks 3 Test-setup Photographs 4 - 7 Appendix A Test Data Sheets and Test Equipment Used 8 - 20 Appendix B Test Plan/Constructional Data Form 21 - 21 Appendix C Measurement Protocol/Test Procedures 22 - 26 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 10-Feb-2003 Testing Start Date: 10-Feb-2003 Testing End Date: 5-Mar-2003 Project File: BC300163 Page 3 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. ICES-003 Emission Test Results: Conducted Emissions, Powerline - N/A Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Conducted Emissions, Data I/O (Ethernet, RJ11, etc.) - N/A Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - Test Result Minimum limit margin 2.98 dB at 369.54 MHz Maximum limit exceeding dB at MHz Remarks: GENERAL REMARKS: Mode of Operation: For each button press, the main remote control board will send three data packets to the UHF transmitter board at the specified rate. Key code packets contain 26 bit encoded key codes and will be sent every 100 ms after a short preamble. After three packets are sent, a 3 bit Maintain packet (plus preamble) will be sent every 100 ms until the button is released or 3 minutes, whichever is shorter. Special Operation: The remote software was modified to remove the 3 -minute time out, and to trans mit only key code packets. Key code packets represent the worst case emission from the remote. Modifications required to pass: NONE Test Specification Deviations: Additions to or Exclusions from: None Project File: BC300163 Page 4 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 5 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 6 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 7 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300163 Page 8 of 26 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Appendix A Test Data Sheets and Test Equipment Used Radiated Electromagnetic Emissions Test Report #: Bc300163 Run 02 Test Area: Pinewood Site 1 (3m) Temperature: 24.2 °C Test Method: FCC Part 15.209 Test Date: 10-Feb-2003 Relative Humidity: <26 % EUT Model #: DKNFSK01 EUT Power: 6VDC Air Pressure: 80 kPa EUT Serial #: EMC0303 Page: 1 of 4 Manufacturer: Echostar Level Key EUT Description: FSK UHF Remote control Pk – Peak Nb – Narrow Band Notes: pass 2 main, pass 4 xmter. Qp – QuasiPeak Bb – Broad Band Av - Average FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dB\m) (dB) (dBuV/m) (m) (DEG) FCC B (< 1GHz) FCC B (> 1GHz) No emissions found: 0 Deg, vertical No emissions found: 90 Deg, vertical No emissions found: 180 Deg, vertical No emissions found: 270 Deg, vertical No emissions found: 0 Deg, horizontal NO emissions found: 90 Deg, horizontal No emissions found: 180 Deg, horizontal No emissions found: 270 Deg, horizontal No emissions found 30 - 200 MHz Rotated table 360 Deg. 369.50 88.5 Qp 4.7 / 1…

Text truncated - open the document above for the full version.
