DKNFSK02Remote Control

REGULATORY FACTORS WIRELESS REMOTE CONTROL This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device may void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the use is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SAFETY INSTRUCTIONS Yo u must keep safety in mind while using this device. Keep these and any other instructions for future reference. INSTALLATION Observe Warnings: Carefully follow all warnings on the device and in the operating instructions. Heat: DO NOT place the device near heat sources such as radiators, stoves, heat registers, or other appliances that produce heat. CARE AND USE Cleaning: DO NOT use liquid, abrasive, solvent, or aerosol cleaners. Use a damp cloth for cleaning. When Not in Use: Remove the batteries if this device is to be left unattended or unused for a long period of time. Refer servicing to qualified personnel when a solid object or liquid has fallen onto or into the device. DO NOT attempt to service this device. Refer all servicing to qualified personnel. Opening covers other than the battery cover will void the warranty. inside_front_cover_dishpvr.fm Page 0 Wednesday, February 18, 2004 1:22 PM 1 TABLE OF CONTENTS Remote Control Basics ....................................... 2 Models Supported by this Guide ......................... 2 UHF and IR Signals ............................................ 3 Installing Batteries ............................................... 3 Converting the 6.0 Remote Control ................... 4 Setting Up to Control the Satellite Receiver ..... 5 Checking the Remote Address .......................... 8 Setting Up to Control Other Devices ................. 8 Combination Devices .......................................... 8 Limited Mode....................................................... 8 Setting Up Using Device Code Tables ................ 9 Setting Up Using Device Codes Scan............... 10 Checking the Device Codes...............................11 Switching Between TV and Device Volume Control...................................................11 Remote Control Operation ............................... 13 Operating Modes............................................... 13 Controlling the Satellite Receiver ...................... 13 Controlling a TV (or a Second TV) .................... 23 Controlling a VCR (Second VCR or a DVD Player) ........................ 25 Controlling a Tuner or Amplifier......................... 27 Device Codes .................................................... 29 TV Codes .......................................................... 29 VCR Codes ....................................................... 33 TV/VCR Combo Codes ..................................... 35 DVD Player Codes ............................................ 35 Tuner/Amplifier Codes....................................... 36 DVD/VCR Combo Codes .................................. 37 TV/DVD Combo Codes ..................................... 37 Troubleshooting ............................................... 38 Limited Warranty ............................................... 40 If You Need Help ................................................ 43 text_dishpvr.fm Page 1 Tuesday, March 2, 2004 12:35 PM 2 REMOTE CONTROL BASICS This remote control gives you easy access to all the features of a DISH Network satellite TV receiver. You can set up the remote to control the satellite TV receiver and up to three other devices. These devices can be a TV, a VCR or DVD player, and a third device. MODELS SUPPORTED BY THIS GUIDE This user’s guide supports the following remote control models as shown on the label on the back of the remote: •5.0 - Infrared (IR) only. For use with appropriate IR-controlled DISH Network receivers. •6.0 - Infrared/Ultra-High Frequency Pro (IR/UHF Pro). For use with appropriate UHF Pro-controlled DISH Network receivers. The 6.0 remote can be converted to one of three different remote types used on a DISH Player-DVR 522 receiver: With the blue 2 UHF Pro key installed, this remote will operate the UHF Pro side of the DISH Player-DVR 522 receiver. The remote comes with this key already installed. With the green 1 key installed (no UHF Pro marking), this remote will operate the IR side of the DISH Player-DVR 522 receiver. This remote will look and work exactly like a 5.0 IR remote. See instructions in Converting the 6.0 Remote. With the green 1 UHF Pro key installed, this remote will operate the side of the DISH Player-DVR 522 receiver from a distance using UHF Pro. See instructions in Converting the 6.0 Remote. If you set up your DISH Player-DVR 522 to operate the side using UHF Pro, the two UHF Pro remotes for this receiver will interfere with each other when operated at the same time. This may preve…

Text truncated - open the document above for the full version.

EchoStar Technologies Corporation 94 Inverness Circle East Englewood, CO 80112 (303) 723-1000 April 20, 2004 To whom it may concern: We the undersigned, hereby authorize International Approvals Laboratories, LLC, to act on our behalf in all manners relating to application for equipment authorization to include the transfer the information contained herein to a TCB or regulatory agency, and sign all documents relating to these matters. Any and all acts carried out by International Approvals Laboratories, LLC, on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Echostar Technologies Corporation. Sincerely, Mathew Aschenberg, Agency Engineer

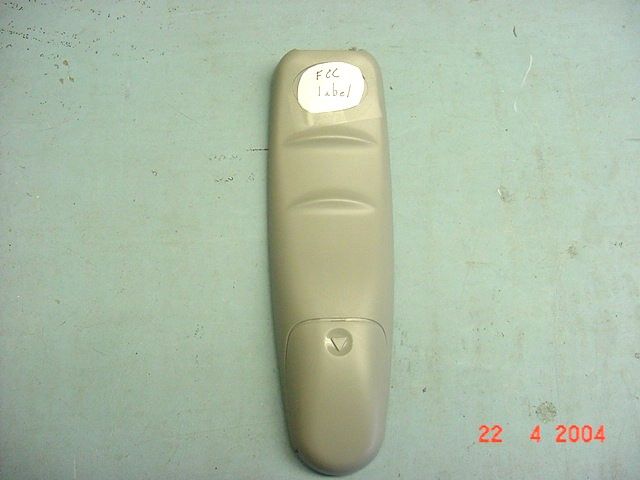

22.4 35.0 Scale: 200% Use this image to create label Scale: 100% Use this image to create label TITLE SCALE 1:1 SIZE DWG. NO A SHEET 1 of 1 REV 01 APPROVALS DATE UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE DRAWN CHECKED REVISIONS ECOITEM MASTER DESCRIPTION REVDATEB TOLERANCES: 0.000 +/- .125 0.00 +/- .25 0.0 +/- .4 0. +/- .7 HOLE DIA: +/- .075 ANGLES: +/- .5 C13676130609 Initial Release @ Development 0 1 04/19/04 RP RYAN PRAST04/19/04 130609 LABEL / ART, BOTTOM CASE, 1ST MASK REMOTE 8.1, FSK, MEXICO NOTES: 1. ALL DIMENSIONS ARE IN MILLIMETERS, UNLESS OTHERWISE NOTED. 2. PLACE ARTWORK AT LOCATION SHOWN. 3. COLOR OF PRINTING TO BE BLACK 4. MATERIAL: POLYCARBONATE .010" THICK, Pantone 423U LIGHT SATIN TEXTURE WITH PERMANENT PRESSURE-SENSITIVE BACKING. UL/CSA APPROVED. 5. COVER ADHESIVE WITH PROTECTIVE BACKING. 6. QUALITY ASSURANCE PROVISIONS: IN ADDITION TO MEETING ALL REQUIREMENTS OUTLINED IN THIS SPECIFICATION, ALL REQUIREMENTS IN THE FOLLOWING ECHOSTAR QUALITY ASSURANCE DOCUMENTS AND THEIR REFERENCES MUST BE MET OR EXCEEDED. A) 124214 SUPPLIER AQL REQUIREMENTS B) 105450 SUPPLIER QA REQUIREMENTS C) 123473765-AA COSMETIC PROVISIONS

2.1093 Radiofrequency radiation exposure evaluation: portable devices According to 2.1093 (a) and 1.1307(b)(1) our UHF remote control is excluded from making such studies or preparing EA as our remote control is not listed in Table 1 of 1.1037(b)

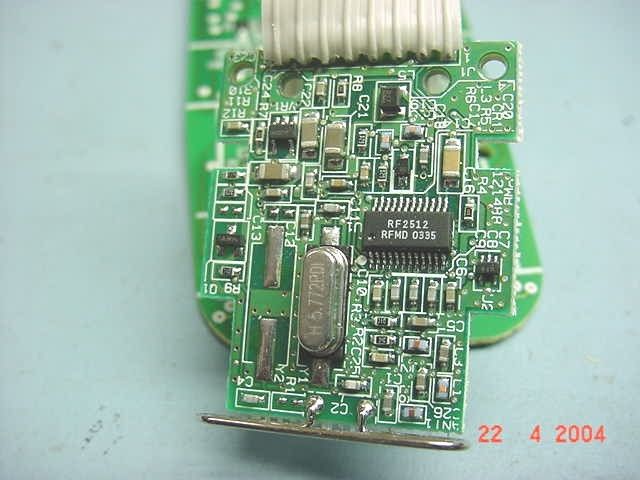

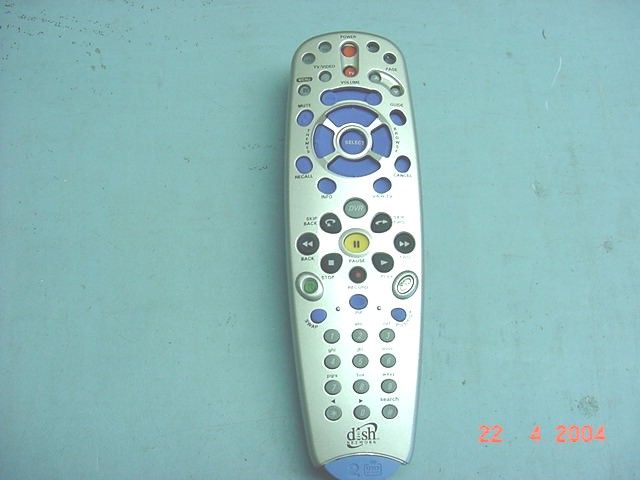

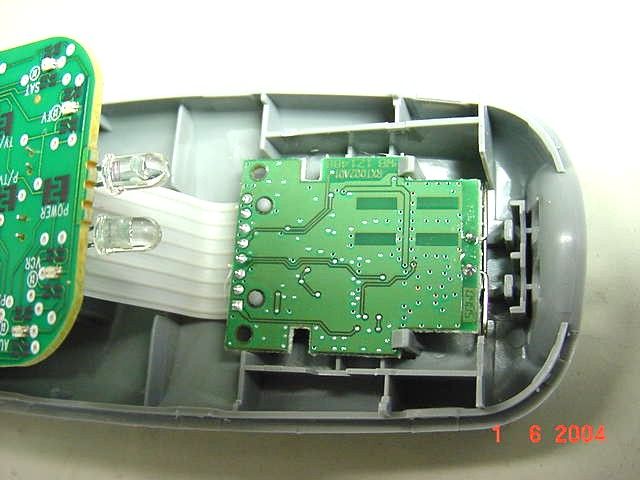

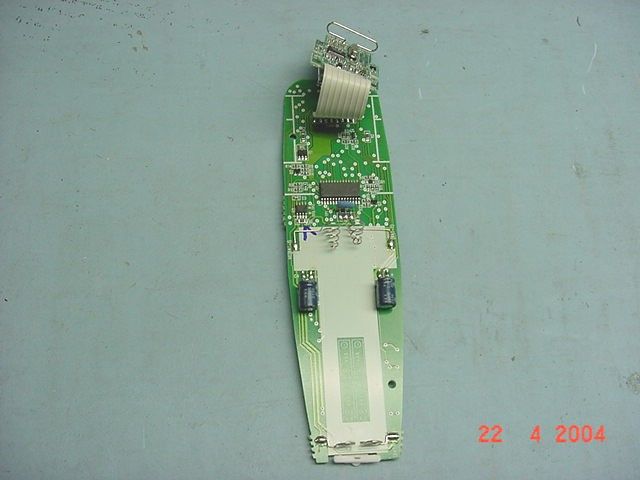

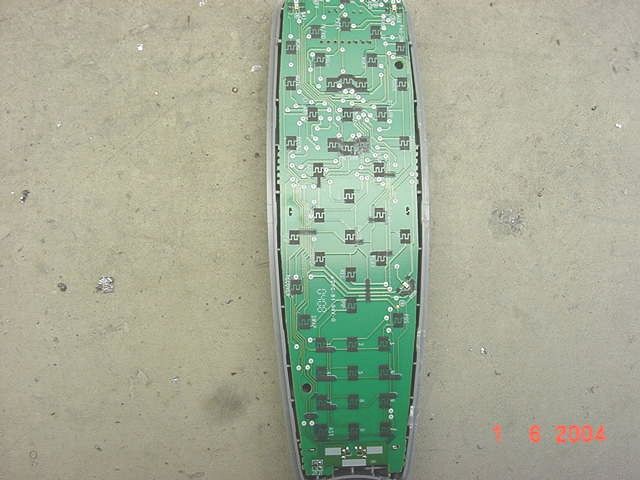

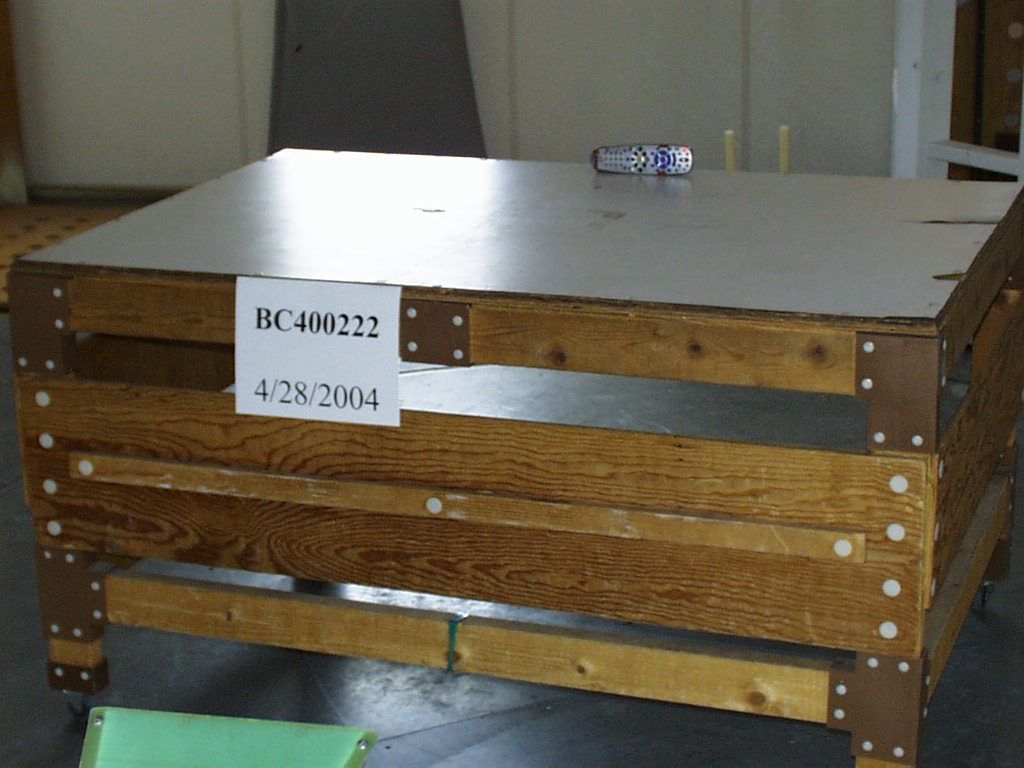

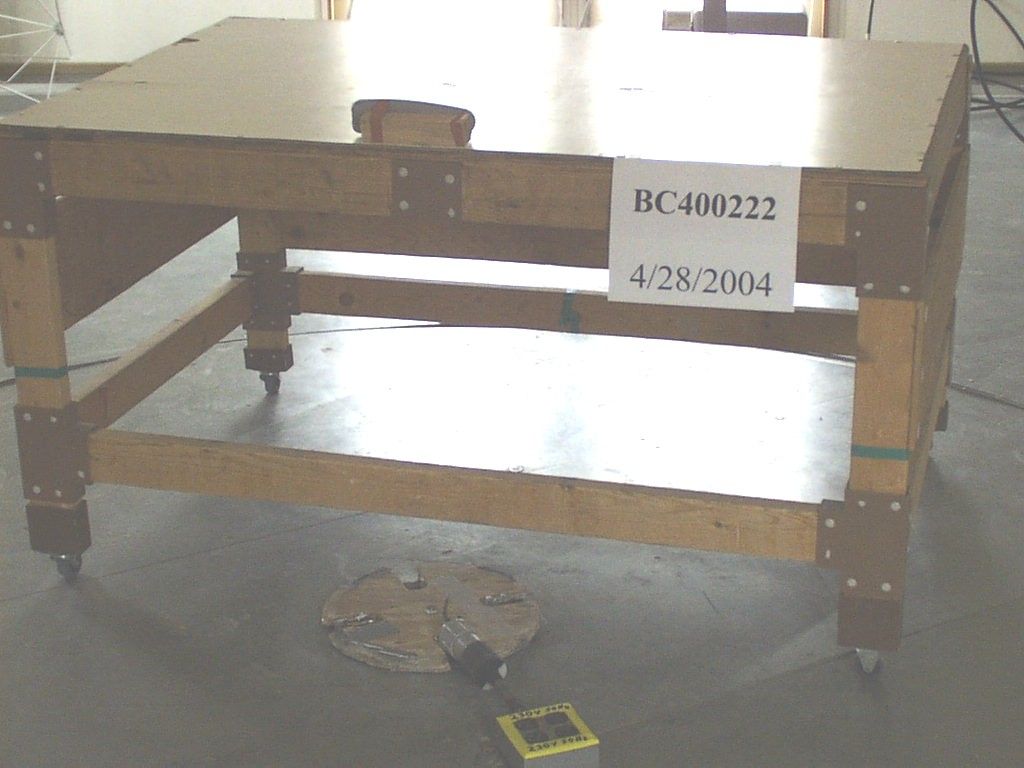

EMC EMISSIONS - TEST REPORT (Full) Test Report No. BC400222-1 Issue Date: Wednesday, June 8, 2004 Model / Serial No. MN: Remote 8.1 FSK Converter / SN: FCC 1 Product Type Remote Control Client Echostar Manufacturer Echostar License holder Echostar 9601 S. Meridian Blvd Address Englewood, CO 80112 Test Criteria Applied FCC CFR47 Part 15.231 Test Result PASS Test Project Number References BC400222-1 Total Pages Including Appendices: 31 Title 47 CFR 15.231: RADIO FREQUENCY DEVICES operating in the frequency range of 40.66-40.70MHz and above 70MHz (including 15.205, 15.207, 15.209 where applicable) Reviewed By : Approved By : INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, and VCCI. Project File: BC400222 Page 2 of 31 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 31 Directory 2 Test Regulations 3-4 General Remarks 5-6 Te st-setup Photographs 7-8 Appendix A Test Data Sheets and Test Equipment Used 9-25 Appendix B Test Plan/Constructional Data Form 26-26 Appendix C Measurement Protocol/Test Procedures 27-31 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 9-April-2004 Testing Start Date: 9-April-2004 Testing End Date: 29-April-2004 Project File: BC400222 Page 3 of 31 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. FCC CFR47 Part 15.205 2. FCC CFR47 Part 15.207 3. FCC CFR47 Part 15.209 4. FCC CFR47 Part 15.231 5. ICES-003 Emission Test Results: Conducted Emissions, Powerline (15.207) - Not Applicable Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Battery Powered Device Radiated Emissions (15.209) / 15.231(b)(3) - PASS Test Result Minimum limit margin -1.20 dB at 1185.31 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (15.205) / 15.231(b)(2) - PASS Test Result Minimum limit margin -1.6 dB at 1113.28 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions 15.231(a)(1)&(2) - PASS Test Result Remarks: Required measurement for manually and automatic operated transmitter equipment. <5 Sec. after activation Radiated Emissions 15.231(b)(1) - PASS Test Result Minimum limit margin -0.62 dB at 371.13 MHz Maximum limit exceeding dB at MHz Remarks: Measurements were taken utilizing the methods dictated by Part 15.35 for averaging pulsed emissions and for limiting peak emissions Project File: BC400222 Page 4 of 31 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Radiated Emissions 15.231(c) - PASS Test Result Remarks: Devices operated within the frequency band of 70 – 900MHz: -20dBc Bandwidth maximum of 0.25% of the center frequency Devices operated within the frequency band of >900MHz: -20dBc Bandwidth maximum of 0.50% of the center frequency Radiated Emissions 15.231(d) - Not Applicable Test Result Remarks: Devices operated within the frequency band of 40.66 – 40.70MHz: -20dBc Bandwidth maximum of 0.01% of the center frequency as measured through the temp range of -20 to +50 deg. C, and at 85 - 115% of the nominal supply voltage at 20 deg. C “a new battery would be used in cases where the device is powered from a battery” Radiated Emissions 15.231(e) - Not Applicable Test Result Minimum limit margin 00.00 dB at 0000.00 MHz Maximum limit exceeding dB at MHz Remarks: Measurements were taken utilizing the methods dictated by Part 15.35 for averaging pulsed emissions and for limiting peak emissions GENERAL REMARKS: The following remarks are to be considered as “where applicable“ and are taken into account while completing any FCC/IC/ETSI radio tests at International Approvals Laboratories, LLC. Testing was performed in 3 different orthogonal axis to determine the worst case emissions from the device. The worste case emissions measurements are shown in this report. FCC CFR47 Part 15.31: Measurement Standards: In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was veried per Part 15.31 to find worst case emissions. FCC CFR47 Part 15.35: Measurement Detector Functions and Bandwidths: FCC Part 15.35 was utilized when performing the measurements within this report. Modifications required to pass: NONE Test Specification Deviations: NONE Project File: BC400222 Page 5 of 31 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Project File: BC4…

Text truncated - open the document above for the full version.
