DKNHG802.11a/b/g/n 2.4/5GHz Radio

DISH Technologies L.L.C.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 24, 2015
Application Purpose: Original Equipment
Date of Application: Sep 23, 2015
Equipment Note: 802.11a/b/g/n 2.4/5GHz Radio
Frequency Range: 2412.00000000 - 2462.00000000
Company: DISH Technologies L.L.C.
Country: United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

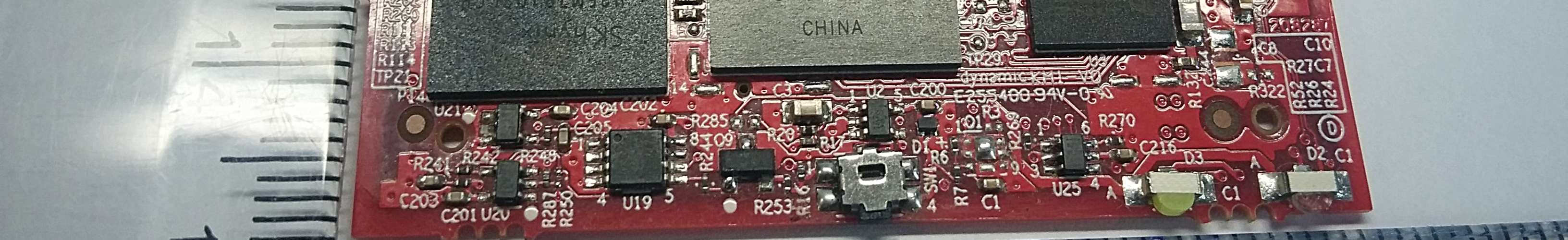

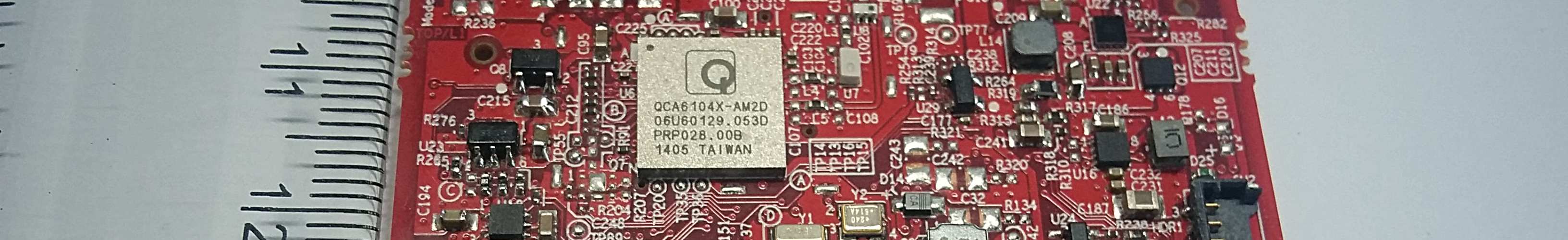

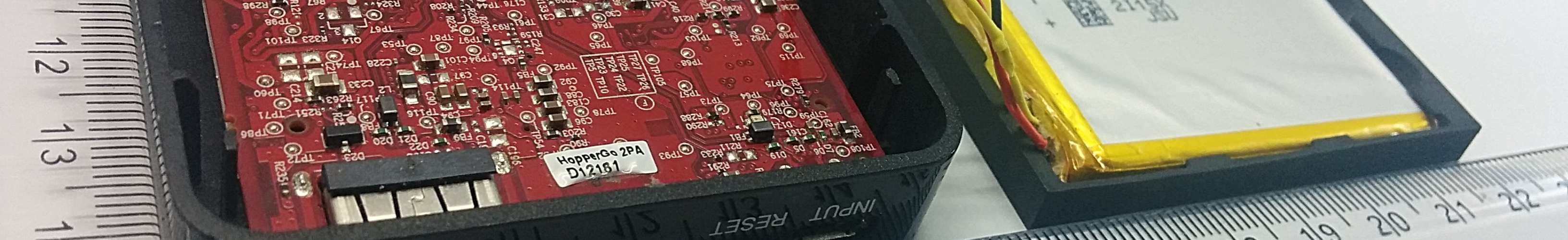

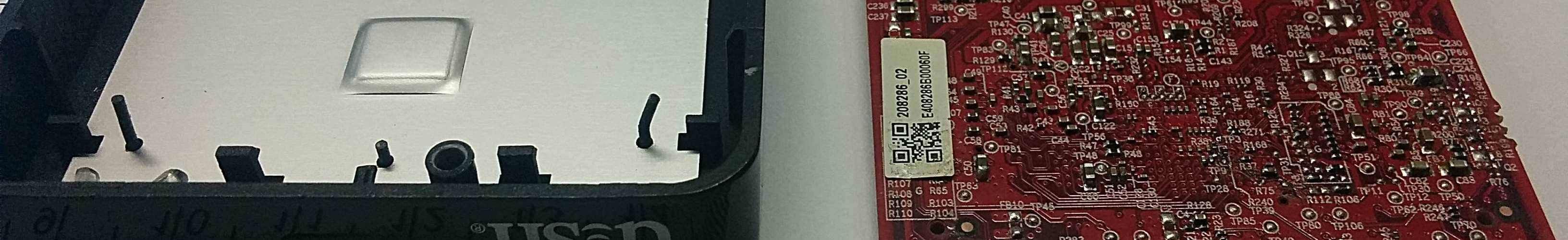

External Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Copyright © 2015 Sling Media, Inc. Sling is a registered trademark of Sling Media, Inc. DISH, Hopper and HopperGO are trademarks or registered trademarks of DISH Network L.L.C. One year limited warranty. For complete details regarding regulatory and warranty visit mydish.com/hoppergo This entire package is designed to be recycled. P/N: 209079 Box Contents: HopperGO MicroUSB Cable Finished Good Barcode Label FG, SLING HOPPERGO SB800, US S/N: XXXXXXXXXXXX P/N: 205900 205900 7 53960 01429 6 MADE IN XXXX Use with your DISH Hopper with Sling and DISH Anywhere mobile App

Users Manual

Welcome to HopperGO! HopperGO is your pocketsize DVR that stores your favorite shows and movies recorded with Hopper with Sling. HopperGO streams media content to your mobile devices. Enjoy your favorite movies on the go without Internet. Power button: 3 sec press: ON/OFF 10 sec press: WiFi name/password reset to default 20 sec press: reset to factory default, all content will be deleted Battery LED: • Green: sufficient battery • Red: charging • Blinking Red: needs charging Connection LED: • White: WiFi mode • Yellow: direct connect mode • Blinking: streaming/transfer in progress Output – connect HopperGO to a mobile device using micro-‐USB cable Reset pin hole – press the reset button with a needle to reboot HopperGO Input -‐ charge HopperGO and transfer content from Hopper with Sling and PC/Mac to HopperGO using micro-‐USB cable How to: 1. Start using HopperGO: a. Plug the micro USB cable into your HopperGO and your Hopper with Sling, then wait for the on-‐screen connection to complete (please make sure that Hopper with Sling is connected to Internet). b. Install the DISH Anywhere app on your mobile device. c. Log into the DISH Anywhere app and follow the on-‐screen instructions. 2. Transfer your recordings from Hopper with Sling to HopperGO: a. Open DISH Anywhere app and go to DVR tab, tap on a DVR recording -‐> Transfer -‐> send to HopperGO. b. Repeat for as many recordings as you need c. Connect HopperGO and Hopper with Sling using micro USB cable d. Preselected DVR recordings will be automatically transferred to HopperGO (LED will blink until transfer is completed) e. Follow transferring status in HopperGO tab in DISH Anywhere app 3. Watch your favorite shows and movies on the go by wirelessly connecting your mobile device to HopperGO (no Internet or cables required) a. Turn HopperGO ON and connect to HopperGO WiFi network by going to Settings on your mobile device, WiFi name and password are printed on the sticker at the bottom of HopperGO (you can later change HopperGO WiFi name and password using DISH Anywhere app). b. In DISH Anywhere app go to DVR and switch to HopperGO tab at the top of the screen c. Tap on any of the recordings, watch and enjoy! 4. Watch your favorite shows and movies on the go by directly connecting Android mobile device to HopperGO using cable (HopperGO WiFi is OFF) a. Connect HopperGO to an Android mobile device using micro-‐USB to USB cable (output on HopperGO) b. DISH Anywhere app will launch automatically c. Tap on any of the recordings in HopperGO tab, watch and enjoy! 5. Manage your HopperGO remotely: a. Connect HopperGO and Hopper with Sling using micro USB cable, then wait for the on-‐screen connection to complete b. Now you can manage HopperGO content and settings using DISH Anywhere app anywhere you go as long as your mobile device and Hopper with Sling are connected to the Internet. 6. Upload media files from your mobile device a. Connect your mobile device to HopperGO (following steps 3 or 4) b. Open DISH Anywhere app, in HopperGO tab tap on upload icon in the top right corner c. Select items to be uploaded to HopperGO and tap Copy d. Follow the upload status at the top of the screen in HopperGO tab e. Uploaded items will appear in the Personal section of the HopperGO tab 7. Download/upload files from PC/Mac a. Connect HopperGO to PC/Mac using micro-‐USB to USB cable (input on HopperGO) b. Download/upload files just like using a standard flash drive 8. To check HopperGO status on Hopper with Sling a. Connect HopperGO and Hopper with Sling using micro USB cable, then wait for the on-‐screen connection to complete b. On Hopper with Sling go to Menu-‐>Settings-‐>Diagnostics. HopperGO status is provided at the bottom of the screen 9. To check HopperGO status, view/change settings and read HopperGO Help a. Connect your mobile device to HopperGO (following steps 3 or 4) b. Open DISH Anywhere app and tap on Settings-‐>HopperGO Tips: 1. To login to DISH Anywhere app create an account at www.myDISH.com 2. Hopper with Sling should be connected to the Internet to connect with HopperGO 3. Make sure your mobile device is part of authorized devices list 4. In case of transfer failure, please make sure that HopperGO is successfully connected to Hopper with Sling (on Hopper with Sling go to Menu -‐> Settings -‐> Diagnostics and check HopperGO status at the bottom of the screen) and that there is enough space on HopperGO (connect your mobile device to HopperGO (following steps 3 and 4), open DISH Anywhere app and tap on Settings -‐> HopperGO). 5. Default Wifi name/password are printed on the HopperGO sticker Federal Communications Commission and IC Notices This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by following one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced …

Text truncated - open the document above for the full version.

RF Exposure Info

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For 802.11a/b/g/n 2.4/5GHz Radio FCC ID: DKNHG Model Name: ID:093 Report Number: 15U20961-S1 Issue Date: 8/25/2015 Prepared for ECHOSTAR TECHNOLOGIES LLC 94 INVERNESS TERRACE EAST ENGLEWOOD, CO 80112, USA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15U20961-S1 Issue Date: 8/25/2015 Page 2 of 21 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 8/25/2015 Initial Issue -- Report No.: 15U20961-S1 Issue Date: 8/25/2015 Page 3 of 21 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................ 5 2. Test Specification, Methods and Procedures .............................................................................. 6 3. Facilities and Accreditation ........................................................................................................... 6 4. SAR Measurement System & Test Equipment ............................................................................ 7 4.1. SAR Measurement System .......................................................................................................... 7 4.2. SAR Scan Procedures .................................................................................................................. 8 4.3. Test Equipment .......................................................................................................................... 10 5. Measurement Uncertainty ........................................................................................................... 10 6. Device Under Test (DUT) Information ........................................................................................ 11 6.1. DUT Description ......................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................... 11 6.3. Nominal and Maximum Output Power ........................................................................................ 11 7. RF Exposure Conditions (Test Configurations) ........................................................................ 12 7.1. Standalone SAR Test Exclusion Considerations ........................................................................ 12 7.2. Required Test Configurations ..................................................................................................... 12 8. Dielectric Property Measurements & System Check ................................................................ 13 8.1. Dielectric Property Measurements .............................................................................................. 13 8.2. System Check............................................................................................................................. 15 9. Conducted Output Power Measurement .................................................................................... 17 9.1. Wi-Fi 2.4GHz (DTS Band) .......................................................................................................... 17 9.2. Wi-Fi 5GHz (U-NII Bands) .......................................................................................................... 17 10. Measured and Reported (Scaled) SAR Results ......................................................................... 18 10.1. Wi-Fi (DTS Band) .................................................................................................................... 19 10.2. Wi-Fi (U-NII Band)................................................................................................................... 19 11. SAR Measurement Variability ..................................................................................................... 20 12. Simultaneous Transmission SAR Analysis ............................................................................... 20 Appendixes .............................................................................................................................................. 21 A_15U20961v0 SAR Photos & Ant. Locations ...................................................................................... 21 B_15U20961v0 SAR System Check Plots ............................................................................................ 21 C_15U20961v0 SAR Highest Test Plots ............................................................................................... 21 D_15U20961v0 SAR Tissue Ingredients ............................................................................................... 21 E_15U20961v0 SAR Probe Cal. Certificates ........................................................................................ 21 Report No.: 15U20961-S1 Issue Date: 8/25/2015 Page 4 of 21 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. F_15U20961v0 SAR Dipole Cal. Certificates ........................................................................................ 21 Report No.: 15U20961-S1 Issue Date: 8/25/2015 Page 5 of 21 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 1. Attestation of Test Results Applicant Name Echostar Technologies LLC FCC ID DKNHG Model Name ID:093 Applicable Standards FCC 47 CFR § 2.1093 Published RF exposure KDB procedures IEEE Std 1528-2013 SAR Limits …

Text truncated - open the document above for the full version.

RF Exposure Info

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab B Date/Time: 8/17/2015 9:51:11 AM 20150817_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.972 S/m; ε r = 51.267; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1360; Calibrated: 3/12/2015 - Probe: EX3DV4 - SN3751; ConvF(6.47, 6.47, 6.47); Calibrated: 11/14/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Body/Pin=100 mW /Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.88 W/kg Body/Pin=100 mW /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.028 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 10.7 W/kg SAR(1 g) = 5.21 W/kg; SAR(10 g) = 2.43 W/kg Maximum value of SAR (measured) = 7.39 W/kg 0 dB = 7.39 W/kg = 8.69 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab B Date/Time: 8/17/2015 10:14:59 AM 20150817_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.86 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab C Date/Time: 8/13/2015 9:19:30 AM 20150813_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.134 S/m; ε r = 46.965; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/14/2015 - Probe: EX3DV4 - SN3885; ConvF(4.13, 4.13, 4.13); Calibrated: 9/15/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Body/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 18.4 W/kg Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.445 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 32.3 W/kg SAR(1 g) = 7 W/kg; SAR(10 g) = 1.95 W/kg Maximum value of SAR (measured) = 17.1 W/kg 0 dB = 17.1 W/kg = 12.33 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab C Date/Time: 8/13/2015 9:44:49 AM 20150813_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 12.7 W/kg

RF Exposure Info

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab B Date/Time: 8/13/2015 9:56:56 PM Wi-Fi 2.4GHz Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2462 MHz; σ = 2.035 S/m; ε r = 51.856; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1360; Calibrated: 3/12/2015 - Probe: EX3DV4 - SN3751; ConvF(6.47, 6.47, 6.47); Calibrated: 11/14/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Edge 1/802.11b_ch 11 (0mm)/Area Scan (8x10x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.76 W/kg Edge 1/802.11b_ch 11 (0mm)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.052 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 1.47 W/kg; SAR(10 g) = 0.598 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.20 W/kg 0 dB = 2.20 W/kg = 3.42 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab B Date/Time: 8/14/2015 12:02:50 PM Wi-Fi 5.2GHz Frequency: 5240 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5240 MHz; σ = 5.437 S/m; ε r = 49.051; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/14/2015 - Probe: EX3DV4 - SN3885; ConvF(4.47, 4.47, 4.47); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Edge 1/802.11a_Ch 48 (0mm)/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 3.29 W/kg Edge 1/802.11a_Ch 48 (0mm)/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 23.264 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 6.58 W/kg SAR(1 g) = 1.52 W/kg; SAR(10 g) = 0.373 W/kg Maximum value of SAR (measured) = 3.12 W/kg 0 dB = 3.12 W/kg = 4.94 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab C Date/Time: 8/13/2015 2:26:57 PM Wi-Fi 5.8 GHz Frequency: 5825 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5825 MHz; σ = 6.176 S/m; ε r = 46.904; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/14/2015 - Probe: EX3DV4 - SN3885; ConvF(4.13, 4.13, 4.13); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Edge 1/802.11a_Ch 165 (0mm)/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.68 W/kg Edge 1/802.11a_Ch 165 (0mm)/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 16.951 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 6.03 W/kg SAR(1 g) = 1.1 W/kg; SAR(10 g) = 0.242 W/kg Maximum value of SAR (measured) = 2.68 W/kg 0 dB = 2.68 W/kg = 4.28 dBW/kg

RF Exposure Info

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

Test Report

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11a/b/g/n 2.4/5GHz Radio MODEL NUMBER: ID:093 FCC ID: DKNHG REPORT NUMBER: 15U20961-E1, REVISION A ISSUE DATE: SEP 21, 2015 Prepared for Echostar Technologies LLC 94 Inverness Terrace East Englewood, CO 80112 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 2 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 8/10/15 Initial Issue P. Zhang A 9/21/15 Update page 12 test method from PK to AVG P. Zhang REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 3 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. MAXIMUM OUTPUT POWER...................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 7 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.5. DESCRIPTION OF TEST SETUP ................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................11 7. MEASUREMENT METHODS ............................................................................................12 8. SUMMARY TABLE ...........................................................................................................13 9. ANTENNA PORT TEST RESULTS ...................................................................................14 9.1. 6 dB BANDWIDTH ......................................................................................................14 9.1.1. 802.11b MODE IN THE 2.4 GHz BAND ...............................................................15 9.1.2. 802.11g MODE IN THE 2.4 GHz BAND ...............................................................15 9.1.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND .....................................................15 9.2. 99% BANDWIDTH ......................................................................................................19 9.2.1. 802.11b MODE IN THE 2.4 GHz BAND ...............................................................19 9.2.2. 802.11g MODE IN THE 2.4 GHz BAND ...............................................................19 9.2.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND .....................................................19 9.3. OUTPUT POWER.......................................................................................................20 9.3.1. 802.11b MODE IN THE 2.4 GHz BAND ...............................................................21 9.3.2. 802.11g MODE IN THE 2.4 GHz BAND ...............................................................21 9.3.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND .....................................................22 9.4. PSD ............................................................................................................................23 9.4.1. 802.11b MODE IN THE 2.4 GHz BAND ...............................................................23 9.4.2. 802.11g MODE IN THE 2.4 GHz BAND ...............................................................23 9.4.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND .....................................................23 9.5. OUT-OF-BAND EMISSIONS ......................................................................................25 9.5.1. 802.11b MODE IN THE 2.4 GHz BAND ...............................................................26 9.5.2. 802.11g MODE IN THE 2.4 GHz BAND ...............................................................32 REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 4 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 9.5.3. 802.11n MODE IN THE 2.4 GHz BAND ...............................................................38 10. RADIATED TEST RESULTS .........................................................................................44 10.1. LIMITS AND PROCEDURE .....................................................................................44 10.2. TRANSMITTER ABOVE 1 GHz ...........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 83 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 12. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 84 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT=PHOTO (BELOW 1 GHz) RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 85 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 86 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO Y-AXIS FRONT PHOTO Z-AXIS FRONT PHOTO REPORT NO: 15U20961-E1A DATE: Sep 21, 2015 FCC ID: DKNHG Page 87 of 87 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO END OF REPORT

Test Setup Photos

Report No.: 15U20961 DUT and SAR Set-up Photos Overall Dimensions 87.5 mm 66 mm 66 mm Report No.: 15U20961 Front View of the DUT Rear View of the DUT Report No.: 15U20961 Standalone Rear Front Report No.: 15U20961 Edge 1 Edge 2 Report No.: 15U20961 Edge 3 Edge 4 Report No.: 15U20961 Antenna Dimensions & Separation Distances Edge 2 (Right) Edge 4 (Left) 24.33 mm 10.24mm 39.19 mm Edge 1 (Top) Edge 3 (Bottom) Front 53.36 mm ① Wi-Fi ① 5mm 9.20mm Front Rear ①

Contact Information

Applicant

Ian Schroeder(Senior Engineer)

[email protected]303-706-4410Fax: 303-723-3901

Technical Contact

UL VERIFICATION SERVICES INC.Ana Aumentado

[email protected]510-771-1000

47173 Benicia Street · Fremont · United States

Non-Technical Contact

UL VERIFICATION SERVICES INC.Ana Aumentado

[email protected]510-771-1000

Test Firm

UL Verification Services Inc. (formerly UL CCS)Jay Kogoma

[email protected]510-319-4135Fax: 000-000-0000

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	21.00 mW

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. This transmitter is approved for use in portable RF exposure category configurations with the antenna(s) installed to provide a minimum antenna to user separation distance of at least 5 mm. The highest reported SAR for standalone exposure conditions is 1.56W/kg.
