DKNTK421Satellite Receiver

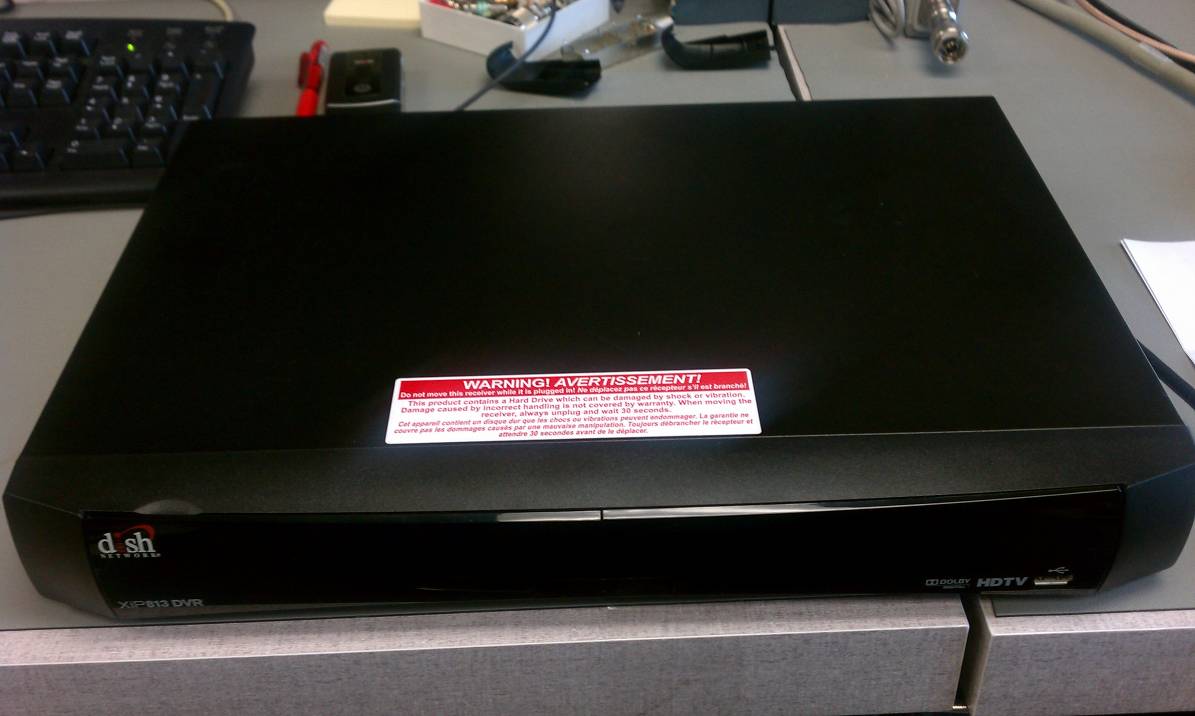

185659 XiP813 DVR Satellite Receiver Warning and Attention Symbols You must be aware of safety when you install and use this system. This Guide provides various procedures. If you do some of these procedures carelessly, you could injure or kill yourself or damage equipment or property. Some other procedures require special attention. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus. For Your Safety Do not try to open the case. There is risk of electrical shock, which may cause damage to the apparatus and/or personal injury or death to you. There are no user- serviceable parts inside. Opening the case or making unauthorized changes will void the warranty. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Important Software Notice As with all software controlled products, unexpected behavior could arise if the user tries to perform operations in a non-routine manner. This product, like almost any other high tech product, is subject to bugs and hence DISH Network CANNOT AND DOES NOT GUARANTEE OR WARRANT THAT ALL FEATURES, SUCH AS PARENTAL CONTROLS, WILL WORK AS INTENDED UNDER ALL CIRCUMSTANCES. DISH Network endeavors to improve such conditions and will periodically download improvements. In compliance with the terms of the GNU Public License (GPL), EchoStar is making some source code available to the public to download from www.echostar.com. Equipment and Software Covered by this Guide This Guide covers the High-Definition XiP813 DVR satellite receiver and software model XIP813. This Guide may cover other devices, not listed here. Copyright Notice Copyright © 2011 EchoStar Technologies L.L.C., Englewood, Colorado 80112. All rights reserved. The information in this Guide may change without notice. We may issue revisions to tell you about such changes. Please send comments or questions about this Guide to: Technical Publications, EchoStar Corporation, 100 Inverness Terrace East, Englewood, CO 80112. Printed in the United States of America. Part Number: 185659 DISH Network is a registered trademark of DISH Network L.L.C. For information about DISH Network, please visit our website at www.dish.com. We acknowledge all product names, trade names, or corporate names we mention in this Guide to be the proprietary property of the registered owners. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. MoCA and the MoCA logo are registered trademarks of Multimedia over Coax Alliance in the U.S. and other countries. i SAFETY IMPORTANT SAFETY INSTRUCTIONS PROPER CARE OF YOUR EQUIPMENT SAFETY ii IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Use only attachments/accessories specified by the manufacturer. 12. Unplug this apparatus during lightning storms or when unused for long periods of time. 13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. The power plug must be readily accessible so that the appartus can be easily disconnected from the AC power. Important Safety Instructions iii IMPORTANT SAFETY INSTRUCTIONS (continued) 15. The receiver is still connected to the AC power whenever it is plugged in to a live power outlet, even if it is turned off using the remote control or front panel buttons. 16. No flame sources, such as lit candles, should be placed on the equipment. 17. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 18. Operate the receiver using only the type of power source indicated on the marking label. Unplug the receiver power cord by gripping the power plug, not the cord. 19. Do not overload wall outlets or extension cords; this can result in a risk of fire or electrical shock. 20. Never insert objects of any kind into the receiver through openings, as the objects may touch dangerous voltage points or short out parts. This could cause fire or electrical shock. 21. Do not locate the antenna near overhead light or power circuits, or where it can fall into such power lines or circuits. When installing the antenna, take extreme care to avoid tocuhing such power lines or circuits, as contact with them can …

Text truncated - open the document above for the full version.

TECHNOLOGIES L.L.C. EchoStar Technologies L.L.C. 90 Inverness Circle East Englewood, CO 80112 (303) 706-5234 July 14, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: DKNTK421 To Whom It May Concern: This letter is to comply with Sections 0.459 and 0.457(d)(2)(i) pertaining to confidential material. Echostar Technologies L.L.C. would like the following documents regarding this submission be kept confidential. • Operational Description • Block Diagram • Schematics • Part List • Antenna Specifications The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Ian Schroeder Regulatory Compliance Engineer

Non-Conformities FCC ID: DKNTK421 (CKC CS Ref # E1 1-000003-FCC) The items listed below represent requests for infor mation following review of this application for cer tification under United States (FCC) regulations. Further question may arise pending review of responses to t hese items. OK ID # Non-Conformity or Comment Submitted Respons e Respondent / Date of Response X C 1 In the block diagram provided, the frequency used at each functional block were not provided. Please provide an updated block diagram meeting the requiremtns of 2.1033(b)(5), “(5) A bl ock diagram showing the frequency of all oscillators in the dev ice. The signal path and frequency shall be indicated at each block. Th e tuning range(s) and intermediate frequency(ies) shall be indicated at each block. ...” Revised block diagram., with detailed Chip level block diagram. Note BT block diagram is limited due to availability of Chip level confidential information. IS 8/4/11 X C 2 The operational description provided indicate s that the BlueTooth transmitter is an optional device. Please clarify in what configuration(s) this equipment is intended to be s old. The reason for this is that for depopulated transmitters separate certifications will apply (see KDB 178919) because the equipment are no t electrically identical (see §2.908) Revised operational description : It is my understanding that Echostar has decided that the Bluetooth function will NOT be optional. That solves the labeling issue quite nicely.!! IS 8/4/11 CG 8/10/11 X C 3 In the operational description, please clarif y the power output setting of the equipment. Please clarify how power output is controlled such that the proper authorized parameters are set for t his equipment. Excerpt: “When the set-top box is powered on, the t ransceiver is loaded with operational parameters that set the out put power.” Ian, Added “ When the set-top box is powered on, the transceiver is loaded with operational parameters that set the output power. After initialization, the system will exchange data with the transceiver over a serial path between the processor and transceiver. IS 8/4/11 X* TL 4 The test report provided shows an inconsist ency in the measurements for either radiated output power or spurious emissi ons measurements. The conducted limit for both the RF4CE and BT radio s is exactly 20dB from the peak power measured under the power o utput section. This means either one of two things: either the pow er output was recorded with a RBW of 100kHz or the limit for cond ucted emissions was set too high (see 15.247(d) limit is defined wi th respect to the highest fundamental emission in a 100kHz RBW). Ple ase clarify Revised test report, with reference power measured at 100kHz. 8/9/11: Note, the reference Fundamental emission measured with RBW=100kHz as presented on page 20 was measured with CW as confirmed by the Grantee. The IS 8/8/11 power output and/or spurious emissions measurements and make corrections as necessary. In any case, please clarify the measurement bandwid ths used for measurement of power output. --Additional Comments: As noted in the test plan provided, the test lab wa s to meet the requirements of ANSI C63.10. I draw attention to s ection 5.10 regarding selection of modulation: “For systems deploying broadband wireless technolog ies or spread spectrum technology, the system must be tested with the worst-case modulation(s) as determined by the engineering test . Devices employing digital modulation techniques shall be te sted with the input modulation set to produce the maximum amplitude and symbol rate. The test results shall be shown for operation with any devices or functions used for modifying the spectrum when such devices are optional at the discretion of the user or are adjus ted for network conditions during end-use operation. ... All modulations supported by the system shall be re corded in the test report with the justification for selecting modulat ion(s) for compliance testing.” The spurious emissions were to be measured in accor dance with all aspects of this standard, not just in part. Nevert heless, since the last paragraph does provide allowance for justification of selected modulation, it is up to the test lab or manufacture r to now justify why the testing was performed as shown in the provided test report. modulated emission should be similar to plots presented on 96,97,98. -- Manufacturer claims CW mode worst case: “During the evaluation of this product both radios were set up in same manner. For the fundamental measurements ONLY - all data was taken in CW mode. Worst case modulation was used for all other conducted port spurious measurements and radiated spurious measurements. Note that there is only one modulation scheme and data rate for the RF4CE function. The Bluetooth modulation schemes and data rates were evaluated to determine the worst case (8PSK PRBS9) and this was used for all the spurious measurements. I have attached a document from the test lab that supports the data provided in the test report.” -- Phone call CG/RC 8/10/11 CG 8/10/11 X TL 5 The -6dB BW presented on page 98, 99, 100 (F R4E) and 101, 102,103 (Bluetooth) are identical. Please provide a revised test report with correct p lots for the associate radio type. Revised test report page 96-98, RF4CE., 99-101 Bluetooth. IS 8/9/11

TECHNOLOGIES L.L.C. EchoStar Technologies L.L.C. 90 Inverness Circle East Englewood, CO 80112 (303) 706-5467 September 29, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: I hereby appoint Ian Schroeder to sign letters and applications for any filings with regulatory agencies on our behalf, and to receive and exchange data between our company, the agents company and the agency in connection with certification for any products that our company owns or manufactures. Sincerely, Charles Grasso Regulatory Compliance Engineer EchoStar Technologies L.L.C. 90 Inverness Cir E Englewood, CO 80112 303-706-5467

REVISIONS ECOITEM MASTER DESCRIPTION REVDATEBY SCALE SHEET1 of1 01 ASSY DWG, ART/CHASSIS, XIP813 JASON WALKER UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM. TOLERANCES: 0.000 +/- .125 0.00 +/- .25 0.0 +/- .4 0. +/- .7 HOLE DIA: +/- .075 ANGLES: +/- .5 189074 06/28/11 18907401 06/28/11 JW RELEASE @ DEVELOPMENT C31978 NOTES: 1. ALL DIMENSIONS ARE IN MILLIMETERS. 2. PLACE ALL GRAPHICS ON CHASSIS AS SHOWN. 3. PRINT COLOR: PANTONE STANDARD BLACK OR ECHOSTAR APPROVED EQUIVALENT. 4. QUALITY ASSURANCE PROVISIONS: IN ADDITION TO MEETING ALL REQUIREMENTS OUTLINED IN THIS SPECIFICATION, ALL REQUIREMENTS IN THE FOLLOWING ECHOSTAR QUALITY ASSURANCE DOCUMENTS AND THEIR REFERENCES MUST BE MET OR EXCEEDED. A) 124214 SUPPLIER AQL REQUIREMENTS B) 105450 SUPPLIER QA REQUIREMENTS C) 123473765-AA COSMETIC PROVISIONS US:5GXXXXXXXXXXX FCC ID: DKNTK421 125 LICENSED UNDER U.S. PATENT NO. 6,233,389 10.2 92.1 1.8 KEYLINES FOR REFERENCE ONLY DO NOT PRINT 3.1

2.1091 Radiofrequency radiation exposure evaluation: mobile devices In accordance with KDB 447498, our product is exempt from making such studies or preparing MPE due to our product’s power output being below the lower threshold requiring RF exposure evaluation.

Figure 1 – 199; PRBS 9 GFSK Figure 2 – 200; PRBS 9 QPSK Figure 3 – 201; PRBS 9 8PSK Figure 4 – 202; PRBS 15 GFSK Figure 5 – 203; PRBS 15 QPSK Figure 6 - 204; PRBS 15 8PSK

EMC Report for EchoStar Technologies, LLC on the Model: DE50 Page 1 of 132 TEST REPORT Report Number: 100457282DEN-001 Project Number: G100457282 Report Issue Date: 7/31/2011 Product Designation: Model DE50 Standards: FCC 47 CFR Part 15.247 IC RSS 210: Issue 8:2010 IC RSS-GEN Issue 3:2010 Tested by: Client: Intertek Testing Services NA, Inc. 1795 Dogwood St. Suite 200 Louisville, CO 80027 Echostar Corporation dba EchoStar Technologies LLC 90 Inverness Circle East Englewood, CO 80112 Report prepared by Report reviewed by Michael Kanda EMC Team Leader Michael Spataro Engineering Team Leader This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 100457282DEN-001 Issued:7/31/2011 EMC Report for EchoStar Technologies, LLC on the Model: DE50 Page 2 of 132 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 5 4 System setup including cable interconnection details, support equipment and simplified block diagram ........................................................................................................................................................ 9 5 Radiated Emissions – Fundamental Power & Harmonics of the Fundamental ........................... 11 6 Radiated Emissions – Unintentional and Spurious of the Transmitter ........................................ 35 7 Band Edge Measurements – Unintentional and Spurious of the Transmitter ............................. 74 8 Unintentional Radiated Emissions - Receiver................................................................................. 81 9 6dB Bandwidth ................................................................................................................................... 95 10 Power Spectral Density (PSD)..................................................................................................... 102 11 Occupied Bandwidth (OBW) ....................................................................................................... 110 12 AC Mains Conducted Emissions ................................................................................................ 117 13 Measurement Uncertainty............................................................................................................ 129 14 Duty Cycle Correction Factor...................................................................................................... 131 15 Revision History ........................................................................................................................... 132 Intertek Report Number: 100457282DEN-001 Issued:7/31/2011 EMC Report for EchoStar Technologies, LLC on the Model: DE50 Page 3 of 132 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Test date Result 5 Radiated Emissions – Field Strength of the Fundamental & Harmonics of the Fundamental – FCC 247(b)(3)(d)/15.205/209 (Covers RSS-210 A8.4(4) & A8.5) 07/20/2011 07/26/2011 08/04/2011 Pass 6 Radiated Emissions – Unintentional and Spurious of the Transmitter - FCC 15.209/15.247(d)/15.205 (Covers RSS-210 A8.5, & RSS-GEN 7.2.2) 07/27/2011 Pass 7 Radiated Emissions – Unintentional and Spurious – Band Edge FCC 15.209/15.247(d)/15.205 (Covers RSS-210 A8.5, & RSS-GEN 7.2.2) 07/27/2011 Pass 8 Radiated Emissions – Unintentional – Receiver FCC 5.209/15.247(d)/15.205 (Covers RSS-GEN Section 6) 07/25/2011 07/26/2011 Pass 9 6dB Bandwidth – FCC 15.247(a)(2) (Covers RSS-210 A8.2(a)) 07/20/2011 Pass 10 Power Spectral Density (PSD) – FCC 15.247(e) (Covers RSS-210 A8.2(b)) 07/20/2011 Pass 11 Occupied Bandwidth – RSS-GEN, Section 4.6.1 07/20/2011 Pass 12 AC Conducted Emissions – FCC 15.207 (Covers RSS-GEN Section 7.2.4) 07/27/2011 Pass Notes: 1) Product FCC Model DE50 is also marketed as XiP813 2.1 Test Facility Intertek Denver’s testing facilities are located at 1795 Dogwood St. Suite 200 Louisville, CO 80027. The testing facility is ISO17025:2005 accredited by A2LA, our lab code is 2506.02, our VCCI registration numbers are. R-1643, C-1752 and T-1558, our FCC designation no. US1121 and our IC lab no. 2042N. …

Text truncated - open the document above for the full version.
