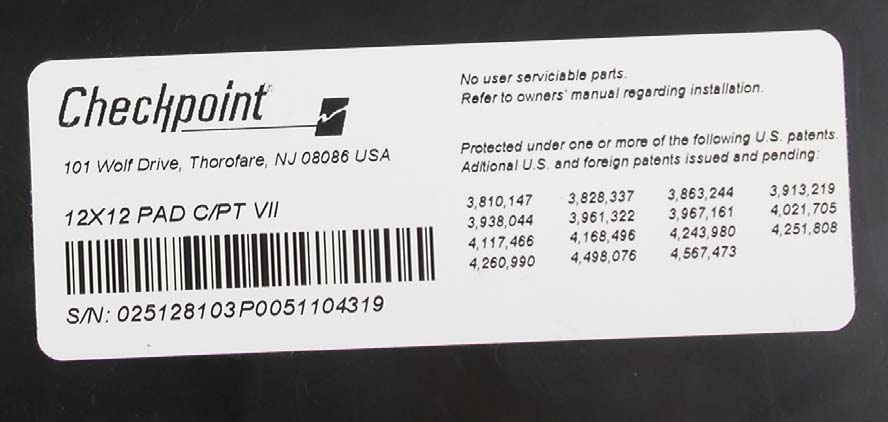

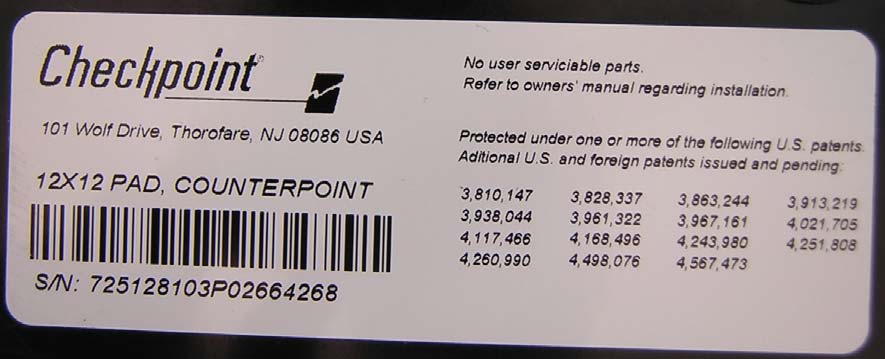

FCC ID:DO4CP9 File No. T25234-00-00HU, page 5 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Counterpoint with 4/6 mode chassis: FCC ID:DO4CP9 File No. T25234-00-00HU, page 6 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 9 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Counterpoint with 5 mode chassis: FCC ID:DO4CP9 File No. T25234-00-00HU, page 10 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 13 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Antenna Pad with wire loop: FCC ID:DO4CP9 File No. T25234-00-00HU, page 14 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 15 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Antenna Pad with copper tape loop: FCC ID:DO4CP9 File No. T25234-00-00HU, page 16 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 17 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Ethernet Module: FCC ID:DO4CP9 File No. T25234-00-00HU, page 21 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Jaro Power Supply: FCC ID:DO4CP9 File No. T25234-00-00HU, page 22 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 GlobTek Power Supply:

FCC ID:DO4CP9 File No. T25234-00-00HU, page 7 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 8 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 11 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 12 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 17 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Ethernet Module: FCC ID:DO4CP9 File No. T25234-00-00HU, page 18 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 19 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-00HU, page 20 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3

FCC ID:DO4CP9 File No. T25234-00-11HU, page 1 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 TTI - P-G 089 / 94-11 DAT - P-011 / 91-02 EMI -- T E S T R E P O R T Test Report No. : T25234-00-11HU 25. November 2004 ______________________________________________________________________________________________ Date of issue Type / Model : Electronic Article Surveillance Deactivation System Model Description : Counterpoints IX Family 4/6 mode chassis, 5 only mode chassis with Ethernet Interface Module option Applicant : Checkpoint Systems, Inc. Address : 101 Wolf Drive, Thorofare, New Jersey, USA 08086 Manufacturer : Checkpoint Systems Puerto Rico Address : Sabanetas Industrial Park, P.O. Box 7283, Ponce, Puerto Rico 00732 Licence holder : Checkpoint Systems, Inc. Address : 101 Wolf Drive, Thorofare, New Jersey, USA 08086 Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:DO4CP9 File No. T25234-00-11HU, page 2 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 23 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 23 4 TEST ENVIRONMENT 24 4.1 ADDRESS OF THE TEST LABORATORY 24 4.2 ENVIRONMENTAL CONDITIONS 24 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 24 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 24 4.5 DISCOVERY OF WORST CASE MEASUREMENT CONDITIONS 26 4.6 DEVIATIONS OR EXCLUSIONS FROM THE REQUIREMENTS AND STANDARDS 26 4.7 OPERATION IN RESTRICTED BANDS 27 5 TEST CONDITIONS AND RESULTS 29 5.1 CONDUCTED EMISSIONS 29 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 33 5.3 SPURIOUS EMISSIONS (MAGNETIC FIELD) 9 KHZ – 30 MHZ 35 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 37 5.5 EMISSION BANDWIDTH 39 5.6 CORRECTION FOR PULSE OPERATION (DUTY CYCLE) SUBPART 15.35(C) 40 6 USED TEST EQUIPMENT AND ACCESSORIES 42 7 ATTACHMENT D: 43 FCC ID:DO4CP9 File No. T25234-00-11HU, page 3 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C - Intentional Radiators (October 01, 2003) Part 15, Subpart C, Section 15.223 Operation in the band 1.705-10 MHz §15.223(a) Radiated emissions, Fundamental & Harmonics Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements FCC ID:DO4CP9 File No. T25234-00-11HU, page 4 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records of MBPS Testing commenced on : 28. September 2004 Testing concluded on : 24. November 2004 Checked by: Tested by: _______________________________ _____________________________ Günter Mikes Markus Huber Dipl. Ing.(FH) FCC ID:DO4CP9 File No. T25234-00-11HU, page 5 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Counterpoint with 4/6 mode chassis: FCC ID:DO4CP9 File No. T25234-00-11HU, page 6 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 7 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 8 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 9 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Counterpoint with 5 mode chassis: FCC ID:DO4CP9 File No. T25234-00-11HU, page 10 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 11 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 12 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 13 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Antenna Pad with wire loop: FCC ID:DO4CP9 File No. T25234-00-11HU, page 14 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 15 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Antenna Pad with copper tape loop: FCC ID:DO4CP9 File No. T25234-00-11HU, page 16 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID:DO4CP9 File No. T25234-00-11HU, page 17 of 46 MIKES BABT Product Service GmbH x Ohmstrasse 2…

Text truncated - open the document above for the full version.

FCC ID:DO4CP9 File No. T25234-00-00HU, page 27 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5 TEST CONDITIONS AND RESULTS 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Description of Measurement The final level, expressed in dBμV, is arrived at by taking the reading directly from the EMI receiver. This level is compared directly to the FCC Limit or to the CISPR limit, which is equivalent to the Australian AS 3548 limit. To convert between dBμV and μV, the following conversions apply: dBμV = 20(log μV) μV = Inverse log(dBμV/20) Conducted emissions on the 50 Hz and/or 60 Hz power interface of the EuT are measured in the frequency range of 150 kHz to 30 MHz. The measurements are performed using a receiver, which has CISPR characteristic bandwidth and quasi-peak detection, and a Line Impedance Stabilization Network (LISN), with 50Ω/50 μH (CISPR 16) characteristics. Table top equipment is placed on a non-conducting table 80 centimetre’s above the floor and is positioned 40 centimetre’s from the vertical ground plane (wall) of the screen room. If the minimum passing margin appears to be less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID:DO4CP9 File No. T25234-00-00HU, page 31 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 30m 5.2.2 Photo documentation of the test set-up FCC ID:DO4CP9 File No. T25234-00-00HU, page 33 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.3 Spurious emissions (Magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 30m 5.3.2 Photo documentation of the test set-up FCC ID:DO4CP9 File No. T25234-00-00HU, page 35 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.4 Radiated emissions (electric field) 30 MHz – 1 GHz For test instruments and accessories used see section 6 Part SER 2. 5.4.1 Description of the test location Test location: OATS1 Test distance: 3m 5.4.2 Photo documentation of the test set-up 5.4.3 Description of Measurement Spurious emissions from the EuT are measured in the frequency range of 30 MHz to 10 times the highest used frequency using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 meter non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. Interface cables that are closer than 40 centimetres to the ground plane are bundled in the center in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the center of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 meters, FCC ID:DO4CP9 File No. T25234-00-00HU, page 37 of 42 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.5 Emission Bandwidth For test instruments and accessories used see section 6 Part MB. 5.5.1 Description of the test location Test location: AREA4 5.5.2 Photo documentation of the test set-up 5.5.3 Test result Fundamental [MHz] 6dB Bandwidth F1 [MHz] 6dB Bandwidth F2 [MHz] Measured Bandwidth [MHz] 7.438 7.221 8.117 0.896 5.5.4 Test protocol Emission Bandwidth FCC Part 15 Subpart 15.223(a)
