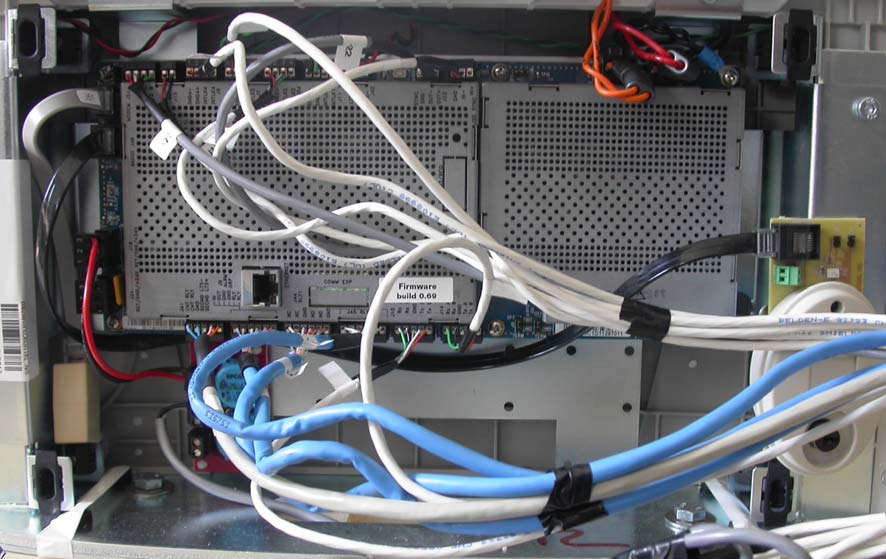

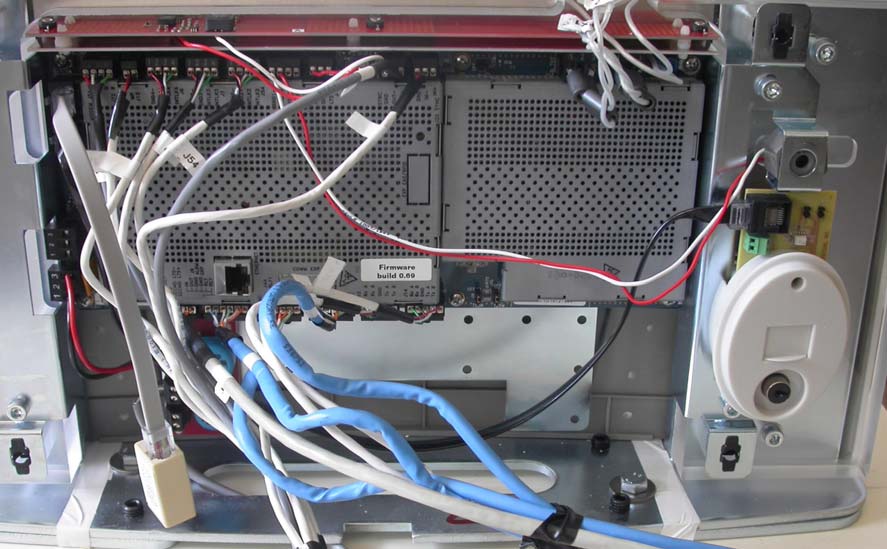

FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 13 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Badge Board: Evolve G10, Evolve G20, Evolve P10, Evolve P20 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 14 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Filter Board: Evolve G10, Evolve G20, Evolve P10, Evolve P20 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 15 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Emerald Electronic: Evolve G10, Evolve G20, Evolve P10, Evolve P20 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 16 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 17 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 18 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 19 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 20 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 21 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1

FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 1 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T31884-00-00HU 07. September 2007 ______________________________________________________________________________________________ Date of issue Type / Model Name : Emerald Family Family Variations : Evolve G10, Evolve G20, Evolve P10, Evolve P20 Product Description : Electronic Article Surveillance Detection System Applicant : Checkpoint Systems, Inc. Address : 101 Wolf Drive, Thorofare New Jersey, USA 08086 Manufacturer : Pikatron Feinwerktechnik GmbH & Co. KG Address : Raiffeisenstrasse 10 D-61250 Usingen Licence holder : Checkpoint Systems, Inc. Address : 101 Wolf Drive, Thorofare New Jersey, USA 08086 Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 2 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY4 3 EQUIPMENT UNDER TEST 5 3.1PHOTO DOCUMENTATION OF THE EUT 5 3.2F ERRITELOCATIONS24 3.3P OWER SUPPLY SYSTEM UTILISED 27 3.4S HORT DESCRIPTION OF THE EQUIPMENT UNDER TEST(EUT) 27 4 TEST ENVIRONMENT 28 4.1ADDRESS OF THE TEST LABORATORY 28 4.2E NVIRONMENTAL CONDITIONS 28 4.3S TATEMENT OF THE MEASUREMENT UNCERTAINTY 28 4.4M EASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 28 4.5D ISCOVERY OF WORST CASE MEASUREMENT CONDITIONS 30 4.6D EVIATIONS OR EXCLUSIONS FROM THE REQUIREMENTS AND STANDARDS 31 4.7O PERATION IN RESTRICTEDBANDS 32 5 TEST CONDITIONS AND RESULTS 33 5.1CONDUCTED EMISSIONS 33 5.2F IELD STRENGTH OF THE FUNDAMENTAL WAVE 56 5.3S PURIOUS EMISSIONS (MAGNETIC FIELD)9 KHZ–30MHZ 61 5.4R ADIATED EMISSIONS (ELECTRIC FIELD)30MHZ–1GHZ 65 5.5E MISSION BANDWIDTH 71 5.6C ORRECTION FOR PULSEOPERATION (DUTYCYCLE)SUBPART 15.35(C) 74 6 USED TEST EQUIPMENT AND ACCESSORIES 77 7 CONSTRUCTIONAL DATAFORM FOR TESTING 78 FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 3 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C - Intentional Radiators (October 01, 2006) Part 15, Subpart C, Section 15.223 Operation in the band 1.705-10 MHz §15.223(a) Radiated emissions, Fundamental & Harmonics Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements Part 15, Subpart C, Section 15.215(c) Additional Provisions to the general radiated emission limitations FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 4 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 10. July 2007 Testing concluded on : 08. August 2007 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Huber Markus Huber Markus Ich bin der Verfasser d ieses Dokuments 2007.09.07 08:19:44 + 02'00' Thomas Weise Ich bestätige die Richtigkeit und Integrität dieses Dokuments 2007.09.07 09:54:00 +02'00' FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 27 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3.3 Power supply system utilised Power supply voltage : 115 V / 60 Hz / 1I 24 V / DC 3.4 Short description of the Equipment under Test (EuT) The Evolve Antenna’s with Emerald Electronic are Electronic Article Surveillance System (EAS). The system detects target tags attached to merchandise. The targets resonate in the region of 8.2 MHz or 9.5 MHz. When an article of merchandise is purchased, the target is deactivated which causes it to no longer resonate. The Evolve Antenna’s with Emerald Electronic monitors an area 3-feet on either side of the antenna in the 7.4 to 10.0 MHz range and triggers an alarm when a non-deactivated target is detected. Number of tested samples: 1 Serial number: see Photo documentation of the EuT under Point 3 / Equipment Under Test EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Continuous sweep mode at 8.2 MHz Band - Continuous sweep mode at 9.0 MHz Dual Band - Continuous sweep mode at 9.5 MHz Band EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - PSU (Power Supply Unit) GlobTek Model : GT-2S5024D-R, S/N RoHS00984803/06 - PSU (Power Supply Unit) GlobTek Model : GT-2S5024D-R-ES, S/N Prototype - Standard AC mains cable Model : -Model : -Model : -Model : - customer specific cables - For detailed information about the connected cables during the test and other technical details, see attached CDF (Subclause 7) which was filled out from the manufacturer and Photo documentation of the EuT under Point 3 / Equipment Under Test. FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 28 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric …

Text truncated - open the document above for the full version.

FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 56 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 10 metres 5.2.2 Photo documentation of the test set-up Evolve G10: FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 57 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Evolve G20: Evolve P10: FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 58 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Evolve P20: 5.2.3 Description of Measurement The magnetic field strength from the EuT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4-2003. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31 (f) (2) [2]. The final measurement will be performed with an EMI Receiver set to an average and a peak detector. The final level, expressed in dBμV/m, is arrived at by taking the reading from the EMI receiver (Level dBμV) and adding the antenna correction factor and cable loss factor (Factor dB) to it. This result then has to be compared with the relevant FCC limit. The resolution bandwidth during the measurement was 300 kHz. FCC ID: DO4EVOLVE mikes-testingpartners gmbh File No. T31884-00-00HU, page 59 of 82 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.2.4 Test result Evolve G10: 10m Distance measured: Frequency [MHz] L: PK [dBμV] Correct. [dB] L: PK [dBμV/m] Limit [dBμV/m] Delta [dB] 8.2 58.52 20 78.52 80.0 1.48 9.0 58.24 20 78.24 80.0 1.76 9.5 58.17 20 78.17 80.0 1.83 30m Distance calculated: Frequency [MHz] L: PK [dBμV] Correct. [dB] L: PK [dBμV/m] Limit [dBμV/m] Delta [dB] 8.2 38.52 20 58.52 60.0 1.48 9.0 38.24 20 58.24 60.0 1.76 9.5 38.17 20 58.17 60.0 1.83 Evolve G20: 10m Distance measured: Frequency [MHz] L: PK [dBμV] Correct. [dB] L: PK [dBμV/m] Limit [dBμV/m] Delta [dB] 8.2 57.70 20 77.70 80.0 2.30 9.0 57.48 20 77.48 80.0 2.52 9.5 57.58 20 77.58 80.0 2.42 30m Distance calculated: Frequency [MHz] L: PK [dBμV] Correct. [dB] L: PK [dBμV/m] Limit [dBμV/m] Delta [dB] 8.2 37.70 20 57.70 60.0 2.30 9.0 37.48 20 57.48 60.0 2.52 9.5 37.58 20 57.58 60.0 2.42 Evolve P10: 10m Distance measured Frequency [MHz] L: PK [dBμV] Correct. [dB] L: PK [dBμV/m] Limit [dBμV/m] Delta [dB] 8.2 57.75 20 77.75 80.0 2.25 9.0 58.03 20 78.03 80.0 1.97 9.5 59.12 20 79.12 80.0 0.88 30m Distance calculated: …
