NGL FX Installation Manual Rev. * 35 of 84 TX1TX2 Sync In Sync Out PAB Lights Metal Point SAB Lights PAB Sounder SAB Sounder Badge Board Input Power Alarm Relay Optional 3 rd TX Interface Figure 6X*** TR4215 Reader Board Figure X*** shows the specific connectors for the peripherals. ** J numbers for the connectors. NGL FX Installation Manual Rev. * 36 of 84 Transmission Line / A1111 Wiring The A1111interface board connects to each FX antenna via the 15m (50 ft) transmission line. Apply the ferrite cores as show and tighten the clamp. Figure X** displays the interface board and connections. Before connecting to the A1111 board, slide the ferrite core (P?N) over the transmission cable. NGL FX Installation Manual Rev. * 37 of 84 Connect the leads according to the diagram below and tighten clamps that hold the wires to the chassis. ***Update Graphic. Figure 16: A1111 Wire terminal Connections At Connector Port J1 (TX2): DRAIN ORANGE/ WHITE WHITE/ ORANGE DRAIN WHITE/BLUE BLUE/WHITE NGL FX Installation Manual Rev. * 38 of 84 • Connect one drain wire from the 15.2m (50-ft) transmission line to the center terminal • Connect the ORANGE/WHITE lead to the terminal left of this drain wire • Connect the WHITE/ORANGE lead to the terminal right of this drain wire At Connector Port J2 (TX1): • Connect the second drain wire from the 15.2m (50-ft) transmission line to the center terminal • Connect the BLUE/WHITE lead to the terminal left of this drain wire • Connect the WHITE/BLUE lead to the terminal right of this drain wire . When the length is less than 15.2m ± .3 m (50’ ± 1”), you should wrap up the cable so that it looks like a dog bone, with small loops at either end, loosely secured by tie wraps. Place the wrapped cable next to the electronics enclosure. Do not coil the cable as it will appear as a large tag to the antennas. Figure 10: Wrapped Cable NGL FX Installation Manual Rev. * 39 of 84 Remote voice alarm or alarm post Connect the peripheral Lights and Sounder wiring as indicated below. Remote voice alarm or alarm post. White wire connects to the voice alarm. Figure 32: Ferrite clip installed on ALG SYNC IN (TR4215 Port J22) & ALG SYNC OUT (TR4215 Port J20) cable SAB Light/Sounder Cable Wiring Table ***reflect voice alarm or alarm post wiring Wire Color Primary Antenna (PAB) Secondary Antenna (SAB) WHITE J41-5 LT+ GREEN J41-4 LT- RED J54-1 SD+ BLACK J54-2 SD- Table 1 SAB Light/Sounder Cable Wiring Table NGL FX Installation Manual Rev. * 40 of 84 Wiring Between FX Systems for Sync Where multiple floor systems are installed, it may be necessary to install sync wire and network communication cable between the aisles. Sync Cable The sync cable (RF Sync) should be installed between FX systems if the distance between aisles is under 40 feet. If two aisles are more than 40 feet apart, no sync cable is needed. Use 22 AWG 4-conductor (STP) (5594) cable for sync cable. Follow the Sync Cable Wiring Table below to wire it to appropriate terminals. Sync cables are wired in daisy chain style. There are two sync cables in a PAB antenna, the input cable and the output cable. The first antenna only uses Sync Output cable, the last has the Input sync cable. The Output cable connects from terminal (J22) to Sync Input terminal (J20) on the synced system. Please refer the table below for Sync wire terminal connector pin assignment. Figure 10 Sync cable with ferrite core Note: A ferrite core with three (3) turns is attached at each end. Sync Input (5594 4-conductor 22AWG wire) Wire Color Description J20/J22 White SYNC - 1 Green SYNC + 2 Black & Drain GND 3 Table 2 Sync Cable Wiring Table NGL FX Installation Manual Rev. * 41 of 84 Wiring 24VDC power supply A Checkpoint-certified 24VDC power supply can power up to two (2) FX systems. The cable is plenum rated (MC Armored cable) with AWG18 two (2) conductor cable + ground. Wire the plenum cable to the DC filter board input according to the Pinout below. Connect the wires from this PAB’s filter board to J18 connector on the reader. The other output from the filter board could be wired to other PAB filter board input. *** fix wiring instruction. Wire Color Description Black GND Red +24 V Table 3 Power Cable Wiring Table Figure 11 24 VDC Power Supply Cable NGL FX Installation Manual Rev. * 42 of 84 Figure 12 24 VDC power filter Synchronizing, Slaving and System Proximity Systems operating together as a unit, as opposed to individual floor systems***, have to be synchronized or “synced” together using an approved sync cable for the system (i.e., Belden # 8723, Consolidated # 5594, etc.). At minimum there should be a 2 wire and shield. This minimum wire will not give an alarm group function. For alarm grouping, a 2 pair with shield cable must be used. Wiring peripherals Follow the appropriate installation manual for wiring peripheral devices. NGL FX Installation Manual Rev. * 43 of 84 C H A P T E R 5 N E T W O R K I N G A N D P E R I P H E R A L S Overview This chapter describes the PX/QX with Coupler antennas peripheral device wiring. Note: peripheral device wires go to primary antenna only. Peripherals Both PX and QX with Coupler systems support following peripheral devices:
Voice Alarm
Metal Detection Please refer the peripheral device’s installation manuals for proper installation and wiring NGL FX Installation Manual Rev. * 44 of 84 C H A P T E R 6 N G L S Y S T E M C O N F I G U R A T I O N V I A D M S Overview This chapter reviews the DMS configuration steps for the FX system using DMS. Antenna tuning including coupler jumper setting is covered in Chapter 7: NGL Tuning. Please follow this tuning guide to optimize the system performance after completing the system configuration. Note: Please use DMS version 1.8.31 and later. TR4215 firmware version must be 4.00 and later. System Setup Using DMS The following sections describe the basic NGL setup under two different aisle configurations: Single-Aisle and Multi-Aisle. In either case, the basic setup is similar but …

Text truncated - open the document above for the full version.

NGL FX Installation Manual Rev. * 45 of 84 Figure X*** New Connection Setup 6. Click Next, a serial port selection window appears. Fill in the COM port parameters and then click Next. The final connection summary window appears. 7. Click Finish to complete the new connection setup. A new icon titled “NGL board” appears in the DMS Connections window (see Figure X*** below). Figure 22X*** A New Connection Added Configure PAB/SAB (coupler) operation mode 1. Using the DMS tool, connect to the TR4215 board. Figure 22X*** (23?) shows the opening screen with the Network view expanded to show all devices. NGL FX Installation Manual Rev. * 46 of 84 Figure 23X*** DMS Network and Task Manager View 2. Navigate to the Switch Settings window. 3. Under the Detection Tab, fill in the following parameters: • RF Group Address: choose and address between 1 and 6. The address should match any other PAB in the system (if Multi-Aisle is configured). • Sync Mode: set to "NGL Sync Mode". • TX Control: set to Enabled, Mode 2. 4. Click on Apply. Figure 26X*** shows the Detection parameters for NGL. Figure 24 Detection Settings 5. Under the Tuning Tab, fill in the following parameters: • Sampling Holdoff: Set to 13. • Independent Antenna Alarm: Set to Enabled. NGL FX Installation Manual Rev. * 47 of 84 6. Click Apply. Figure 27X*** shows the switch setting parameters under the Tuning tab. Figure 25X*** Tuning Settings 7. Under the Band Tab, fill in the following parameters: • Frequency Band: Set to the application required by the customer. For more information about the choices, refer to ***"Application-Based Detection Modes" section in this document. • Edge Blanking: Set to 0-15. • Master/Submaster: Set to "Master" for any Single-Aisle System. For Multi- Aisle Systems, refer to the "Multi-Aisle Setup" section below for the appropriate setting. • Q Band Detection: Choose a setting based on the type of tags used by the customer (Hard tag, 410, etc.). • Threshold Adjust: Set to either 16 or 0. 8. Click on Apply. Figure 28X*** shows the Band tab parameters for NGL. *** Figure 26X*** Band Settings NGL FX Installation Manual Rev. * 48 of 84 9. Navigate to the Antenna Settings window. 10. Under each Antenna Tab, fill in the following parameters: • Antenna Type: Set to PAB-SAB. • Jammer Threshold: Set to 0. • TX Maximum: Set to 31. • RX Gain: Set to 31. • RX Hardware Gain: Set to 31. • Port Control: Check RX, TX and Port. Do not check AGC. 11. Click on Apply. Figure 29X*** shows the Antenna Settings for NGL. Figure 27X*** Antenna Settings Multi-Aisle Setup – FX Systems operating in Sync*** The difference between a multi-aisle system and a single-aisle system is that the multi-aisle system has one aisle designated the "master system" and all other aisles are designated the "submaster system". When a Multi-Aisle System is used, and extra step is necessary to configure the NGL Master/Submaster designation. Figures ***28 and 29 illustrate the difference between a Single- Aisle and a Multi-Aisle System. A Multi-Aisle System makes use of a Sync cable between the PAB antennas for each aisle. The Master PAB provide the "Sync" signal to the Submaster PAB(s). NGL FX Installation Manual Rev. * 49 of 84 Figure 28 Single Aisle System Figure 29 Multi-Aisle System 12. Move to the PAB of the PAB/SAB combination that you want to designate as master. Attach a serial cable to the TR4215 board and using the DMS tool, connect to the board. 13. Navigate to the DMS Switch Settings window and click on the Band tab. 14. Select "Master" from the Master/Submaster selection box. 15. Click Apply. A success setting message box will come up. Click OK. Then, click Disconnect to close down the DMS. Disconnect the serial cable from the TR4215 board. 16. Move to the PAB of a PAB/SAB combination that will be designated as SubMaster. Attach a serial cable to the TR4215 board and using the DMS tool, connect to the board. 17. Navigate to the DMS Switch Settings window and click on the Band tab. 18. Select "Submaster" from the Master/Submaster selection box. NGL FX Installation Manual Rev. * 50 of 84 19. Click Apply. A success setting message box will come up. Click OK. Then, click Disconnect to close down the DMS. Disconnect the serial cable from the TR4215 board. 20. Repeat step 5 to 9 for each of the remaining the PAB antennas. Application-Based Detection Modes This section details the steps and options for device configuration with respect to specialized application and SAM settings. Starting with Evolve Firmware version 3.60 and extending to the Next Generation Liberty (NGL) system, a support structure has been put in place to support application-based configuration and multi-band detection modes. This section describes: • Application mode concept and how it replaces earlier frequency band settings • Extended alarming capability based on alarm severity levels • Smart Alarm Management (SAM) The Evolve system has been extended to provide comprehensive support for various dual-tag detection modes. These modes allow the system to look for two different tag frequencies while providing customized alarms for each. The framework for this capability is a new Application-based configuration model introduced with Evolve Waimea firmware (3.61). The approach is a change from previous Liberty versions and will be described in detail in the following paragraphs. With the new approach, an application is selected rather than a specific frequency band. Figure 30: Switch Settings Before and After shows the difference between the previous Switch Settings Band menu and the new one. PreviousNew Figure 30: Switch Settings Before and After Currently there are 10 supported applications, some supporting dual-tag detection while the traditional applications still support a single tag. In the case where an application supports two tags, there is a primary tag and a secondary tag. The primary tag is the most common one NGL FX Installation Manual Rev. * 51 of 84 (typically 8.2 MHz) an…

Text truncated - open the document above for the full version.

Checkpoint Systems, Inc. 022311 – 6 Request for Confidentiality Date: _2012-8-14_______ Subject: Confidentiality Request for: FCC ID: DO4FX2012_____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ___ Checkpoint Systems, Inc._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 1 of 6 APPENDIX 1 PHOTOGRAPHS OF EUT SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 2 of 6 With 8 foot unshielded product With 6 foot shielded product SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 3 of 6 SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 4 of 6 SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 5 of 6 With 8 foot unshielded product SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 6 of 6 With 6 foot shielded product

SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 1 of 5 APPENDIX 2 PHOTOGRAPHS OF EUT SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 2 of 5 Internal InternalInternal Internal of Transmitter of Transmitter of Transmitter of Transmitter Open EUT Open EUTOpen EUT Open EUT SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 3 of 5 Internal InternalInternal Internal of of of of PCB Front View PCB Front ViewPCB Front View PCB Front View SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 4 of 5 Internal InternalInternal Internal of of of of PCB Back View PCB Back ViewPCB Back View PCB Back View SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Page 5 of 5

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. FCC ID: DO4FX2012 IC :3356B-FX2012 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM120700096701 Page: 1 of 37 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only Member of the SGS Group (SGS SA) TEST REPORT Application No. : SHEM1207000967RF Applicant: Checkpoint System Inc. Manufacturer: Sidep Electronics (Shanghai) Co.,Ltd. FCC ID: DO4FX2012 IC: 3356B-FX2012 Fundamental Frequency : Equipment Under Test (EUT): Product Name: Electronic Article Surveillance Detection System Brand Name: Model No.: FX 2012, CHASSIS ELECTRONICS Standards: FCC PART 15 SUBPART C, Section 15.223 RSS-210 (Issue 8): 2012 RSS-Gen (Issue 3): 2010 Date of Receipt: July 11, 2012 Date of Test: July 11, 2012 to Aug. 20, 2012 Date of Issue: Sep. 14, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Jim Xu Neil Zhang E&E Section Head E&E Project Engineer SGS-CSTC(Shanghai) Co., Ltd. SGS-CSTC(Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. FCC ID: DO4FX2012 IC :3356B-FX2012 Report No.: SHEM120700096701 Page: 2 of 37 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary TEST ITEM FCC REFERANCE IC REFERANCE RESULT Radiated emission 15.223 &15.209 RSS-210 Issue 8 Annex A2.3 Pass Assigned bandwidth (6dB bandwidth) 15.223(a) RSS-Gen Issue 3 Clause 4.6.1 Complete Power line conducted emission 15.207 RSS-Gen Issue 3 Clause 7.2.4 Pass Noted 1: “-”means not require in the rules. Noted 2: NA =Not Applicable SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. FCC ID: DO4FX2012 IC :3356B-FX2012 Report No.: SHEM120700096701 Page: 3 of 37 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 TEST SUMMARY ......................................................................................................................................................... 2 3 CONTENTS .............................................................................................................................................................. 3 4 GENERAL INFORMATION ......................................................................................…

Text truncated - open the document above for the full version.

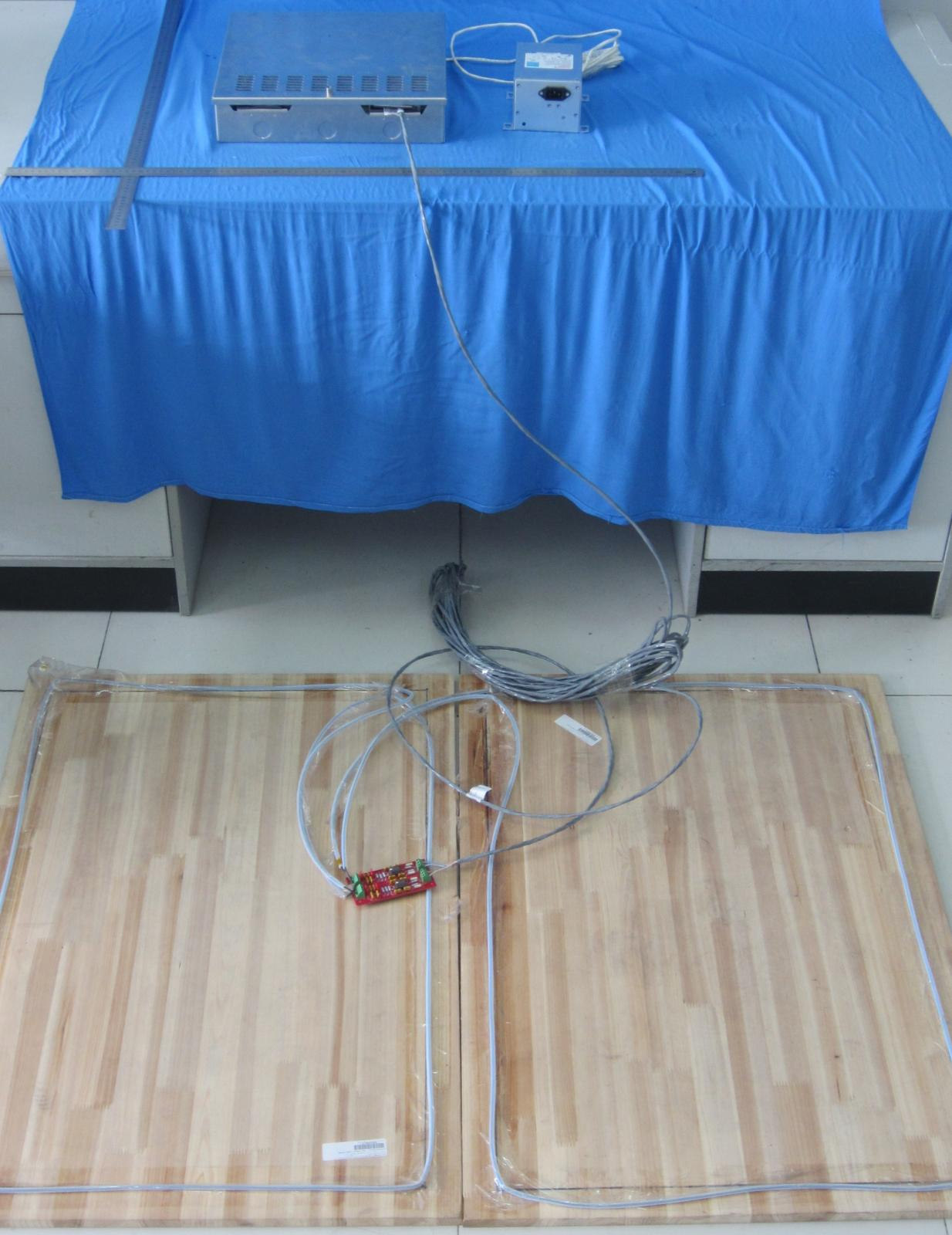

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 1 of 6 APPENDIX 3 PHOTOGRAPHS OF EUT TEST SETUP SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 2 of 6 AC Power line Conducted Emissions With 8 foot unshielded product With 6 foot shielded product SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 3 of 6 Radiated Emission 9 kHz~30MHz With 8 foot unshielded product With 8 foot unshielded product SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 4 of 6 With 6 foot shielded product With 6 foot shielded product SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 5 of 6 30MHz~1GHz With 8 foot unshielded product With 8 foot unshielded product SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 6 of 6 With 6 foot shielded product
