DO4OSTTRF LABEL VERIFIVCATION DEVICE

P/N 7413286 Source Tagging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tester User Guide Version 1.0 ii Published by: Checkpoint Systems Inc. 101 Wolf Drive Thorofare, NJ 08086 This manual refers to the Source Tagging Tester unit, Version 1.0. Document revision information Source Tagging Tester Part Number: 7413286 Trademarks Copyright and Warranty Information Checkpoint Systems, Inc. are registered trademarks of Checkpoint Systems, Inc. Microsoft, Windows, and Windows XP are either registered trademarks or trademarks of Microsoft Corporation in the United States Other product and company names herein may be trademarks of their respective owners. The information in this manual is subject to change without notice. Because of the changing nature of this product information presented in the Installation Manual, Checkpoint Systems, Inc. is not liable for any omissions, misstatements, or other errors of information. The information presented in the Installation Manual may not be copied, used or disclosed to others for the purpose of procurement or manufacturing without the written permission of Checkpoint Systems, Inc. This manual and the products discussed in this manual are the exclusive property of Checkpoint Systems Inc. Copyright laws of the United States protect all information and products. Copyright © 2005 by Checkpoint Systems, Inc. All rights reserved. RevDescriptionDateAuthor 1.0Initial Draft11/10/2005M. Reeves iii Source Tagging Tester User Guide Contact Information USA Checkpoint Systems, Inc. 101 Wolf Drive Thorofare, NJ 08086 USA http://www.checkpt.com Technical Assistance/Service Requests: 800-253-7580 FAX: 856-384-2328 Europe Checkpoint Systems International GmbH Von-Humboldt-Strasse 10 Heppenheim Hessen 64 646 Germany +49 6252 798 300 Document Conventions WarningThis is a Warning icon. When it appears, the corresponding text indicates a cautionary statement which you must abide by. CautionThis is a Caution icon. When it appears, the corresponding text indicates a cautionary statement which you must abide by. NoteThis is a Tip icon. When it appears, the corresponding text indicates a helpful note or tip when using the feature. The following usage conventions are used throughout the manual. Button Name - This describes a button or selection on the screen. For example, the <DONE> button is represented in this document as Done. Key Name - This describes a keystroke on a keyboard. For example Ctrl represents the control key. iv Regulatory Statement Important Information to our Users in North America FCC Regulatory Compliance Statement Checkpoint Systems, Inc. offers certain Electronic Article Surveillance (EAS) products that have been FCC certified or verified to 47 CFR Part 15, Subparts B/C and/or 47 CFR Part 18. Appropriately, one of the following labels will apply to the approval: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. - OR - This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - OR - NOTE: This equipment has been tested and found to comply with the limits for a miscellaneous type ISM device, pursuant to part 18 of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio communications reception, which can be determined by turning the equipment off and on, please contact Checkpoint Systems, Inc. at (800) 257-5540 for further assistance. Equipment Safety Compliance Statement WARNING: Changes or modifications to Checkpoint’s EAS equipment not expressly approved by the party responsible for assuring compliance could void the user’s authority to operate the equipment in a safe or otherwise regulatory compliant manner. v Source Tagging Tester User Guide Important Information to our Users in Europe CE Compliance Statement Where applicable, Checkpoint Systems, Inc. offers certain Electronic Article Surveillance (EAS) products that have CE Declarations of Conformity to Council Directive(s) EMC 89/336/EEC, LVD 73/23/EEC, and R&TTE 99/5/EC Radio and Telecommunications Terminal Equipment, as amended by 92/31/EEC and 93/ 68/EEC. System Electromagnetic Compatibility (EMC), has been tested and notified through Spectrum Management Authorities using accredited laboratories and, in a few cases, EC type examination certified through a Notified Body using Competent Body laboratories in Europe, whereby, conformity is declared to voluntary accepted European Telecommunications Standards Institute (ETSI) standards EN 301 489 and EN 300 330. In other cases, conformity is declared to the generic emission and immunity standards EN 50081-1 / EN 55022 / EN 50082-1 and EN 55024. NOTE: Certain Checkpoint EAS equipment has been tested and found to conform with the CE emission and immunity requirements in Europe. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with…

Text truncated - open the document above for the full version.

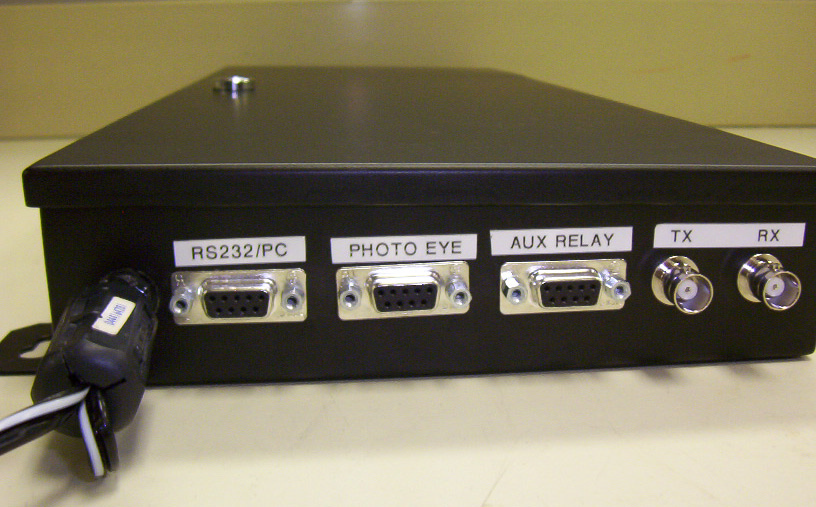

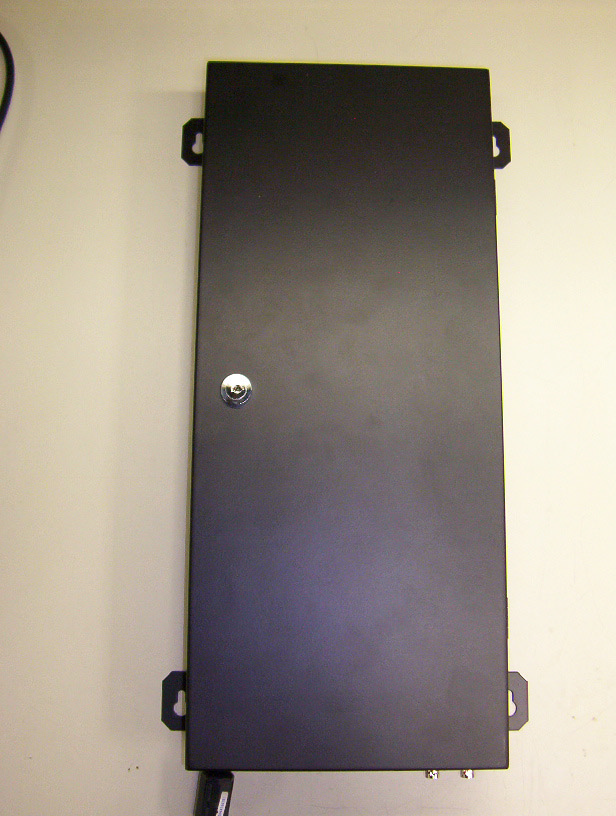

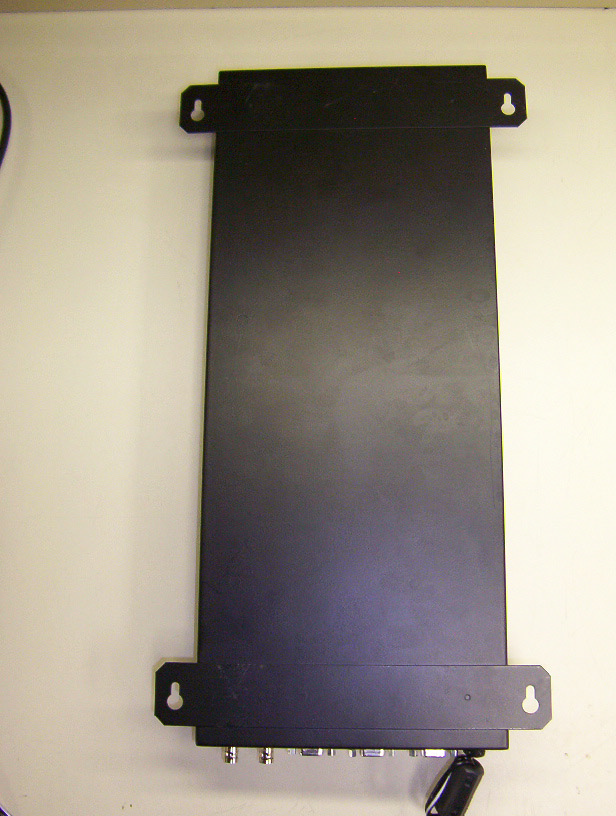

Source Tagging Tester (STT) - Front View Source Tagging Tester (STT) - back view Source Tagging Tester - Bottom View Source Tagging Tester – AC Adapter - Bottom View Source Tagging Tester – AC Adapter - Top View Source Tagging Tester – Antenna and cable Source Tagging Tester – Antenna Close-up of loop Source Tagging Tester – Photo-eye, controller, cable Source Tagging Tester – Photo-eye Close-up Source Tagging Tester – Photo-eye controller Source Tagging Tester – Photo-eye Controller

Source Tagging Tester (STT) – Open enclosure Source Tagging Tester (STT) – TR4140 PCB – (component side, left half) Source Tagging Tester (STT) – TR4140 PCB – (component side, right half) Source Tagging Tester (STT) – TR4140 PCB – (solder side, left half) Source Tagging Tester (STT) – TR4140 PCB – (solder side, right half) Source Tagging Tester (STT) – Antenna – (bottom cover removed) Source Tagging Tester (STT) – Antenna – (loop wire close-up) Source Tagging Tester (STT) – Antenna PCB – (component side) Source Tagging Tester (STT) – Antenna PCB – (solder side)

VOJTZT! ! PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 ELECTROMAGNETIC INTERFERENCE TEST REPORT Doc. 20051106R/Project No. 1258 TEST STANDARDS: 47 CFR PART 15, RSS-210 ISSUE 6, ICS-003 SOURCE TAGGING TESTER (STT) FCC ID: DO4OSTT / IC ID: 3356B-OSTT CHECKPOINT SYSTEMS, INC. THOROFARE, NJ 08086 TEST DATES: October 26 th to November 13 th , 2005 ISSUE: November 15 th , 2005 Prepared by: Paul Banker Technical Staff Engineer Approved by: John Baumeister Group Manager, PCTC/ICC The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without written permission of Unisys - PCTC. AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION Certificate No: 1028.01 VOJTZT! PCTC FCC ID: DO4OSTT/IC ID: 3356B-OSTT Page 2 of 17, 11/15/05 Product Compliance Test Center Doc. 20051106R/Project No. 1258 ! PREFACE This report documents product testing conducted to verify compliance of the specified EUT with applicable standards and requirements as identified herein. EUT, test instrument configurations, test procedures and recorded data are generally described in this report. The reader is referred to the applicable test standards for detailed procedures. The following table summarizes the test results obtained during this evaluation. SUMMARY The Source Tagging Tester (STT) was tested to the standards listed below, and found to have the following characteristics: STANDARDS TEST FCC Industry Canada Frequency Range RESULT Radiated Emissions Intentional Radiator, Fundamental Part 15.223 RSS-210, A2.4 1.705 to 10 MHz Below Max. Permissible Limit Radiated Emissions Intentional Radiator, Harmonics Part 15.209 RSS-210, 2.7 10 MHz to 1 GHz Below Max. Permissible Limit Radiated Emissions Unintentional Radiator (Related to Digital Circuitry) Part 15.109 ICES-003 30 MHz to 1 GHz Below Max. Permissible Limit Conducted Emissions Unintentional & Intentional Radiators Part 15.209 RSS-Gen, Clause 7.2.2 ICES-0003 150 kHz to 30 MHz Below Max. Permissible Limit EUT Modifications: There were no modifications necessary to comply with the specified standards. VOJTZT! PCTC FCC ID: DO4OSTT/IC ID: 3356-OSTT Page 3 of 17, 11/15/05 Product Compliance Test Center Doc. 20051106R/Project No. 1258 TABLE OF CONTENTS 1.0 Description of the Equipment Under Test (EUT) ..................................................................4 1.1 General Description .......................................................................................................................................4 1.2 Test Configurations........................................................................................................................................4 1.3 Rationale for the Chosen Configuration.........................................................................................................6 1.4 EUT Modifications ........................................................................................................................................6 2.0 Operation of the EUT During Testing ...................................................................................6 2.1 General...........................................................................................................................................................6 2.2 Operating Mode .............................................................................................................................................7 2.3 Rationale for the Chosen Mode of Operation ................................................................................................7 3.0 Applicable Requirements, Methods and Procedures .............................................................8 4.0 Test Results ............................................................................................................................9 4.1 Radiated Emissions ........................................................................................................................................9 4.1.1 Radiated Emissions Test Results (7/21/05)............................................................................................9 4.1.2 Occupied Bandwidth (7/21/05)............................................................................................................11 4.2 Conducted Emissions...................................................................................................................................13 4.2.1 Conducted Emission Test Results (7/20/05) ........................................................................................13 Appendix A – Test Equipment List ...............................................................................................17 VOJTZT! PCTC FCC ID: DO4OSTT/IC ID: 3356-OSTT Page 4 of 17, 11/15/05 Product Compliance Test Center Doc. 20051106R/Project No. 1258 1.0 Description of the Equipment Under Test (EUT) Equipment Identification Source Tagging Tester Serial Number None Manufacturer Checkpoint Systems, Inc. Technical Contact Mark Leszczynski Bayode Olabisi Condition Received Acceptable for Test Date Received 12 October 2005 Sample Type Prototype Equipment Classification Non-residential, Information Technology Equipment (ITE) Unisys Test Personnel Paul Banker, Itamar Gonen, Minh Nguyen 1.1 General Description The Checkpoint Source Tagging Tester (STT) is designed to help Checkpoint Source Tagging customers test and verify Checkpoint labels in real time. The STT tests a series of Checkpoint labels and comes equipped with a counter mechanism that records the number of good, bad, and total Checkpoint labels run on the production line. The antenna attaches to the STT’s chassis via BNC connectors (1 TX, 1 RX); other I/O ports on the chassis provide an interface to the STT peripherals – Photo eye (DB-9 Male), PC/Laptop running STT software application (DB-9 Female), and AUX Relay (DB-9 Male). 1.2 Test Configurations The Source Tagging Te…

Text truncated - open the document above for the full version.

Source Tagging Tester – Radiated Emission Test Setup – Front View Source Tagging Tester – Radiated Emission Test Setup – Rear View Source Tagging Tester – Radiated Emission Test Setup – Front View Vertically Mounted Source Tagging Tester – Conducted Emission Test Setup
