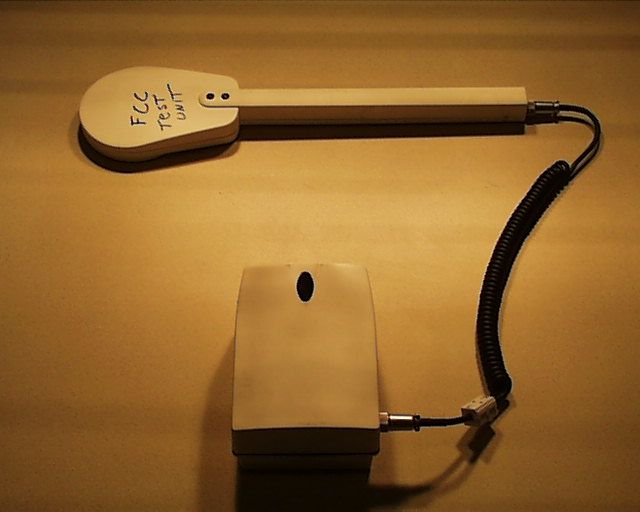

DO4PRRO7000Portable RFID Reader

Check Point System Inc. FCC ID DO4PRRO7000

UNISYS PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 RADIO DISTURBANCE TEST REPORT Doc. 990704FC Project No. 337 FCC ID DO4PRRO7000 PORTABLE READER USA CFR 47 PART 15 REQUIREMENTS Prepared by: Issue Date: 7/12/99 Minh NguyenTest Dates: 5/7/99 to 5/19/99 Technical Staff Specialist Prepared by: Approved: John BaumeisterWallace E. Amos Technical Staff EngineerGroup Manager, PCTC/ICC Sponsor: Checkpoint Systems, Inc. 101 Wolf Drive Thorofare, NJ 08086 The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without written permission of Unisys - PCTC. UNISYS Page 2 of 19, 7/12/99 PCTC FCC ID DO4PRRO7000 Product Compliance Test CenterDoc. 990704FC Project No. 337 PREFACE This report documents product testing conducted to verify compliance of the specified test sample with applicable standards and requirements as identified herein. Test sample, test instrument configurations, test procedures and recorded data are generally described or attached in the appendices of this report. The reader is referred to the applicable test standards for detailed procedures. The following table summarizes the test results obtained during this evaluation. SUMMARY The Checkpoint Systems, Portable Reader, as described in Section 2.1, was tested to the standards listed below, and found to have the following characteristics: TESTSTANDARDREQUIREMENTRESULT Radiated Emissions - Intentional Radiator FCC 15.225, 15.209 13 MHz - 1 GHzBelow Limit Radiated Emissions Digital Device FCC Class BGeneral Requirements 30 MHz - 1 GHz Below Limit Frequency StabilityFCC 15.225±0.01%Within Tolerance UNISYS Page 3 of 19, 7/12/99 PCTC FCC ID DO4PRRO7000 Product Compliance Test CenterDoc. 990704FC Project No. 337 TABLE OF CONTENTS 1.0Client Information.............................................................................................................4 1.1Requested Service..........................................................................................................4 1.2Purpose of Test(s)..........................................................................................................4 2.0Test Item...........................................................................................................................4 2.1Test Sample Identification..............................................................................................4 2.2Condition of the Test Sample.........................................................................................5 2.3Description of The Test Item..........................................................................................5 2.3.1General....................................................................................................................5 2.4Test Item Classification..................................................................................................5 2.5Test Sample Modifications.............................................................................................5 2.6Support Equipment........................................................................................................5 3.0Applicable Requirements, Methods And Procedures..........................................................6 3.1Applicable Requirements................................................................................................6 3.1.1USA........................................................................................................................6 3.2Basic Test Methods and Procedures...............................................................................6 4.0Deviations Or Exclusions From The Requirements And Standards.....................................6 5.0Operation Of The Test Sample During Testing..................................................................7 5.1Test Environment...........................................................................................................7 5.1.1Climatic Environment...............................................................................................7 5.1.2Electrical Power.......................................................................................................7 5.2Grounding......................................................................................................................7 5.3Operating Mode.............................................................................................................7 5.4Test Configurations........................................................................................................7 6.0Summary Of Test Results..................................................................................................8 6.1Emission Tests...............................................................................................................8 6.1.1Radiated Emission Test (5/7/99)..............................................................................8 6.2Frequency Stability Tests (5/19/99)..............................................................................11 Appendix 1 - Test Equipment Listing........................................................................................12 Appendix 2 - Description Of Test Facility and Procedures.........................................................14 Appendix 3 - Test Sample Configuration Drawings/Photographs...............................................17 UNISYS Page 4 of 19, 7/12/99 PCTC FCC ID DO4PRRO7000 Product Compliance Test CenterDoc. 990704FC Project No. 337 1.0Client Information Client Name:Checkpoint Systems, Inc. 101 Wolf Drive Thorofare, NJ 08086 Coordinator(s):Anthony Mignogna PCTC Test Personnel:Paul Banker John Baumeister 1.1Requested Service • Measurement of radio disturbance characteristics of sample product to FCC Part 15.225 for intentional radiators operating at 13.553 - 13.567 MHz. • Measurement of radio disturb…

Text truncated - open the document above for the full version.
