Page 1 of 1 ΥΝΙΣΨΣ PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 October 26, 200120010812CL1 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O Box 358315 Pittsburgh, PA 15251-5315 Subject: Confidentiality Statement for Checkpoint Systems PV2000 (9.5 MHz Version). Dear Sir/Madam: The Checkpoint Systems, PV2000 (9.5 MHz Version, FCC ID DO4PV20009-5, (frequency band is 9.0 MHz to 10.0 MHz) was tested for EMI compliance for operating according to the FCC Part 15 Sections 15.209 and 15.223 requirements. Based on the compliance results of this test, please register the Checkpoint System PV2000 (9.5 MHz Version), DO4PV20009-5, with the Federal Communications Commission. Please note that Checkpoint requests confidentiality on the block diagram, theory of operation and schematics of the PV2000 (9.5 MHz Ver). Sincerely, Daniel J. Mis Technical Staff Engineer Unisys Corpration (610) 648-3746 E-Mail: [email protected]

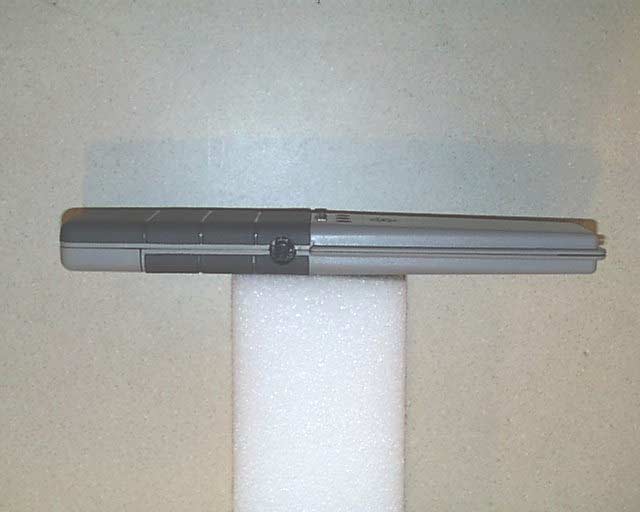

EXTERNAL CONSTRUCTION PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 1 – View of Both Front (left) and Back (right) Halves of Enclosure EXTERNAL CONSTRUCTION PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 2 – View of Left Side of Enclosure EXTERNAL CONSTRUCTION PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 3 – View of Right Side of Enclosure

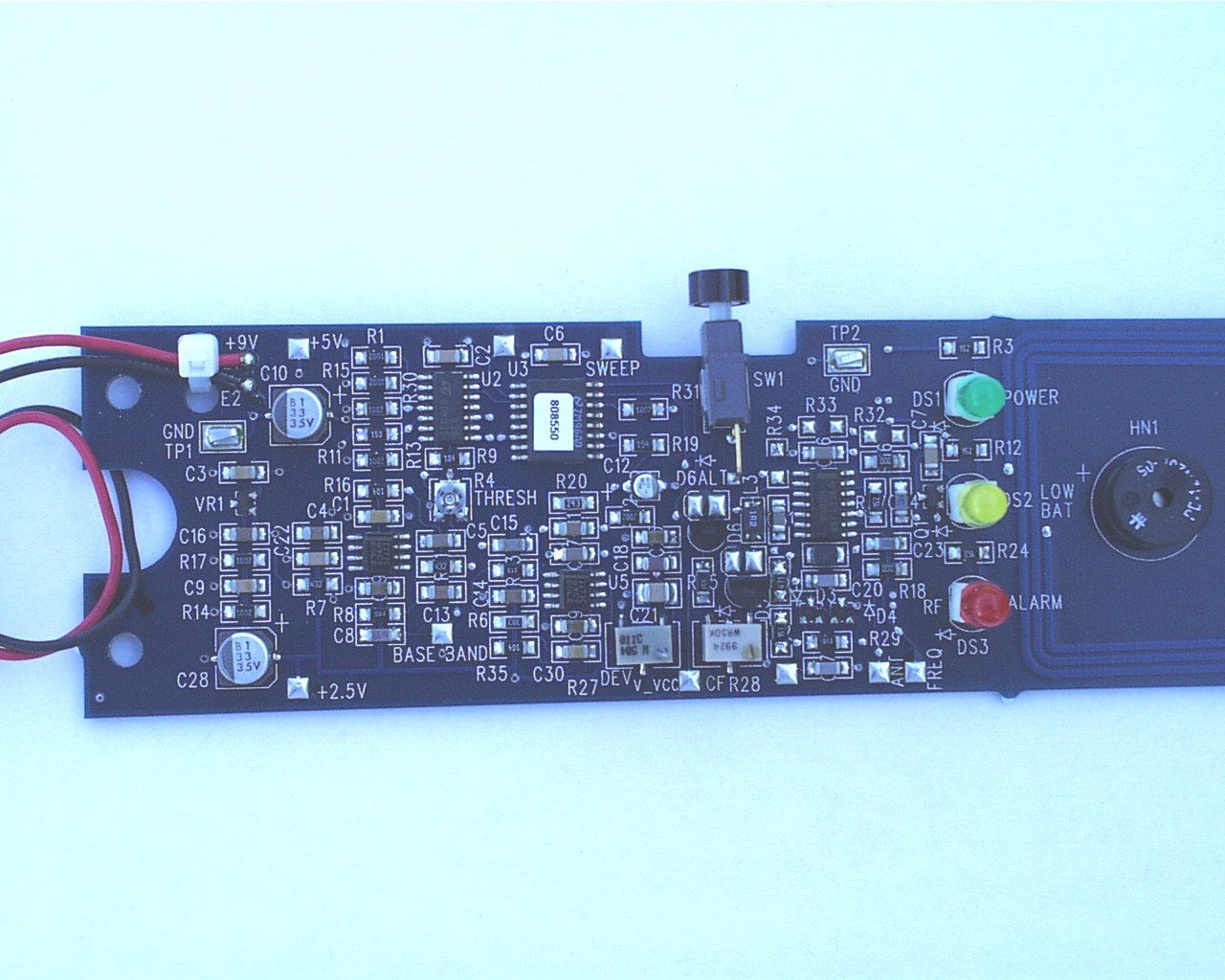

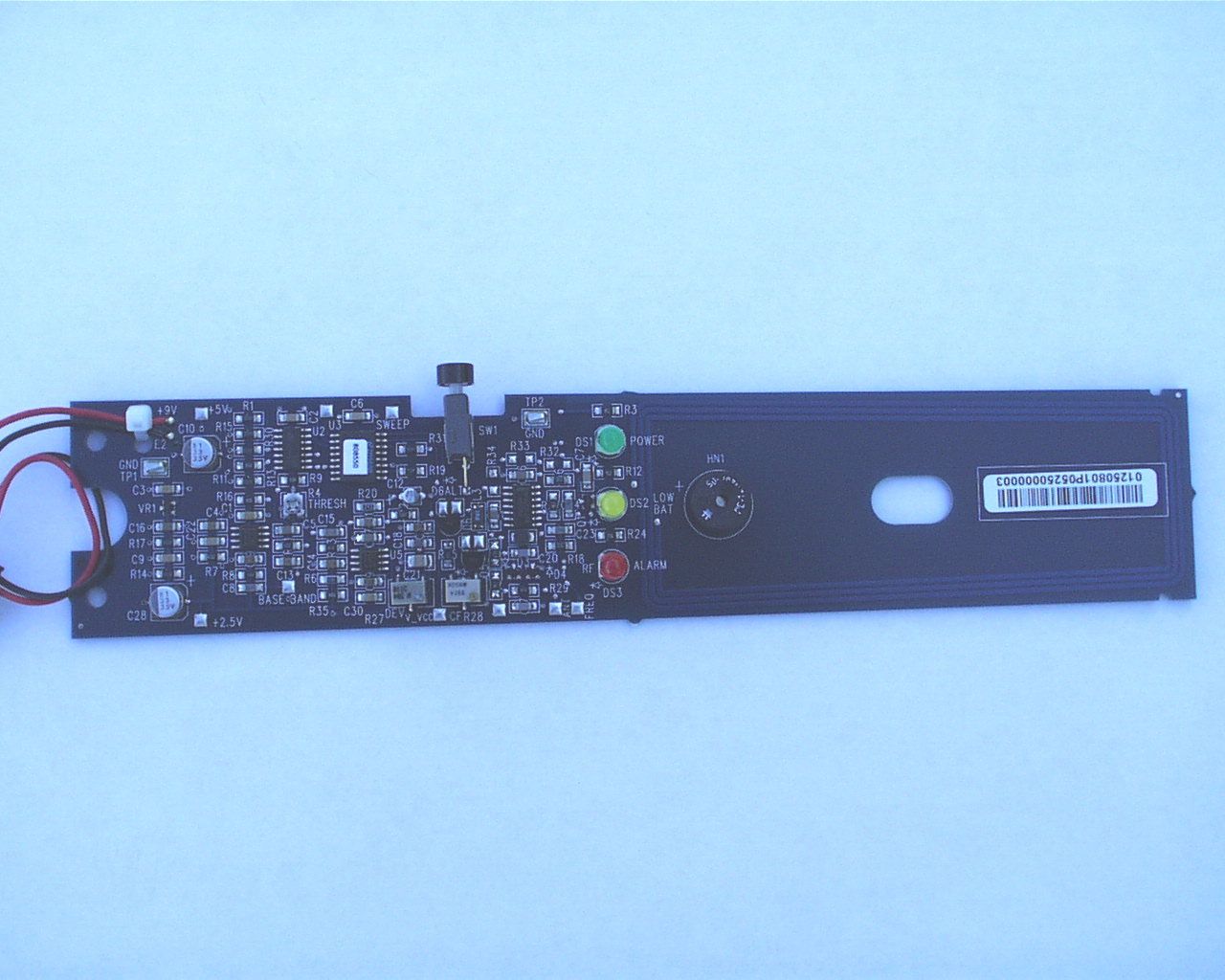

INTERNAL CONSTRUCTION PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 1 – Interior View INTERNAL CONSTRUCTION PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 2 – Front Side of PCB INTERNAL CONSTRUCTION PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 3 – Back Side of PCB

VOJTZT PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 ELECTROMAGNETIC COMPATIBILITY TEST REPORT Doc. 20010808R1/Project 598 FCC ID: D04PV20009-5 TEST STANDARD - USA CFR 47 PART 15 PORTABLE VERIFIER MODEL PV2000 CHECKPOINT SYSTEMS, INC. THOROFARE, NJ Test Date: 2/14/01 Issue: October 12, 2001 Prepared by: Daniel J. Mis Technical Staff Engineer Approved by: Wallace E. Amos Group Manager, PCTC/ICC The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without written permission of Unisys - PCTC. AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION Cert. No.: 1028-01 VOJTZT PCTC Page 2 of 23, Date: 10/12/01 Product Compliance Test CenterDoc. 20010808R1/Project 598 FCC ID: D04PV20009-5 ERRATA This document is revision 1 to document 20010808R and is marked as “PCTC Doc. No. 20010808R1”, dated 10/12/01. This revision is issued to make the following corrections and clarifications: - Photos 2 – Detail of Interior Construction - Photo 3 – Top View of PCB - Photo 4 – Bottom View of PCB Removed Photos from the Report. - Figures 1 & 2 – PCB Fabrication - Figures 3, 4 & 5 – Schematics - Figure 6 – Housing Specification Removed Photos from the Report. -Section 6.2Added Section covering Bandwidth Measurement -All PagesReformatted and renumbered all pages VOJTZT PCTC Page 3 of 23, Date: 10/12/01 Product Compliance Test CenterDoc. 20010808R1/Project 598 FCC ID: D04PV20009-5 PREFACE This report documents product testing conducted to verify compliance of the specified EUT with applicable standards and requirements as identified herein. EUT, test instrument configurations, test procedures and recorded data are generally described or attached in the appendices of this report. The reader is referred to the applicable test standards for detailed procedures. The following table summarizes the test results obtained during this evaluation. SUMMARY The Checkpoint Systems, Portable Verifier Model PV2000, were tested to the standards listed below, and found to have the following characteristics: TESTSTANDARDFREQUENCYRESULT Radiated Emissions - Intentional Radiator FCC, Class B Part 15.223 1.705 to 10 MHzBelow Limit Max. Permissible Radiated Emissions - Unintentional Radiator FCC, Class B Part 15.209 30 MHz – 1.0 GHzBelow Limit Max. Permissible Conducted Emissions – Unintentional Radiator FCC, Class B Part 15.207 450 kHz - 30 MHzBelow Limit Max. Permissible VOJTZT PCTC Page 4 of 23, Date: 10/12/01 Product Compliance Test CenterDoc. 20010808R1/Project 598 FCC ID: D04PV20009-5 TABLE OF CONTENTS 1.0Client Information..................................................................................................................6 1.1Requested Service...............................................................................................................6 1.2Purpose of Test(s) ...............................................................................................................6 2.0Description of The Equipment Under Test (EUT).................................................................6 2.1General Description ............................................................................................................6 2.2Equipment Family Description...........................................................................................7 2.3Equipment Sample..............................................................................................................8 2.3.1Identification ................................................................................................................8 2.3.2Condition of Received Sample ....................................................................................8 3.0Applicable Requirements, Methods And Procedures ............................................................8 3.1USA ....................................................................................................................................8 3.2Basic Test Methods and Procedures ...................................................................................9 4.0Deviations or Exclusions from the Requirements and Standards ..........................................9 5.0Operation of The EUT During Testing ..................................................................................9 5.1Test Environment ...............................................................................................................9 5.1.1Climatic Environment ..................................................................................................9 5.1.2Electrical Power ...........................................................................................................9 5.2Grounding ...........................................................................................................................9 5.3Operating Mode ................................................................................................................10 5.4Test Configurations ..........................................................................................................10 5.4.1Support Equipment ....................................................................................................10 5.5EUT Modifications ...........................................................................................................10 6.0Summary Of Test Results ....................................................................................................10 6.1Radiated Emission Test ....................................................................................................10 6.1.1Radiated Emission Test (2/14/2001)..........................................................................10 6.1.2Conducted Emissions Test .........................................................................................14 6.2Bandwidth Measurement ........................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 1 – Front View of Test Setup TEST SETUP PHOTOS CHECKPOINT SYSTEMS, INC. PV2000 (9.5 MHz Ver) FCC ID – DO4PV20009-5 Photo 2 – Rear View of Test Setup
