Page 1 of 1 ΥΝΙΣΨΣ PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 July 31, 200220011031CL Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O Box 358315 Pittsburgh, PA 15251-5315 Subject: Confidentiality Statement for Checkpoint Systems Strata FX System. Dear Sir/Madam: The Checkpoint Systems, Strata FX, FCC ID DO4STRATAFX, (frequency band is 7.6MHz to 8.7 MHz) was tested for EMI compliance for operating according to the FCC Part 15 Sections 15.207, 15.209 and 15.223 requirements. Based on the compliance results of this test, please register the Checkpoint System Strata FX, DO4STRATAFX, with the Federal Communications Commission. Please note that Checkpoint requests confidentiality on the block diagram, theory of operation, parts list/tune up procedure and schematics of the Strata FX. Checkpoint considers these items to be company confidential and it is their desire that access to these items, by their competitors, be restricted. Sincerely, Daniel J. Mis Technical Staff Engineer Unisys Corpration (610) 648-3746 E-Mail: [email protected]

0682 !

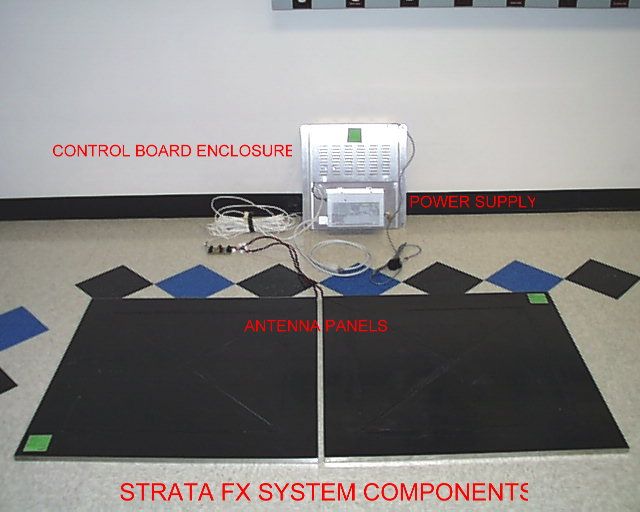

VOJTZT PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 ELECTROMAGNETIC INTERFERENCE TEST REPORT Doc. 20010914R/Project No. 714 TEST STANDARD - USA CFR 47 PART 15 STRATA FX ELECTRONIC ARTICLE SURVEILANCE DETECTION SYSTEM FCC ID: DO4STRATAFX CHECKPOINT SYSTEMS, INC. THOROFARE, NJ Test Dates: 7/30/01-8/9/01 Issue: September 21, 2001 Prepared by: Approved by: Paul BankerJohn Baumeister Technical Staff Engineer Acting Group Manager PCTC/ICC The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without written permission of Unisys - PCTC. AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION Cert. No.: 1028.01 VOJTZT PCTC Page 2 of 29, 9/21/01 Product Compliance Test CenterDoc. 20010914R/Project No. 714 FCC ID: DO4STRATAFX PREFACE This report documents product testing conducted to verify compliance of the specified EUT with applicable standards and requirements as identified herein. EUT, test instrument configurations, test procedures and recorded data are generally described or attached in the appendices of this report. The reader is referred to the applicable test standards for detailed procedures. The following table summarizes the test results obtained during this evaluation. SUMMARY The Checkpoint Systems, Inc., Strata FX as described in Section 2.1, was tested to the standards listed below, and found to have the following characteristics: TESTSTANDARDFrequency RangeRESULT Radiated Emissions Intentional Radiator, Fundamental FCC Part 15.223 1.705 to 10 MHz Below Max. Permissible Limit Radiated Emissions Intentional Radiator, Harmonics FCC Part 15.209 10 MHz to 1 GHz Below Max. Permissible Limit Radiated Emissions Unintentional Radiator (Related to Digital Circuitry) FCC Part 15.109 30 MHz to 1 GHz Below Max. Permissible Limit Conducted Emissions Unintentional & Intentional Radiators FCC Part 15.207 450 kHz to 30 MHz Below Max. Permissible Limit VOJTZT PCTC Page 3 of 29, 9/21/01 Product Compliance Test CenterDoc. 20010914R/Project No. 714 FCC ID: DO4STRATAFX TABLE OF CONTENTS 1.0Client Information..................................................................................................................5 1.1Requested Service...............................................................................................................5 1.2Purpose of Test(s) ...............................................................................................................5 2.0Description of the Equipment Under Test (EUT) ..................................................................5 2.1Equipment Family Description...........................................................................................5 2.1.1General .........................................................................................................................5 2.2Equipment Sample..............................................................................................................6 2.2.1Identification ................................................................................................................6 2.2.2Condition of Received Sample ....................................................................................7 3.0Applicable Requirements, Methods and Procedures .............................................................7 3.1Applicable Requirements ...................................................................................................7 3.1.1USA..............................................................................................................................8 3.2Basic Test Methods and Procedures ...................................................................................8 4.0Deviations or Exclusions from the Requirements and Standards ..........................................8 5.0Operation of the EUT During Testing ...................................................................................9 5.1Test Environment ...............................................................................................................9 5.1.1Climatic Environment ..................................................................................................9 5.1.2Electrical Power ...........................................................................................................9 5.2Grounding ...........................................................................................................................9 5.3Operating Mode ..................................................................................................................9 5.4Test Configurations ..........................................................................................................10 5.4.1EUT Details ...............................................................................................................13 5.4.2Support Equipment ....................................................................................................13 5.5EUT Modifications ...........................................................................................................13 6.0Summary of Test Results .....................................................................................................13 6.1Emission Tests ..................................................................................................................13 6.1.1Radiated Emission Test (30 July 2001) .....................................................................13 6.1.2Bandwidth Measurement (30 July 2001) ...................................................................18 6.1.3Conducted Emission Test (9 August 2001) ...............................................................19 Appendix 1 – Test Equipment Listing ...........................................................................................22 Appendix 2 – Description Of Test Facility and Procedures ........................…
