DO4STRATAOXStrata OX with TR4025 Control Module

Page 1 of 1 VOJTZT! ! PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 28 January 2004 20040120CL Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O Box 358315 Pittsburgh, PA 15251-5315 Subject: Confidentiality Statement for Checkpoint Systems Strata OX System. Dear Sir/Madam: The Checkpoint Systems, Strata OX, FCC ID DO4STRATAOX, (frequency band is 7.6MHz to 8.7 MHz) was tested for EMI compliance for operating according to the FCC Part 15 Sections 15.207, 15.209 and 15.223 requirements. Based on the compliance results of this test, and the additional items submitted to support the application, please register the Checkpoint System Strata OX, DO4STRATAOX, with the Federal Communications Commission. Please note that Checkpoint requests confidentiality on the block diagram, theory of operation, schematics, and detail internal photos of the Strata FX. The internal photographs show the internal components of the Strata OX and PCB design which Checkpoint considers to be company confidential and they desire that their competitors not have access to them. Sincerely, Daniel J. Mis Technical Staff Engineer Unisys Corpration (610) 648-3746 E-Mail: [email protected]

Page 1 of 1 VOJTZT! ! PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 3 February 2004 20040120CL1 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O Box 358315 Pittsburgh, PA 15251-5315 Subject: Confidentiality Statement for Checkpoint Systems Strata OX System. Dear Sir/Madam: The Checkpoint Systems, Strata OX, FCC ID DO4STRATAOX, (frequency band is 7.6MHz to 8.7 MHz) was tested for EMI compliance for operating according to the FCC Part 15 Sections 15.207, 15.209 and 15.223 requirements. Based on the compliance results of this test, and the additional items submitted to support the application, please register the Checkpoint System Strata OX, DO4STRATAOX, with the Federal Communications Commission. Please note that Checkpoint requests confidentiality on the block diagram, theory of operation, schematics, and parts list/Bill of Materials of the Strata OX. It is their desire to limit their competitor’s access to these items. Sincerely, Daniel J. Mis Technical Staff Engineer Unisys Corpration (610) 648-3746 E-Mail: [email protected]

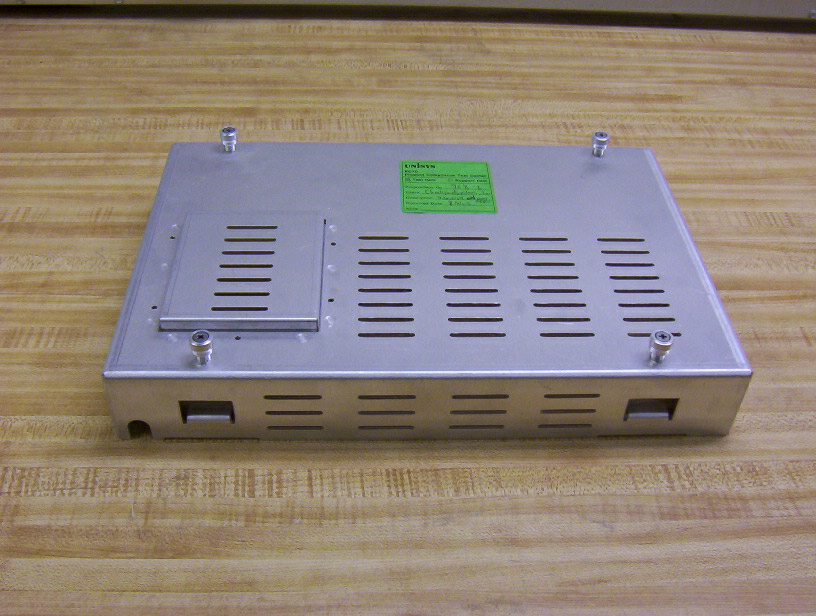

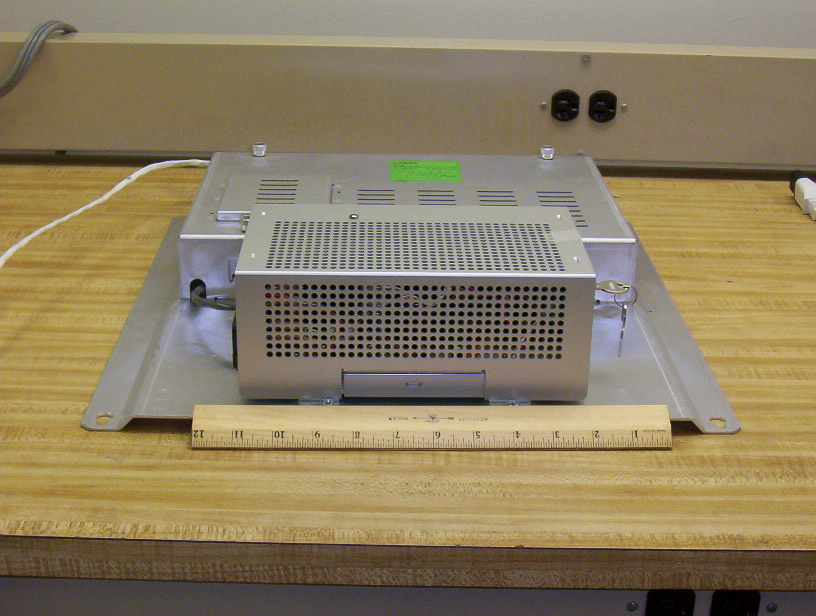

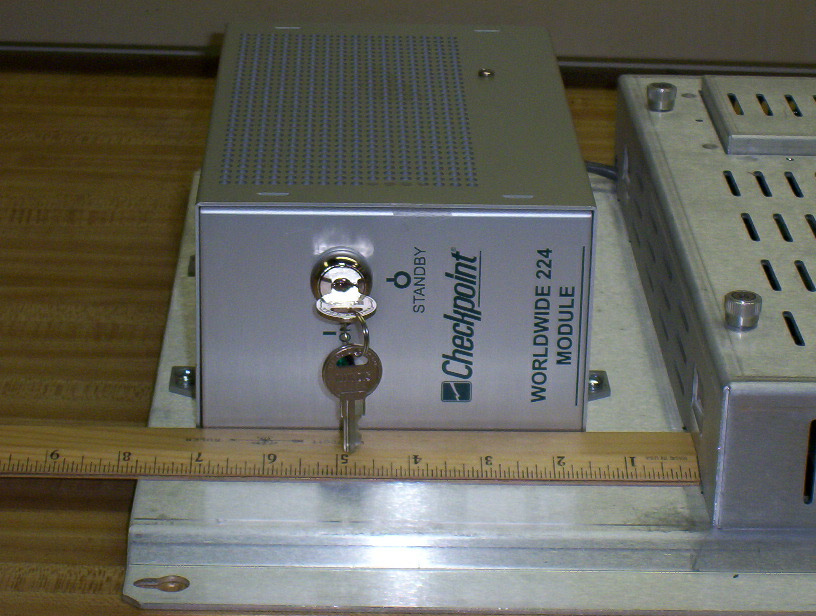

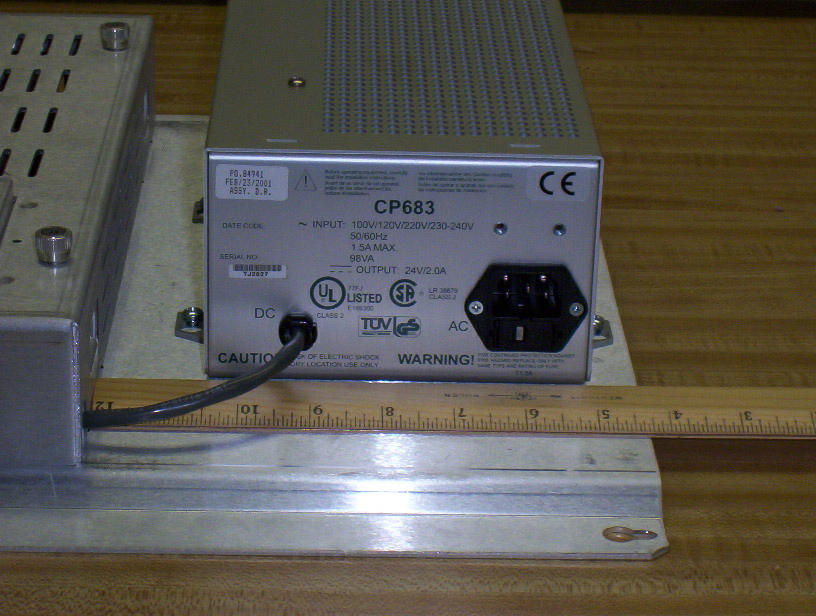

Photo 1 – System Components Photo 2 – Antenna Photo 3 – Controller and Power Supply Module Photo 4 – Power Supply Labeling Information Photo 5 – Top View of Power Supply Photo 6 – Left Side View of Power Supply Photo 7 – Controller Cover Photo 8 – Inside View of Controller Cover

Photo 1 – Top Surface Detail of TR4025 Control PCB Photo 2 – Bottom Side of TR4025 Control PCB Photo 3 – Bottom Half of Control PCB Enclosure Photo 4 – Bottom View of Control PCB Enclosure

Photo 1 – Top View of DC Filter Board Photo 2 – Top View of Antenna Matching Board Photo 3 – View of Labeling on TR4025 Control PCB Photo 4 – Serial Number Identification of TR4025 Control PCB

VOJTZT! ! PCTC Product Compliance Test Center 2476 Swedesford Road, Malvern, PA 19355 ELECTROMAGNETIC INTERFERENCE TEST REPORT Doc. 20040115R / Project No. 968 TEST STANDARD - USA CFR 47 PART 15 STRATA OX WITH TR4025 CONTROL MODULE ELECTRONIC ARTICLE SURVEILANCE DETECTION SYSTEM FCC ID: DO4STRATA OX CHECKPOINT SYSTEMS, INC. THOROFARE, NJ Test Date: 4 August to 4 December 2003 Issue: 27 January 2004 Prepared by: Daniel J. Mis Technical Staff Engineer Approved by: John Baumeister Group Manager, PCTC/ICC The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without written permission of Unisys - PCTC. AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION Cert. No.: 1028-01 ! VOJTZT! PCTC Page 2 of 39, 27 January 2004 Product Compliance Test Center Doc. 20040115R / Project No. 968 FCC ID: DO4STRATAOX PREFACE This report documents product testing conducted to verify compliance of the specified EUT with applicable standards and requirements as identified herein. EUT, test instrument configurations, test procedures and recorded data are generally described or attached in the appendices of this report. The reader is referred to the applicable test standards for detailed procedures. The following table summarizes the test results obtained during this evaluation. SUMMARY The Checkpoint Systems, Inc., Strata OX with TR4025 Control Module as described in Section 2.1, was tested to the standards listed below, and found to have the following characteristics: TEST STANDARD Frequency Range RESULT Radiated Emissions Intentional Radiator, Fundamental FCC Part 15.223 1.705 to 10 MHz Below Max. Permissible Limit Radiated Emissions Intentional Radiator, Harmonics FCC Part 15.209 10 MHz to 1 GHz Below Max. Permissible Limit Radiated Emissions Unintentional Radiator (Related to Digital Circuitry) FCC Part 15.109 30 MHz to 1 GHz Below Max. Permissible Limit Conducted Emissions Unintentional & Intentional Radiators FCC Part 15.209 450 kHz to 30 MHz Below Max. Permissible Limit VOJTZT! PCTC Page 3 of 39, 27 January 2004 Product Compliance Test Center Doc. 20040115R / Project No. 968 FCC ID: DO4STRATAOX MEASUREMENT UNCERTAINTY Measurement Type Measurement Dist Frequency Range Measurement Limit Expanded Combined Uncertainty Radio Disturbance 10 meters 30 MHz to 1 GHz Class A 4.3 dB Radio Disturbance 10 meters 30 MHz to 1 GHz Class B 5.0 dB Radio Disturbance 3 meters 30 MHz to 1 GHz Class B 4.3 dB Conducted Disturbance N/A 150 kHz to 30 MHz Class A or B 3.6 dB As all values of uncertainty are less than the CISPR/A/355/FDIS (CISPR 16-4/FDIS) recommendations, no adjustments to measured data presented in this report are required. VOJTZT! PCTC Page 4 of 39, 27 January 2004 Product Compliance Test Center Doc. 20040115R / Project No. 968 FCC ID: DO4STRATAOX TABLE OF CONTENTS 1.0 Client Information ................................................................................................................. 6 1.1 Requested Service ......................................................................................................................................... 6 1.2 Purpose of Test(s) ......................................................................................................................................... 6 2.0 Description of The Equipment Under Test (EUT) ................................................................ 7 2.1 Equipment Family Description...................................................................................................................... 7 2.1.1 General .................................................................................................................................................. 7 2.2 Equipment Sample ........................................................................................................................................ 9 2.2.1 Identification ......................................................................................................................................... 9 2.2.2 Condition of Received Sample ............................................................................................................ 11 3.0 Applicable Requirements, Methods And Procedures.......................................................... 12 3.1 Applicable Requirements ............................................................................................................................ 12 3.1.1 USA..................................................................................................................................................... 12 3.2 Basic Test Methods and Procedures............................................................................................................ 12 4.0 Deviations or Exclusions from the Requirements and Standards ....................................... 13 5.0 Operation of the EUT during Testing.................................................................................. 13 5.1 Test Environment ........................................................................................................................................ 13 5.1.1 Climatic Environment ......................................................................................................................... 13 5.1.2 Electrical Power .................................................................................................................................. 13 5.2 Grounding ................................................................................................................................................... 14 5.3 Operating Mode .......................................................................................................................................... 14 5.3.1 Operation in Restricted Bands............................................................................................................. 14 5.4 Test Configurati…

Text truncated - open the document above for the full version.

Photo 1 – Radiated Emissions Front View Photo 2 – Rear View of Radiated Emissions Setup Photo 3 – Detail of Controller and Cable Arrangement during Testing Photo 4 – Detail of Controller and Cable Arrangement during Testing

Photo 1 – Conducted Emissions Setup – Antenna On Empty Boxes and Controller on Floor Photo 2 – Detail of LISN to Controller Arrangement Photo 3 – View of Controller
