DXXRA0743-00000Panorama Instrument Radio- 608

Operating Instructions innovation is the best medicine Panorama TM Datascope® is a U.S. registered trademark of Datascope Corp. Masimo SET® is a U.S. registered trademark of Masimo Corp. Nellcor® is U.S. registered trademark of Tyco International Ltd. Panorama™ is a U.S. trademark of Datascope Corp. Passport 2® is a U.S. registered trademark of Datascope Corp. Spectrum™ is a U.S. trademark of Datascope Corp. Symbol® is a registered trademark of Symbol Technologies, Inc. Copyright © Datascope Corp., 2003. Printed in U.S.A. All rights reserved. Contents of this publication may not be reproduced in any form without permission of Datascope Corp. Panorama™ Operating Instructions0070-00-0575-50i Table of Contents Foreword ....................................................................................................................................................... xiii Warnings, Precautions and Notes..................................................................................................................... xiii Indications for Use .......................................................................................................................................... xix Unpacking Information .................................................................................................................................... xx Symbols and Descriptions ................................................................................................................................ xxi Technical Support ........................................................................................................................................... xxii System Overview ............................................................................................................. 1 - 1 Components of the Panorama System ................................................................................................................ 1 - 2 Licensing Key .......................................................................................................................................... 1 - 3 Supported Devices .......................................................................................................................................... 1 - 4 Panorama Central Station......................................................................................................................... 1 - 6 Panorama Telemetry Server ...................................................................................................................... 1 - 6 Panorama Telepack-2.4 and Panorama Telepack-608.................................................................................. 1 - 7 Panorama Wireless Transceiver (Panorama Telepack-608 only) .................................................................... 1-8 Passport 2® Bedside Monitor.................................................................................................................... 1 - 9 Network Printer ....................................................................................................................................... 1 - 10 Getting Started .................................................................................................................2-1 The Panorama Central Station .......................................................................................................................... 2 - 2 The Main Screen ............................................................................................................................................ 2 - 4 Patient Tiles............................................................................................................................................. 2 - 4 Menu Bar ............................................................................................................................................... 2 - 7 Tabs ...................................................................................................................................................... 2 - 9 Sidebar Buttons ....................................................................................................................................... 2 - 10 Common Controls and Elements ....................................................................................................................... 2 - 11 Quick Reference Guide ................................................................................................................................... 2 - 15 Auto-Admitting a Patient ........................................................................................................................... 2 - 15 Standby ................................................................................................................................................. 2 - 15 Discharge ............................................................................................................................................... 2 - 16 Display................................................................................................................................................... 2 - 17 Patient Alarms ......................................................................................................................................... 2 - 18 Viewing List Trends .................................................................................................................................. 2 - 19 Viewing Events........................................................................................................................................ 2 - 19 Viewing Disclosure .................................................................................................................................. 2 - 20 Troubleshooting .....................................................................................................................................…

Text truncated - open the document above for the full version.

February 2, 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park, Ramsdell Basingstoke Hampshire, RG26 5RQ England Subject: Certification Application for Panorama Instrument Radio – 608 FCC ID: DXXRA0743-00000 Dear Sir or Madam: It is requested that the following information is to be held confidential on behalf of Datascope Corp. for the submission of FCC ID: DXXRA0743-00000, FCC Rules Part 0.459 refers. Exhibit A: Block Diagrams – memo_instrument_040128.doc (3 pages) Exhibit B: Schematics – 0743rev7_sch.pdf (14 pages) Exhibit C: Parts List – 0743PL_9.pdf (6 pages) The above material contains trade secrets and the release of this information could result in substantial competitive harm. Datascope Corp. does not want the exhibits mentioned here to be accessible to the general public. The submitting party on the behalf of Datascope Corp. will prevent any unauthorized disclosure and any previous disclosure to the submitting party will not be available to the general public. Yours sincerely, James Fidacaro Project Manager, Senior Principle Engineer Datascope Corp. Patient Monitoring Division 800 MacArthur Blvd. Mahwah, NJ 07430

LTR DESCRIPTION BY DATE APPROVED 1 Release per CR 27560 BB 10/06/03 TW 01/16/2004 DATASCOPE 14 Philips Parkway, Montvale, NJ 07645 FILENAME Label, 608 Radio, PP2 Div. Revision P/M 0334-00-1605-XX 1 DATASCOPE CORP. (UNPUBLISHED) ALL RIGHTS RESERVED This material is the proprietary information of Datascope Corp. And any use, reproduction, or distribution of the material contained herein, unless specifically authorized by Datascope Corp., is expressly forbidden and would violate the rights and interests of Datascope Corp. Datascope Engineering Form E109.9 Datascope PROPRIETARY Sheet 1 of 4 Specification Control Drawing Datascope  PROPRIETARY 0334-00-1605-XX Sheet 2 of 4 Revision 1 1.0 DESCRIPTION The following specification describes the label for the cover of the 608MHz radio. 2.0 MECHANICAL SPECIFICATIONS 2.1 MATERIAL: Polycarbonate (Lexan) 5 mil stock with velvet first finish and with 3M Scotch 467MP Hi Performance permanent self-adhesive backing with release paper. 2.2 TEMPERATURE RATING: -25 o C to 60 o C. 2.3 COLORS: Background: Datascope #20 Blue Text and Graphics: Black 2.4 CONSTRUCTION NOTES: 2.4.1 Graphics to be sub-surface, permanent and scuff proof. 2.4.2 All artwork files generated by third party vendors should be output at 2400dpi (min.) and a minimum line screen of 120 lpi (if applicable). This applies to both RC paper and film output. 2.4.3 The manufacturer of this label must be listed per UL Recognized Component category: "Marking and Labeling System (PGDQ2)". 2.5 FONT(S) USED: Fonts are embedded into the EPS file. 2.6 PACKAGING: Label to be shipped in manufacturer's standard packaging, stamped or labeled with the following information: 2.6.1 Manufacturer's name or logo. 2.6.2 Datascope Part Number and Revision. 2.6.3 Expiration date. Shelf life to be one (1) year minimum upon receipt by Datascope. Specification Control Drawing Datascope  PROPRIETARY 0334-00-1605-XX Sheet 3 of 4 Revision 1 2.0 MECHANICAL SPECIFICATIONS (CONTINUED) 2.7 DIMENSIONS: NOTE: All dimensions are in inches, tolerances are " .015, unless otherwise specified. Specification Control Drawing Datascope  PROPRIETARY 0334-00-1605-XX Sheet 4 of 4 Revision 1 2.0 MECHANICAL SPECIFICATIONS (CONTINUED) 2.8 ARTWORK: NOTE: Original artwork shall be located at J:\VAULT_PM\0334-00\1605 0334-00-1605-01 Panorama Instrument Radio-608 label 11.25.2003 Datascope Corp., Mahwah, NJ 07430 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. SEE INSTRUCTION MANUAL. FCC ID:DXXRA0743-00000 P/N S/N ID INSTRUMENT RADIO – 608

COMMERCIAL IN CONFIDENCE Error! Unknown document property name. Error! Unknown document property name. Error! Unknown document property name. Error! Unknown document property name. Page 1 of 1 Error! Unknown document property name.- Tech Note Template Detailed description of modulation system There are two modulation schemes, 2-FSK and 4-FSK. The details are as follows: Parameter Requirement Notes Transmit power <10.8 dBm EIRP FCC limit Frequency accuracy ±2.5ppm = ±1.5kHz Modulation – low rate 2FSK in 31.25kHz channel Symbol rate 8.333kSym/s Modulation – medium rate 4FSK in 31.25kHz channel Symbol rate 8.333kSym/s Modulation filtering Gaussian with BT = 0.5 Deviation error ≤ ±15% of nominal Adjacent channel power, channel n ± 1,2 ≤ -60dBc Adjacent channel power, channel n ≥ ± 3 ≤ -83dBc 4 exceptions allowed Frequency lock time ≤ 3s At power-up Transmitter residual FM ≤ 50Hz rms Transmitter microphony ≤ 1kHz peak Under normal handling Out of band spurious emissions f<960MHz ≤ -49.2dBm EIRP ≤ 200μV/m at 3m in 120kHz Out of band spurious emissions 960MHz<f<6.14GHz ≤ -41.3dBm EIRP ≤ 500μV/m at 3m in 1MHz DC voltages and currents into final radio amplifying device Final radio amplifying device is supplied from a DC bias control circuit. The DC voltage is kept below 2.8Volts (typically 2.3V) and the DC current is kept below 18mA (typically 15mA). DC voltage supply to the bias circuit is from a 3.3V + 5% regulated supply line. Means for determining and stabilising frequency, suppression of spurious radiation, limiting modulation and limiting power Means for determining and stabilising frequency: Transmit modulation is generated using a discrete Voltage Control Oscillator (VCO) and Phase Lock Loop (PLL) based frequency synthesiser. A 10MHz VC-TCXO (Voltage Control – Temperature Compensated Crystal Oscillator) is used as reference to the PLL. Suppression of spurious radiation: As stated below, various radio design techniques are applied to ensure spurious radiation is kept well below the specification limits. 1. All transmit stages including the final amplifying stage is designed inside the screening cans. 2. Use of L-C-R (Inductor, Resistor, Capacitor) filters and de-coupling capacitors at various stages of the design. 3. Where possible, band-pass circuit topology/matching was used in the cascaded radio design. 4. A low-pass filter is designed in after the final radio amplifying stage to provide additional suppression of spurious radiation above the transmit frequency. 5. Combination of PIN diode attenuator with DC bias controlling of the final radio amplifying stage is used to attenuated VCO signals below specification limits during power-up and locking the frequency synthesiser circuits of the radio. Limiting modulation: DAC (Digital-to-Analogue) output is Gaussing filtered to keep the modulation within the limits. Limiting power: DC bias control techniques are used on all stages of the transmit radio design to ensure transmit power is kept below the specification limits. Additionally, the radio was design to transmit at least 3dB below 10.8dBm EIRP (specification allowed maximum) under the worst case conditions.

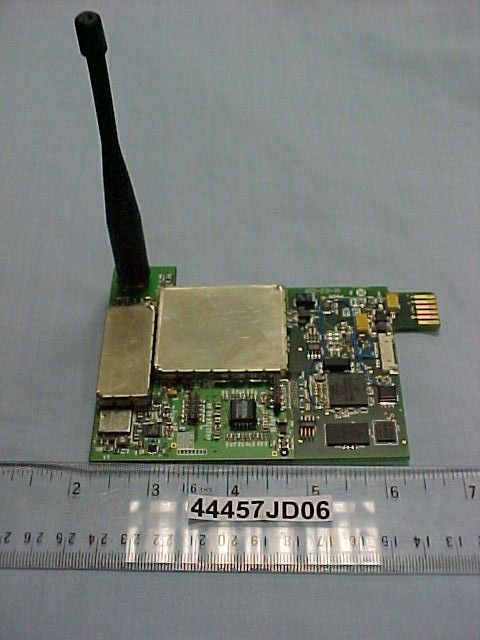

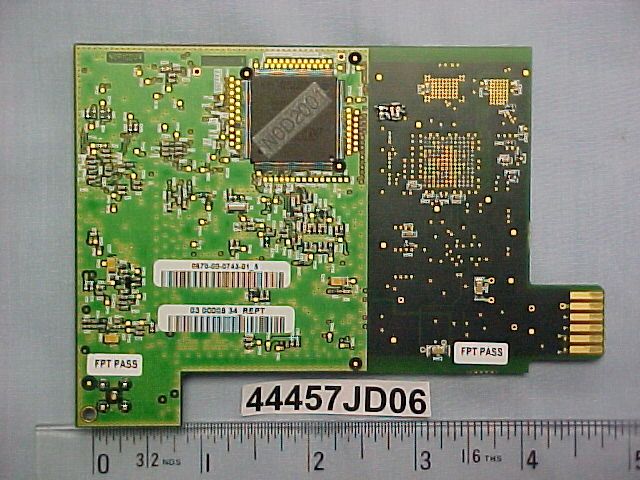

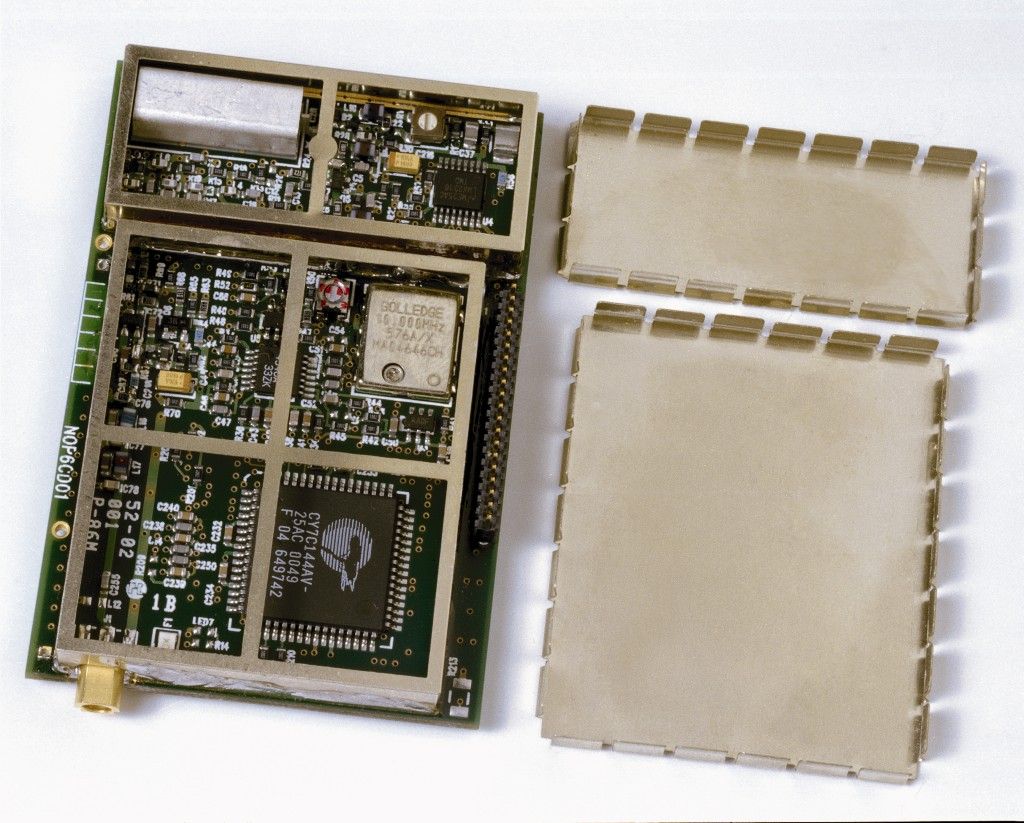

Panorama Instrument – 608 Operational Description The Panorama Instrument Radio - 608 is a device that acquires data from the bedsid e monitor and communicates via a radio in the WMTS band through the Panorama Teleme try Server to a central station.

February 5, 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park, Ramsdell Basingstoke Hampshire, RG26 5RQ England Subject: Certification Application for Panorama Instrument Radio – 608 FCC ID: DXXRA0743-00000 Dear Sir or Madam: The power output for the Panorama Instrument Radio –608 is lower than the threshold for the SAR measurements of a portable device operating in the general population experience category. Yours sincerely, James Fidacaro Project Manager, Senior Principle Engineer Datascope Corp. Patient Monitoring Division 800 MacArthur Blvd. Mahwah, NJ 07430

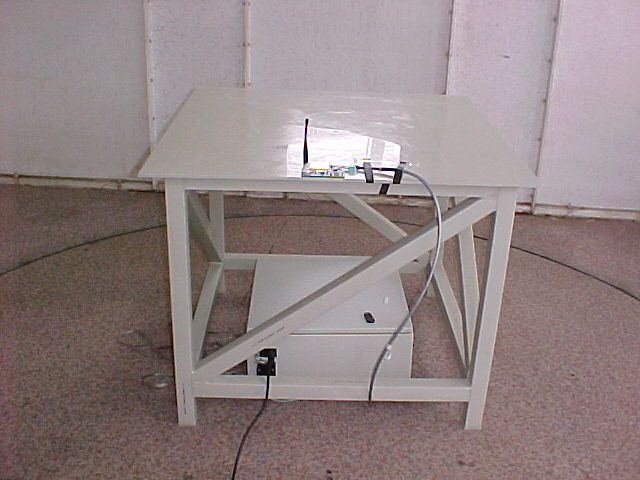

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart H: 2002 Test Report Serial No: RFI/MPTB2/RP44457JD06A Supersedes Test Report Serial No: RFI/MPTB1/RP44457JD06A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: Release Version No: PDF01 Issue Date: 06 February 2004 Test Dates19 November 2003 to 26 November 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP44457JD06A Operations Department Page 2 of 58 Issue Date: 06 February 2004 Test Of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart H: 2002 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP44457JD06A Operations Department Page 3 of 58 Issue Date: 06 February 2004 Test Of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart H: 2002 Table of Contents 1. Client Information .........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures............................................................7 4. Deviations From The Test Specification.....................................................................8 5. Operation Of The EUT During Testing ........................................................................8 6. Summary Of Test Results ............................................................................................9 7. Measurements, Examinations And Derived Results ...............................................10 8. Test Results.................................................................................................................11 9. Measurement Methods ...............................................................................................26 10. Measurement Uncertainty ........................................................................................31 Appendix 1. Test Equipment Used ................................................................................32 Appendix 2. Test Configuration Drawings....................................................................33 Test Report Serial No: RFI/MPTB2/RP44457JD06A Supersedes Test Report Serial No: RFI/MPTB1/RP44457JD06A RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP44457JD06A Operations Department Page 4 of 58 Issue Date: 06 February 2004 Test Of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart H: 2002 1. Client Information Company Name: Datascope Corp. Address: Patient Monitoring Division 800 MacArthur Blvd. Mahwah NJ 07430-0619 USA Contact Name: Mr J Fidacaro RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP44457JD06A Operations Department Page 5 of 58 Issue Date: 06 February 2004 Test Of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart H: 2002 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Panorama Instrument – 608 Model Name or Number: 0670-00-0743 Serial Number: 03-00001-34* FCC ID DXXRA0743-00000 Country of Manufacture: USA Date of Receipt: 13 October 2003 * Sample of EUT set to transmit on the bottom channel (608.03125 MHz) Brand Name: Panorama Instrument – 608 Model Name or Number: 0670-00-0743 Serial Number: 03-00001-34** FCC ID DXXRA0743-00000 Country of Manufacture: USA Date of Receipt: 13 October 2003 ** Sample of EUT set to transmit on the top channel (613.96875 MHz) 2.2. Description Of EUT The equipment under test is a transmitter intended to be used in the Wireless Medical Telemetry Service. 2.3. Modifications Incorporated In EUT None. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP44457JD06A Operations Department Page 6 of 58 Issue Date: 06 February 2004 Test Of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart H: 2002 2.4. Additional Information Related To Testing Power Supply Requirement: 5 V DC regulated supply, supplied by 100 V, 60 Hz AC mains powered support equipment Intended Operating Environment: Hospitals Equipment Category: Fixed Type of Unit: Transmitter Interface Ports: Power/Serial Transmitter Frequency Range 608 MHz to 614 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 608.03125 Transmitter Channels Tested Top 191 613.96875 Occupied Bandwidth: 12.0 kHz Highest Fundamental Frequency: 613.96875 MHz Maximum Fundamental Field Strength 99.8 dBμV/m @ 3 metres 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Bedside monitor (in screened enclosure) Brand Name: Passport 2 Model Name or Number: 0998-00-0170-0038F Serial Number: TM01168-G2 Cable Length and Type: 3 m 5 Core Connected to Port: EUT’s power/serial interface connector RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP44457JD06A Operations Department Page 7 of 58 Issue Date: 06 February 2004 Test Of: Datascope Corp. Panorama Instrument - 608 To: FCC Part 95 Subpart…
