E2K-APL290B7Wireless Network Security Appliance

Dell TZ300 W 1 Safety and Regulatory Information Dell TZ500 W Safety and Regulatory Information Regulatory model number APL29-0B7 Date Draft This document contains safety and regulatory information for the Dell TZ500 W wireless access point. Topics:  Mounting the appliance .................................................................................................... 2  Lithium battery .............................................................................................................. 2  Power supply information for APL29-0B7 ............................................................................... 2  Verwarnung Weitere hinweise zur montage ............................................................................ 3  Verwarnung Hinweis zur Lithiumbatterie ............................................................................... 3  Informationen zur stromversorgung APL29-0B7 ........................................................................ 3  Radio or television interference .......................................................................................... 4  Safety information .......................................................................................................... 4  FCC ID: E2K-APL290B7 ...................................................................................................... 4  Radiation exposure statement ............................................................................................ 6  United States of America authorized channels ......................................................................... 6  Industry Canada notices for TZ500 W ................................................................................... 7  Industrie Canada notifications pour TZ500 W .......................................................................... 8  European Union notifications .............................................................................................. 9  Electromagnetic compatibility information............................................................................ 19 Dell TZ300 W 2 Safety and Regulatory Information Mounting the appliance WARNING:  Mount in a location away from direct sunlight and sources of heat. A maximum ambient temperature of 104º F (40º C) is recommended.  Route cables away from power lines, fluorescent lighting fixtures, and sources of noise such as radios, transmitters, and broadband amplifiers  The included power cord(s) are approved for use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location.  Ensure that no water or excessive moisture can enter the unit.  Allow unrestricted airflow around the unit and through the vents on the side of the unit. A minimum of 1 inch (25.44mm) clearance is recommended.  Consideration must be given to the connection of the equipment to the supply circuit and that the effect of overloading the circuits has minimal impact on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings must be used when addressing this concern.  This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflections at visual display workplaces, this device must not be placed in the direct field of view. Cable connections WARNING: All Ethernet and RS232 (Console) cables are designed for intra-building connection to other equipment. Do not connect these ports directly to communication wiring or other wiring that exits the building where the appliance is located. Lithium battery WARNING: The Lithium Battery used in the Dell Internet security appliance cannot be replaced by the user. The appliance must be returned to a Dell authorized service center for replacement with the same or equivalent type recommended by the manufacturer. If, for any reason, the battery or Dell Internet security appliance must be disposed of, do so following the battery manufacturer's instructions. Power supply information for APL29-0B7 If the power supply is missing from your Dell product package, contact Dell Technical Support at https://support.software.dell.com/manage-service-request for a replacement. This product should only be used with a UL listed power supply marked “Class 2” or “LPS,” with an output rated 12 VDC, minimum 3.0 A, Tma: minimum 40 degrees C. Dell TZ300 W 3 Safety and Regulatory Information Verwarnung Weitere hinweise zur montage  Wählen Sie für die Montage einen Ort, der keinem direkten Sonnenlicht ausgesetzt ist und sich nicht in der Nähe von Wärmequellen befindet. Die Umgebungstemperatur darf nicht mehr als 40 °C betragen.  Führen Sie die Kabel nicht entlang von Stromleitungen, Leuchtstoffröhren und Störquellen wie Funksendern oder Breitbandverstärkern.  Das im Lieferumfang enthaltene bzw. die im Lieferumfang enthaltenen Netzkabel sind nur für die Verwendung in bestimmten Ländern und Regionen zugelassen. Überprüfen Sie bitte vor der Verwendung eins Netzkabels, ob es für die Verwen- dung in Ihrem Land oder Ihrer Region zugelassen ist und den geforderten Normen entspricht.  Stellen Sie sicher, dass das Gerät vor Wasser und hoher Luftfeuchtigkeit geschützt ist.  Stellen Sie sicher, dass die Luft um das Gerät herum zirkulieren kann und die Lüftungsschlitze an der Seite des Gehäuses frei sind. Hier ist ein Belüftungs-abstand von mindestens 26 mm einzuhalten.  Vergewissern Sie sich, dass das Gerät sicher im Rack befestigt ist.  Das Gerät ist nicht für die Benutzung im unmittelbaren Gesichtsheld am Bildschirmarbeitsplatz vorgesehen. Um störende Reflexionen am Bildshirmarbeitsplatz zu vermeiden, darf dieses Produkt nicht im unmittelbaren Gesichtsfeld platziert verden. Verwarnung Kabelverbindungen Alle Ethernet- und RS232-C-Kabel eignen sich für die Verbindung von Geräten in Innenräumen. Schließen Sie an die Anschlüsse der Dell keine Kabel an, die aus dem Gebäu…

Text truncated - open the document above for the full version.

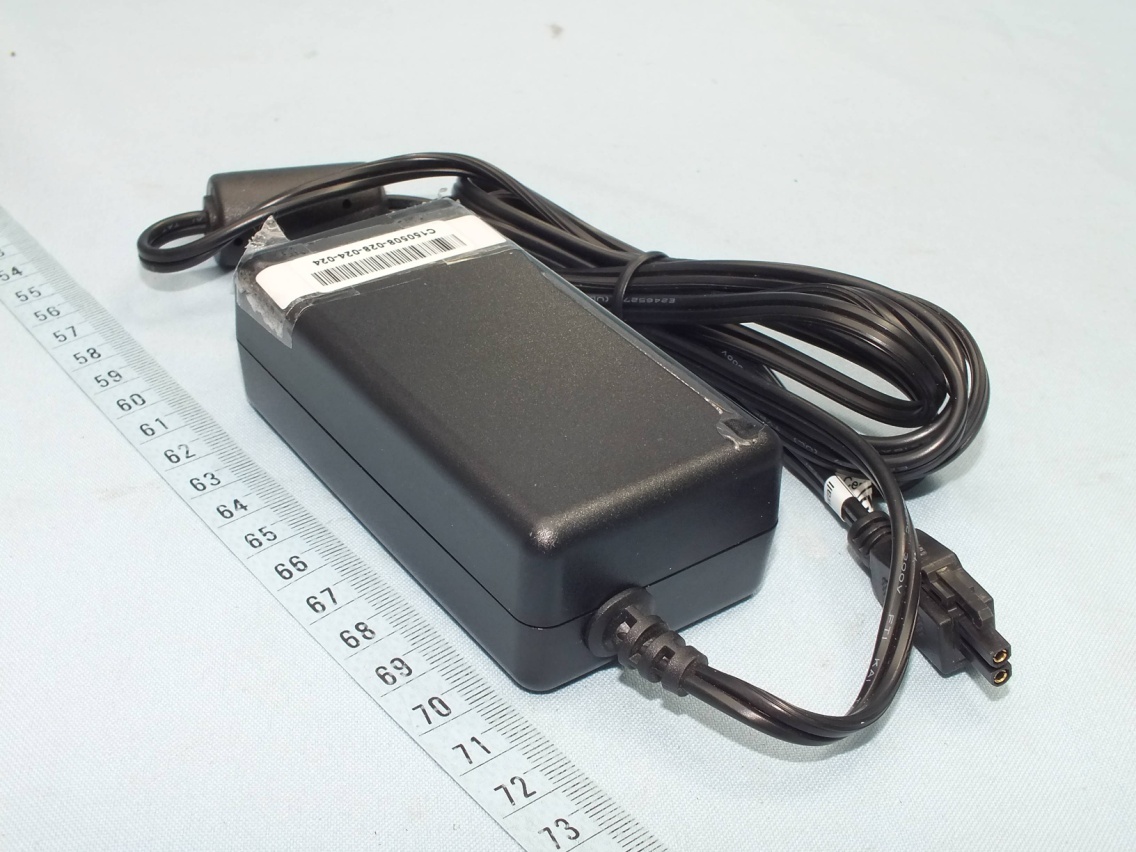

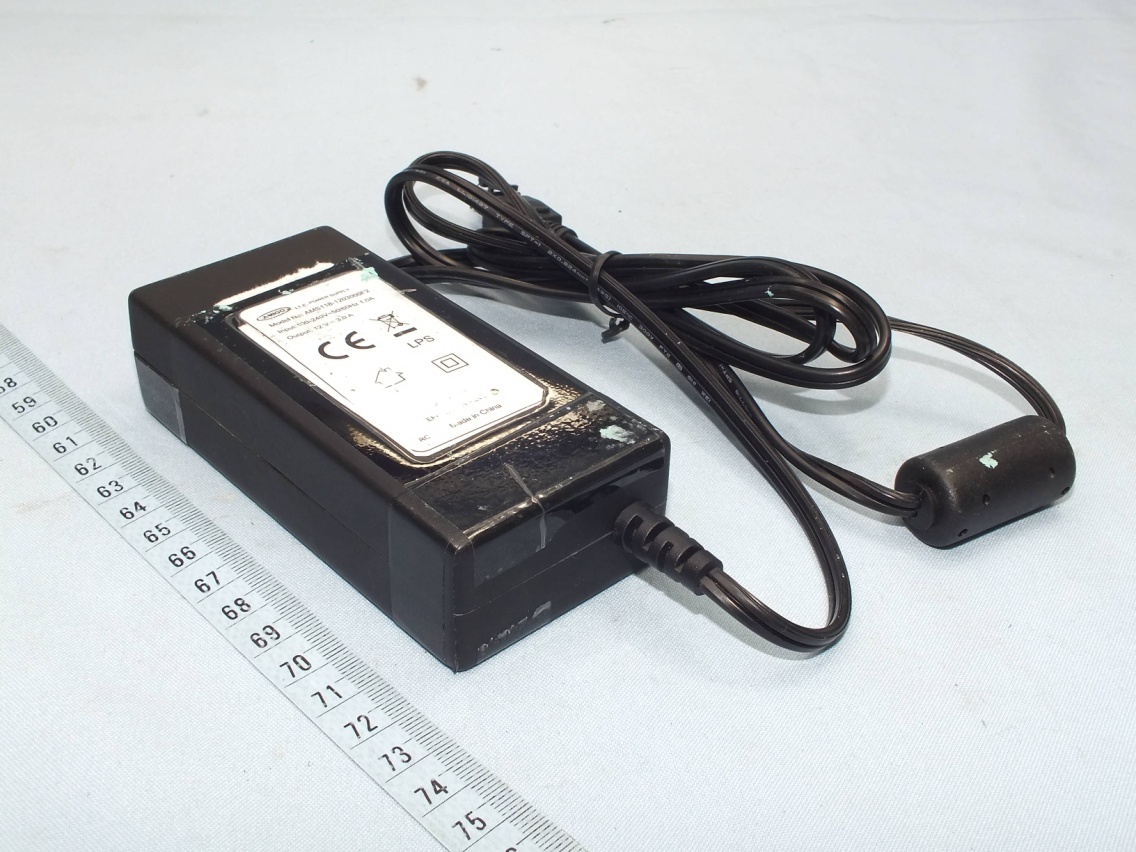

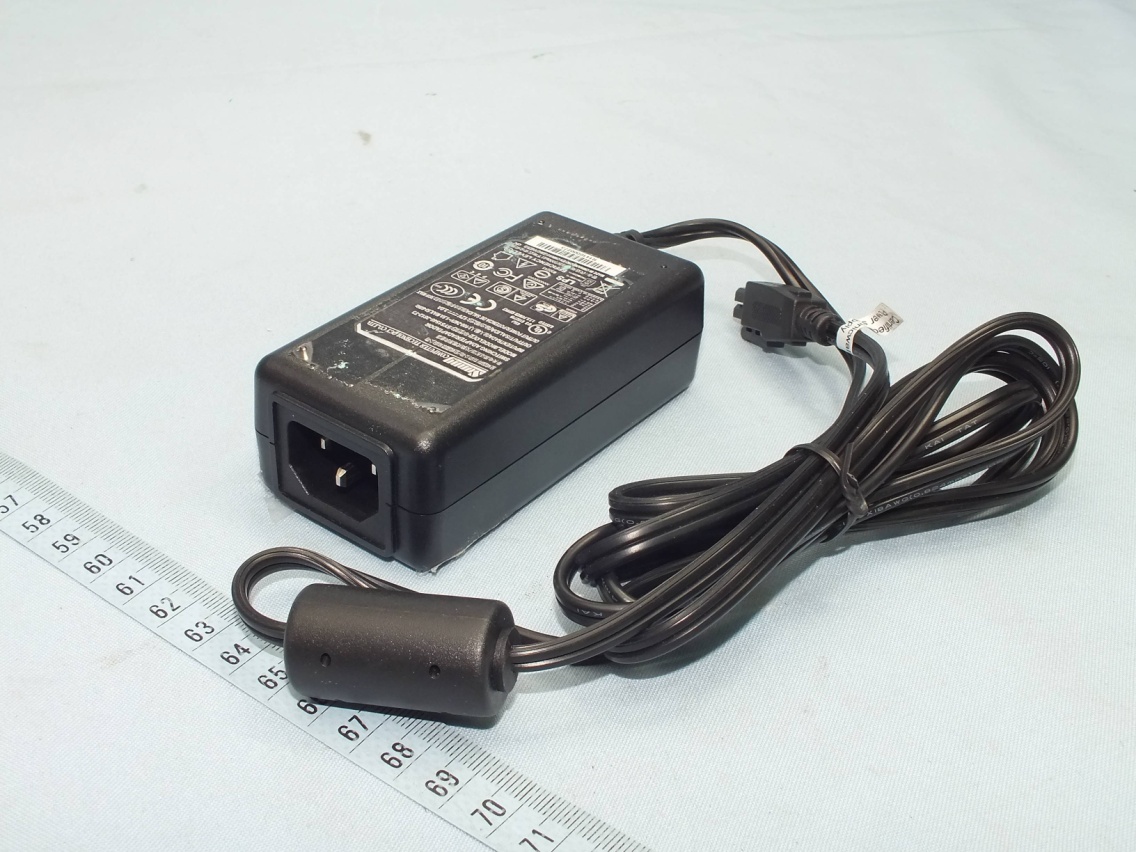

Dell SonicWALL TZ Series TZ500 / TZ500 W front and back panels Rear Panel Front Panel SonicWALL TZ500 W ss 1000 X0 lan W0 security on / act wan 1000/act 10/100/act X1X2X3X4 X5X6X7 wan X0X1X2X3X4X5X6X7 lan power console Test LED Ethernet Port Status (X0-X7) Top - Provides 10/100 Mbps Ethernet port status Bottom - Provides 1 Gbps Ethernet port status Wireless (W0) LED (TZ500 W only) Indicates 802.11 b/g/n/ac security status USB / SSD port External USB and SSD hard drive support Power LED Fast blinking - Initializing Slow blinking - SafeMode For future use Service LED Indicates Power Supply status Wireless LAN LED (TZ500 W only) Indicates 802.11 b/g/n/ac activity Antenna Screws (3) Center Antenna Screw (TZ500 W only) Provides wireless capabilities to the Dell SonicWALL appliance (TZ500 W only) The center antenna screw is only compatible with the enclosed center antenna Reset Button Press and hold for several seconds to set the appliance into Safe Mode Power Supply Provides power to the Dell SonicWALL appliance X1 Port X0 Port For WAN access For LAN access X2 - X7 Ports Console Port Access the SonicOS Command Line Interface (CLI) using a compatible CLI cable Configurable ports 1 Check package contents Verify that your package has the following contents: •Dell SonicWALL appliance •Antennas (3) (TZ500 W appliance only) •Ethernet cable •Standard power adaptor •Standard power cord •Serial console cable •Quick Start Guide NOTE: The included power cord is approved for use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location. SonicWALL TZ500 W ss 1000 X0 lan W0 security on / act wan 1000/act 10/100/act X1X2X3X4 X5X6X7 2 Power on •Connect the antennas to the appliance. Note that the center antenna is labeled and is only compatible with the center antenna screw. (TZ500 W appliance only) •Connect the power adaptor to the appliance and to the power cable. Plug the power cable into an appropriate outlet (100-240 volts AC). •The TZ appliance powers on and the Test LED blinks during the boot sequence. 120V AC (U.S.) SonicWALL TZ500 W ss 1000 X0 lan W0 security on / act wan 1000/act 10/100/act X1X2X3X4 X5X6X7 WWWW CAUTION: Only use the included power adapter with this appliance. Do not use a power adapter that is damaged or from another appliance. 3 Connect the interfaces •Connect the WAN interface (X1) to your Internet connection using a standard Ethernet cable. •Connect the LAN interface (X0) to your computer using a standard Ethernet cable. 4 Run the Setup Wizard •Navigate to https://192.168.168.168 on your Web browser. wan X1 lan X0 Internet http://192.168.168.168/ http://192.168.168.168/ •Click on the link in “To launch the Dell SonicWALL Setup Wizard, click here.” •The SonicOS Startup Guide opens. •Click Next and follow the prompts in the Startup Guide pages that follow. TIP: Your computer should be using DHCP IP addressing. •Enter the TZ appliance administrator credentials to change the password, if you wish. Click Next. •The automatic WAN IP settings are displayed. Click Next. •The new IP Configuration is displayed. Click Done. NOTE: The default administrator credentials are Username: admin Password: password NOTE: For manual configuration, refer to the latest SonicOS Administration Guide. Configuring Wireless LAN settings •Log in to your TZ appliance and click the Wizards icon. •Select the radio button for the Wireless Guide wizard. •Click Next and follow the prompts in the Wireless Guide wizard. For more information and complete procedures, refer to the latest SonicOS Administration Guide. Dell SonicWALL™ TZ500 / TZ500 W Quick Start Guide (Beta Version) TZ500 = Regulatory Model Number: APL29-0B6 TZ500W = Regulatory Model Number: APL29-0B7 Dell SonicWALL TZ Series 5 Register product •Point your browser to the appliance LAN IP address (default https://192.168.168.168) and log in using the administrator credentials. •Click Register on the System > Status page under Security Services. TIP: Registering the appliance from SonicOS requires that DNS Server settings are configured on the WAN (X1) interface. •Log in using your MySonicWALL account name and password. If you do not have a MySonicWALL account, click the Create MySonicWALL account link to create an account. •MySonicWALL directly obtains the necessary information from the TZ appliance. When finished, you will see a message that registration has been completed. Click Continue. NOTE: Your appliance must be registered to download the latest firmware. 6 Get the latest firmware •In a Web browser, navigate to http://www.mysonicwall.com •Click Downloads and select TZ500 or TZ500 W Firmware from the Software Type menu. •Click the link for the firmware you want and save the file to a location on your computer. •On the TZ appliance, navigate to the System > Settings page. Click the Upload New Firmware button. •Click the Browse button to navigate to and select the firmware you just downloaded. •Click Upload and wait for the upload to complete. •In the Firmware Management Table, click the Boot icon for your new firmware. 7 Mounting the TZ appliance For optional wall mounting, you need: •Screwdriver •Drill with appropriate size bit •For mounting on drywall: •Two #6 pan-head screws, 1 inch long (7mm diameter head, 25mm long) •Two wall anchors •For mounting on solid wood or metal: •Two #6 pan-head wood or machine screws, 1 inch long (7mm diameter head, 25mm long) To mount the appliance on the wall: 1 Drill two holes 4.5 inches (11.5 cm) apart in the wall where you want to mount the appliance. 2If using wall anchors, insert a wall anchor into each hole. 3 Insert a screw into each wall anchor (into each hole if not using wall anchors), leaving 3/16 inches (0.45 cm) of the screws exposed (including screw head). 4 Position the appliance mounting slots over the screws and press in and down until the appliance is securely mounted. WARNING: Do not mount the appliance on the ceiling, it is not …

Text truncated - open the document above for the full version.
