E2K-P14FNotebook Computer (with RFID radios)

Dell Latitude E6420/E6520 Setup and Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Front And Back View Figure 1. Latitude E6420 1. microphone 2. display release latch 3. camera 4. camera status light 5. display latch 6. display 7. Latitude ON button 8. power button 9. eSata/USB connector 10. USB 2.0 connectors (2) 11. volume control buttons 12. wireless switch Regulatory Model: P15G, P14F Regulatory Type: P15G001, P14F001 February 2011 13. optical drive 14. PC card or Express card slot 15. fingerprint reader 16. Secure Digital (SD) memory-card reader 17. contactless smart card reader 18. touchpad buttons 19. touchpad 20. trackstick buttons 21. trackstick 22. keyboard 23. device status lights 1. HDMI connector 2. security cable slot 3. modem connector 4. power and battery status lights 5. AC adapter connector 6. network connector 7. video connector (VGA) 8. USB 2.0 connector 9. audio connector 10. cooling vents 11. smart card slot WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer. 2 Front And Back View Figure 2. Latitude E6520 1. display latch 2. microphone 3. display release latch 4. camera 5. camera status light 6. display 7. Latitude ON button 8. power button 9. HDMI connector 10. eSata/USB connector 11. USB 2.0 connector 12. IEEE 1394 connector 13. optical drive 14. wireless switch 15. PC card or Express card slot 16. fingerprint reader 17. Secure Digital (SD) memory-card reader 18. contactless smart card reader 19. touchpad 20. touchpad buttons 21. trackstick buttons 22. trackstick 23. keyboard 24. volume control buttons 25. device status lights 3 1. network connector 2. security cable slot 3. modem connector 4. power and battery status lights 5. AC adapter connector 6. USB 2.0 connector 7. video connector (VGA) 8. USB 2.0 connector 9. audio connector 10. cooling vents 11. smart card slot WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer. Quick Setup WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/regulatory_compliance. WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage. 4 CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself, and pull firmly but gently to avoid damaging the cable. When you wrap the AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid damaging the cable. NOTE: Some devices may not be included if you did not order them. 1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet. Figure 3. AC Adapter 2. Connect the network cable (optional). Figure 4. Network Connector 3. Connect USB devices, such as a mouse or keyboard (optional). Figure 5. USB Connector 4. Connect IEEE 1394 devices, such as a 1394 hard drive (optional). Figure 6. 1394 Connector 5 5. Open the computer display and press the power button to turn on the computer. Figure 7. Power Button NOTE: It is recommended that you turn on and shut down your computer at least once before you install any cards or connect the computer to a docking device or other external device, such as a printer. Specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information regarding the configuration of your computer, click Start → Help and Support and select the option to view information about your computer. System Information ChipsetIntel Mobile Express Series 6 chipset ProcessorIntel Core i5 or Intel Core i7 (2nd generation) Video Video typeintegrated on system board Data busintegrated video Video controller memory512 MB Memory Memory connectortwo SODIMM slots Memory capacity1 GB, 2 GB, 4 GB, or 8GB Memory typeDDR3 SDRAM (1333 MHz) Minimum memory1 GB Maximum memory8 GB 6 Battery Type • 4-cell "smart" Lithium ion • 6-cell "smart" Lithium ion • 9-cell "smart" Lithium ion Dimensions: 4–cell and 6–cell Depth48.08 mm (1.90 inches) Height20.00 mm (0.79 inches) Width208 mm (8.18 inches) 9–cell Depth71.79 mm (2.83 inches) Height20 mm (0.79 inches) Width214 mm (8.43 inches) Weight 4-cell240.00 g (0.53 lb) 6-cell343.00 g (0.76 lb) 9-cell510.00 g (1.12 lb) Voltage 4-cell14.80 VDC 6-cell and 9-cell11.10 VDC Temperature range: Operating0 °C to 35 °C (32 °F to 95 °F) Non-Operating–40 °C to 65 °C (–40 °F to 149 °F) Coin-cell battery3 V CR2032 lithium coin cell AC Adapter Type65 W, 90 W, and 150 W NOTE: 65 W adapter is available only for computers with integrated video card 7 AC Adapter NOTE: 150 W AC adapter is only available with Latitude E6420 Input voltage100 VAC to 240 VAC Input current (maximum)1.5 A, 1.6 A, 1.7 A, and 2.1 A Input frequency50 Hz to 60 Hz Output power65 W, 90 W, or 150 W Output current3.34 A, 4.62 A and 7.70 A (continuous) Rated output voltage19.5 +/– 1.0 VDC Temperature range: Operating0 °C to 40 °C (32 °F to 104 °F) Non-Operating–40 °C to 70 °C (–40 °F to 158 °F) Physical L…

Text truncated - open the document above for the full version.

FCC Radiation Exposure Statement WARNING: The radiated output power of Dell RFID devices is far below the FCC radio frequency exposure limits. Nevertheless, Dell RFID devices should be used in such a manner that the potential for human contact during normal operation is minimized. This device has also been evaluated for and shown compliant with the FCC RF exposure limits under portable exposure conditions (antennas are within 20 cm of a person's body) when installed in certain specific OEM configurations. Details of the authorized configurations can be found at http://www.fcc.gov/oet/fccid/help.html by entering the FCC ID number on the device. Interference Statement These devices comply with Part 15 of the FCC Rules. Operation of the devices is subject to the following two conditions: (1) The devices may not cause harmful interference, and (2) The devices must accept any interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instructions, the equipment may cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures: Relocate this device. Increase the separation between the device and the receiver. Connect the device into an outlet on a circuit different from that of other electronics. Consult the dealer or an experienced radio technician for help. NOTE: Dell RFID devices must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations. Modifications not expressly approved by Dell could void your authority to operate the equipment.

Dell Inc. Richard Worley, NCE MS: PS4-30 EMC, Global Regulations and Standards One Dell Way Telephone 512.728.1081 Round Rock, Texas 78682 Telefax 512.283.9268 www.dell.com e-mail [email protected] Worldwide Regulatory Compliance Engineering & Environmental Affairs November 03, 2010 To whom it may concern, I, the undersigned, as the authorized signatory for the Dell Inc grantee code E2K, hereby authorize Fiona Y Chen, EMC & Wireless Regulatory Engineering of Dell Inc., to act on my behalf in all manners relating to application (FCC ID: E2K-P14F) for equipment authorization, including signing of all documents relating to this application. Any and all acts carried out by Fiona Y Chen of Dell Inc. on our behalf shall have the same effects as acts of our own. This authorization shall be sent along with application when filing with the FCC Certification Division and is valid until further written notice from the applicant. If you have any questions or need additional information, please feel free to contact me at 512-728-1081 or 512-431-1084. Sincerley, Richard Worley Dell Inc. FRN: 0008359580

Date:November 3, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: E2K-P14F Confidentiality Request To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until Increase from 180 days from the date of approval. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Name/Title: Mrs. Fiona Y Chen / Sr. Regulatory Compliance Engineer Company Name: Dell Inc. Address: 11F,No.218,Sec.2, Tun Hua S.Road Taipei, Taiwan, R.O.C TEL: (886)2- 2736-6352 FAX: (886)2- 2736-9067 Email: [email protected]

Date: Nov. 02, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Stan Lin / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Stan Lin / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name/Title: Mrs. Fiona Y Chen / Sr. Regulatory Compliance Engineer Company Name: Dell Inc. Address: 11F,No.218,Sec.2, Tun Hua S.Road Taipei, Taiwan, R.O.C TEL: (886)2- 2736-6352 FAX: (886)2- 2736-9067 Email: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

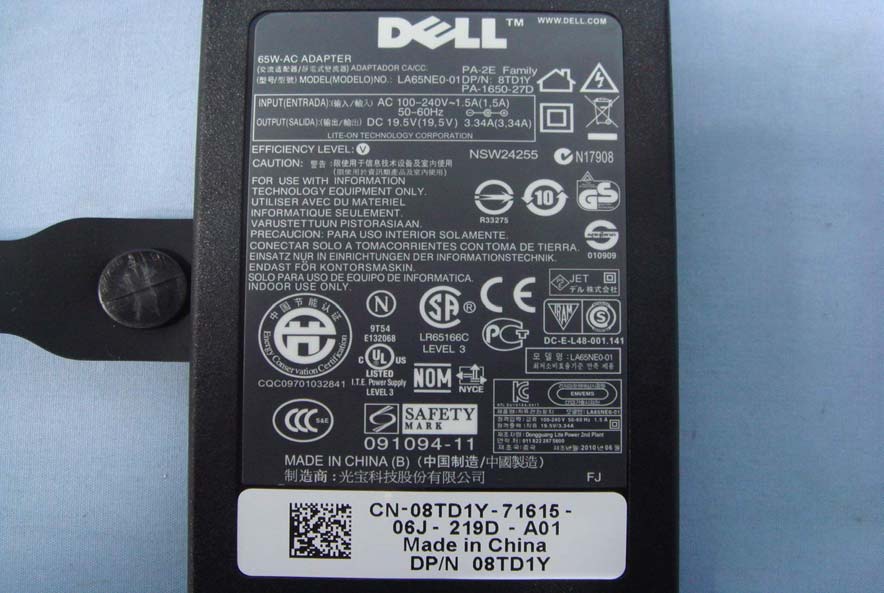

Report No: T101022103 Page 1 / 7 EXTERNAL PHOTOGRAPHS OF EUT Report No: T101022103 Page 2 Report No: T101022103 Page 3 Report No: T101022103 Page 4 Report No: T101022103 Page 5 Report No: T101022103 Page 6 DELL / LA65NE0-01D Report No: T101022103 Page 7

30 40 Lynn_Li 10/26-10” PAL60-0FHRFID LABEL 100% A4 00 00 NOTE:1. MA 7(5,$/ȝ WHITE MATT POLYESTER FILM T=0.05MM. 2. COLOR: BACKGROUND: BLACK GE 701 CHARACTER: PMS431C3. THICKNESS: 0.075MM (±0.02MM) (INCLUDE ADHESIVE) 4. MATERIAL NO.: XXXXXXXXXXX5. SIZE: L30XW40MM, TOLERANCE:± 0.1MM6. ADHESIVE: ACRYLIC #R ADHESIVE7. USE WATER DISSOVING INK, INK CONTAINS HEAVY METAL IS PROHIBITED. 8. PIECE BY PIECE 2010 / 11 / 26 C4 R=0.5X(3) DPN: XXXXX A00 P14FMOC: XX-XXXXXTRC/LPD/20XX/XIC: 1514B-P14FFCC ID: E2K-P14FSUBTEL: XXXX/DFRS XXXXX/F-XXXXXXX/POSTEL/2010 XXXXComplies with IDA standards DA 104847 N889 Z233 E2K-P14F001 (B) Type Accepted:No: ESD-XXXXXXXX NTC CCAEXXXXXXXXXX Macallan RFID Regulatory LABEL

2010/12/11 00 NOTE: 1. MATERIAL: WHITE POLYESTER FILM, T:0.05mm 2. THICKNESS: T:0.075mm (INCLUDE SINGLE STICK) 3. COLOR: BACKGROUND: BLACK GE 701 CHARACTER: PMS431C 4. ADHESIVE: ACRYLIC ADHESIVE 5. MATERIAL NO.: EJ0FH000500 6. USE WATER DISSOLVING INK 7. INK CONTAINS HEAVY METAL IS PROHIBITED 8. PIECE BY PIECE 11/11/10Lynn_Li PAL60 REGULATORY LABEL DPN:5P328 A00 筆記型電腦 www.dell.com Dell Inc. IC Class: B ICES-003 Reg Model / 型號: P14F Reg Type No: P14F001 R33002 DELL E2K-P14F001(B) U L US LISTED C E105106 CM-2 Input /輸入/ Daya: 19.5V 3.34A / 4.62A 15 +0.10 - 0.20 98.5 +0.10 - 0.20 R 0.5 x 4 7.838 5.593 8.021 5.664 4.9 4.9 RATING NP 0FH REG NBK WW E6520 5P328 Macallan 15 Label Plan REVECODESCRIPTION DATEDesigner Approved X00Initial Release05.20.2010Kay_Chou X01 Update Bottom Door Label Location, COO and Service Tag Color & Printing Label Info, Base Lower Drawing, Palmrest Drawing Add One More Mii Label on Base Door 07.21.2010 Kay_Chou X02Update COA Label Size07.23.2010Kay_Chou X03 Add PPID Label on Base Door Core Side 08.13.2010 Kay_Chou X04 Update Bottom Door Strike Zone 09.07.2010 Kay_Chou X05 Update Printing Label Info & Location, Regulatory Label Size, PPID Label Location 10.08.2010 Kay_Chou X06 Update Bottom Door Regulatory Label & Service Tag 10.26.2010 Kay_Chou Macallan_15_Palmrest_Label 1 of 12010.10.26 2011.06.03 06 Macallan_15_Palmrest_Label Robert_Pai Kay_Chou DateSheet Security Classification Rev. B.RD Phase Expiration Data Engineer Designer Approved Scale1:1mmUnit.Drawing No. Title THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERRED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. INDUSTRIAL DESIGN CENTER 5mm5mm5mm 5mm Intel Macallan_15_Palmrset_Label MS GWE (33.5x13.5mm) (20.79x15.593mm) (18x22mm) Mii (40mmx20mm) Macallan_15_Base Door_Label ( Base Door ) Mii 3mm 5mm 5mm Align 3mm Macallan_15_Base Door_Label 1 of 12010.10.26 2011.06.03 06 Macallan_15_Base Door_Label Robert_Pai Kay_Chou DateSheet Security Classification Rev. B.RD Phase Expiration Data Engineer Designer Approved Scale1:1mmUnit.Drawing No. Title THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERRED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. INDUSTRIAL DESIGN CENTER (40mmx20mm) (34mmx11mm) (34mmx11mm) (34mmx11mm) (34mmx11mm) (34mmx11mm) Anatel 34mmx11mm only for Brazil SIRIM 15mmx10mm only for Malaysia ICASA 19.1mmx6.4mm only for South Africa CMIIT 20mmx7mm only for China Possible Labels Regulatory Label ( 71.5x10mm ) 0.2mm around Service Tag ( 71.5x5.5mm ) 0.2mm around 1 2 m m MDC label Artwork 53x30mm AMT label 10x20 mm Macallan_15_Base Door_Label ( Base Door ) Macallan_15_Base Door_Label 1 of 12010.10.26 2011.06.03 06 Macallan_15_Base Door_Label Robert_Pai Kay_Chou DateSheet Security Classification Rev. B.RD Phase Expiration Data Engineer Designer Approved Scale1:1mmUnit.Drawing No. Title THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERRED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. INDUSTRIAL DESIGN CENTER RFID label Artwork 40x30mm WPAN/BT label Artwork 40x30mm WWAN label Artwork 40x30mm WLAN label Artwork 40x30mm

Report No: T101022103 Page 1 / 9 INTERNAL PHOTOGRAPHS OF EUT Report No: T101022103 Page 2 Report No: T101022103 Page 3 Antenna Location Report No: T101022103 Page 4 UMA Type Report No: T101022103 Page 5 Report No: T101022103 Page 6 Discrete Type Report No: T101022103 Page 7 Report No: T101022103 Page 8 Yageo Antenna Report No: T101022103 Page 9 Tyco Antenna

Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 1 / 25 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Notebook Computer (with RFID radios) Regulatory Model: P14F Regulatory Type: P14F001 Trade Name: DELL Issued to Dell Inc. ONE DELL WAY, ROUND ROCK, TEXAS 78682, U.S.A. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 27, 2010 Initial Issue ALL Celine Chou Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..................................................................................... 4 2 EUT DESCRIPTION ......................................................................................................... 5 3 TEST METHODOLOGY ................................................................................................... 6 3.1. EUT CONFIGURATION ........................................................................................... 6 3.2. EUT EXERCISE ....................................................................................................... 6 3.3. GENERAL TEST PROCEDURES ............................................................................ 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................ 7 3.5. DESCRIPTION OF TEST MODES........................................................................... 8 4 INSTRUMENT CALIBRATION......................................................................................... 9 4.1. MEASURING INSTRUMENT CALIBRATION .......................................................... 9 4.2. MEASUREMENT EQUIPMENT USED .................................................................... 9 4.3. MEASUREMENT UNCERTAINTY ......................................................................... 10 5 FACILITIES AND ACCREDITATIONS........................................................................... 11 5.1. FACILITIES ............................................................................................................ 11 5.2. EQUIPMENT .......................................................................................................... 11 5.3. TABLE OF ACCREDITATIONS AND LISTINGS.................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST........................................................................ 13 6.1. SETUP CONFIGURATION OF EUT ...................................................................... 13 6.2. SUPPORT EQUIPMENT ........................................................................................ 13 7 FCC PART 15.225 REQUIREMENTS ............................................................................ 14 7.1. RADIATED EMISSIONS ........................................................................................ 14 7.2. FREQUENCY STABILITY ...................................................................................... 18 7.3. POWERLINE CONDUCTED EMISSIONS ............................................................. 20 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................... 23 Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Dell Inc. ONE DELL WAY, ROUND ROCK, TEXAS 78682, U.S.A. Equipment Under Test: Notebook Computer (with RFID radios) Trade Name: DELL Regulatory Model: P14F Regulatory Type: P14F001 Date of Test: October 22 ~ 26, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.225. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Supervisor Jack Chang Engineer Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Notebook Computer (with RFID radios) Trade Name DELL Regulatory Model P14F Regulatory Type P14F001 Model Difference N/A EUT Power Rating 19.5VDC, 3.34A Power Adapter Manufacturer DELL Model LA65NE0-01D Power Adapter Power Rating I/P: 100-240VAC, 50-60Hz, 1.5A O/P: 19.5VDC, 3.34A Operating Frequency Range 13.56MHz Modulation Technique ASK/BPSK Number of Channels 1 Channels Antenna Specification Coil Antenna Remark: 1. The sample selected for test was engineering sample that approximated to production product and was …

Text truncated - open the document above for the full version.

Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 25 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 30MHz Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 26 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 30 ~ 1000MHz Report No: T101022103-RP1 FCC ID: E2K-P14F Date of Issue: October 27, 2010 Page 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos
