FCC Radiation Exposure Statement WARNING: The radiated output power of the Dell Wireless WLAN Card devices is far below the FCC radio frequency exposure limits. Nevertheless, the Dell Wireless WLAN Card devices should be used in such a manner that the potential for human contact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep a distance of at least 20 cm between you (or any other person in the vicinity) and the antenna that is built into the printer. To determine the location of the antenna within your printer, check the information posted on the general Dell support site at http://support.dell.com . This device has also been evaluated for and shown compliant with the FCC RF exposure limits under portable exposure conditions (antennas are within 20 cm of a person's body) when installed in certain specific OEM configurations. Details of the authorized configurations can be found at http://www.fcc.gov/oet/fccid/help.html by entering the FCC ID number on the device. Interference Statement This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Notice: The FCC regulations provide that changes or modifications not expressly approved by Dell Inc. could void your authority to operate this equipment. These limits are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient the receiving antenna. • Relocate the system with respect to the receiver. • Move the system away from the receiver. • Plug the system into a different outlet so that the system and the receiver are on different branch circuits. If necessary, consult a representative of Dell Inc. or an experienced radio/television technician for additional suggestions. NOTE: This Dell Wireless WLAN Card must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations. Modifications not expressly approved by Dell could void your authority to operate the equipment. This device must not be co-located or operating in conjunction with any other antenna or transmitter.

程智科技股份有限公司 Compliance Certification Services Inc. Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 11.08.09 Datum: 00.00.00 Seite 1 von 1 Attn: Reviewing Engineer Date: 1/29/2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID : E2K-PP30LA, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature, Signature: _________________________ NAME: Steven Wang / Section Manager TITLE: Date: January 28, 2010 TESTING LABORATORY: Compliance Certification Services Inc. Note: This form must be completed and provided with the submission.

Dell Inc. Richard Worley, NCE MS: PS4-30 EMC, Global Regulations and Standards One Dell Way Telephone 512.728.1081 Round Rock, Texas 78682 Telefax 512.283.9268 www.dell.com e-mail [email protected] January 15, 2010 To whom it may concern, I, the undersigned, as the authorized signatory for the Dell Inc grantee code E2K, hereby authorize Jorge C. Marcet, EMC & Wireless Regulatory Engineer of Dell Inc., to act on my behalf in all manners relating to application (FCC ID: E2K-PP30LA) for equipment authorization, including signing of all documents relating to this application. Any and all acts carried out by Jorge C. Marcet of Dell Inc. on our behalf shall have the same effects as acts of our own. This authorization shall be sent along with application when filing with the FCC Certification Division and is valid until further written notice from the applicant. If you have any questions or need additional information, please feel free to contact me at 512- 728-1081 or 512-431-1084. Sincerly, Richard Worley Dell Inc. FRN: 0008359580

January 18, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: E2K-PP30LA Confidentiality Request To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 04/22/2010: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Jorge C. Marcet EMC & Wireless Regulatory Engineer Worldwide Regulatory Compliance Dell Product Group, Dell Inc. 512-724-3783 [email protected]

Jan, 21, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No 81-1, Lane 210, Pa-De Road 2, Luchu Hsiang 338 ,Taoyuan Hsien, Taiwan. R.O.C. Mr. Steve Wang Job Title: S.M. Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Brand Name: DELL Model Name: PP30LA FCC ID:E2K-PP30LA Product Name: Notebook Computer Signature____________________ Jorge C. Marcet/EMC & Wireless Regulatory Engineer Worldwide Regulatory ComplianceDell Product Group, Dell Inc. TEL:512-724-3783 E-mail:[email protected] ÷±Æπª ›Ú ”øÆΩª ̈ ÓÔÚÔÚÓË ÔÊÏÁÊÏÍ ÛÍ ̆ ̆

From: [email protected] To: Alan Lane <[email protected]> Date: Monday, February 01, 2010 10:56AM Subject: : TCB_91215107_DELL Inc._FCC ID: E2K-PP30LA Dear Sir Best regards, 若 / Jill Shiau Compliance Certification Services Inc. Tel: 886-3-324-0332#27 Fax: 886-3-324-7460 E-Mail: [email protected] Hi Jill, From the label and Block Diagram, we could find the relevant information about the other RF module(such as BT function) which is not included in this application, please address it. Regards, Alan Lane -------------------------- PHOENIX TESTLAB GmbH FCC TCB, IC FCB Koenigswinkel 10 32825 Blomberg Germany ______________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact : Alan Lane <[email protected]> : [email protected] : 2010/02/01 09:27 : TCB_91215107_DELL Inc._FCC ID: E2K-PP30LA immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention.

程智科技股份有限公司 Compliance Certification Services Inc. Date: March 3, 2010 Subject: Change Test Report & Label Format & Location Dear Sir/Madame: We request to remove the Manufacture information and Label Format & Location as per customer requirement. Model: PP30LA RE: FCC ID: E2K-PP30LA Report No.: 91215107-RP1 As acknowledgement and response, please send it to Compliance Certification Services Inc. directly. Should you have any questions or comments regarding this matter, please have my attention. Signature: _________________________ NAME: Steven Wang TITLE: Section Manager Date: March 3, 2010 TESTING LABORATORY: Compliance Certification Services Inc.

Request Letter for Supersede of Exhibits Dated: March 3, 2010 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oaklamd Mills Road Columbia, MD 21046 U.S.A. Dear Sir, Due to the brand applicant does not hope that there is the information of OEM manufacture on the label and test report for FCC ID: E2K-PP30LA, they would like to change these two exhibits. We may need your help to remove this exhibit from the database. Thank you for your help. If there are any questions, please contact me via the e-mail: [email protected] Sincerely yours, Alan Lane Phoenix Test Lab, Germany

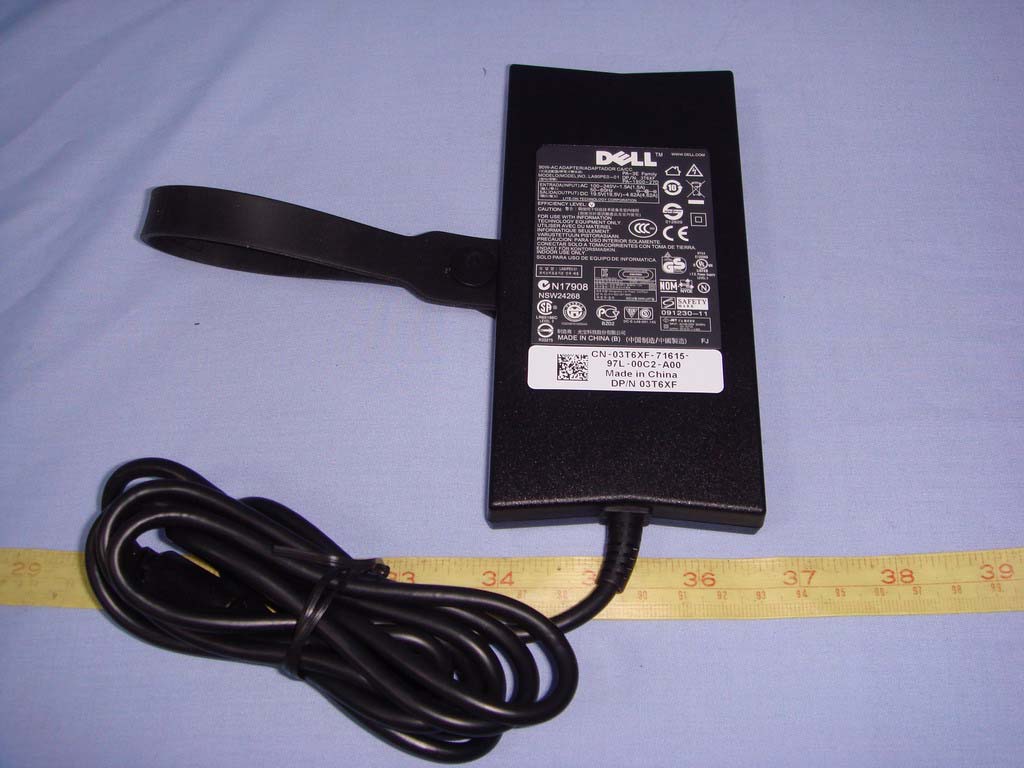

Report No: 91215107 Page 1 / 5 EXTERNAL PHOTOGRAPHS OF EUT Report No: 91215107 Page 2 Report No: 91215107 Page 3 Report No: 91215107 Page 4 Report No: 91215107 Page 5

Report No: 91214105 Page 1 / 8 INTERNAL PHOTOGRAPHS OF EUT Antenna Location Report No: 91214105 Page 2 Discrete Type Report No: 91214105 Page 3 RF Module Report No: 91214105 Page 4 ASICS Type Report No: 91214105 Page 5 RF Module Report No: 91214105 Page 6 UMA Type Report No: 91214105 Page 7 RF Module Report No: 91214105 Page 8 Antenna

Report No: 91215107-RP1 FCC ID: E2K-PP30LA Date of Issue: Jan. 28, 2010 Page 1 / 26 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Notebook Computer Regulatory Model: PP30LA Regulatory Type: PP30LA001 Trade Name: DELL Issued to Dell Computer Corporation ONE DELL WAY, ROUND ROCK, TEXAS 78682, U.S.A. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: 91215107-RP1 FCC ID: E2K-PP30LA Date of Issue: Jan. 28, 2010 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 Dec. 22, 2009 Initial Issue ALL Jill Shiau Report No: 91215107-RP1 FCC ID: E2K-PP30LA Date of Issue: Jan. 28, 2010 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..................................................................................... 4 2 EUT DESCRIPTION ......................................................................................................... 5 3 TEST METHODOLOGY ................................................................................................... 6 3.1. EUT CONFIGURATION ........................................................................................... 6 3.2. EUT EXERCISE ....................................................................................................... 6 3.3. GENERAL TEST PROCEDURES ............................................................................ 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................ 7 3.5. DESCRIPTION OF TEST MODES........................................................................... 8 4 INSTRUMENT CALIBRATION......................................................................................... 9 4.1. MEASURING INSTRUMENT CALIBRATION .......................................................... 9 4.2. MEASUREMENT EQUIPMENT USED .................................................................... 9 4.3. MEASUREMENT UNCERTAINTY ......................................................................... 10 5 FACILITIES AND ACCREDITATIONS........................................................................... 11 5.1. FACILITIES ............................................................................................................ 11 5.2. EQUIPMENT .......................................................................................................... 11 5.3. TABLE OF ACCREDITATIONS AND LISTINGS.................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST........................................................................ 13 6.1. SETUP CONFIGURATION OF EUT ...................................................................... 13 6.2. SUPPORT EQUIPMENT ........................................................................................ 13 7 FCC PART 15.225 REQUIREMENTS ............................................................................ 14 7.1. RADIATED EMISSIONS ........................................................................................ 14 7.2. FREQUENCY STABILITY ...................................................................................... 19 7.3. POWERLINE CONDUCTED EMISSIONS ............................................................. 21 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................... 24 Report No: 91215107-RP1 FCC ID: E2K-PP30LA Date of Issue: Jan. 28, 2010 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Dell Computer Corporation ONE DELL WAY, ROUND ROCK, TEXAS 78682, U.S.A. Equipment Under Test: Notebook Computer Trade Name: DELL Regulatory Model: PP30LA Regulatory Type: PP30LA001 Date of Test: December 14, 2009 ~ January 26, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.225. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Ethan Huang Section Manager Stan Lin Supervisor Report No: 91215107-RP1 FCC ID: E2K-PP30LA Date of Issue: Jan. 28, 2010 Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Notebook Computer Trade Name DELL Regulatory Model PP30LA Regulatory Type PP30LA001 Model Difference N/A EUT Power Rating 19.5VDC, 4.62A Power Adapter Manufacturer DELL Model LA90PE0-01 Power Adapter Power Rating I/P: 100-240Vac, 50-60Hz, 1.5A O/P: 19.5V, 4.62A Operating Frequency Range 13.56MHz Modulation Technique ASK Number of Channels 1 Channels Antenna Specification Coil Antenna Remark: 1. The sample selected for test was engineering sample that approximated to …
