E2K-WPER-116GN802.11bgn Mini PCIe Module

WiFi Network card Quick Installiaton Guide Version 1.0 WPER-116GN PRODUCT SPECIFICATION Model Name WPER-116GN Bus Interface PCI Express Form Factor Mini PCIe Frequency Band 2.4GHz~2.484GHz Chipset Solution Ralink RT3090 RF Chain 1 Transmitter and 1 Receiver Antenna Port 1 Main: TX0 ; RX0 Dimension 30.00mm x 26.80mm x 3.3mm (+/- 0.15 mm) Channel Number 802.11b mode US : Ch 1 ~ Ch 11 EU : Ch 1 ~ Ch 13 Japan : Ch 1 ~ Ch 14 802.11g mode US : Ch 1 ~ Ch 11 EU : Ch 1 ~ Ch 13 Japan : Ch 1 ~ Ch 13 EWC 20MHz Bandwidth US : Ch 1 ~ Ch 11 EU : Ch 1 ~ Ch 13 Japan : Ch 1 ~ Ch 13 EWC 40MHz Bandwidth US : Ch 3 ~ Ch 9 EU : Ch 3 ~ Ch 11 Data Rate 11b mode 1, 2, 5.5, 11Mbps 11g mode 6, 9, 12, 18, 24, 36, 48,54Mbps EWC mode Refer Table1.1 Modulation 11b mode DSSS(PSK/CCK, DBPSK, DQPSK) 11g mode OFDM(BPSK, QPSK, 16-QAM, 64QAM) EWC mode OFDM(BPSK, QPSK, 16-QAM, 64QAM) RF output power 11b mode 17 dBm ± 1.5 dBm 11g mode 14 dBm ± 1.5 dBm EWC 20MHz 14 dBm ± 1.5 dBm EWC 40MHz 14 dBm ± 1.5 dBm Receive Sensitivity 11b mode -85dBm@1Mbps, ± 2dB 11g mode -65dBm@54Mbps, ± 2dB EWC 20MHz -65dBm@MCS7, ± 2dB EWC 40MHz -60dBm@MCS7, ± 2dB Power requirements DC3.3V ± 10% Power consumption Continue TX : Max 450mA Continue RX : Max 300mA Idle mode : Max 150mA Security WEP / WPA / WPA2 Cisco CCX CCX5 Compliance Software support Windows XP/Vista/Win7/Linux/WinCE driver Operating Range The transmission speed varies in the surrounding environment. Temperature 0 ~ 55°C (Operating), -20~85°C (Storing) 1 Contents 1. Package Contents ........................................................................................................... 3 2. WiFi Network Card Installation ........................................................................................ 4 3. Connect to Wireless Access Point .................................................................................. 8 2 Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. April 2012 3 1. Package Contents Before you starting to use this WiFi network card, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: Package Contents Please make sure you have the following in the box:  WiFi network card  CDROM Note: if anything is missing, please contact your vendor 4 2. WiFi Network Card Installation 1. Put wifi module onto the expansion Adapter of the platform. 2. If he following message appear on your computer, click ‘Cancel’. 3. Insert the Driver CD then wait for the Autorun prompt. 5 4. If Autorun does not work, please browse the CD content and double click the “Setup.exe”. 5. Click “Next” and then follow the instructions on the screen to continue the installation. 6 7 6. When you see this message, please click “Finish” to complete the driver installation process. 8 3. Connect to Wireless Access Point 1. After installation is complete, a small Ralink icon appears in the notifications area of the taskbar. You can double click it to maximize the RaUI dialog box. 2. When starting RaUI, the system will connect to the AP with best signal strength without setting a profile or matching a profile setting. When starting RaUI, it will issue a scan command to a WiFi network card. After two seconds, the AP list will be updated with the results of a BSS list scan. The AP list includes most used fields, such as SSID, network type, channel used, wireless mode, security status and the signal percentage. The arrow icon indicates the connected BSS or IBSS network. The dialog box is shown below. You could click the two buttons which red arrow pointed to open the “Site Survey” and “Link Information” page to show detail information. 9 3. You could follow the steps to connect to the AP which you want to connect (Example to Configure Connection with WPA2-PSK). a. Select the AP and click “Connect” icon . b. Authentication/Encryption function appears. 10 c. Select WPA2-PSK as the Authentication Type. Select TKIP or AES encryption. Enter the WPA Pre-Shared Key. d. Click "OK". Be careful, if the WPA Pre-Shared Key entered is not correct, you won’t be able to exchange any data frames, even though the AP can be connected. 11 4. At last, if you want to know more using method of RaUI, you could refer to the help file by click the question mark at the top right corner of RaUI to open it. 12 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept…

Text truncated - open the document above for the full version.

Date: September 29, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: E2K-WPER-116GN To Whom it may concern, We, Dell Inc., declare that the device (FCC ID: E2K-WPER-116GN ) 1. is acting as slave and operating on 2.4GHz band. 2. Ad Hoc function is available. 3. is not able to operate in non-US/IC frequencies, country code selection will be disable for this device. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Dell Inc. Address : One Dell Way Round Rock Texas 78682 United States Signature : Name and Job Title. : Benton S. Ng / Regulatory Compliance Engineer E-mail [email protected] Tel. 1-408-755-8238

Confidentiality Request Letter Date: 2014/9/29 Federal Communications Commission Authorization and Evaluation Division FCC ID：E2K-WPER-116GN Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Dell Inc. Applicant’s company address : One Dell Way Round Rock Texas 78682 United States Signature : Job Title and Dept. : Benton S. Ng / Regulatory Compliance Engineer E-mail : [email protected] Tel. : 1-408-755-8238

Module Approval Request Letter Subject: Module Approval request letter Date: 9/29/2014 FCC ID: E2K-WPER-116GN Dear Reviewer, We, Dell Inc., would request 802.11b/g/n Mini PCIe Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (RT3090). 3. The requirement of power supply regulation: The EUT included regulator circuitry itself. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : Dell Inc. Applicant’s company address : One Dell Way Round Rock Texas 78682 United States Signature : Job Title and Dept. : Benton S. Ng / Regulatory Compliance Engineer E-mail : [email protected] Tel. : 1-408-755-8238

Date: 2014/9/29 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: E2K-WPER-116GN Product name: 802.11b/g/n 1T1R Mini PCIe Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WPER-116GN to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Kevin Liang Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Dell Inc. Address : One Dell Way Round Rock Texas 78682 United States Signature : _________________________________ Name and Job Title. : Benton S. Ng / Regulatory Compliance Engineer E-mail : [email protected] Tel. : 1-408-755-8238

Dell Inc. Richard Worley, NCE MS: PS4-30 EMC, Global Regulations and Standards One Dell Way Telephone 512.728.1081 Round Rock, Texas 78682 Telefax 512.283.9268 www.dell.com e-mail [email protected] Worldwide Regulatory Compliance Engineering & Environmental Affairs Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March 27, 2013 FCC authorization letter for Dell Regulatory employees To whom it may concern, I, the undersigned, as the authorized signatory for the Dell Inc. grantee code E2K, hereby authorize the following EMC & Wireless Regulatory Engineers of Dell Inc., to act on my behalf as our agent in all manners relating to processes required according to FCC rules for equipment authorization: Thanh Nguyen Chase Berry Fiona Y Chen Hank Liu Don Bobo Steve L Williams Rick Linford James Carrillo Benton S Ng Alden Neilson Angelica Chang This authorization shall be sent along with application when filing with the FCC Certification Division and is valid until further written notice from the applicant. If you have any questions or need additional information, please feel free to contact me at 512-728-1081 or 512-431-1084. Sincerely, Richard Worley Dell Inc. FRN: 0008359580

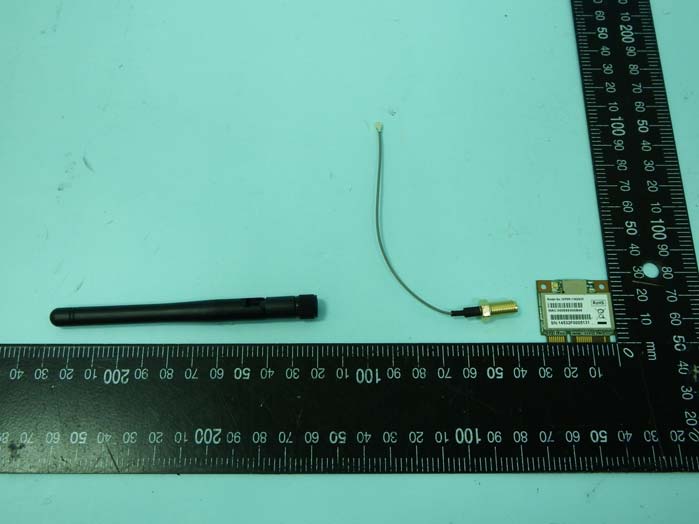

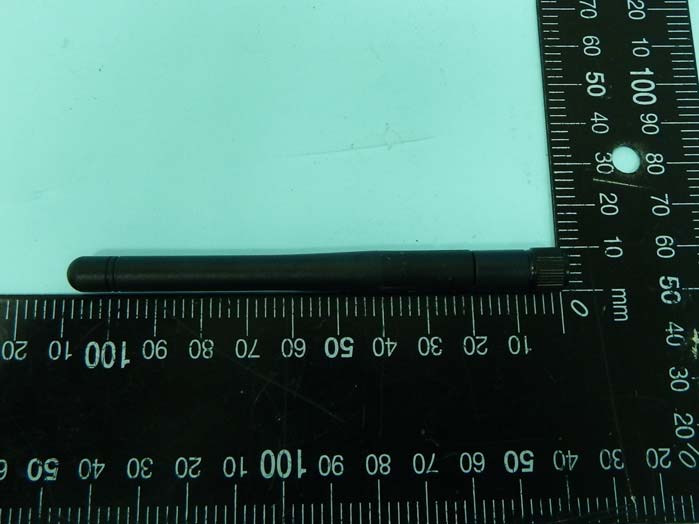

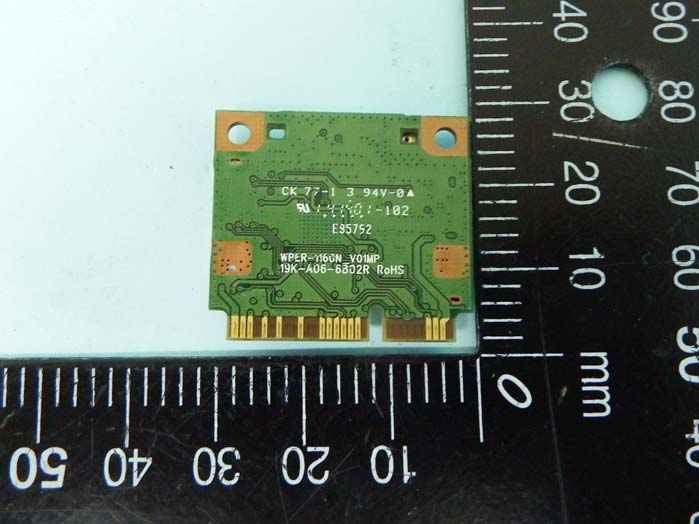

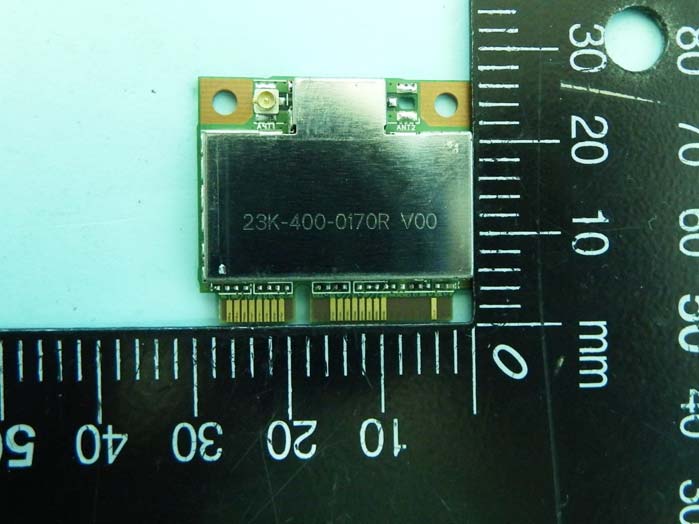

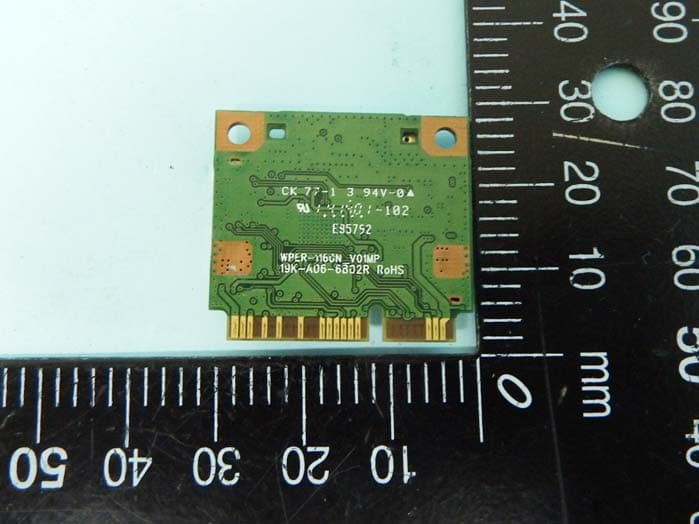

FCC Test Report Report No. : FR481817 SPORTON International Inc. PAGE NUMBER : B1 OF B6 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR481817 SPORTON International Inc. PAGE NUMBER : B2 OF B6 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR481817 SPORTON International Inc. PAGE NUMBER : B5 OF B6 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR481817 SPORTON International Inc. PAGE NUMBER : B6 OF B6 TEL : 886-3-327-3456 ISSUED DATE : Oct. 02, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : FR481817 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 30, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR481817 SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Sep. 30, 2014 FAX : 886-3-327-0973

RF Exposure Report Report No. : FA481817 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900/ f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F/300 6 1,500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/ f 2.19/ f (180/ f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 - - F/1500 30 1,500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA481817 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 21.08 2400-2483.5 g 2412-2462 1-11 [11] 1 16.47 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 16.18 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 1 16.14 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Ant. Gain (dBi)EIRP Power PD (S) (mW/cm²) 11b 1 21.08 2.00 23.08 0.04043 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : 2 of 57 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Transmitter Bandedge Emissions ........................................................................................................ 24 3.6 Transmitter Unwanted Emissions......................................................................................................... 27 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 56 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : 3 of 57 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1564950MHz 29.59 (Margin 26.06dB) - AV 52.42 (Margin 13.23dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 10.09 / 40M: 36.16 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 24.17 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -6.50 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2398.44MHz: 25.92dB Restricted Bands [dBuV/m at 3m]: 2389.99MHz 70.45 (Margin 3.55dB) - PK 52.72 (Margin 1.28dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 297.72MHz 42.78 (Margin 3.22dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : 4 of 57 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR481817 Rev. 01 Initial issue of report Sep. 30, 2014 FR481817 Rev. 02 Revise support Equipment information Oct. 02, 2014 2500-2690 FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : 5 of 57 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 24.17 2400-2483.5 g 2412-2462 1-11 [11] 1 21.38 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 21.38 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 1 21.06 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. External antenna (dedicated antennas) Antenna General Information No. Ant. Cat. Ant. Type Model name Gain (dBi) 1 External Dipole C642-510038-A 2.00 FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : 6 of 57 TEL : 886-3-327-3456 Rep…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR481817 SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 EUT took a close view EUT took a close view
