E2KJ42ATABLET COMPUTER

XPS 10 Tablet User's Manual COMMENT Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your tablet PC. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. ____________________ ©2012DellInc. Trademarks used in this text: Dell ™ and the DELL logo are trademarks of Dell Inc.; Adobe Acrobat ® is a trademark of Adobe Systems Incorporated which may be registered in certain jurisdictions; Microsoft ® , Windows ® , Excel ® , Powerpoint ® , and Internet Explorer ® are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries; Bluetooth ® is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license. November 2012Rev. A00 Federal Communications Commission (FCC) Statement This tablet PC complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this tablet PC may not cause harmful interference and 2) this tablet PC must accept any interference received, including interference that may cause undesired operation of the tablet PC. FCC RF Radiation Exposure Statement: For body worn operation, this tablet PC has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Contents3 Contents 1 XPS 10 Tablet Features. . . . . . . . . . . . . . . . . 5 2 XPS 10 Tablet Accessories . . . . . . . . . . . . . . 9 3 Setting Up Your XPS 10 Tablet . . . . . . . . . . 10 Getting Your Tablet Ready for Use . . . . . . . . . . . 10 Charging the tablet. . . . . . . . . . . . . . . . . . . . 11 Turning On Your Tablet . . . . . . . . . . . . . . . . . . 13 Turning Off Your Tablet . . . . . . . . . . . . . . . . . . 14 Turning Off the Screen. . . . . . . . . . . . . . . . . . 14 Inserting a Micro-SD card . . . . . . . . . . . . . . . . 15 4 Using Your XPS 10 Tablet. . . . . . . . . . . . . . 16 Screen Orientation . . . . . . . . . . . . . . . . . . . . 16 Gestures . . . . . . . . . . . . . . . . . . . . . . . . . . 16 The Windows 8 Start Screen . . . . . . . . . . . . . . . 19 Using Headphones . . . . . . . . . . . . . . . . . . . . 21 Managing Your Tablet Settings . . . . . . . . . . . . . 22 5 Synchronizing Your Tablet . . . . . . . . . . . . 24 4Contents 6 Using XPS 10 Tablet Keyboard Dock . . . . . . . . . . . . . . . . . . . . . 25 Tablet Keyboard Dock Features. . . . . . . . . . . . . 25 Docking Your Tablet to the Keyboard Dock . . . . . . 27 Undocking Your Tablet from the Keyboard Dock . . . . . . . . . . . . . . . . . . . . . . 29 Charging the tablet and dock . . . . . . . . . . . . . . 30 7 Cleaning Your Tablet . . . . . . . . . . . . . . . . . 33 8 Troubleshooting . . . . . . . . . . . . . . . . . . . . 34 9 Locating Your Service Tag and Express Service Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 10 Specifications . . . . . . . . . . . . . . . . . . . . . . 38 11 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 40 12 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 XPS 10 Tablet Features5 XPS 10 Tablet Features This section provides information about the features available on your tablet. FeatureFunctionality 1Camera ambient-light sensorCaptures pictures and videos in dimly lit environments. 2Camera-status lightIndicates the camera activity. 3Camera• Capture a front view picture or record videos. • Make video calls with web applications, such as Skype. 4Microphone 1• Captures sounds. • Records voice for calls made from web applications, such as Skype. 10 1 2 3 4 6 5 9 8 7 6XPS 10 Tablet Features Regulatory model: J42A Regulatory type: J42A001 5Slot coverProvides access to Micro-SD card slot. 6Microphone 2• Captures sounds. • Records voice for calls made from web applications, such as Skype. 7Power and Sleep/Wake button• Press and hold to turn the tablet on or off. • Press to turn the touchscreen display on or off. 8Battery-status lightIndicates the battery charge status. 9Touchscreen displayTouch the display to use on-screen controls including buttons, menu items, and the on-screen keyboard. 10Windows button• Press to open the Windows Start screen. • Press for quick access to the most recently used application or most recently viewed screen. FeatureFunctionality XPS 10 Tablet Features7 FeatureFunctionality 1Audio port (3.5 mm)Connect headphones, microphones, and other audio equipment to listen to stereo sound, record audio or make calls. 2Volume-up button• Press to increase volume by one level. • Press and hold to continuously increase the volume. 3Volume-down button• Press to decrease volume by one level. • Press and hold to continuously decrease the volume. 4SpeakerProvides audio output for video and music playback. 5Removable docking-port cover • Protects the docking port. • Remove the cover to connect a Dell tablet keyboard dock (sold separately). 6Power-adapter/docking port• Connect the supplied power adapter to provide power to the tablet and charge the battery. • Connect a Dell tablet keyboard dock (sold separately). 1 2 3 4 5 6 7 8 9 8XPS 10 Tablet Features 7Micro-USB port• Connect USB devices or connect to your computer for transferring or synchronizing data, music, photos, videos, contacts, and so on. • Connect USB cable to trickle charge the battery. 8Removable docking-port cover • Protects the docking port. • Remove the cover to connect a Dell tablet keyboard dock (sold separately). 9SpeakerProvides audio output for video and music playback. FeatureFunctionality XPS 10 Tablet Accessories9 XPS 10 Tablet Accessories Your XPS 10 Tablet Package includes the following accessories: 30 W AC power adapter and power cable: Provides power to your tablet and …

Text truncated - open the document above for the full version.

Dell Inc. 11F,No.218,Sec.2, Tun Hua S. Road Taipei, Taiwan, R.O.C Tel: (886)2-2376-6352 ; Fax: (886)2-2376-9067 Date: October 30, 2012 We, Dell Inc., declare the device of FCC ID: E2KJ42A，disabled the ad-hoc peer-to-peer, hotspot function, and the software and associated drivers will not initiate any transmission in the following frequency bands. 5150MHz - 5250MHz 5250MHz – 5350MHz 5470MHz – 5725MHz In DFS frequency bands, the device acts as a client device which does not support radar detection capability. In addition, 5600MHz -5650MHz capability is notched in this device when marketed in US and Canada. For 802.11 b/g/n function of this device, hotspot capabilities and Ad Hoc functionality is not supported in non-US frequencies. For all 802.11a 5GHz bands, Country code selection is also disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Fiona, Y Chen Tel: (886)2-2376-6352 Fax: (886)2-2376-9067 E-Mail: Fiona Y [email protected]

Dell Inc. 11F,No.218,Sec.2, Tun Hua S. Road Taipei, Taiwan, R.O.C Tel: (886)2-2376-6352 ; Fax: (886)2-2376-9067 Date: October 30, 2012 SUBJECT: FCC/IC Application for FCC ID: E2KJ42A/ IC: 1514B-J42A To Whom It May Concern: We, Dell Inc., hereby attest to the fact that the Bluetooth 4.0 is limited by software and cannot enable by end users. Sincerely yours, Fiona, Y Chen

Dell Inc. 11F, No.218,Sec.2, Tun Hua S. Road Taipei, Taiwan, R.O.C Tel: (886)2-2376-6352 ; Fax: (886)2-2376-9067 Date: October 30, 2012 Delegation of Authority To whom it may concern, Please be notified that I, Fiona, Y Chen, have designated Jones Tsai in Sporton International Inc. and as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: E2KJ42A If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Fiona, Y Chen Company: Dell Inc. TEL: (886)2-2376-6352 FAX: (886)2-2376-9067 E-mail: [email protected]

Dell Inc. 11F,No.218,Sec.2, Tun Hua S. Road Taipei, Taiwan, R.O.C Tel: (886)2-2376-6352 ; Fax: (886)2-2376-9067 Date: October 30, 2012 SUBJECT: FCC Application for FCC ID: E2KJ42A/IC: 1514B-J42A To Whom It May Concern: We, Dell Inc., hereby attest to WLAN and BT share the same antenna in time-switched way and cannot transmit simultaneously. Sincerely yours, Fiona, Y. Chen

Dell Inc. Richard Worley, NCE MS: PS4-30 EMC, Global Regulations and Standards One Dell Way Telephone 512.728.1081 Round Rock, Texas 78682 Telefax 512.283.9268 www.dell.com e-mail [email protected] Worldwide Regulatory Compliance Engineering & Environmental Affairs October 22, 2012 Federal Communication Commission Office of Engineering and Technology Equipment Authorization and Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Anti-Drug Abuse Attestation Gentlemen: Please accept this letter as an attestation on behalf of Dell Inc that to the best of our knowledge, information and belief, no party to this application, as defined in 47 CFR 1.2002(b), including our officers, directors, or persons holding 5% or more of outstandarding stock or shares, voting or non- voting, have been denied federal benefits, including FCC benefits, under Section 5301 of the Anti-Drug Abuse Act of 1998.21 U.S.C. 862. This attestation shall be sent along with application when filing with the FCC Certification Division and is valid until further written notice from the applicant. If you have any questions or need additional information, please feel free to contact me at 512- 728-1081 or 512-431-1084. Sincerley, Richard Worley Dell Inc. FRN: 0008359580

Dell Inc. Richard Worley, iNCE MS: PS4-30 EMC, Global Regulations and Standards One Dell Way Telephone 512.728.1081 Round Rock, Texas 78682 Telefax 512.283.9268 www.dell.com e-mail [email protected] Worldwide Regulatory Compliance Engineering & Environmental Affairs October 22, 2012 To whom it may concern, I, the undersigned, as the authorized signatory for the Dell Inc grantee code E2K, hereby authorize Fiona Y Chen, EMC & Wireless Regulatory Engineering of Dell Inc., to act on my behalf in all manners relating to application (FCC ID: E2KJ42A) for equipment authorization, including signing of all documents relating to this application. Any and all acts carried out by Fiona Y Chen of Dell Inc. on our behalf shall have the same effects as acts of our own. This authorization shall be sent along with application when filing with the FCC Certification Division and is valid until further written notice from the applicant. If you have any questions or need additional information, please feel free to contact me at 512- 728-1081 or 512-431-1084. Sincerley, Richard Worley Dell Inc. FRN: 0008359580

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 We, Sporton International Inc., authorize Thanh Nguyen of Dell Inc. to deal with the filing and all document relating to FCC ID: E2KJ42A; IC: 1514B-J42A. Sincerely, Jones Tsai

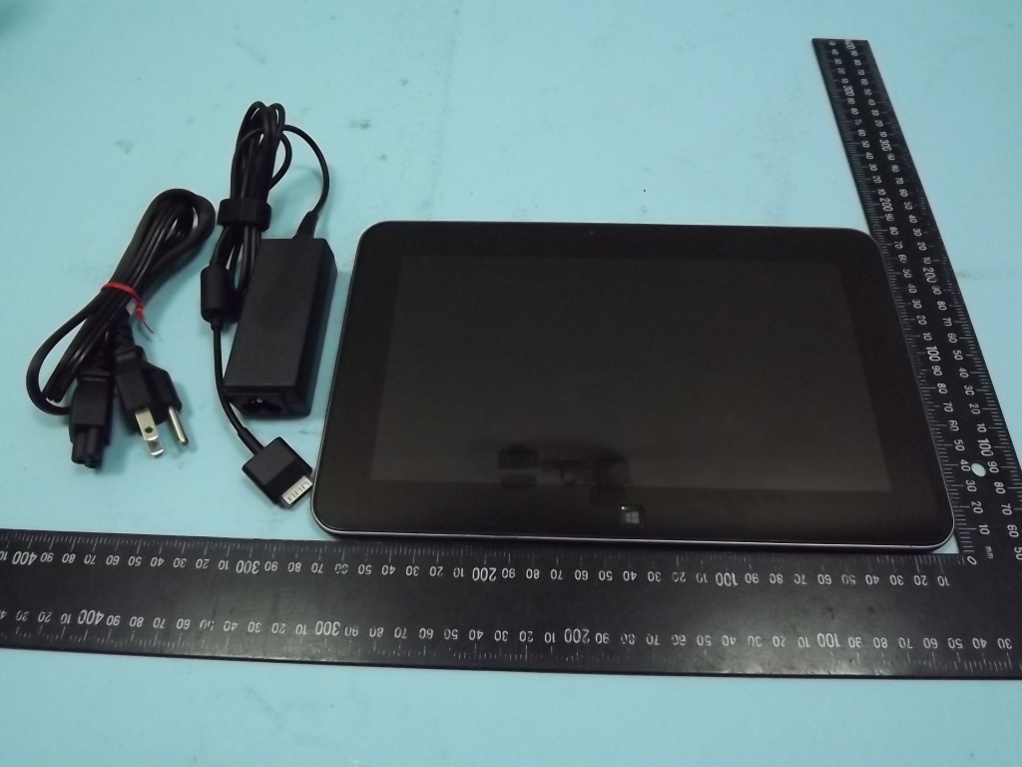

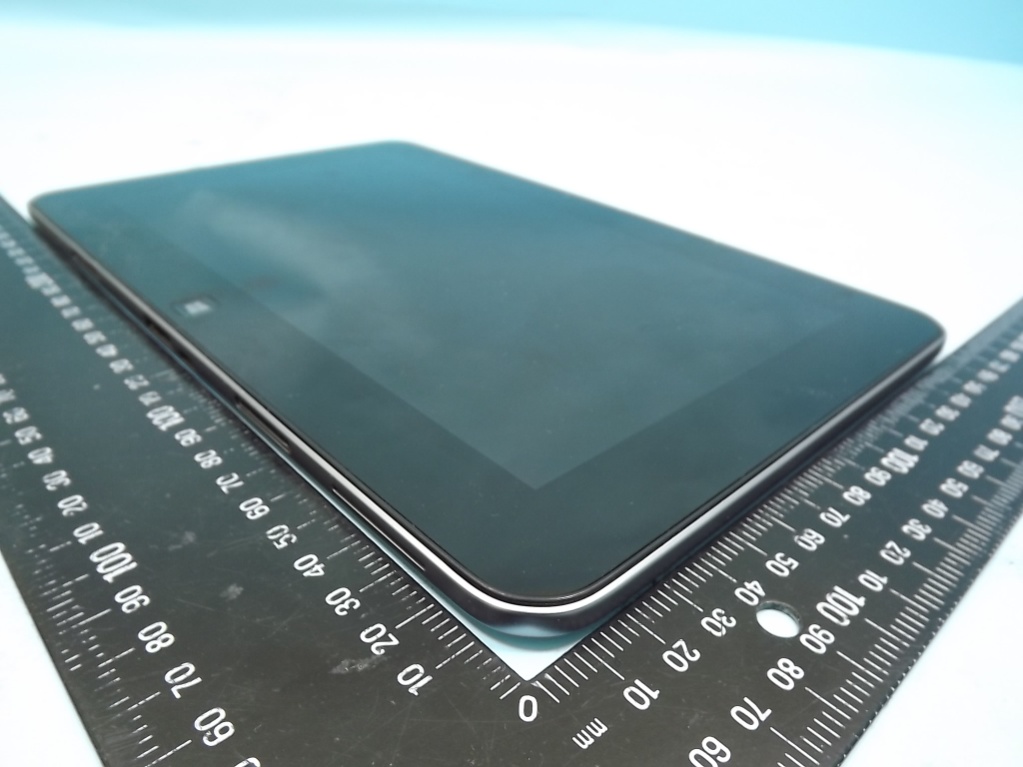

FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2012 FAX : 886-3-327-0973

Regulatory label

FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 BT/WLAN Combo chip FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 PIFA Ant. FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR291203 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 15, 2012 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E2KJ42A FCC SAR Test Report Report No. : FA291203 FCC SAR Test Report APPLICANT : Dell EQUIPMENT : Tablet Computer BRAND NAME : Dell MODEL NAME : J42A FCC ID : E2KJ42A STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was integrated the WLAN/Bluetooth Module (Brand Name: Qualcomm / Model Name: WCN3660) during the test. The product was completely tested on Oct. 09, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E2KJ42A FCC SAR Test Report Report No. : FA291203 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Applied Standard .................................................................................................................................................... 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ....................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup ........................................................................................................................................................19 7.3 Validation R…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/9 System Check_Body_2450MHz_121009 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121009 Medium parameters used: f = 2450 MHz; σ = 1.965 mho/m; ε r = 53.842; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.489 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 27.808 mW/g SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.86 mW/g Maximum value of SAR (measured) = 14.8 mW/g 0 dB = 14.8 mW/g = 23.41 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/29 System Check_Body_5200MHz_120929 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120929 Medium parameters used: f = 5200 MHz; σ = 5.279 mho/m; ε r = 48.534; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(4.19, 4.19, 4.19); Calibrated: 2011/12/16; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 35.7 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 87.956 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 67.320 mW/g SAR(1 g) = 19.2 mW/g; SAR(10 g) = 5.34 mW/g Maximum value of SAR (measured) = 32.4 mW/g 0 dB = 32.4 mW/g = 30.21 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/29 System Check_Body_5500MHz_120929 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5500 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120929 Medium parameters used: f = 5500 MHz; σ = 5.717 mho/m; ε r = 47.955; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(3.7, 3.7, 3.7); Calibrated: 2011/12/16; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 38.4 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 88.941 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 68.174 mW/g SAR(1 g) = 20 mW/g; SAR(10 g) = 5.59 mW/g Maximum value of SAR (measured) = 33.9 mW/g 0 dB = 33.9 mW/g = 30.60 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/29 System Check_Body_5800MHz_120929 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120929 Medium parameters used: f = 5800 MHz; σ = 6.113 mho/m; ε r = 47.156; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(3.82, 3.82, 3.82); Calibrated: 2011/12/16; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 29.6 mW/g Pin=250mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 76.098 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 65.519 mW/g SAR(1 g) = 16.9 mW/g; SAR(10 g) = 4.64 mW/g Maximum value of SAR (measured) = 29.4 mW/g 0 dB = 29.4 mW/g = 29.37 dB mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/9 #13 WLAN2.4G_802.11b_Bottom Face_0cm_Ch11 DUT: 291203 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121009 Medium parameters used: f = 2462 MHz; σ = 1.982 mho/m; ε r = 53.803; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Ch11/Area Scan (101x151x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.785 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.393 V/m; Power Drift = 0.089 dB Peak SAR (extrapolated) = 1.561 mW/g SAR(1 g) = 0.627 mW/g; SAR(10 g) = 0.270 mW/g Maximum value of SAR (measured) = 0.761 mW/g 0 dB = 0.761 mW/g = -2.37 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/9 #13 WLAN2.4G_802.11b_Bottom Face_0cm_Ch11_2D DUT: 291203 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121009 Medium parameters used: f = 2462 MHz; σ = 1.982 mho/m; ε r = 53.803; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Ch11/Area Scan (101x151x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.785 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.393 V/m; Power Drift = 0.089 dB Peak SAR (extrapolated) = 1.561 mW/g SAR(1 g) = 0.627 mW/g; SAR(10 g) = 0.270 mW/g Maximum value of SAR (measured) = 0.761 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/9 #14 WLAN2.4G_802.11b_Edge1_0cm_Ch11 DUT: 291203 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121009 Medium parameters used: f = 2462 MHz; σ = 1.982 mho/m; ε r = 53.803; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Ch11/Area Scan (31x151x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.479 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.123 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.232 mW/g SAR(1 g) = 0.578 mW/g; SAR(10 g) = 0.243 mW/g Maximum value of SAR (measured) = 0.598 mW/g Ch11/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.123 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.860 mW/g SAR(1 g) = 0.366 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.412 mW/g 0 dB = 0.412 mW/g = -7.70 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/9 #15 WLAN2.4G_802.11b_Edge2_0cm_Ch11 DUT: 291203 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_121009 Medium parameters used: f = 2462 MHz; σ = 1.982 mho/m; ε r = 53.803; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Ch11/Area Scan (31x111x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.119 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.259 V/m; Power Drift = 0.078 dB Peak SAR (extrapolated) = 0.236 mW/g SAR(1 g) = 0.118 mW/g; SAR(10 g) = 0.063 mW/g Maximum value of SAR (measured) = 0.129 mW/g 0 dB = 0.129 mW/g = -17.79 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/29 #01 WLAN5G_802.11a_Bottom Face_0cm_Ch44 DUT: 291203 Communication System: 802.11a; Frequency: 5220 MHz;Duty Cycle: 1:1 Medium: MSL_5G_120929 Medium parameters used: f = 5220 MHz; σ = 5.309 mho/m; ε r = 48.504; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(4.19, 4.19, 4.19); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Ch44/Area Scan (201x301x1): Measurement grid: dx=10mm, dy=10mm M…
