E2XSPP1000TSAMSUNG PRESENTER

SPP1000 SPP1000 ForYourBusinessSuccess, SAMSUNG Presenter SPP1000USERGUIDE 1.ProductFeature Intherealmofmodernbusiness,thepresentationbecomesnecessary. AndSamsungPresenterisforgivingEffectivenessandConvenience whenyouhaveapresentation. AsforPresenterdirectlytocontrolPC,youcanbeastrongmanofthe presentation. TheorganizationofPowersenterislikethese. CONTENTSDETAILS Function Receiver-ReceiveaWirelessDatafromTransmitter Transmitter-PageChange,Supportvariousprograms, LaserPointer Product Composition Transmitter(SPP1000T),Receiver(SPP1000R), PortableCase,Batteries PCInterfaceUSB1.1 Communication Protocol RF2.4Ghz WorkingDistance10M PowerSupply2*AAABattery BatteryLife3Months UsedCondition WindowsME/2000/XP-AdriverisincludedbyOS Windows98-Adriverhastobeinstalled 2.SetupMethod ◆ InterconnectionwithPC: SincePresenterisUSBproduct,PCthatincludesaUSB port onlycanusePowersenter. AtUSBportofPC,pleaseinsertaRECEIVERlikeunderthepicture. 1 2 SPP1000 SPP1000 ◆ PowerSupply: OpenabatterycoverwherethereisatthebottomofTRANSMITTER. InserttheBatteries(AAAsize,2EA)afteryoucheckthepolarityof+,-. ◆ IDSetting Afterbatteriesisinserted,Presenterissetbyadefaultchannel.But werecommendIDsettingforpreventinganinterferencefromotherRF deviceproducts. Settingmethodisfollowed. 1st,pushabuttonofReceiver.ReceiverLEDwithaflash. 2nd.pushasmallbuttonofTransmitter'sbottom.CompletionID setting. 3rd,confirmtopushbuttonsofTransmitterwhetherIDSetting wasexecutedwell. 4th,theend!! 3 4 SPP1000 SPP1000 3.UseMethod ◆ DescriptionofTransmitterButtons ICONNAMEDESCRIPTION LaserPointerUseforaradiationoflaserpointer FullScreenExecuteafullscreen. Escape Returntoapreviousstateofthefull screen NextPageUseasgoingtothenextpage PreviousPageUseasgoingtothepreviouspage IDSwitch UseatthetimeofIDsettingof TransmitterandReceiver BatteryShowtheputplaceofbatteries. ◆ MFC(MultiFunctionCode) Whenyouchangepages,theexistingproductshavealimitationthat isabletousethesystemsofMicrosoft.SoweproposeMFC. Modechangeissameasafollowingway. 1st,nextpageandpreviouspagepushsynchronously. FlashofTransmitter'sLED 2nd,waitfor2seconds. 3rd,whenyoupushthefull-screenbutton,Presenterissetbynext list. The#oftimesAPP.Program ZerotimesPOWERPOINT OnetimesMSWord TwotimesHANGUL ThreetimesHUNMINWord 4th,finishwhenyoupushthenext-pagebutton. ※ Presenterissetofapowerpointatafirsttimeofpowersupply. ◆ DataTransmitandReceive 56 SPP1000 SPP1000 WhilePresenterisgivingandtakingdata,youcansee: Transmitter-RedLEDwithaflash Receiver-LEDwithaflash 4.PENS/W PENS/WisasoftwaretogiveaPresenter'scustomeraenjoyment.This manualintroducesfunctionssimply.Moredetailfunctionscanbereferredto helpfilewithinPENprogram. ◆ Whiteboard:Whileyouhaveapresentation,onyourdesktopscreen youdrawfreelyandsaveadrewfilesimply. ◆ Addressbook:Youcanuseanaddresssortedinyoursatweb-mail andmakeanexchangeadatabaseofaddressbookandanexcelfile. ◆ BeamPointer:MaybeincaseLDlightisweektobelackbatterieson thewaytouse,thisprogramofferBeam-PointertouseinsteadofLD pointer. 5. InError ※ IfPresenterhasanyproblems,diagnoseyourselfbyunderthattable. What'sProblemsWaytoresolve Noactionofbuttons Replacenewbatteries OnemoretimeIDSetting NoflashLEDofTransmitterCheckifInsertionofbatteriesiscorrect. NoflashLEDofReceiverSetIDagain! LDlightisweekAlternatenewbatteries Despitenopush,actionis detected. YoumustsetIDofPresenter. PCdoesn'trecognize Presenter. Firstly,plsverifywhetherOSisWin98. Ifso,installthedriverthatisincluded inCD. Otherwise,pluginReceiveraftertaking out. Theactionrangeisshort.Usenewbatteries. 6.Certification ◆ EU ThisequipmentfulfilstheR&TTEdirective(CouncilDirective1999/5/EC). EuropeanStatesqualifiedunderwirelessapprovals: 78 SPP1000 SPP1000 EU Austria,Belgium,Denmark,Finland,France(with frequencyrestrictions),Germany,Greece,Ireland,Italy, Luxembourg,TheNetherlands,Portugal,Spain,Sweden, andtheUnitedKingdom AcceptEU Iceland,Liechtenstein,Norway,andSwitzerland ◆FCC Thisdevicecomplieswithpart15oftheFCCRules.Operationissubject tothefollowingtwoconditions; (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. CAUTION Theusersmanualorinstructionmanualforanintentionalor unintentionalradiatorshallcautiontheuserthatchangesor modificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. Note:Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassBdigitaldevice,pursuanttopart15oftheFCC Rules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,if notinstalledandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffandon, theuserisencouragedtotrytocorrecttheinterferencebyoneormore ofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Block Diagram (SPP1000T) Function Key -LASER Pointer -Page up/down -Full Screen/ESC EEPROM BATTERY(3V) (AAA type 2) PCB pattern Antena nRF24E2 16Mhz

HEAD OFFICE / SUWON FACTORY 314, Maetan 3-Dong, Yeongtong-Ku Suwon-Si, Gyeonggi-Do, KOREA, 442-743 TEL : 82-331-210-6497 FAX : 82-331-210-3324 Type of Product : PRESENTER FCC ID : E2XSPP1000T DATE : SEMTEMBER. 17. 2004 Authorization FCC Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21045-0429, U.S.A Confidentiality Request: Pursuant to sections 0.457 and 0.459 of the commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely <Signature> <Name > Junhwan Lim <Title > EMC Manager <Tel. No.> 82-331-210-6497 Applicant Company Name SAMSUNG ELECTRO-MECHANICS CO.,LTD.

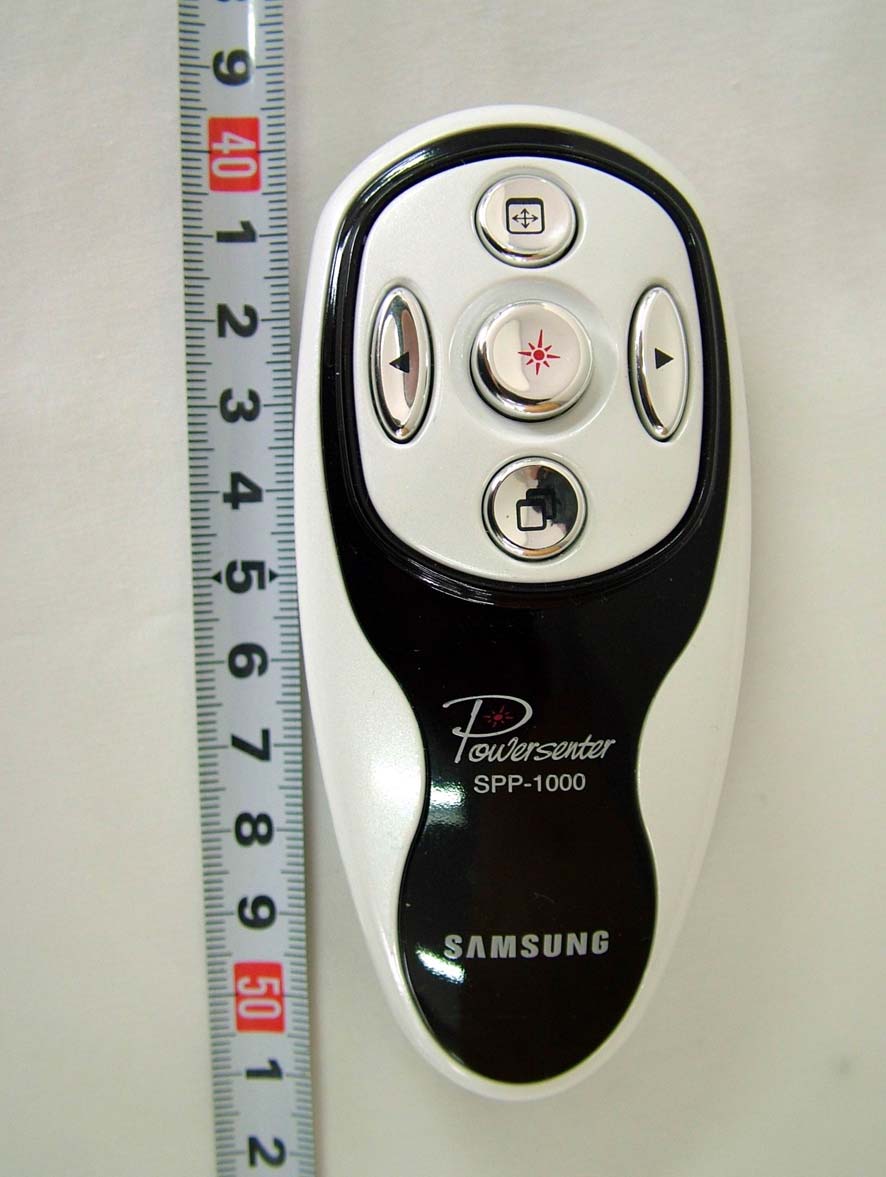

Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 36 of 45 APPENDIX C – EUT PHOTOGRAPHS z Front View of EUT . Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 37 of 45 z Rear View of EUT

Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 32 of 45 APPENDIX A – SAMPLE LABEL Labelling Requirements The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : E2XSPP1000T

Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 38 of 45 Front View of PCB Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 39 of 45 z Rear View of PCB Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 40 of 45 z Inside View of PCB

Operational Description When the button is pressed, the battery applies 3V DC. And the data to be saving is input to PIN 4,5 of the EEPROM RFchip(nRF24E2) . The LED action will be shown. And the finally modulated signal is amplified through U1 (RF Chip) then radiated to the Antenna on air.

Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 1 of 45 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electro-Mechanics Co., Ltd. Dates of Issue : September 20, 2004 416, Maetan3-Dong, Paldal-Gu, Test Report No. : NK2ER176 Suwon-Shi, Kyunggi-Do, Rep.of Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. JunHwan, Lim EMC site, Korea FCC ID E2XSPP1000T Samsung Electro-Mechanics Co.,Ltd 416, Maetan3-Dong, Paldal-Gu, Suwon-Shi, Kyunggi-Do, Rep.of Korea Mr. JunHwan, Lim Telephone No. : +82 31 210 6497 CONTACT PERSON FCC Rule Part(s): Part 15 & 2 Classification : Part 15 Subpart C –Intentional Radiators EUT Type: Presenter Out Frequency: 2404.5~2480.5 MHz The device bearing the FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2001. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : Seob Lee Reviewed By : H.H. Kim Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 2 of 45 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS & EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMENDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS §15.203 Antenna Requirement TEST DATA(Section 15.209) TEST DATA (Radiated Emissions) PLOT OF EMISSION (Section 15.249) PLOT OF EMISSION (Section 15.215(c)) FIGURE OF DUTY CYCLE (Section 15.35(c)) ACCURACY of MEASUREMENT TEST EQUIPMENT APPENDIX A – SAMPLE LABEL APPENDIX B – TEST PHOTOGRAPHS APPENDIX C – EUT PHOTOGRAPHS APPENDIX D – BLOCK DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM APPENDIX G – PATTERN DIAGRAM APPENDIX H – PART LIST 3 4 5 6 6 6 7 8 9 10 14 26 28 30 31 32 33 36 41 42 43 44 45 Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 3 of 45 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Samsung Electro-Mechanics Co., Ltd. Mr. JunHwan, Lim Tel : +82 31 210 6497 1.Samsung Electro-Mechanics Co., Ltd. 314, Maetan3-Dong, Paldal-Gu, Suwon-Shi, Kyunggi-Do, Korea, 442-743. 2.Dongguan Samsung Electro-Mechanics Co.,Ltd Quan-Tang Village,Liao-Bu Town,Dong-Quan City, Quang-Dong Province P.R China, 523425 z FCC ID: E2XSPP1000T z Model: SPP1000T z EUT Type: Presenter z Classification: z Rule Part(s): z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Part 15 Subpart C – Intentional Radiators FCC Part 15 & Part 2 ANSI C63.4 (2001) September 06, 2004 to September 20, 2004 Nemko Korea Co., Ltd. EMC Site NK2ER176 Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 4 of 45 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Samsung Electro-Mechanics Co., Ltd. FCC ID : E2XSPP1000T, Presenter. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Seoul International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on June 06, 1992. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 5 of 45 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was operated at the test mode continuously. Operational Description When the button is pressed, the battery applies 3V DC. And the data to be saving is input at EEPROM to PIN 4,5 of the RF chip(nRF24E2). The LED action will be shown. And finally the modulated signal is amplified through U1 (RF Chip) then radiated to the Antenna at air. EUT Information Chipset(s) : U1 (nRF24F2) Clock(s) : X1 (16MHz) RF Frequency : 2404.5~2480.5MHz Method : GFSK Format Power Supply 3.0V,AAA size Battery 2 pcs Test Report No.: NK2ER176 FCC Certification Samsung Electro-Mechanics Co., Ltd. FCC ID:E2XSPP1000T Page 6 of 45 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specification: Name of Test Paragraph No. Result Remark Power line Conducted Emission 15.207 N/A EUT is operated by 3V batteries Radiated Emission( Spurious ) 15.209 Complies Radiated Emission( Fundamental )15.249 Complies REC…
