E2XSWL-2000EDirect Sequence PCMCIA Wireless LAN Network Card

SAMSUNG MagicLAN SWL-2000E User Manual (Ver. 1.0) 1 Notice 1 This manual cannot be reproduced in any form without the prior written permission of SAMSUNG Electro-Mechanics, Co., Ltd. SAMSUNG Electro-Mechanics, Co., Ltd. reserves the right to change this manual and the specifications to improve products without prior notice. So you can get the most recent software and user documentation for all MagicLAN products on our web site. • MagicLAN is the trademark of SAMSUNG wireless LAN. • MS-DOS, Microsoft and Windows are registered trademarks of Microsoft Corporation. All other brand and product names are trademarks of registered trademarks of their respective holders. http://www.MagicLAN.com Service Dept. +82-331-210-6805 Sales Dept. +82-331-210-6386 SAMSUNG – America Corporation Western US Marketing Office 85 Tasman Drive San Jose, CA 95134 USA Tel: (408)544-5200 Fax: (408)544-4967 Eastern US Marketing Office LanPAL AKOM Corporation 9 Parklawn Dr. Bethel, CT 06801 Tel: (203)778-9500 Fax: (203)778-9525 Copyright  1999 SAMSUNG Electro-Mechanics, Co., Ltd. 2 All rights reserved. 3 Notice 2 The SWL-2000E complies with Part 15 of the FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna. Note: The SWL-2000E has been tested and found to comply with the limits for a Class B digital device and a low power transmitter, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to resolve the problem by one or more of the following measures; - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an output on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Samsung Electro-Mechanics MagicLAN SWL-2000E FOR HOME OR OFFICE USE Tested to Comply 4 Important Safety Information ! Read these simple guidelines. Breaking the rules may be dangerous or illegal. SAMSUNG is not responsible for any damages caused by breaking the rules. ! Wireless LAN Card described in this document is approved for use in a wireless local area network. ! Remember to make backup copies of important data. ! When you are transferring data, keep your laptop computer stationary. Roaming between access points may break the connection. ! Only qualified service personnel must repair the equipment. ! All wireless devices may get interference, which could affect performance. ! Use approved accessories only. Do not connect incompatible products. ! Use only accessories approved by the wireless LAN Card manufacturer for use with this particular wireless LAN Card. The use of any other types will invalidate any approval or warranty applying to the wireless LAN Card, and may be dangerous, ! Use only the region setting appropriate for the area where the wireless LAN Card is used at the present time. Using the card in any other region or with an incorrect region setting is prohibited and may be illegal. ! Operation of any radio transmitting equipment, including a wireless LAN Card, may interference with the functionality of inadequately protected medical devices. ! Do not use the wireless LAN Card on aircraft. ! Do not use the wireless LAN Card at a refueling point. ! Do not use the wireless LAN Card near fuel or chemicals. ! Do not use the wireless LAN Card where blasting is in progress. ! Do not use the wireless LAN Card when the use of wireless device may cause interference or danger. ! Do not use the wireless LAN Card where the use of cellular terminals is prohibited. 5 Table of Contents 1. MagicLAN Installation .............................................................................. 7 1.1 Introduction ...................................................................................... 7 1.2 Technical Background ......................................................................... 7 1.3 MagicLAN Overview ........................................................................ 10 2. Before Installation ................................................................................. 11 2.1 What’s in your Package ..................................................................... 11 2.2 System Requirement ........................................................................ 11 3. MagicLAN Installation for Windows95/98 .................................................... 12 3.1 Installation Overview ........................................................................ 12 3.2 Hardware Installation ........................................................................ 13 3.2.1 Notebook PC Adapter Card (SWL-2000E) ......................................... 14 3.3 Software Installation ......................................................................... 15 3.3.1 Driver Setup ............................................................................. 15 3.4 MagicLAN Wireless LAN Card Properties Setup ....................................... 20 3.4.1 Before Wireless LAN Card Propert…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD 21406 USA Subject: FCC ID: E2XSWL-2000E September 30, 2000 Gentlemen, Samsung Electro-Mechanics hereby requests that the following items be kept confidential under sections 0.457 and 0.459 of the CFR. If this information was to be made public record it would adversely affect the core business. I would like to request the following items be confidential (1) Schematics (2) Block Diagram Regards, John Seo

360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 28 of 49 14 EXTERNAL PHOTOGRAPHS 14.1 EUT S IDE A 14.2 EUT S IDE B

360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 25 of 49 12 LABEL INFORMATION 12.1 FCC ID L ABEL 12.2 W ARNING S TATEMENT 12.3 L OCATION OF L ABELS ON EUT Samsung Electro-Mechanics FCC ID: E2XSWL-2000E This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

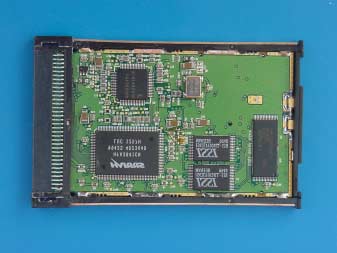

360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 29 of 49 15 INTERNAL PHOTOGRAPHS 15.1 C OMPONENT SIDE A WITH S HIELD 15.2 C OMPONENT SIDE A WITHOUT SHIELD 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 30 of 49 15.3 C OMPONENT SIDE B 15.4 A NTENNA AND SHIELD 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 31 of 49 15.5 I NSIDE VIEW OF CHASSIS COVER 15.6 O UTSIDE VIEW OF CHASSIS COVER

360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 24 of 49 11 PRODUCT DESCRIPTION The model SWL-2000E (referred to as the EUT in this report) is a Direct Sequence Spread Spectrum wireless LAN, PCMCIA network card. The EUT provides wireless communications between computers. The EUT is designed to be installed into the PCMCIA slot of a notebook computer or desktop computer with a PCMCIA slot. The EUT communicates with other wireless LAN cards using the frequency range from 2.412 GHz to 2.460 GHz. The EUT is powered from the PCMCIA slot, and does not have an external power supply. The EUT uses an external PCB antenna. The EUT uses 2- bits encoded to 4 complex code words; 2-DQPSK CCK modulation technique with 8 Chips per symbol, spread clock rate is 1.375 MHz symbol/sec, and the data rate = 11 MBPS.

360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 23 of 49 10 RF EXPOSURE CALCULATIONS FOR SAMSUNG’S HIGH GAIN ANTENNAS From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. E = √S x Z 1mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: E = √10 x 377 = 61.4 V/m which is equivalent to 1mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power and solving for d, d = √ P eak x 30 x G E 1. The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log –1 (dB gain/10) G = Log –1 2.15 = 1.64 Notice in Installation Manual: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna at all time. The table below identifies the distances where the 1mW/cm 2 exposure limits may be exceeded during continuous transmission using the internal antenna Antenna Type Gain (dBi) Gain Numeric Peak output Power (mW) Calculated RF Exposure Separation Distance (cm) Minimum RF Exposure Separation Distance (cm) External 2.15 1.64 27.5 1.9 20

INSTALLATION MANUAL Introduction This manual does not substitute your wireless LAN card’s user’s guide. This installation guide must be read for more detailed information about your wireless LAN card’s use, care and maintenance, including important safety information. The Samsung Wireless LAN Card has two antenna connectors for attaching external antennas for coverage area extension. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the wireless LAN card and may violate regulations governing radio devices. FCC WARNING The SWL-2000E complies with Part 15 of the FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. RF SAFETY WARNING While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna. Note: The SWL-2000E has been tested and found to comply with the limits for a Class B digital device and a low power transmitter, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to resolve the problem by one or more of the following measures; Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment to an output on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. INSTALLATION OF THE EXTERNAL ANTENNA The user is responsible for ensuring that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. Humans cannot be within 20 cm (8 inches) of the front of the antennas. If such a situation occurs, the user is responsible for placing the appropriate caution signs to warn the public. Notebook PC Adapter Card (SWL-2000E) • You can install the card whether the power of the Notebook is on or off. • Insert the SWL-2000E adapter card into the PCMCIA slot. (A pleasant “cheep” sound indicates the regular operation. A low monotonous tone indicates a failure in recognition.). Always maintain a 20cm space between your self, any other person and the antenna. Warning: The antenna should be mounted so that the main beam is not pointing towards areas of heavy human traffic. If you see red Power LED illuminating and green Rx LED is blinking, you are now ready to proceed to software setup. STUB ANTENNA

360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 35 of 49 19 BANDEDGE PLOTS BANDEDGE CH1 BANDEDGE CH11 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 36 of 49 20 CONDUCTED SPURIOUS PLOTS CONDUCTED SPURIOUS CH1. PLOTS 9KHZ TO 300MHZ CONDUCTED SPURIOUS CH1. PLOTS 300 MHZ TO 999 MHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 37 of 49 CONDUCTED SPURIOUS CH1. PLOTS 999 MHZ TO 10 GHZ CONDUCTED SPURIOUS CH1. PLOTS 10 GHZ TO 15 GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 38 of 49 CONDUCTED SPURIOUS CH1. PLOTS 15 GHZ TO 20 GHZ CONDUCTED SPURIOUS CH1. PLOTS 20 GHZ TO 25 GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 39 of 49 CONDUCTED SPURIOUS CH6. PLOTS 9KHZ TO 300MHZ CONDUCTED SPURIOUS CH6. PLOTS 300 MHZ TO 999 MHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 40 of 49 CONDUCTED SPURIOUS CH6. PLOTS 999 MHZ TO 10 GHZ CONDUCTED SPURIOUS CH6. PLOTS 10 GHZ TO 15 GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 41 of 49 CONDUCTED SPURIOUS CH6. PLOTS 15 GHZ TO 20 GHZ CONDUCTED SPURIOUS CH6. PLOTS 20 GHZ TO 25 GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 42 of 49 CONDUCTED SPURIOUS CH11. PLOTS 9kHZ TO 1 MHZ CONDUCTED SPURIOUS CH11. PLOTS 1 MHZ TO 30 MHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 43 of 49 CONDUCTED SPURIOUS CH11. PLOTS 30 MHZ TO 1 GHZ CONDUCTED SPURIOUS CH11. PLOTS 1GHz TO 5GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 44 of 49 CONDUCTED SPURIOUS CH11. PLOTS 5 GHZ TO 10 GHZ CONDUCTED SPURIOUS CH11. PLOTS 10 GHZ TO 15 GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 45 of 49 CONDUCTED SPURIOUS CH11. PLOTS 2 5 GHZ TO 24 GHZ 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 46 of 49 21 SPECTRAL DENSITY PLOTS CHANNEL 1 CHANNEL 6 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 47 of 49 CHANNEL 11 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 48 of 49 22 6dB PLOTS 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 49 of 49

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION FOR FCC CERTIFICATION DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER Samsung Electro-Mechanics 314, Maetan-3Dong, Paldal-Gu, Suwon, Kyunggi-Do, Korea, 442-743 +82-331-210-6662 Model: Magic Wave PCMCIA Card SWL-2000E FCC ID: E2XSWL-2000E September 23, 2000 S TANDARDS R EFERENCED FOR THIS R EPORT P ART 2: 1999 F REQUENCY A LLOCATIONS AND R ADIO T REATY M ATTERS ; G ENERAL R ULES AND R EGULATIONS P ART 15: 1999 R ADIO F REQUENCY D EVICES FCC 97-114 G UIDANCE ON M EASUREMENTS FOR D IRECT S EQUENCE S PREAD S PECTRUM S YSTEMS ANSI C63.4-1992 S TANDARD F ORMAT M EASUREMENT /T ECHNICAL R EPORT P ERSONAL C OMPUTER AND P ERIPHERALS RSS-210, Issue 3: 2000 L OW P OWER L ICENCE -E XEMPT R ADIOCOMMUNICATION D EVICES (A LL F REQUENCY B ANDS ) RSS-102, Issue 1: 1999 E VALUATION P ROCEDURE FOR M OBILE AND P ORTABLE R ADIO T RANSMITTERS FCC Rules Parts Fre quency Range Output Power (W) Freq. Tolerance Emission Designator 15.247 2412-24600.0275 This report concerns (check one): Original Grant: X Class II Change: Equipment Type: PCMCIA Board Deferred grant requested per 47 CFR 0.457 (d) (1) (ii)? Yes: No: X If yes, defer until: Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR. [10-1-90 Edition] provision. I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described above. No modifications were made during testing to the equipment in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the ANSI C63.4 test methodology. REPORT PREPARED BY: Supervising Engineer: Desmond A. Fraser EMC Engineer: Rachid Sehb Administrative Writer: Melissa Fleming Document Number: 2000258 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Samsung Electro-Mechanics Suite 1400 Magic Wave PCMCIA Card SWL-2000E Herndon, VA 20170 FCC ID: E2XSWL-2000E http://www.rheintech.com Work Order: 2000380 Spread Spectrum Certification Report Page 2 of 49 T ABLE OF C ONTENTS 1 GENERAL INFORMATION........................................................................................................................... 4 1.1 R ELATED S UBMITTAL (S)/G RANT (S.............................................................................................................. 4 1.2 T EST M ETHODOLOGY ................................................................................................................................... 4 1.3 T EST F ACILITY ............................................................................................................................................. 4 1.4 E MISSIONS E QUIPMENT L IST ........................................................................................................................ 5 2 SYSTEM TEST CONFIGURATION .............................................................................................................. 7 2.1 J USTIFICATION .............................................................................................................................................. 7 2.2 EUT E XERCISE S OFTWARE .......................................................................................................................... 7 2.3 S PECIAL A CCESSORIES ................................................................................................................................. 7 3 FIELD STRENGTH CALCULATION ........................................................................................................... 8 4 TEST SYSTEM DETAILS ............................................................................................................................... 9 4.1 CONFIGURATION OF TESTED SYSTEM.............................................................................................. 9 5 CONDUCTED EMISSIONS .......................................................................................................................... 10 5.1 CONDUCTED EMISSIONS MEASUREMENTS ................................................................................... 10 5.2 CONDUCTED EMISSIONS TEST R ESULTS ........................................................................................... 11 6 RADIATED EMISSIONS............................................................................................................................... 14 6.1 RADIATED EMISSIONS MEASUREMENTS ....................................................................................... 14 6.2 R ADIATED E MISSIONS T EST R ESULTS ........................................................................................................ 15 7 MODULATED BANDWIDTH ...................................................................................................................... 18 7.1 P OWER O UTPUT .......................................................................................................................................... 18 7.2 A NTENNA C ONDUCTED S PURIOUS E MISSIONS ............................................................................................ 19 7.3 R ADIATED S PURIOUS E MISSIONS ................................................................................................................ 20 7.4 P OWER S PECTRAL D ENSITY ....................................................................................................................... 20 8 COMPLIANCE WITH THE RESTRICTED BAND EDGE ...................................................................... 21 9 ANTENNA S…

Text truncated - open the document above for the full version.

Connector A Connector B Connector Pin Connector Cup This connector is a proprietary connector manufactured for Samsung Electro Mechanics. There is no other type of connector like this available to the general public.

Measurement of Processing Gain of a Direct Sequence Spread Spectrum System Certification Report on Compliance with Respect to FCC CFR 47, Paragraph 15.247(e) Product: Samsung SWL-2000E Wireless LAN Card August 17, 2000 REPORT PREPARED BY: Rick McMurray Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 (703) 689-0368 (703) 689-2056 fax Rhein Tech Laboratories, Inc. Scope This report contains the results of the processing gain testing performed on the Samsung SWL- 2000E Wireless LAN Cards. The tests were carried out in accordance with FCC CFR 47, Paragraph 15.247(e). The jamming margin method specified in 15.247(e)(2) was used to perform the processing gain testing. FCC 97-114, Guidance on Measurements for Direct Sequence Spread Spectrum Systems, was also utilized as a guiding document for the performance of the processing gain testing. FCC Requirements The processing gain of a direct sequence system shall be at least 10dB. The processing gain shall be determined from the ratio in dB of the signal-to-noise ratio with the system spreading code turned off to the signal-to-noise ratio with the system spreading code turned on, as measured at the demodulated output of the receiver. Test Equipment Hewlett Packard Spectrum Analyzer, Model 8564E (RTL Asset # 901020) Hewlett Packard Signal Generator, Model 8648C, 100kHz-3200MHz (RTL Asset # 900917) Weinschel Broadband Resistive Power Divider, Model 1515, DC to 18.0GHz 1 Watt Weinschel Directional Coupler, Model 1537RA-20, 0.5 to 4.0GHz IBM ThinkPad Laptop computers used with transmitter and receiver Equipment Under Test Transmitter: Samsung SWL-2000E, MagicLAN Wireless LAN Card Marked #2, R and D sample #10, LEKRDAA05A5C09, Intersil Prism on Board Receiver: Samsung SWL-2000E, MagicLAN Wireless LAN Card Marked #1, R and D sample #11, LEKRDAA05A5C00, Intersil Prism on Board Method of Measurement As mentioned in the scope section, the jamming margin method was used. The following drawing titled “Processing Gain – Jamming Test Setup” illustrates a block diagram of the test setup. In this method, a signal generator was stepped in 50kHz increments across the passband of the system. At each point, the level of the signal generator required to produce the recommended Bit Error Rate (BER) was recorded. This level is the jammer level. The output power of the transmitter was also recorded at these same points. This level is the signal level. The jammer to signal ratio (J/S) was then calculated. The worst 20% of the J/S data points were discarded. The lowest remaining J/S ratio was used to calculate the processing gain for each of the channels investigated. The processing gain, Gp, was calculated as follows: Gp = (S/N)o + Mj + Lsys, where Gp = the processing gain of the system, (S/N)o = signal to noise ratio required Rhein Tech Laboratories, Inc. for the chosen BER, Mj = J/S ratio, and Lsys = system losses. Note that total system losses in a system, including intentional radiator and receiver, are assumed to be no more than 2dB as specified by the FCC. An ideal signal to noise ratio, also referred to as (S/N)o or (Es/No), of 16.4dB was used as specified by Intersil when calculating the processing gain when operating at 11Mbps. The Samsung SWL-2000E contains chip-sets from Intersil and operates at 11Mbps. Please see the enclosed document “Testing for compliance with FCC rules 15-247e” by Carl Andren of Intersil Corporation for more information. The use of 8% FER frame error rate (or PER packet error rate) as a substitute for the recommended BER bit error rate is derived in the attached document “Testing for compliance with FCC rules 15-247e” by Carl Andren of Intersil Corporation. Engineering Summary Processing Gain Results Summary: Channel Rate (Mbps) Gp(dB) 1 11 18.1 6 11 22.1 11 11 19.7 Following are the calculations and data for the three channels that were investigated. THEORETICAL PROCESSING GAIN The table below represents the symbol rate, chip rate, and theoretical processing gain for the aforementioned EUT. Data Rate (Mbps) Symbol Rate (MSps) Chip Rate (MCps) Chip/Symbol Rate Es/No (dB) J/S (dB) 1 1 11 11:1 10.3 -2.3 2 1 11 11:1 13.3 -5.3 5.5 1.375 11 8:1 13.4 -5.4 11 1.375 11 8:1 16.4 -8.4 5 5 4 4 3 3 2 2 1 1 DD CC BB AA Transmitter Samsung SWL-2000E Wireless LAN Card Serial # LEKRDAA05A5C09 Signal Generator HP 8648C RTL Asset # 900917 Broadband Resistive Power Divider Weinschel Model 1515 Spectrum Analyzer HP 8564E RTL Asset # 901020 Receiver Samsung SWL-2000E Wireless LAN Card Serial # LEKRDAA05A5C00 Directional Coupler Weinschel Model 1537A 6dB loss 6dB loss 20dB loss Processing Gain - Jamming Test Setup A 11Friday, July 14, 2000 Rhein Tech Laboratories, Inc. Title SizeDocument NumberRev Date:Sheet of Channel 1 Processing Gain 2412MHz 11Mbps After discarding the lowest 20% J/S data points, the lowest J/S was -0.30dB. Gp = (S/N)o + Mj + Lsys = 16.4dB + (-0.30dB) + 2.0dB = 18.1dB 11Mbps Channel 1 Processing Gain Gp = (S/N)o + Mj + Lsys FrequencyGp(S/N)oMj = J/SLsysS (Tx Power)J (S/G Power) (MHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 2407.0023.8016.45.402.0-13.50-8.10 2407.0523.6016.45.202.0-13.50-8.30 2407.1023.6716.45.272.0-13.67-8.40 2407.1523.0316.44.…
