360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 37 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 23 OPERATIONS MANUAL SAMSUNG MagicLAN SWL-2100 User Manual 1 Notice 1 This manual cannot be reproduced in any form without the prior written permission of SAMSUNG Electro-Mechanics Co., Ltd. SAMSUNG Electro-Mechanics Co., Ltd. reserves the right to change this manual and the specifications to improve products without prior notice. So you can get the most recent software and user documentation for all MagicLAN products on our web site. • MagicLAN is the trademark of SAMSUNG. • Microsoft and Windows are registered trademarks of Microsoft Corporation. All other brand and product names are trademarks of registered trademarks of their respective holders. http://www.MagicLAN.com Service Dept. +82-331-210-6805 Sales Dept. +82-331-210-6386 SAMSUNG – America Corporation Western US Marketing Office 85 Tasman Drive San Jose, CA 95134 USA Tel: (408) 544-5200 Fax: (408) 544-4967 Eastern US Marketing Office LanPAL AKOM Corporation 9 Parklawn Dr. Bethel, CT 06801 Tel: (203) 778-9500 Fax: (203) 778-9525 Copyright  1999 SAMSUNG Electro-Mechanics Co., Ltd. All rights reserved. 2 Notice 2 The SWL-2100N/E and SWL-2100P complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The SWL-2100N/E and SWL-2100P have been tested and found to comply with the limits for a Class B digital device and a low power transmitter, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to resolve the problem by one or more of the following measures; - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an output on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 3 Important Safety Information l Read these simple guidelines. Breaking the rules may be dangerous or illegal. SAMSUNG will not be responsible for any damages caused by breaking the rules. l Wireless LAN Card described in this document is approved for use in a wireless local area network. l Remember to make backup copies of important data. l Samsung Wireless PCMCIA LAN card supports 3.3V Notebook computers only. l When you are transferring data, keep your laptop computer stationary. Roaming between access points (APs) may break the connection. l Only qualified service personnel must repair the equipment. l All wireless devices may get interference, which could affect performance. l Use approved accessories only. Do not connect incompatible products. l Use only accessories approved by the wireless LAN Card manufacturer for use with this particular wireless LAN Card. The use of any other types will invalidate any approval or warranty applying to the wireless LAN Card, and may be dangerous. l Use only the region settings appropriate for the area where the wireless LAN Card is used at the present time. Using the card in any other region or with an incorrect region setting is prohibited and may be illegal. l Operation of any radio transmitting equipment, including a Wireless LAN Card, may cause interference with the functionality of inadequately protected medical devices. l Do not use the wireless LAN Card on aircraft. l Do not use the wireless LAN Card at a refueling point. l Do not use the wireless LAN Card near inflammable materials or chemicals. l Do not use the wireless LAN Card where blasting is in progress. l Do not use the wireless LAN Card when the use of wireless device may cause interference or danger. l Do not use the wireless LAN Card where the use of cellular terminals is prohibited. l Microwave oven degrades the performance of wireless LAN drastically. So do not use the wireless LAN card in the environment where Microwave oven is being used. Specifications 4 Product Name MagicLAN SWL-2100N/E MagicLAN SWL-2100P MagicLAN AP SWL-2100AP General Type PC Card Type II N: Internal ANT E: Antennaless, with 2 MMCX Connectors PCI 2.0 Dual Antenna Coverage Area** Open Space Office Environment Up to 500m at 2Mbps / Up to 400m at 11Mbps Up to 70m at 2Mbps / Up to 50m at 11Mbps Operating voltage 3.3V +/- 5%, 5V +/- 5% 5V +/- 5% 9V +/- 5% Current consumption Tx: Max. 350mA Rx: Max. 200mA Tx: Max. 390mA Rx: Max. 220mA Max. 1A Data Rates 1,2,5.5, and 11Mbps Certifications FCC part15, ETSI ETS 300.328 and CE in Europe Security WEP 40bits encryption Warranty 1 Year Network Specifications Network architecture Ad-hoc, infrastructure Infrastructure Wireless standard IEEE 802.11b Operating System Win 95 OSR2/98, Win NT supported Win 2000/ Win CE (to be supported) Roaming IEEE 802.11 compliant with enhanced roaming features Radio Data Frequency band 2.400~2.471 GHz (US, Canada, and ETSI), 2.471~2.497 (Japan) Wireless medium Direct Sequence Spread Spectrum Modulation Techniques CCK, BPSK, QPSK Sensitivity Min. –90dBm at 2Mbps/ Min. –84dBm at 11Mbps Output power Max. 100mW (Typ. 16dBm) Max. 20dBm Environmental Specifications Temperature 0 °C to 55 °C in operation/ -25 °C to 70 °C in storage Humidity 95% non-condensing Physical Characteristics Dimension 113 × 54 × 6 (mm) 141 ×…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 36 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 22 ANTENNA INSTALATION MANUAL INSTALLATION MANUAL Introduction This manual does not substitute your wireless LAN card’s user’s guide. This installation guide must be read for more detailed information about your wireless LAN card’s use, care and maintenance, including important safety information. The Samsung Wireless LAN Card has two antenna connectors for attaching external antennas for coverage area extension. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the wireless LAN card and may violate regulations governing radio devices. FCC WARNING The SWL-2000E complies with Part 15 of the FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. RF SAFETY WARNING While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna. Note: The SWL-2000E has been tested and found to comply with the limits for a Class B digital device and a low power transmitter, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to resolve the problem by one or more of the following measures; Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment to an output on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. INSTALLATION OF THE EXTERNAL ANTENNA The user is responsible for ensuring that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. Humans cannot be within 20 cm (8 inches) of the front of the antennas. If such a situation occurs, the user is responsible for placing the appropriate caution signs to warn the public. Notebook PC Adapter Card (SWL-2000E) • You can install the card whether the power of the Notebook is on or off. • Insert the SWL-2000E adapter card into the PCMCIA slot. (A pleasant “cheep” sound indicates the regular operation. A low monotonous tone indicates a failure in recognition.). Always maintain a 20cm space between your self, any other person and the antenna. Warning: The antenna should be mounted so that the main beam is not pointing towards areas of heavy human traffic. If you see red Power LED illuminating and green Rx LED is blinking, you are now ready to proceed to software setup. STUB ANTENNA

September 22, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Samsung Electro-Mechanics authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD 21406 USA Subject: FCC ID: E2XSWL-2100E January 30, 2001 Gentlemen, Samsung Electro-Mechanics hereby requests that the following items be kept confidential under sections 0.457 and 0.459 of the CFR. If this information was to be made public record it would adversely affect the core business. I would like to request the following items be confidential (1) Schematics (2) Block Diagram Sincerely, John Seo Engineering Manager/System Div. ELECTRO-MECHANICS 314,Maetan3-Dong, Paldal-ku,Suwoni, Kyungki-Do,Korea,441-743 TEL82-31-210-5712 FAX82-31-210-5529

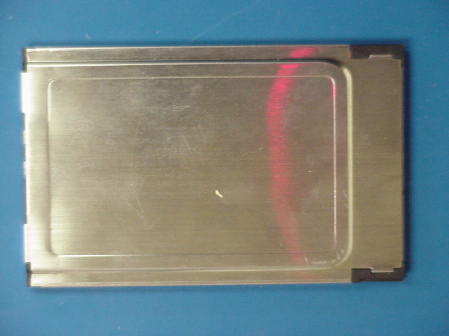

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 40 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 25 EXTERNAL PHOTOGRAPHS Top view Bottom view

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 33 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 19 LABEL INFORMATION 19.1 FCC ID LABEL 19.2 WARNING STATEMENT 19.3 LOCATION OF LABELS ON EUT FCC LABEL AND LOCATION OF LABEL ON EUT Samsung Electro-Mechanics FCC ID: E2XSWL-2100E Canada: XXXXXX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 31 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 17 PRODUCT DESCRIPTION The model SL-1105 (referred to as the EUT in this report) is a Direct Sequence Spread Spectrum wireless LAN, PCMCIA network card. The EUT provides wireless communications between computers. The EUT is designed to be installed into a notebook computer or desktop computer with a PCMCIA slot. The EUT communicates with other wireless LAN cards using the frequency range from 2.413 GHz to 2.463 GHz. The EUT is powered from the PCMCIA slot, and does not have an external power supply. The EUT uses an external antenna. The EUT uses 2-bits encoded to 4 complex code words; 2-DQPSK CCK modulation technique with 8 Chips per symbol, spread clock rate is 1.375 MHz symbol/sec, and the data rate = 11 MBPS.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Samsung Page 35 of 48 Document Number: 2000486 Revision 3 17 RF EXPOSURE CALCULATIONS FOR HIGH GAIN ANTENNAS From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. E = √S x Z 1mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: E = √10 x 377 = 61.4 V/m which is equivalent to 1mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power and solving for d, d = √ P eak x 30 x G E Example using the Stub Omni-directional antenna 1. The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log –1 (dB gain/10) G = Log –1 2.15 = 1.64 Notice in Installation Manual: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna at all time. The table below identifies the distances where the 1mW/cm 2 exposure limits may be exceeded during continuous transmission using the external antenna Antenna Type Gain (dBi) Gain Numeric Power Output (mW) Calculated RF Exposure Separation Distance (cm) Minimum RF Exposure Separation Distance (cm) External 2.15 1.64 25 1.8 20

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION FOR FCC CERTIFICATION DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER Samsung Electro-Mechanics 314, Maetan-3Dong, Paldal-Gu, Suwon, Kyunggi-Do, Korea, 442-743 +82-331-210-6662 Model: Magic Wave PCMCIA Card SWL-2100E FCC ID: E2XSWL-2100E January 24, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 RADIO FREQUENCY DEVICES FCC 97-114 GUIDANCE ON MEASUREMENTS FOR DIRECT SEQUENCE SPREAD SPECTRUM SYSTEMS ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS RSS-210, Issue 3: 2000 LOW POWER LICENCE-EXEMPT RADIOCOMMUNICATION DEVICES (ALL FREQUENCY BANDS) RSS-102, Issue 1: 1999 EVALUATION PROCEDURE FOR MOBILE AND PORTABLE RADIO TRANSMITTERS FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 15.247 2413 to 2463 MHz 0.025 This report concerns (check one): Original Grant: X Class II Change: Equipment Type: PCMCIA Board Deferred grant requested per 47 CFR 0.457 (d) (1) (ii) Yes: No: X If yes, defer until: Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR. [10-1-90 Edition] provision. REPORT PREPARED BY: EMC Engineer: Rachid Sehb Signature: Supervising Engineer: Desmond A. Fraser Signature: Document Number: 2000486 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Samsung Page 2 of 48 Document Number: 2000486 Revision 3 TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................................................4 1.1 RELATED SUBMITTAL (S)/GRANT (S).....................................................................................................4 1.2 TEST METHODOLOGY.................................................................................................................................4 1.3 TEST FACILITY...............................................................................................................................................4 1.4 EMISSIONS EQUIPMENT LIST....................................................................................................................5 2 SYSTEM TEST CONFIGURATION...................................................................................................................8 2.1 JUSTIFICATION...............................................................................................................................................8 2.2 EUT EXERCISE SOFTWARE........................................................................................................................8 2.3 SPECIAL ACCESSORIES...............................................................................................................................8 2.4 TEST SYSTEM DETAILS...............................................................................................................................9 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................10 3 CONFORMANCE STATEMENT......................................................................................................................11 4 FIELD STRENGTH CALCULATION..............................................................................................................12 5 CONDUCTED EMISSIONS MEASUREMENTS............................................................................................13 5.1 CONDUCTED EMISSIONS TEST...............................................................................................................14 5.1.1 CONDUCTED EMISSIONS (CHANNEL 1 WITH THE EXTERNAL ANTENNA)....................15 6 RADIATED EMISSIONS MEASUREMENTS................................................................................................16 6.1 RADIATED EMISSIONS TEST.............................................................................................................................17 6.1.1 Radiated EMISSION DIGITAL noise (Channel 1 with the external Antenna)..............................17 7 MODULATED BANDWIDTH............................................................................................................................18 8 POWER OUTPUT.................................................................................................................................................18 9 ANTENNA CONDUCTED SPURIOUS EMISSIONS.....................................................................................19 10 RADIATED SPURIOUS EMISSIONS...........................................................................................................20 10.1.1 Radiated Emissions Harmonics/spurious (Channel 1).......................................................................20 10.1.2 Radiated Emissions Harmonics/spurious (Channel 6)......................................................................21 10.1.3 Radiated Emissions Harmonics/spurious (Channel 11)....................................................................22 11 POWER SPECTRAL DENSITY.....................................................................................................................23 12 COMPLIANCE WITH THE RESTRICTED BAND EDGE......................................................................23 13 ANTENNA SPECIFICATIONS.....................................................................................…

Text truncated - open the document above for the full version.

Measurement of Processing Gain of a Direct Sequence Spread Spectrum System Certification Report on Compliance with Respect to FCC CFR 47, Paragraph 15.247(e) Product: Samsung SWL-2100E Wireless LAN Card January 24, 2001 REPORT PREPARED BY: Rick McMurray Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 (703) 689-0368 (703) 689-2056 fax Rhein Tech Laboratories, Inc. Scope This report contains the results of the processing gain testing performed on the Samsung SWL- 2100P Wireless LAN Cards. The tests were carried out in accordance with FCC CFR 47, Paragraph 15.247(e). The jamming margin method specified in 15.247(e)(2) was used to perform the processing gain testing. FCC 97-114, Guidance on Measurements for Direct Sequence Spread Spectrum Systems, was also utilized as a guiding document for the performance of the processing gain testing. FCC Requirements The processing gain of a direct sequence system shall be at least 10dB. The processing gain shall be determined from the ratio in dB of the signal-to-noise ratio with the system spreading code turned off to the signal-to-noise ratio with the system spreading code turned on, as measured at the demodulated output of the receiver. Test Equipment Hewlett Packard Spectrum Analyzer, Model 8564E (RTL Asset # 901020) Hewlett Packard Signal Generator, Model 8648C, 100kHz-3200MHz (RTL Asset # 900917) Weinschel Broadband Resistive Power Divider, Model 1515, DC to 18.0GHz 1 Watt Weinschel Directional Coupler, Model 1537RA-20, 0.5 to 4.0GHz IBM ThinkPad Laptop computers used with transmitter and receiver Equipment Under Test Transmitter: Samsung SWL-2000E, MagicLAN Wireless LAN Card Marked #2, R and D sample #10, LEKRDAA05A5C09, Intersil Prism on Board Receiver: Samsung SWL-2000E, MagicLAN Wireless LAN Card Marked #1, R and D sample #11, LEKRDAA05A5C00, Intersil Prism on Board Method of Measurement As mentioned in the scope section, the jamming margin method was used. The following drawing titled “Processing Gain – Jamming Test Setup” illustrates a block diagram of the test setup. In this method, a signal generator was stepped in 50kHz increments across the passband of the system. At each point, the level of the signal generator required to produce the recommended Bit Error Rate (BER) was recorded. This level is the jammer level. The output power of the transmitter was also recorded at these same points. This level is the signal level. The jammer to signal ratio (J/S) was then calculated. The worst 20% of the J/S data points were discarded. The lowest remaining J/S ratio was used to calculate the processing gain for each of the channels investigated. The processing gain, Gp, was calculated as follows: Gp = (S/N)o + Mj + Lsys, where Gp = the processing gain of the system, (S/N)o = signal to noise ratio required Rhein Tech Laboratories, Inc. for the chosen BER, Mj = J/S ratio, and Lsys = system losses. Note that total system losses in a system, including intentional radiator and receiver, are assumed to be no more than 2dB as specified by the FCC. An ideal signal to noise ratio, also referred to as (S/N)o or (Es/No), of 16.4dB was used as specified by Intersil when calculating the processing gain when operating at 11Mbps. The Samsung SWL-2100E contains chip-sets from Intersil and operates at 11Mbps. Please see the enclosed document “Testing for compliance with FCC rules 15-247e” by Carl Andren of Intersil Corporation for more information. The use of 8% FER frame error rate (or PER packet error rate) as a substitute for the recommended BER bit error rate is derived in the attached document “Testing for compliance with FCC rules 15-247e” by Carl Andren of Intersil Corporation. Engineering Summary Processing Gain Results Summary: Channel Rate (Mbps) Gp(dB) 1 11 18.1 6 11 22.1 11 11 19.7 Following are the calculations and data for the three channels that were investigated. THEORETICAL PROCESSING GAIN The table below represents the symbol rate, chip rate, and theoretical processing gain for the aforementioned EUT. Data Rate (Mbps) Symbol Rate (MSps) Chip Rate (MCps) Chip/Symbol Rate Es/No (dB) J/S (dB) 1 1 11 11:1 10.3 -2.3 2 1 11 11:1 13.3 -5.3 5.5 1.375 11 8:1 13.4 -5.4 11 1.375 11 8:1 16.4 -8.4 5 5 4 4 3 3 2 2 1 1 DD CC BB AA Transmitter Samsung SWL-2100E Wireless LAN Card Serial # LEKRDAA05A5C09 Signal Generator HP 8648C RTL Asset # 900917 Broadband Resistive Power Divider Weinschel Model 1515 Spectrum Analyzer HP 8564E RTL Asset # 901020 Receiver Samsung SWL-2100E Wireless LAN Card Serial # LEKRDAA05A5C00 Directional Coupler Weinschel Model 1537A 6dB loss 6dB loss 20dB loss Processing Gain - Jamming Test Setup A 11January 24, 2001 Rhein Tech Laboratories, Inc. Title SizeDocument NumberRev Date:Sheet of Channel 1 Processing Gain 2412MHz 11Mbps After discarding the lowest 20% J/S data points, the lowest J/S was -0.30dB. Gp = (S/N)o + Mj + Lsys = 16.4dB + (-0.30dB) + 2.0dB = 18.1dB 11Mbps Channel 1 Processing Gain Gp = (S/N)o + Mj + Lsys FrequencyGp(S/N)oMj = J/SLsysS (Tx Power)J (S/G Power) (MHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 2407.0023.8016.45.402.0-13.50-8.10 2407.0523.6016.45.202.0-13.50-8.30 2407.1023.6716.45.272.0-13.67-8.40 2407.1523.0316.44.632.0-13.33-8.70 2407.2023.0016.44.602.0-13.50-8.90 2407.2522.2316.43.832.0-12.83-9.00 2407.3022.2716.43.872.0-13.17-9.30 2407.3522.1016.43.702.0-13.00-9.30 2407.4021.6016.43.202.0-12.50-9.30 2407.4522.1016.43.702.0-13.00-9.30 2407.5021.7016.43.302.0-12.50-9.20 2407.5521.8716.43.472.0-12.67-9.20 2407.6021.7716.43.372.0-12.67-9.30 2407.6521.5016.43.102.0-12.50-9.40 2407.7021.4316.43.032.0-12.33-9.30 2407.7521.4316.43.032.0-12.33-9.30 2407.8021.0016.42.602.0-12.00-9.40 2407.8521.3316.42.932.0-12.33-9.40 2407.9020.8716.42.472.0-12.17-9.70 2407.9520.4316.42.032.0-11.83-9.80 2408.0020.0016.41.602.0-11.50-9.90 2408.0520.4016.42.002.0-12.00-10.00 2408.1020.5716.42.172.0-12.17-10.00 2408.1519.8716.41.472.0-11.67-10.20 2408.2019.6016.41.202.0-11.50-10.30 2408.2519.4316.41.032.0-11.33-10.30 2408.30…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 38 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 24 TEST PHOTOGRAPHS 24.1 CONDUCTED MEASUREMENT PHOTOS Front view Rear view 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report Page 39 of 44 Document Number: 2000486 / QRTL00-410 Samung Electro Mechanics 2100E PCMCIA Card 24.2 RADIATED MEASUREMENT PHOTOS Front view Rear view
