E2XSWL-2100UWireless LAN Card

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 40 of 51 Document Number: 2000453 APPENDIX F: MANUAL SAMSUNG MagicLAN SWL-2000/2100 User Manual 1 Notice 1 This manual cannot be reproduced in any form without the prior written permission of SAMSUNG Electro-Mechanics Co., Ltd. SAMSUNG Electro-Mechanics Co., Ltd. reserves the right to change this manual and the specifications to improve products without prior notice. So you can get the most recent software and user documentation for all MagicLAN products on our web site. All other brand and product names are trademarks of registered trademarks of their respective holders. http://www.MagicLAN.com Service Dept . Youngsik Lyu ([email protected] ) Tel : +82-31-289-1043 Fax : +82-31-289-1060 Sales America Dae-Ho Yoon ([email protected] ) Tel : +82-31-289-1154 Fax : +82-31-289-1060 Europe John Choi ([email protected]) Tel : +82-31-289-1148 Fax : +82-31-289-1060 Southeast Asia Chang-Young Jang ([email protected] ) Tel : +82-31-289-1153 Fax : +82-31-289-1060 China John Choi ([email protected]) Tel : +82-31-289-1148 Fax : +82-31-289-1060 Japan John Choi ([email protected] ) Tel : +82-31-289-1148 Fax : +82-31-289-1060 Copyright  1999 - 2001 SAMSUNG Electro-Mechanics Co., Ltd. All rights reserved. 2 Notice 2 The SWL-2000N/2100N/2100E, SWL-2000P/2100P and SWL-2100U complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The SWL-2000N/2100N/2100E, SWL-2000P/2100P and SWL-2100U have been tested and found to comply with the limits for a Class B digital device and a low power transmitter, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to resolve the problem by one or more of the following measures; - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an output on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 3 Important Safety Information !" Read these simple guidelines. Breaking the rules may be dangerous or illegal. SAMSUNG will not be responsible for any damages caused by breaking the rules. !" WLAN Card described in this document is approved for use in a wireless local area network. !" Remember to make backup copies of important data. !" Samsung WLAN PC Card supports 3V(3.3V) Notebook computers. !" When you are transferring data, keep your laptop computer stationary. Roaming between access points (APs) may break the connection. !" Only qualified service personnel must repair the equipment. !" All wireless devices may get interference, which could affect performance. !" Use approved accessories only. Do not connect incompatible products. !" Use only accessories approved by the WLAN Card manufacturer for use with this particular W LAN Card. The use of any other types will invalidate any approval or warranty applying to the WLAN Card, and may be dangerous. !" Use only the region settings appropriate for the area where the WLAN Card is used at the present time. Using the card in any other region or with an incorrect region setting is prohibited and may be illegal. !" Operation of any radio transmitting equipment, including a WLAN Card, may cause interference with the functionality of inadequately protected medical devices. !" Do not use the WLAN Card on aircraft. !" Do not use the WLAN Card at a refueling point. !" Do not use the WLAN Card near inflammable materials or chemicals. !" Do not use the WLAN Card where blasting is in progress. !" Do not use the WLAN Card when the use of wireless device may cause interference or danger. !" Do not use the WLAN Card where the use of cellular terminals is prohibited. !" Microwave oven degrades the performance of wireless LAN drastically. So do not use the WLAN card in the environment where Microwave oven is being used. 4 Specifications Product Name SWL-2000N SWL-2100N SWL- 2000P SWL- 2100P SWL- 2100E SWL-2100U General Type PC Card Type II PCI 2.0 2MMCX Connector Printed Dipole Ant Open Space 100m (330ft) at 11Mbps 150m (500ft) at 2 Mbps 150m (500ft) at 11Mbps 200m (660ft) at 2 Mbps 100m (330ft) at 11Mbps 150m (500ft) at 2 Mbps 150m (500ft) at 11Mbps 200m (660ft) at 2 Mbps 150m (500ft) at 11Mbps 200m (660ft) at 2 Mbps 150m (500ft) at 11Mbps 200m (660ft) at 2 Mbps Cover- age Area ** Closed Office 20m (65ft) at 11Mbps 40m (130ft) at 2 Mbps 30m (100ft) at 11Mbps 50m (160ft) at 2 Mbps 20m (65ft) at 11Mbps 40m (130ft) at 2 Mbps 30m (100ft) at 11Mbps 50m (160ft) at 2 Mbps 30m (100ft) at 11Mbps 50m (160ft) at 2 Mbps 30m (100ft) at 11Mbps 50m (160ft) at 2 Mbps Operating Voltage 3V +/- 5% 5V +/- 5% 3V +/- 5% 5V fromPC Current consumption Tx: Max 320mA Rx: Max 200mA Tx: Max 450mA Rx: Max 280mA Tx: Max 320mA Rx: Max 200mA Tx: Max 450mA Rx: Max 280mA Tx: Max 450mA Rx: Max 280mA Tx: Max 450mA Rx: Max 280mA Data Rates 1,2,5.5, and 11Mbps Certifications FCC Class B, FCC part 15.247, Canada, CE, Germany, Swiss, England, other Europe Countries and New R&TTE Approval, Korea, Japan Security WEP 64/128 bits encryption(40/104bits encryption) Warranty 1 Year Network Specifications Network architecture Ad-hoc, infrastruc…

Text truncated - open the document above for the full version.

3 Notice 2 The SWL-2100U complies with Part 15 of the FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna. Note: The SWL-2100U has been tested and found to comply with the limits for a Class B digital device and a low power transmitter, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to resolve the problem by one or more of the following measures; - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an output on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Samsung Electro-Mechanics MagicLAN SWL-2100U FOR HOME OR OFFICE USE Tested to Comply 4 Important Safety Information ! Read these simple guidelines. Breaking the rules may be dangerous or illegal. SAMSUNG is not responsible for any damages caused by breaking the rules. ! Wireless LAN Card described in this document is approved for use in a wireless local area network. ! Remember to make backup copies of important data. ! When you are transferring data, keep your laptop computer stationary. Roaming between access points may break the connection. ! Only qualified service personnel must repair the equipment. ! All wireless devices may get interference, which could affect performance. ! Use approved accessories only. Do not connect incompatible products. ! Use only accessories approved by the wireless LAN Card manufacturer for use with this particular wireless LAN Card. The use of any other types will invalidate any approval or warranty applying to the wireless LAN Card, and may be dangerous, ! Use only the region setting appropriate for the area where the wireless LAN Card is used at the present time. Using the card in any other region or with an incorrect region setting is prohibited and may be illegal. ! Operation of any radio transmitting equipment, including a wireless LAN Card, may interference with the functionality of inadequately protected medical devices. ! Do not use the wireless LAN Card on aircraft. ! Do not use the wireless LAN Card at a refueling point. ! Do not use the wireless LAN Card near fuel or chemicals. ! Do not use the wireless LAN Card where blasting is in progress. ! Do not use the wireless LAN Card when the use of wireless device may cause interference or danger. ! Do not use the wireless LAN Card where the use of cellular terminals is prohibited.

September 22, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Samsung Electro-Mechanics authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD 21406 USA Subject: FCC ID: E2XSWL-2100U January 30, 2001 Gentlemen, Samsung Electro-Mechanics hereby requests that the following items be kept confidential under sections 0.457 and 0.459 of the CFR. If this information was to be made public record it would adversely affect the core business. I would like to request the following items be confidential (1) Schematics (2) Block Diagram Sincerely, John Seo Engineering Manager/System Div. ELECTRO-MECHANICS 314,Maetan3-Dong, Paldal-ku,Suwoni, Kyungki-Do,Korea,441-743 TEL82 -31 -210-5712 FAX82-31-210-5529

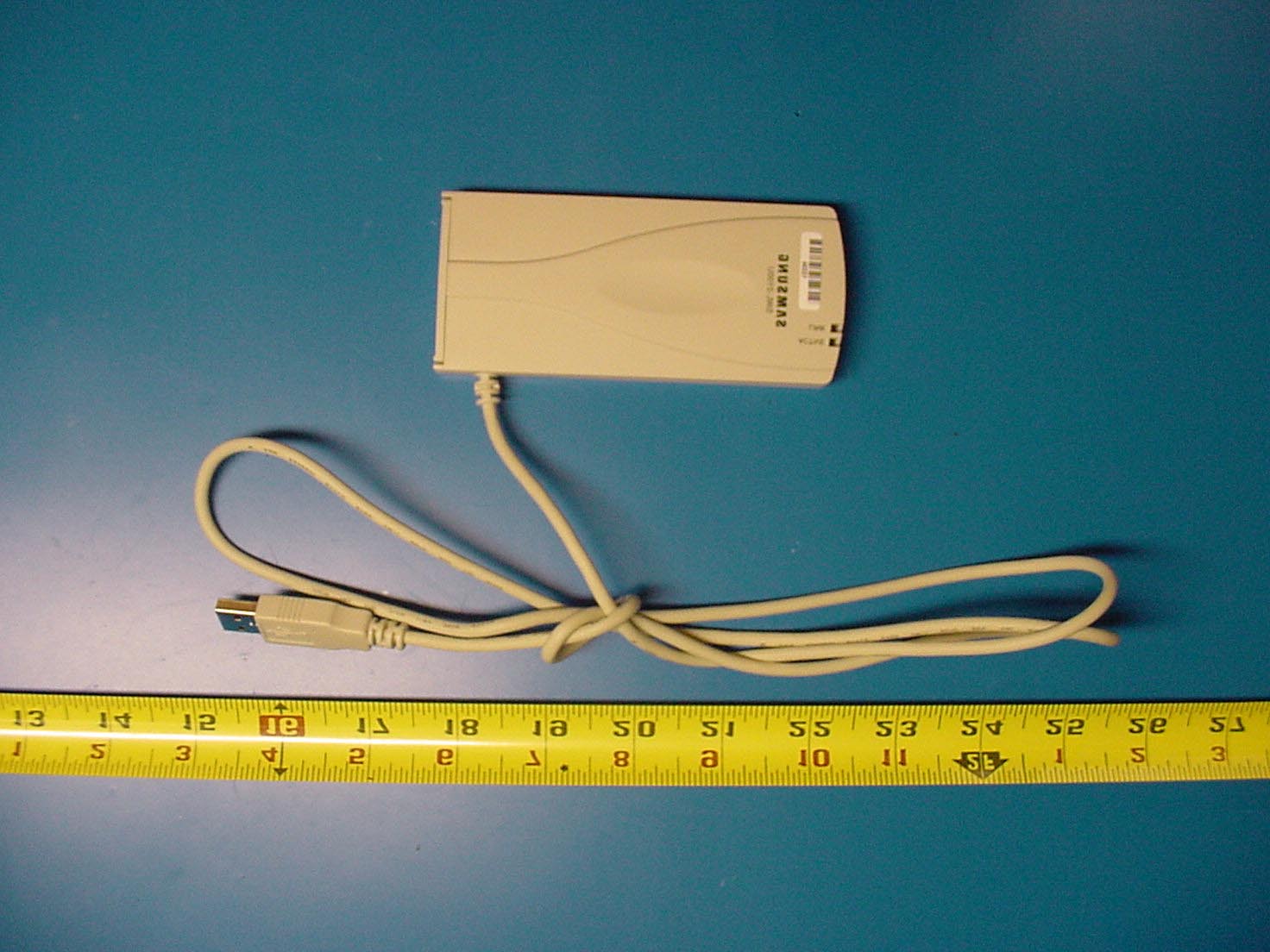

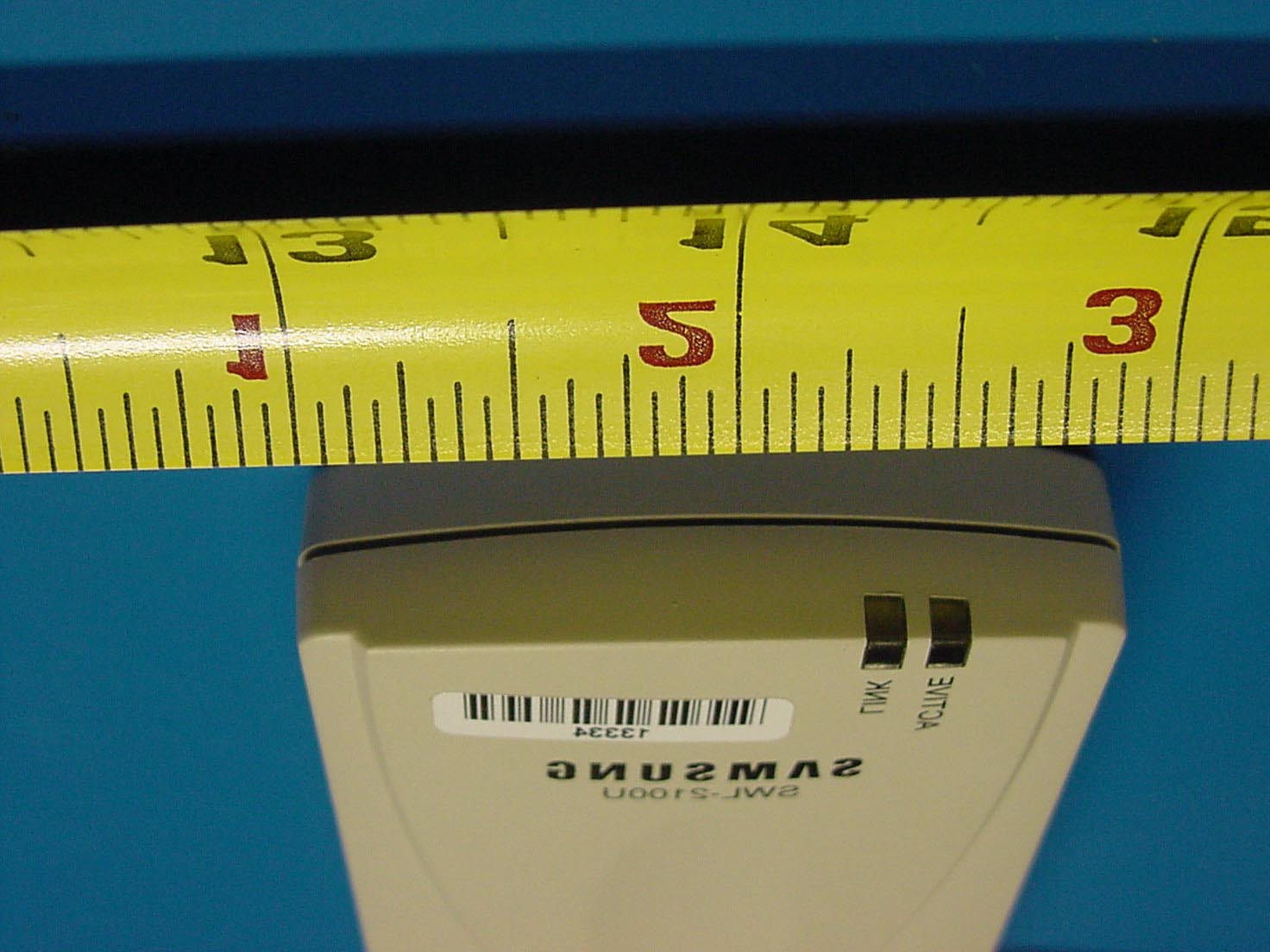

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 44 of 51 Document Number: 2000453 APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: TOP VIEW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 45 of 51 Document Number: 2000453 PHOTOGRAPH 6: BOTTOM VIEW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 46 of 51 Document Number: 2000453 PHOTOGRAPH 7: TOP SIDE VIEW

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 36 of 51 Document Number: 2000453 APPENDIX B: LABEL INFORMATION FCC ID Label Warning Statement FCC L ABEL A ND L OCATION OF L ABEL ON EUT Samsung Electro-Mechanics FCC ID: E2XSWL-2100U Canada 210: XXXXXX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 47 of 51 Document Number: 2000453 APPENDIX J: INTERNAL PHOTOGRAPHS PHOTOGRAPH 8: TOP VIEW OF THE BOARD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 48 of 51 Document Number: 2000453 PHOTOGRAPH 9: BOTTOM VIEW OF THE BOARD WITHOUT CAN 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 49 of 51 Document Number: 2000453 PHOTOGRAPH 10: BOTTOM VIEW OF THE BOARD WITH CAN 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 50 of 51 Document Number: 2000453 PHOTOGRAPH 11: INSIDE VIEW OF PLASTIC COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 51 of 51 Document Number: 2000453 PHOTOGRAPH 12: INSIDE VIEW OF PLASTIC COVER

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 35 of 51 Document Number: 2000453 APPENDIX A: PRODUCT DESCRIPTION The model SWL-2100U (referred to as the EUT in this report) is a Direct Sequence Spread Spectrum wireless LAN, USB network card. The EUT provides wireless communications between computers. The EUT is designed to be installed into the USB slot of a notebook computer or desktop computer with a USB slot. The EUT communicates with other wireless LAN cards using the frequency range from 2.413 GHz to 2.463 GHz. The EUT is powered from the USB slot, and does not have an external power supply. The EUT uses an external antenna. The EUT uses 2- bits encoded to 4 complex code words; 2-DQPSK CCK modulation technique with 8 Chips per symbol, spread clock rate is 1.375 MHz symbol/sec, and the data rate = 11 MBPS.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 39 of 51 Document Number: 2000453 APPENDIX E: BILL OF MATERIALS (PARTS LIST) Bill Of Materials April 10,2001 12:11:51Page1 ItemQuantityReferencePart ______________________________________________ 12ANT1,ANT2Patch_ANT 24C2,C11,C15,C30412.2uF 336C12,C13,C17,C18,C26,C29, 0.1uF C30,C32,C35,C36,C40,C41, C53,C57,C70,C71,C72,C84, C89,C93,C112,C117,C121, C124,C132,C133,C135, C3021,C3023,C3026,C3034, C3036,C3043,C3055,C3059, C3060 416C22,C60,C61,C68,C86,C92, 0.01uF C95,C99,C103,C114,C125, C130,C139,C140,C3037, C3038 56C23,C76,C80,C116,C2003,1000pF C3042 66C24,C69,C3063,C3070,22pF C3080,C3084 79C38,C43,C129,C134,C136,10uF C3022,C3027,C3035,C3095 86C39,C44,C47,C55,C56,C74220pF 95C42,C137,C3031,C3032,1nF C3096 102C45,C4615pF 112C49,C753.3pF 122C52,C5110pF 131C581.8pF 148C59,C67,C78,C109,C3076,7pF C3078,C3079,C3083 1511C62,C83,C3064,C3065,9pF C3072,C3073,C3077,C3081, C3085,C3086,C3087 1612C85,C88,C94,C104,C108,100pF C2015,C3082,C3088,C3089, C3092,C3093,C3094 171C910.022uF 181C100 0.22uF 191C107 3900pF 202C110,C12068pF 214C111,C3044,C3068,C307424pF 221C118 0.068uF 231C123 0.68uF 244C3028,C3029,C3057,C3058 18pF 252C3030,C3033 180pF 262C3039,C3040 2.2nF 272C3046,C3045 10uF/6.3V 289C3047,C3048,C3049,C3050, 100nF C3051,C3052,C3053,C3054, C3061 292C3075,C3066 4.7pF 305L3004,L3019,L3022,L3027,3.3nH C3069 3110R13*,R3008*,L3012,L3013,미삽 L3015,L3017,L3024,L3026, C3071,C3091 321C3090 270pF 332D4,D7 BZX84C3V3/SOT 342D5,D6 BAT54S/SOT 351D207 SML010MT RED 361D208 SML010MT GRN 371D210 BAT14-03 381FL1SAW374M 392FL5,FL6LFSN30 401J1BNC 411J100USB_B 5pin 421J101* USB_B 431J102* MMS2_08 441L10.56uH 456L2,L3007,L3008,L3009,BLM21P300S L3010,L3011 461L539nH 471L618nH 483L7,L3018,L30232.2nH 494L9,L10,L12,L1433nH 501L732.7nH 511L3016 1.8nH 522L3025,L3020 5.6nH 531L3021 3.9nH 541L3028 1.5nH 551L3029 4.7nH 563Q1,Q8,Q9IRLML6302 573Q2,Q5,Q6*IRLML2402 581Q7ATF35143 598R1,R3017,R3026,R3030,3.3K R3032,R3033,R3035,R3036 601R210M 614R3,R4*,R3013,R3015 270 6221R5,R8***,R8**,R8*,R8,R9,0 R10,R19,R23,R27,R29,R57, R61,R63,R64,R74,R1073, R3006,R3007,R3023,R3024 634R6,R7,R3018,R301915 641R110* 654R15,R65,R3016*,R30161.5K 661R20560 6710R22,R25,R31,R35,R47,R49,100 R51,R3028,R3038,R3039 683R28,R30,R37 1.0K 692R32,R3612K 702R33,R3419.1K 711R3810K 722R39,R441.1K 732R40,R522K 749R41,R3037,R3040,R3041,1k R3042,R3044,R3047,R3049, R3050 751R452.7K 761R553.92K 772R56,R304551 784R58,R62,R66,R67124 792R70,R59510 801R69649 811R7310 822R75,R7790.9 831R7682.5 842R3043*,R2015 20 851R3009 820 863R3010,R3021,R3022 150 874R3027,R3029,R3031,R30343.3K* 881R3046 470 891R3048 330 9095T1,T2,T3,T4,T5,T6,T7,T8,TP T11,T12,T13,T14,T15,T16, T17,T18,T19,T20,T21,T22, T23,T24,T25,T26,T27,T28, T29,T30,T31,T32,T33,T34, T35,T36,T37,T38,T39,T40, T41,T42,T43,T44,T45,T46, T47,T100,T101,T103,T104, T105,T106,T107,T108,T109, T110,T111,T112,T113,T114, T115,T116,T117,T118,T119, T120,T121,T122,T123,T124, T125,T200,T201,T202,T203, T204,T205,T206,T207,T208, T209,T210,T211,T212,T213, T214,T215,T216,T217,T300, T301,T302,T306,T307,T308, T309 911U1AT76C503A 921U2GS71108TP 931U3HFA3863 941U4HFA3783 951U5HFA3683A 961U6ITT2303gj 971U7LDC15B120J2450 982U8,U9 UPG158TB 992U11,U10AME8801AEEV 1002U12,U13AME8801JEEV 1011U1544M-OSC 1021U16MVE-748 1031U17MVN-2074 1041U19UMC5N 1051U20AT25040-10SC 1061U21AT45DB011-SC 1071U22AT29LV010A 1081U23AT49LV001N-90TC 1091X1Xtal 12MHz 1101X2Xtal 36MHz(SMD6035) 1111Y1Xtal 36MHz(SMD 6x3.5x1.0mm)

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 34 of 51 Document Number: 2000453 14 RF EXPOSURE CALCULATIONS FOR HIGH GAIN ANTENNAS From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. E = √S x Z 1mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: E = √10 x 377 = 61.4 V/m which is equivalent to 1mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power and solving for d, d = √ P eak x 30 x G E Example using the Stub Omni-directional antenna 1. The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log –1 (dB gain/10) G = Log –1 0.215 = 1.64 Notice in Installation Manual: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 5 cm from the antenna at all time. The table below identifies the distances where the 1mW/cm 2 exposure limits may be exceeded during continuous transmission using the external antenna TABLE 14-1: ANETNNA GAIN Antenna Type Gain (dBi) Gain Numeric Power Output (mW) Calculated RF Exposure Separation Distance (cm) Minimum RF Exposure Separation Distance (cm) Internal 5.3 3.3 28 2.7 20

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION FOR FCC CERTIFICATION DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER Samsung Electro-Mechanics 314, Maetan-3Dong, Paldal-Gu, Suwon, Kyunggi-Do, Korea, 442-743 +82-331-210-6662 Model: Magic Wave USB Card SWL-2100U FCC ID: E2XSWL-2100U May 30, 2001 S TANDARDS R EFERENCED FOR THIS R EPORT P ART 2: 1999 F REQUENCY A LLOCATIONS AND R ADIO T REATY M ATTERS ; G ENERAL R ULES AND R EGULATIONS P ART 15: 1999 R ADIO F REQUENCY D EVICES FCC 97-114 G UIDANCE ON M EASUREMENTS FOR D IRECT S EQUENCE S PREAD S PECTRUM S YSTEMS ANSI C63.4-1992 S TANDARD F ORMAT M EASUREMENT /T ECHNICAL R EPORT P ERSONAL C OMPUTER AND P ERIPHERALS RSS-210, Issue 5: Draft 3 L OW P OWER L ICENCE -E XEMPT R ADIOCOMMUNICATION D EVICES (A LL F REQUENCY B ANDS ) RSS-102, Issue 1: 1999 E VALUATION P ROCEDURE FOR M OBILE AND P ORTABLE R ADIO T RANSMITTERS FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 15.247 2412 - 2462 MHz 0.028 Industry Canada Frequency Range Output Power (W) Freq. Tolerance Emission Designator RSS-210 2412 - 2462 MHz 0.028 REPORT PREPARED BY: EMC Engineer: Rachid Sehb Signature: Supervising Engineer: Bruno Clavier Signature: Document Number: 2001150 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Samsung Electro-Mechanics Page 2 of 50 Document Number: 2001150 T ABLE OF C ONTENTS 1 INTRODUCTION ......................................................................................................................................................................................5 1.1 RELATED SUBMITTAL (S)/GRANT (S).........................................................................................................................................................................5 1.2 TEST METHODOLOGY .................................................................................................................................................................................................5 1.3 TEST FACILITY ..............................................................................................................................................................................................................5 2 SYSTEM TEST CONFIGURATION .........................................................................................................................................................9 2.1 JUSTIFICATION .............................................................................................................................................................................................................9 2.2 EUT EXERCISE SOFTWARE ........................................................................................................................................................................................9 2.3 SPECIAL ACCESSORIES..............................................................................................................................................................................................9 2.4 TEST SYSTEM DETAILS.............................................................................................................................................................................................10 3 CONFORMANCE STATEMENT............................................................................................................................................................11 4 FIELD STRENGTH CALCULATION .....................................................................................................................................................12 5 CONDUCTED EMISSIONS MEASUREMENTS....................................................................................................................................13 5.1 CONDUCTED EMISSIONS TEST ...............................................................................................................................................................................13 5.2 CONDUCTED EMISSIONS TEST DATA.....................................................................................................................................................................14 6 RADIATED EMISSIONS MEASUREMENTS ........................................................................................................................................15 6.1 RADIATED EMISSIONS TEST DATA..........................................................................................................................................................................16 7 MODULATED BANDWIDTH TEST DATA ............................................................................................................................................17 8 POWER OUTPUT TEST DATA .............................................................................................................................................................21 9 ANTENNA CONDUCTED SPURIOUS EMISSIONS TEST DATA........................................................................................................22 10 RADIATED SPURIOUS EMISSIONS ....................................................................................................................................................23 11 POWER SPECTRAL DENSITY .............................................................................................................................................................26 12 COMPLIANCE WITH THE RESTRICTED BAND EDGE ......................................................................................................................28 13 RF EXPOSURE CALCULATIONS FOR HIGH GAIN ANTENNAS ......................................…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 42 of 51 Document Number: 2000453 APPENDIX H: TEST PHOTOGRAPHS PHOTOGRAPH 1: CONDUCTED EMISSIONS FRONT VIEW PHOTOGRAPH 2: CONDUCTED EMISSIONS REAR VIEW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: ICOM America Page 43 of 51 Document Number: 2000453 PHOTOGRAPH 3: RADIATED EMISSIONS FRONT VIEW PHOTOGRAPH 4: RADIATED EMISSIONS REAR VIEW
