E2XSWL-2200UUSB Wireless LAN Adapter

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 42 of 59 APPENDIX J: MANUAL Please see the following pages. 1 SAMSUNG MagicLAN SWL-2200U User Manual (Rev. 1.4) 2 Table of Contents 1. MagicLAN Installation ................................................................................8 1.1 Introduction ....................................................................................8 1.2 Technical Background ..........................................................................8 1.3 MagicLAN Overview............................................................................10 2. Before the Installation ...............................................................................12 2.1 What is in your Package ......................................................................12 2.2 System Requirement ...........................................................................12 2.3 Preparations For Installation ..................................................................12 3. MagicLAN Installation for Windows 98/ME/2000/XP/CE .......................13 3.1 Installation Overview ..........................................................................13 3.2 Installation Procedure of Windows 98 ..............................................13 3.3 Installation Procedure of Windows ME ..............................................20 3.4 Installation Procedure of Windows 2000 ..........................................26 3.5 Installation Procedure of Windows XP .........................................31 3.6 Installation Procedure of Windows CE .....................................................37 3.7 Update of MagicLAN Wireless LAN Card Driver........................................45 3.8 Removal of MagicLAN Wireless LAN Card Driver .......................................45 4. The Program for setting MagicLAN................................................................47 4.1 The concept of Profile.........................................................................47 4.2 Installation Procedure....................................................................47 5. The main configuration of Program.................................................................53 5.1 Profile.............................................................................................54 5.1.1 The ‘New’ button......................................................................54 5.1.2 The ‘Apply’ button....................................................................54 5.1.3 The ‘Edit’ button......................................................................55 5.1.4 The ‘Delete’ button....................................................................57 5.2 Status..............................................................................................57 5.2.1 The ‘Current Status’ button..........................................................58 5.2.2 The ‘AP Status’ button...............................................................58 5.2.3 The ‘Site Survey’ button............................................................59 3 5.2.4 Statistics.................................................................................59 5.3 General Settings...................................................................................60 5.3.1 The ‘DHCP’ button.................................................................60 5.3.2 The ‘Options’ button................................................................60 5.4 Version........................................................................................61 6. Troubleshooting ....................................................................................62 4 Notice 1 This manual cannot be reproduced in any form without the prior written permission of SAMSUNG Electro-Mechanics Co., Ltd. SAMSUNG Electro-Mechanics Co., Ltd. reserves the right to change this manual and the specifications to improve products without prior notice. You can get the most recent software and user documentation for all MagicLAN products on our web site. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. All other brand and product names are trademarks of registered trademarks of their respective holders. This is a generic manual; references to other products are contained herein. http://www.MagicLAN.com Service Dept. Tel : +82-31-218-2416,8,9,20 Fax : +82-31-218-2431 Sales Dept. <America> Tel : +82-31-218-2407,9,11 Fax : +82-31-210-5996 <Europe> Tel : +82-31-218-2409 Fax : +82-31-210-5996 <Asia> Tel : +82-31-210-5603 Fax : +82-31-218-2414 Japan Tel : +82-31-210-5706 Fax : +82-31-210-5996 China Tel : +82-31-210-5703 Fax : +82-31-210-5996 Copyright © 1999 - 2002 SAMSUNG Electro-Mechanics Co., Ltd. All rights reserved. Notice 2 WARNING While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna. The device must not be collocated with any other antenna or transmitters. Important Safety Information ! The unit can be used as a portable device if used with a laptop. ! This device complies with Part 15 rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. ! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can …

Text truncated - open the document above for the full version.

DECLARATION OF CONFORMITY FOR A CLASS B DIGITAL DEVICE We, the Responsible Party Samsung Electro-Mechanics Co., LTD. R&D Center, 4 th Floor 3114, Maetan-3Dong, Paldal-Gu Paldal-Gu Swon, Kyunggi-Do 442-743 Korea Contact: Jae-Jung Ko declare that the product SWL-2200U Document Number: 2002055 Reference Number: QRTL02-413DDF is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (Signature) (Full Name) (Posit ion)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 10, 2002 RE: Samsung EMC FCC ID: E2XSWL-2200U I have a few comments on this application: 1.) This is a “stick radio” LAN adapter which is capable of plugging directly into a USB port. It is therefore excluded from RF Category “Mobile” because it can be used within 2.5cm of the body. Please revise the RF Exposure exhibit. RESPONSE : The RF exposure statement was modified in the RF exposure exhibit and the manual. Please refer to these revised exhibits uploaded with this response. 2.) Please revise manual to reflect RF Category “Portable” configuration. RESPONSE : The manual has been revised to reflect the RF portable category; please refer to the revised manual uploaded with this response. 3.) Show math in RF Exposure exhibit. RESPONSE : The EIRP was determined on the through substitution measurement; it represents the maximum EIRP for all the channels. The SAR measurement will prove that the measured EIRP is the actual RF transmitted power, instead of the calculated EIRP. The RF exposure distance was determined by using EIRP at 6.8 dBm, the calculation is based on the FCC RF exposure limit of 1mW/cm 2 at 2.4GHz. 4.) The October 22 attestation by Samsung claims the conducted Pout is 16dBm. Please note this is above the current low threshold limits according to the TCB Exclusion list of July 2002. SAR testing is required for all “Portable” devices used within 2.5cm of the body with either a radiated or conducted power in excess of 60mW/f (GHz). RESPONSE : The SAR evaluation report has been uploaded with this response. 5.) FYI: please also note that the FCC doesn’t care about “average” antenna gain – the only units which are valid are peak. RESPONSE : Noted. 6.) Test Report must quote Pout in terms of conducted power. Using data supplied by antenna manufacturer combined with Samsung’s admitted conducted power; I would expect to see peak radiated power on the order of +17.8dBm. Please explain. RESPONSE : You are right, the theoretical EIRP would be the manufacturer’s verified conducted power and the maximum vendor-provided free space antenna gain value (unloaded characteristic, i.e. without any EUT housing). Therefore, the EIRP data was determined through the substitution measurement method; it represents the actual maximum EIRP transmitted for all the channels. The antenna gain provided by the antenna vendor is not a loaded antenna gain specification, i.e. gain-specification within a typical EUT housing. When the antenna is installed inside the EUT, the gain characteristic is different from the free space gain value. The SAR measurement proves that the measured EIRP is the actual RF transmitted power, instead of the calculated EIRP. 7.) Please demonstrate that when this device functions as a computer peripheral it will not make an existing Class B computing system fail, or provide evidence of DoC. RESPONSE : Please see the DoC uploaded with this response.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 11, 2002 RE: Samsung FCC ID: E2XSWL-2200U I have a few comments on this Application. 1.) This is a “stick radio” LAN adapter which is capable of plugging directly into a USB port. It is therefore excluded from RF Category “Mobile” because it can be used within 2.5cm of the body. Please revise the RF Exposure exhibit. 2.) Please revise manual to reflect RF Category “Portable” configuration. 3.) Show math in RF Exposure exhibit. 4.) The October 22 attestation by Samsung claims the conducted Pout is 16dBm. Please note this is above the current low threshold limits according to the TCB Exclusion list of July 2002. SAR testing is required for all “Portable” devices used within 2.5cm of the body with either a radiated or conducted power in excess of 60mW/f(GHz). 5.) FYI: please also note that the FCC doesn’t care about “average” antenna gain – the only units which are valid are peak. 6.) Test Report must quote Pout in terms of conducted power. Using data supplied by antenna manufacturer combined with Samsung’s admitted conducted power; I would expect to see peak radiated power on the order of +17.8dBm. Please explain. 7.) Please demonstrate that when this device functions as a computer peripheral it will not make an existing Class B computing system fail, or provide evidence of DofC. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 35 of 59 APPENDIX C: AGENCY AUTHORIZATION LETTER Please see the following page. September 22, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Samsung Electro-Mechanics authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter.

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 36 of 59 APPENDIX D: CONFIDENTIALITY REQUEST LETTER (IF APPLICABLE) Please see the following page. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD 21406 USA Subject: FCC ID: E2XSWL-2200U APRIL 18, 2002 Gentlemen, Samsung Electro-Mechanics hereby requests that the following items be kept confidential under sections 0.457 and 0.459 of the CFR. If this information was to be made public record it would adversely affect the core business. I would like to request the following items be confidential: (1) Schematics (2) Block Diagram (3) Product Description Sincerely, John K. Seo Senior Manager Network Division, R&D Lab. 2 nd Wireless LAN ELECTRO-MECHANICS 31 4,Maetan 3- Dong, Paldal-ku, Suwoni, Kyung ki- Do,Kor ea,441- 743 T E L 82 -31 -2 10- 57 12 FAX 82- 31 -21 0- 552 9

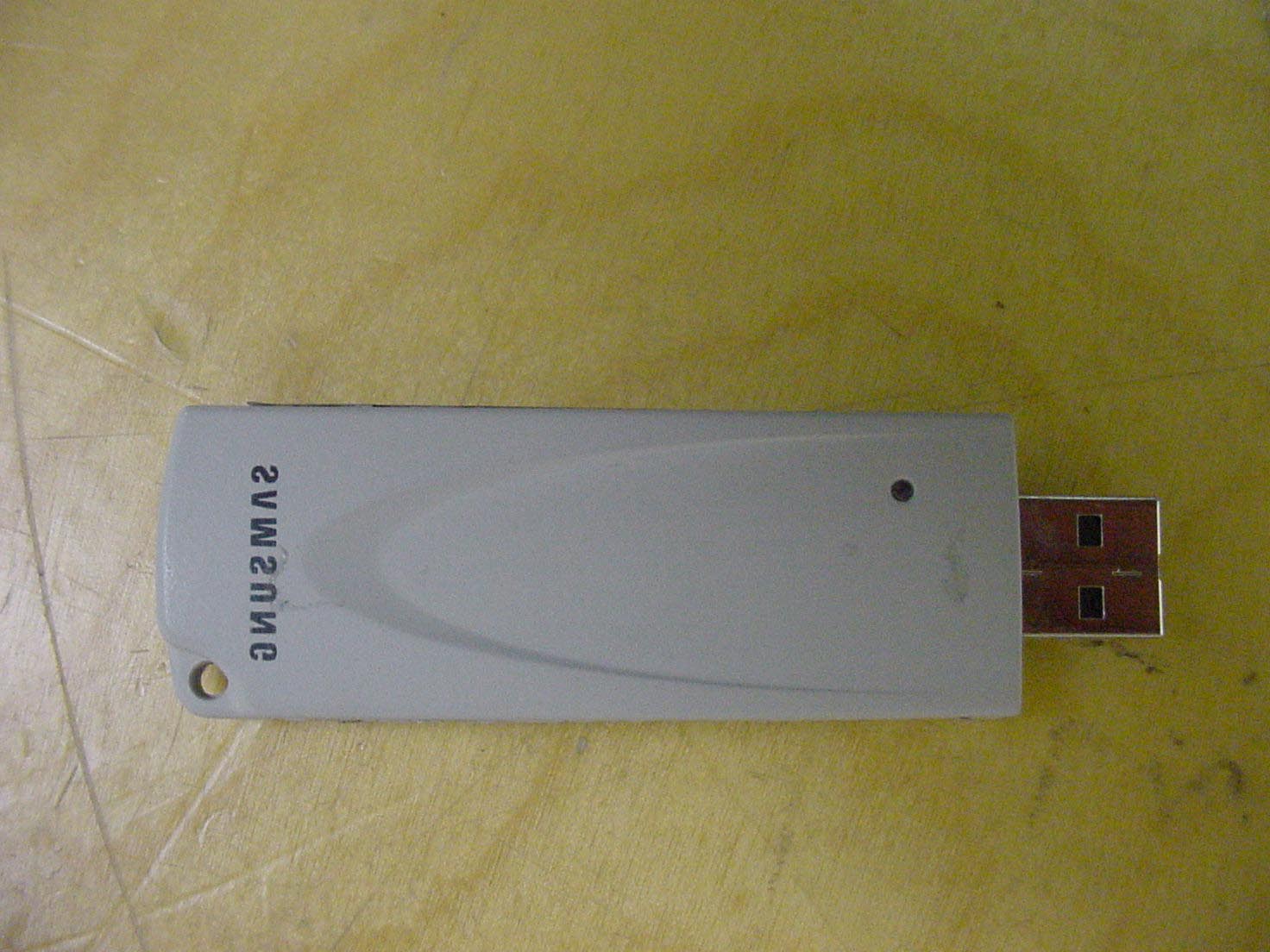

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 47 of 59 APPENDIX L: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 6: FRONT VIEW OF EUT Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 48 of 59 PHOTOGRAPH 7: BACK VIEW OF EUT Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 49 of 59 PHOTOGRAPH 8: SIDE VIEW OF EUT

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 39 of 59 APPENDIX G: LABEL AND LABEL LOCATION PHOTOGRAPH 1: FCC ID LABEL ON EUT

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 50 of 59 APPENDIX M: INTERNAL PHOTOGRAPHS PHOTOGRAPH 9: TOP VIEW OF RF BOARD Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 51 of 59 PHOTOGRAPH 10: BOTTOM VIEW OF RF BOARD WITH SHIELD Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 52 of 59 PHOTOGRAPH 11: BOTTOM VIEW OF RF BOARD WITHOUT SHIELD Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 53 of 59 PHOTOGRAPH 12: TOP VIEW OF DIGITAL BOARD Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 54 of 59 PHOTOGRAPH 13: BOTTOM VIEW OF DIGITAL BOARD Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 55 of 59 PHOTOGRAPH 14: INSIDE VIEW OF FRONT AND BACK COVERS

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 38 of 59 APPENDIX F: PRODUCT DESCRIPTION Please see the following pages.

Rhein Tech Laboratories Client: Samsung EMC 360 Herndon Parkway Model: SWL-2200U Suite 1400 FCC ID: E2XSWL-2200U Herndon, VA 20170 FCC/IC: 15.247/RSS-210 www.rheintech.com Report #: 2002055 Page 34 of 59 APPENDIX B: ANTENNA SPECIFICATIONS Please see the following pages . - 1 - A A A An n n nt t t te e e en n n nn n n na a a a: : : :S S S SE E E EM M M MC C C CO O O OW W W WL L L LA A A AN N N NC C C Ch h h hi iiip p p pA A A An n n nt t t te e e en n n nn n n na a a a( ( ( (1 1 1 12 2 2 2. . . .5 5 5 5* * * *3 3 3 3* * * *2 2 2 2. . . .5 5 5 5m m m mm m m mc c c ce e e er r r ra a a am m m mi iiic c c c) ) ) ) T T T Te e e es s s st t t tJ J J JI I I IG G G G: : : :2 2 2 22 2 2 20 0 0 00 0 0 0U U U U A A A An n n nt t t te e e en n n nn n n na a a aP P P Po o o os s s si iiit t t ti iiio o o on n n n: : : :M M M Ma a a at t t tc c c ch h h hi iiin n n ng g g gC C C Ci iiir r r rc c c cu u u ui iiit t t t: : : :M M M Ma a a at t t tc c c ch h h hi iiin n n ng g g gc c c ci iiir r r rc c c cu u u ui iiit t t tn n n ne e e ee e e ed d d de e e ed d d d A A A An n n nt t t te e e en n n nn n n na a a aR R R Ra a a ad d d di iiia a a at t t ti iiio o o on n n nP P P Pa a a at t t tt t t te e e er r r rn n n nD D D Di iiir r r re e e ec c c ct t t ti iiio o o on n n n Azimuth Plane (XY plane) Elevation 1 Plane (YZ plane) Elevation 2 Plane (ZX plane) F F F Fe e e ee e e ed d d di i i in n n ng g g gP P P Po o o or r r rt t t t G G G Gr r r ro o o ou u u un n n nd d d dP P P Po o o or r r rt t t t 0 o 180 o 270 o 90 o 0 o 180 o 270 o 90 o 0 o 90 o 180 o 270 o 0 o 0 o 90 o 180 o 270 o 0 o 90 o 180 o 270 o 0 o 0 o 90 o 180 o 270 o 15 15 15 15 nH nH nH nH 4 4 4 4 pF pF pF pF antenan antenan antenan antenan 15 15 15 15 nH nH nH nH 4 4 4 4 pF pF pF pF antenan antenan antenan antenan L L L Le e e ef f f ft t t tp p p po o o or r r rt t t t R R R Ri i i ig g g gh h h ht t t tp p p po o o or r r rt t t t - 2 - A A A An n n nt t t te e e en n n nn n n na a a a: : : :S S S SE E E EM M M MC C C CO O O OW W W WL L L LA A A AN N N NC C C Ch h h hi iiip p p pA A A An n n nt t t te e e en n n nn n n na a a a V V V VS S S SW W W WR R R RR R R Re e e es s s su u u ul lllt t t t L L L Le e e ef f f ft t t tp p p po o o or r r rt t t t R R R Ri iiig g g gh h h ht t t tp p p po o o or r r rt t t t - 3 - A A A An n n nt t t te e e en n n nn n n na a a a: : : :S S S SE E E EM M M MC C C CO O O OW W W WL L L LA A A AN N N NC C C Ch h h hi iiip p p pA A A An n n nt t t te e e en n n nn n n na a a a R R R Ra a a ad d d di iiia a a at t t ti iiio o o on n n nP P P Pa a a at t t tt t t te e e er r r rn n n nR R R Re e e es s s su u u ul lllt t t t( ( ( (L L L Le e e ef f f ft t t tp p p po o o or r r rt t t t) ) ) ) A A A Az z z zi iiim m m mu u u ut t t th h h hP P P Pl llla a a an n n ne e e e V V V Ve e e er r r rt t t ti iiic c c ca a a al lllP P P Po o o ol llla a a ar r r ri iiiz z z za a a at t t ti iiio o o on n n n( ( ( (S S S So o o ou u u ur r r rc c c ce e e e) ) ) ) H H H Ho o o or r r ri iiiz z z zo o o on n n nt t t ta a a al lllP P P Po o o ol llla a a ar r r ri iiiz z z za a a at t t ti iiio o o on n n n( ( ( (S S S So o o ou u u ur r r rc c c ce e e e) ) ) ) M M M Ma a a ax x x x: : : :- - - -3 3 3 3. . . .3 3 3 3 A A A Av v v ve e e e: : : :- - - -8 8 8 8. . . .0 0 0 08 8 8 8 M M M Ma a a ax x x x: : : :- - - -7 7 7 7. . . .1 1 1 17 7 7 7 A A A Av v v ve e e e: : : :- - - -1 1 1 11 1 1 1. . . .1 1 1 13 3 3 3 T T T To o o ot t t ta a a al lllM M M Ma a a ax x x x: : : :- - - -3 3 3 3. . . .3 3 3 30 0 0 0T T T To o o ot t t ta a a al lllA A A Av v v ve e e e: : : :- - - -9 9 9 9. . . .6 6 6 61 1 1 1 - 4 - A A A An n n nt t t te e e en n n nn n n na a a a: : : :S S S SE E E EM M M MC C C CO O O OW W W WL L L LA A A AN N N NC C C Ch h h hi iiip p p pA A A An n n nt t t te e e en n n nn n n na a a a R R R Ra a a ad d d di iiia a a at t t ti iiio o o on n n nP P P Pa a a at t t tt t t te e e er r r rn n n nR R R Re e e es s s su u u ul lllt t t t( ( ( (L L L Le e e ef f f ft t t tp p p po o o or r r rt t t t) ) ) ) E E E El llle e e ev v v va a a at t t ti iiio o o on n n n1 1 1 1P P P Pl llla a a an n n ne e e e V V V Ve e e er r r rt t t ti iiic c c ca a a al lllP P P Po o o ol llla a a ar r r ri iiiz z z za a a at t t ti iiio o o on n n n( ( ( (S S S So o o ou u u ur r r rc c c ce e e e) ) ) ) H H H Ho o o or r r ri iiiz z z zo o o on n n nt t t ta a a al lllP P P Po o o ol llla a a ar r r ri iiiz z z za a a at t t ti iiio o o on n n n( ( ( (S S S So o o ou u u ur r r rc c c ce e e e) ) ) ) M M M Ma a a ax x x x: : : :- - - -4 4 4 4. . . .7 7 7 78 8 8 8 A A A Av v v ve e e e: : : :- - - -8 8 8 8. . . .9 9 9 92 2 2 2 M M M Ma a a ax x x x: : : :- - - -1 1 1 1. . . .5 5 5 58 8 8 8 A A A Av v v ve e e e: : : :- - - -8 8 8 8. . . .2 2 2 22 2 2 2 T T T To o o ot t t ta a a al lllM M M Ma a a ax x x x: : : :- - - -1 1 1 1. . . .5 5 5 58 8 8 8T T T To o o ot t t ta a a al lllA A A Av v v ve e e e: : : :- - - -8 8 8 8. . . .5 5 5 57 7 7 7 - 5 - A A A An n n nt t t te e e en n n nn n n na a a a: : : :S S S SE E E EM M M MC C C CO O O OW W W WL L L LA A A AN N N NC C C Ch h h hi iiip p p pA A A An n n nt t t te e e en n n nn n n na a a a R R R Ra a a ad d d di iiia a a at t t ti iiio o o on n n nP P P Pa a a at t t tt t t te e e er r r rn n n nR R R Re e e es s s su u u ul lllt t t t( ( ( (L L L Le e e ef f f ft t t tp p p po o o or r r rt t t t) ) ) ) E E E El llle e e ev v v va a a at t t ti iiio o o on n n n2 2 2 2P P P Pl llla a a an n n ne e e e V V V Ve e e er r r rt t t ti iiic c c ca a a al lllP P P Po o o ol llla a a ar r r ri iiiz z z za a a at t t ti iiio o o on n n n( ( ( (S S S So o o ou u u ur r r rc c c ce e e e) ) ) ) H H H Ho o o or r r ri iiiz z z zo o o on n n nt t t ta a a al lllP P P Po o o ol llla a a ar r r ri iiiz z z za a a at t t ti iiio o o on n n n( ( ( (S S S So o o ou u u ur r r rc c c ce e e e) ) ) ) M M M Ma a a ax x x x: : : :- - - -1 1 1 11 1 1 1. . . .2 2 2 25 5 5 5 A A A Av v v ve…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 December 12, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: FCC: ID E2XSWL-2200U Justification Of Difference Between Theoretical EIRP And Measured EIRP The integral antenna was removed in order to verify the device conducted output power (16 dBm) as stated in the manual and manufacturers attestation. This conducted power was verify by Rhein Tech Laboratories on the manufacturer's modified unit. The theoretical EIRP using the measured 16 dBm output power + the max peak antenna free space gain value (max peak = 0.8dBi, max average = -5.1dBi, low = -10dBi) equates to 16.8 dBm. However, when the EIRP was measured using the substitution method on the device with the integral antenna, the result yielded 7.3 dBm with the unit investigated and tested on 3 orthogonal positions. Great care was taken to find the maximum EIRP by positioning the EUT so that maximum level can be achieved. This discrepancy resulted in the use of the free space antenna gain value (un-loaded antenna) in determining theoretical EIRP. The large difference between the measured EIRP and the theoretical EIRP results confirm that the integral antenna when loaded, i.e. installed in the EUT's housing, does not perform efficiently as stated in the free space gain value. The result demonstrates that the antenna performed closer to the free space low gain value than the max peak free space gain value. This is consistent with experience in our lab that the gain characteristic specifications provided by wireless LAN manufacturers are typically free space data and that when these antennas are loaded, the free space gain data is no longer valid for the configuration. This result is further collaborated by EIRP measurements contained in the SAR report provided for the aforementioned EUT. Sincerely, Desmond Fraser, President Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 Rhein Tech Laboratories Report number 2002057 360 Herndon Parkway, Suite 1400 FCC Part 15.247 Herndon, VA 20170 Industry Canada RSS-210 FCC ID E2X-SWL2200P http://www.rheintech.com M/N SWL-2200P © Rhein Tech Laboratories, Inc Page 3 of 3 Revision: 0

Test Report S/N: 112902-320E2X Test Date(s): December 09, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information SAMSUNG ELECTRO-MECHANICS R&D Center, 4th Floor 314, Maetan-3Dong, Paldal-Ku Suwon, Kyunggi-Do, Korea FCC Rule Part(s):47 CFR §2.1093 Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC ID:E2XSWL-2200U Model:SWL-2200U Device Type:Wireless USB LAN Adapter for Laptop PC Modulation:Direct Sequence Spread Spectrum (DSSS) Tx Frequency Range:2412 - 2462 MHz RF Output Power Tested:7.4 dBm EIRP (2412 MHz) 4.5 dBm EIRP (2437 MHz) 6.6 dBm EIRP (2462 MHz) Antenna Type:Internal Power Supply:from Host Laptop PC Host Laptop PC(s) Tested: 1. Gateway Solo 1400 (Vertical USB Slot) 2. SONY VAIO PCG-R505 Super Slim Pro (Horizontal USB Slot) Max. SAR Measured:0.255 W/kg Test Report S/N: 112902-320E2X Test Date(s): December 09, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6-7 7.0SYSTEM PERFORMANCE CHECK............................................ 8 8.0EQUIVALENT TISSUES........................................................... 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS...................................................... 10 11.0PROBE SPECIFICATION.......................................................... 11 12.0SAM PHANTOM...................................................................... 11 13.0DEVICE HOLDER.................................................................... 11 14.0TEST EQUIPMENT LIST........................................................... 12 15.0MEASUREMENT UNCERTAINTIES............................................ 13 16.0REFERENCES........................................................................ 14 APPENDIX A - SAR MEASUREMENT DATA............................................. 15 APPENDIX B - SYSTEM CHECK DATA.................................................... 16 APPENDIX C - SYSTEM VALIDATION..................................................... 17 APPENDIX D - PROBE CALIBRATION.................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................ 19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY.............. 20 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS........................ 21 Test Report S/N: 112902-320E2X Test Date(s): December 09, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.Samsung Electro-Mechanics FCC ID: E2XSWL-2200U3 of 21 Wireless USB LAN Adapter for Laptop PC (2412-2462MHz) 1.0 INTRODUCTION This measurement report demonstrates that the SAMSUNG ELECTRO-MECHANICS Model: SWL-2200U Wireless USB LAN Adapter for Laptop PC FCC ID: E2XSWL-2200U complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]) were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures us…

Text truncated - open the document above for the full version.
