E2XSWL-2600CMagicLAN SWL-2600C Compact Flash Card

Notice 1 USER INFORMATION Acknowledging Special Precautions and the FCC Industry Canada Notice Cautions Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information When used the This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ? Reorient or relocate the receiving antenna. ? Increase the separation between the equipment and receiver ? Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Notice 2 This device(MagicLAN SWL-2600C) is product to supply to Hauppage Computer Works, Inc (Model : MediaMVP) Copyright © 1999 - 2005 SAMSUNG Electro-Mechanics Co., Ltd. All rights reserved. Notice 3 WARNING While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm 2 may be exceeded at distances close to the antennas installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna. Important Safety Information l Read these simple guidelines. Breaking the rules may be dangerous or illegal. SAMSUNG will not be responsible for any damages caused by breaking the rules. l WLAN Card described in this document is approved for use in a wireless local area network. l Remember to make backup copies of important data. l Only qualified service personnel must repair the equipment. l All wireless devices may get interference, which could affect performance. l Use approved accessories only. Do not connect incompatible products. l Use only accessories approved by the WLAN Card manufacturer for use with this particular W LAN Card. The use of any other types will invalidate any approval or warranty applying to the WLAN Card, and may be dangerous. l Use only the region settings appropriate for the area where the WLAN Card is used at the present time. Using the card in any other region or with an incorrect region setting is prohibited and may be illegal. l Operation of any radio transmitting equipment, including a WLAN Card, may cause interference with the functionality of inadequately protected medical devices. Card Standard & Mechanical Spec 1.Card Standard CF+ CompactFlash Specification Revision 2.0 2. Form Factor Type I 3. Operating voltage 3.3 V 4. Dimension 56.442.83.3 5. Weight 18g RF Characteristics 1.Specification Compliance IEEE 802.11g Draft 7.1 (CSMA/CA) ERP-DSSS/CCK 1Mbps(DBPSK) / 2Mbps(DQPSK) / 5.5, 11Mbps(CCK) 2. Data Rate & Modulation ERP-OFDM 6, 9Mbps(BPSK) / 12, 18Mbps(QPSK) / 24, 36Mbps(16-QAM) / 48, 54Mbps(64-QAM) ERP-DSSS/CCK 1~11 Mbps 17.5 dBm 3. TX output power ERP-OFDM 6 ~ 54 Mbps 15 dBm (EVM < 5%) ERP-DSSS/CCK 11 Mbps 5.5 Mbps 2 Mbps 1 Mbps -84 dBm -87 dBm -90 dBm -93 dBm 4.RX Sensitivity ERP-OFDM 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps -88 dBm -86 dBm -85 dBm -83 dBm -80 dBm -77 dBm -72 dBm -70 dBm TX Typical 420 mA 5. Current consumption RX Typical 390 mA ERP-DSSS/CCK TBD 6. Coverage ERP-OFDM TBD 1 Contents of the MediaMVP package MediaMVP Quick Installation Guide M-MediaMVP-v2-ENG 04/11/05 MediaMVP device and stand Ethernet cable for connection between the MediaMVP and your Router, Hub or Switch. This uses RJ-45 connectors and is 1.5 meters long. * Video cable set to connect the MediaMVP to your TV set. The cable set includes Composite video (yellow RCA jack), Left Audio (white RCA jack), Right Audio (red RCA jack). Remote control transmitter with 2 A A A batteries MediaMVP Installation CD-ROM with: MediaMVP Server application MediaMVP Application Search for Media application * Note: you can purchase longer ethernet cables at most computer retail stores. Cat5 cable, as the cabling is commonly called, is available to lenghts of 300 ft. 2 Overview of MediaMVP MediaMVP bridges the home PC with television sets. MediaMVP is located at the TV set, and through your home local area network receives digital audio (MP3, W M A and W AV music), digital video (MPEG-1, MPEG-2 or DivX video), digital pictures (JPEG, BMP and GIF digital pictures) and Internet radio from a PC. MediaMVP then decodes the digital media and displays the decoded media on a TV set, TV monitor or plasma monitor. On your TV set, MediaMVP lists media which can be played. MediaMVP can be connected to your local area networks via either its 10/100Mbps Ethernet connection or the built-in 54Mbps 802.11g wireless adaptor . It can also connect to Ethernet based LAN adapters such as Home Plug or wireless game adapters. The PC where both the MediaMVP software is loaded plus where your media files are located needs to be on the same network node as the MediaMVP. In general, if you have the PC and the MediaMVPs connected to the same network hub, access point or router, this requirement is satisfied. Up to 12 MediaMVPs can be connected on a network. This means you can have a MediaMVP connected to the TV in your bedroom…

Text truncated - open the document above for the full version.

March 15, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : SAMSUNG Electro-Mechanics Co., Ltd. FCC ID : E2XSWL-2600C Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SAMSUNG Electro-Mechanics Co., Ltd. hereby requests confidentiality of the Schematics, Parts list , Block diagram and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which SAMSUNG Electro-Mechanics Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SAMSUNG Electro-Mechanics Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, __________________________ Jae – Jung Ko Date : March 15, 2005 Assistant Manager WLAN R&D Group Network Div. / RF Biz. SAMSUNG ELECTRO-MECHANICS CO.,LTD Samsung Electro-Mechanics Co.,LTD 314, Maetan3-Dong, YeongTong-Gu Suwon, Gyunggi-Do, Korea TEL No : +82 31 218 2280 FAX No : +82 31 210 5529

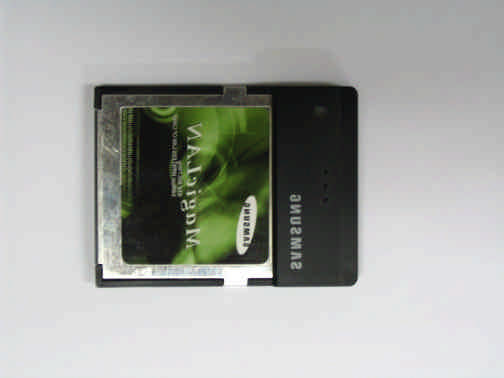

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C Appendix 3. External Photographs

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C Appendix 2. Internal Photographs of EUT Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and information to the user are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System Model : SWL-2600C FCC ID : E2XSWL-2600C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Label

Computer Works Inc. 1-this device may not cause harmful interference, and 2-this device must accept any interference received, including interference that may cause undesired operation. Assembled in Singapore. 86002 Rev B0A This device complies with Class B, Part 15 of the FCC Rules. Operation is subject to the following two conditions: Contains FCC ID : E2XSWL-2600C

BWS TECH Inc. 1 of 3 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C Appendix 4. Internal Photographs

BWS TECH Inc. 1 of 33 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C Digital Transmission System FCC MEASUREMENT REPORT FCC PART15 CERTIFICATION PRODUCT : 11b/g WLAN CF card MODEL/TYPE NO : SWL-2600C FCC ID : E2XSWL-2600C TRADE NAME : SAMSUNG Electro-Mechanics Co., Ltd. APPLICANT : SAMSUNG Electro-Mechanics Co., Ltd. 314, Maethan-3Dong, Paldal-Ku, Suwon, Korea, 442-743 Attn. : Jun-Hwan, Lim / Manager FCC CLASSIFICATION : DTS Part 15 Digital Transmission System FCC RULE PART(S) : FCC Part 15 Subpart C Section 15.247 FCC PROCEDURE : Certification DATES OF TEST : March 16, 2005 DATES OF ISSUE : March 25, 2005 TEST REPORT No. : BWS-05-RF-0003 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Digital Transmission System has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C Section15.247 I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TaeHyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr #294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. 2 of 33 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~32 7. Test Equipment List 33 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. User Manual Appendix 9. Antenna Specification BWS TECH Inc. 3 of 33 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer z EUT Type : Digital Transmission System z Model Number : SWL-2600C z FCC Identifier : E2XSWL-2600C z S/N : z Freq. Range : 2400MHz ~ 2483.5MHz z Channel : 11 channel z Modulation Method : DSSS (BPSK, QPSK, CCK), OFDM (QAM) z FCC Rule Part(s) : Part 15 Subpart C Section 15.247 z Test Procedure : ANSI C63.4-2000 z Dates of Tests : March 16, 2005 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) #294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82-31-762-0124 FAX: +82-31-762-0126 z Test Report No. : BWS-05-RF-0003 Company Name : SAMSUNG Electro-Mechanics Co., Ltd. Company Address : 314, Maethan-3Dong, Paldal-Ku, Suwon, Korea, 442-743 Phone/Fax : Phone : +82-31-210-6318 Fax: +82-31-210-3324 Company Name : SAMSUNG Electro-Mechanics Co., Ltd. Company Address : 314, Maethan-3Dong, Paldal-Ku, Suwon, Korea, 442-743 Phone/Fax : Phone : +82-31-210-6318 Fax: +82-31-210-3324 BWS TECH Inc. 4 of 33 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at #294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated emissions from the SAMSUNG Electro-Mechanics Co., Ltd. 11b/g WLAN CF card Model : SWL-2600C. BWS TECH Inc. 5 of 33 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0003 FCC ID : E2XSWL-2600C Date of Issue : March 25, 2005 SAMSUNG Electro-Mechanics Co., Ltd. Digital Transmission System / SWL-2600C 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the SAMSUNG Electro-Mechanics Co., Ltd. 11b/g WLAN CF card Model : SWL-2600C. (FCC ID : E2XSWL-2600C). • The MagicLAN SWL-2600C are wireless LAN cards that provide wireless connection between computers. • Th…
