E2XWTR-TX2.4GHz Wireless A/V Transmitter

Samsung Electro Mechanics

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 16, 2000
Application Purpose: Original Equipment
Date of Application: Apr 03, 2000
Equipment Note: 2.4GHz Wireless A/V Transmitter
Frequency Range: 2470.00000000 - 2470.00000000
Company: Samsung Electro Mechanics
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Attestation Statements

ELECTRO-MECt!ANICS HEAD OFFICE / SUWON FACTORY 314, Maetan 3-Dong, Paldal-Ku Suwon-Si, Kyungki-Do, KOREA, 442-743 TEL: 82-331-210-6497 FAX: 82-331-210-6250 : DATE: : February 29, 2000 Authorization FCC Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 210450429, U.S.A To whom it may concern: We, the undersigned, hereby authorize “PCTEST Engineering Laboratory, Inc.“, to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by “PCTEST Engineering Laboratory, Inc.” on our behalf shall have the same effect as acts of our own. We, also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) Sincerely <Signature> N- fl <Name > Junhwan .Lim <Title > Assistant Manager <Tel. No.> 82-331-210-6497 Applicant Company Name SAMSUNG ELECTRO-MECHANICS CO.,LTD.

Cover Letter(s)

April 3, 1999 Federal Communications Commission Authorization & Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electro-Mechanics Co., Ltd. FCC ID: E2XWTR-TX Gentlemen: Submitted herewith, on behalf of Samsung Electro-Mechanics Co. Ltd., is an application for Part 15 certification of the following low-power wireless transmitter: FCC ID:E2XWTR-TX MODEL:WTR-TX Equip. Class:Low Power Communications Transmitter (DXX) EUT Type:4-Channel 2.4GHz Wireless A/V Transmitter FREQ. Range:2.410 – 2.470 GHz Attached is the authorization letter, measurement report (measurement data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagram, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Samsung Electro-Mechanics Co., Ltd.

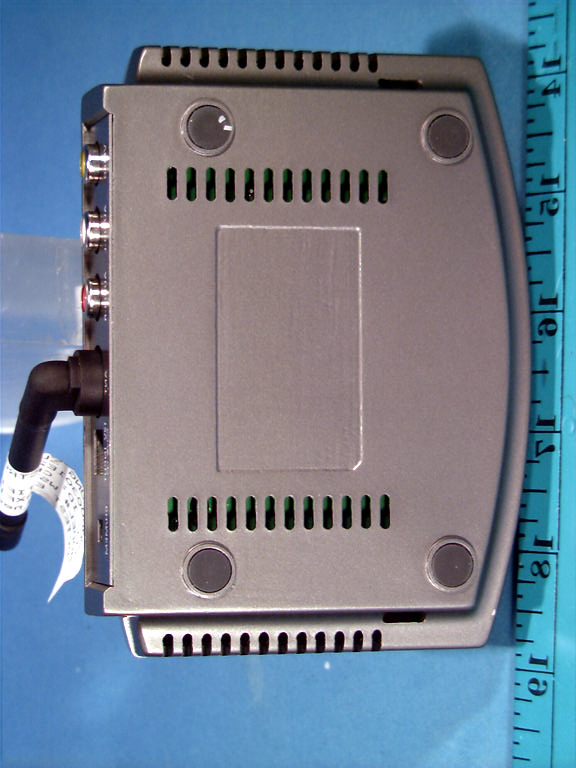

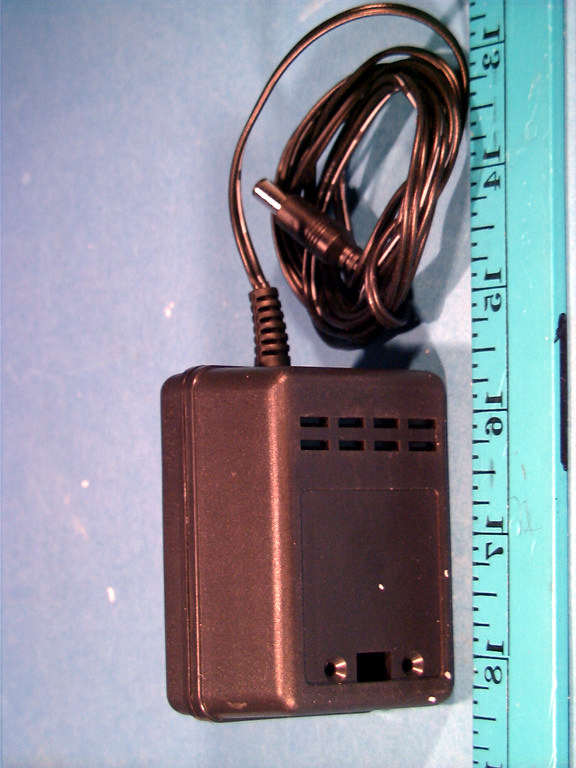

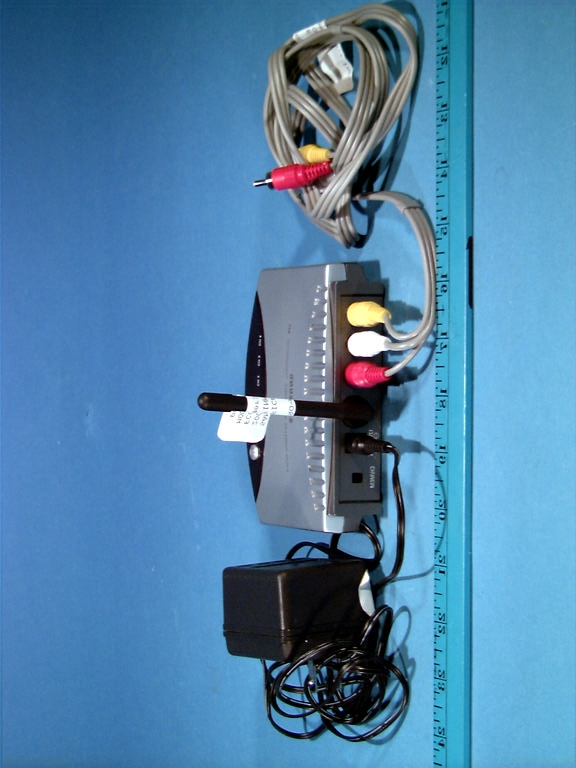

External Photos

Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Test Date(s): March 16-17, 2000Transmitter Certification © 2000 PCTEST Lab FCC ID: E2XWTR-TX (2.410 - 2.470 GHz) NVLAP Lab Code: 100431-0 SAMSUNG Electro-Mechanics Wireless A/V Transmitter

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

Test Report

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE SAMSUNG Electro-Mechanics Co., Ltd.Dates of Tests: March 16-17, 2000 314, Maetan 3-Dong, Paldal-KuTest Report S/N: TX.200301080.E2X Suwon-Si, Kyungki-Do, KOREA, 442-743Test Site: PCTEST Lab, MD U.S.A. Attn: Jun Hwan Lim, Assistant ManagerJob No.: DEMC #2001 FCC ID E2XWTR-TX APPLICANT SAMSUNG ELECTRO-MECHANICS CO., LTD. FCC Rule Part(s):§ 15.249 (Subpart C – Intentional Radiator) Classification:Low Power Communications Transmitter (DXX) EUT Type:2.4GHz Wireless A/V Transmitter Freq. Range:2.410 GHz ~ 2.470 GHz Channel Freq.:Ch.1: 2.410GHz, Ch.2: 2.430GHz, Ch.3: 2.450GHz, Ch.4: 2.470GHz Trade Name: Samsung Model:WTR-TX This device has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified is ANSI C63.4-1992 with the following remarks (Note Codes): •• (#37) This device has shown to be in compliance with the new rules under Docket 87-389 and is not affected by Section 15.37 transition rule. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Lab Code 100431-0 © 2000 PCTEST Engineering Laboratory, Inc. Part 15.249 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1SCOPE 1 2.1INTRODUCTION (SITE DESCRIPTION) 2 3.1PRODUCTION INFORMATION 3 4.1DESCRIPTION OF TESTS (CONDUCTED & RADIATED) 4-5 5.1ANTENNA REQUIREMENT/APPLIED MODULATION 6 6.1LIST OF SUPPORT EQUIPMENT 7 7.1FREQUENCY MEASUREMENTS (Fundamental & Harmonics) 8-11 7.5FREQUENCY MEASUREMENTS (Fundamental & Spurious) 12 8.1 CONDUCTED EMISSIONS13 9.1 PLOTS OF EMISSION 14 10.1SAMPLE CALCULATIONS15 11.1ACCURACY OF MEASUREMENT 16 12.1LIST OF TEST EQUIPMENT17 13.1CONCLUSION18 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) ATTACHMENT G: SCHEMATIC DIAGRAM(S) ATTACHMENT H:TEST SETUP PHOTOGRAPHS ATTACHMENT I: EXTERNAL PHOTOGRAPHS ATTACHMENT J: INTERNAL PHOTOGRAPHS ATTACHMENT K: USER’S MANUAL Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Dates of Tests: March 16-17, 2000Transmitter Certification © 2000 PCTEST LabFCC ID: E2XWTR-TX (2.410 – 2.470 GHz)1 SAMSUNG Electro-Mechanics Wireless A/V Transmitter MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Company Name:SAMSUNG ELECTRO-MECHANICS CO., LTD. Address:314, Maetan 3-Dong, Paldal-Ku Suwon-Si, Kyungki-Do, KOREA, 442-743 Attention:Jun Hwan Lim, Assistant Manager • FCC ID:E2XWTR-TX • Model:WTR-TX • Trade Name:Samsung • EUT Type:2.4GHz Wireless A/V Transmitter • Equipment Class:DXX (Low Power Communications Transmitter) • Application Type:Certification • Frequency Range:2.410 – 2.470 GHz • No. of Channels:4 • Channel Frequencies:Ch.1: 2.410GHz, Ch.2: 2.430GHz Ch.3: 2.450GHz, Ch.4: 2.470GHz • FCC Rule Part(s):§ 15.249 (Subpart C - Intentional Radiator) • Dates of Tests:March 16-17, 2000 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:TX.200301080.E2X • Job No.:DEMC #2001 Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Dates of Tests: March 16-17, 2000Transmitter Certification © 2000 PCTEST LabFCC ID: E2XWTR-TX (2.410 – 2.470 GHz)2 SAMSUNG Electro-Mechanics Wireless A/V Transmitter 2.1 INTRODUCTION The measurement procedure described in Section 15.249 of FCC Rules, and American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from SAMSUNG Electro-Mechanics Co., Ltd. 2.4GHz Wireless A/V Transmitter FCC ID: E2XWTR-TX. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 2.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure 1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: TX.200301080.E2XFCC Part 15.249 Subpart C Dates of Tests: March 16-17, 2000Transmitter Certification © 2000 PCTEST LabFCC ID: E2XWTR-TX (2.410 – 2.470 GHz)3 SAMSUNG Electro-Mechanics Wireless A/V Transmitter 3.1 Product Information 3.2 Equipmen…
