E5A-AN2RFIDPrinter

SL5000 e T M and T5000 e T M SR Smart Label RFID Printer Quick Setup Guide The Printronix SL5000 e and T5000 e SR Series of Thermal Printers This Quick Setup Guide contains a CD-ROM with the following materials: •The User’s Manual •Programmer’s Reference Manuals •Useful utility programs The CD-ROM is located in a plastic pocket in the back cover. Do not discard this guide. If you move or pack the printer in the future, you will need to follow the instructions in this guide. For technical assistance, contact your Distributor/VAR/Reseller for service. For further assistance, contact the Printronix Customer Support Center. The Customer Support Center offers technical support with: •Installation •Configuration and Setup •Operation and Supplies Loading •Specifications of Proper Print Media and Ribbons •Answers to Post-Sales Service Support Questions Printronix Customer Support Center contact information: Americas(714) 368-2686 Europe, Middle East, and Africa(31) 24 6489 410 Asia Pacific(65) 6548 4114 Web site: http://www.printronix.com/public/servicessupport/default.aspx Genuine Printronix Supplies: Americas(800) 733-1900 Europe, Middle East, and Africa(33) 1 46 25 1900 Asia Pacific(65) 6548 4116 or (65) 6548 4182 Web site: http://www.printronix.com/public/supplies/default.aspx Or visit the Printronix web site at www.printronix.com The Printronix SL5000 e and T5000 e SR Series of Thermal Printers Smart Label RFID Printer Quick Setup Guide Software License Agreement CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS PRINTER. USING THIS PRINTER INDICATES YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS. IF YOU DO NOT AGREE TO THESE TERMS AND CONDITIONS, PROMPTLY RETURN THE PRINTER AND ALL ACCOMPANYING HARDWARE AND WRITTEN MATERIALS TO THE PLACE YOU OBTAINED THEM, AND YOUR MONEY WILL BE REFUNDED. Definitions. “Software” shall mean the digitally encoded, machine-readable data and program. The term “Software Product” includes the Software resident in the printer and its documentation. The Software Product is licensed (not sold) to you, and Printronix, Inc. either owns or licenses from other vendors who own, all copyright, trade secret, patent and other proprietary rights in the Software Product. License. 1.Authorized Use. You agree to accept a non-exclusive license to use the Software resident in the printer solely for your own customary business or personal purposes. 2. Restrictions. a.To protect the proprietary rights of Printronix, Inc., you agree to maintain the Software Product and other proprietary information concerning the typefaces in strict confidence. b.You agree not to duplicate or copy the Software Product. c.You shall not sublicense, sell, lease, or otherwise transfer all or any portion of the Software Product separate from the printer, without the prior written consent of Printronix, Inc. d.You may not modify or prepare derivative works of the Software Product. e.You may not transmit the Software Product over a network, by telephone, or electronically using any means; or reverse engineer, decompile or disassemble the Software. f.You agree to keep confidential and use your best efforts to prevent and protect the contents of the Software Product from unauthorized disclosure or use. 3. Transfer. You may transfer the Software Product with the printer, but only if the recipient agrees to accept the terms and conditions of this Agreement. Your license is automatically terminated if you transfer the Software Product and printer. Limited Software Product Warranty Printronix, Inc. warrants that for ninety (90) days after delivery, the Software will perform in accordance with specifications published by Printronix, Inc. Printronix, Inc. does not warrant that the Software is free from all bugs, errors and omissions. Remedy Your exclusive remedy and the sole liability of Printronix, Inc. in connection with the Software is replacement of defective software with a copy of the same version and revision level. Disclaimer of Warranties and Limitation of Remedies 1.THE PARTIES AGREE THAT ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE EXCLUDED. Printronix, Inc. does not warrant that the functions contained in the Software will meet your requirements or that the operation of the Software will be uninterrupted or error free. Printronix, Inc. reserves the right to make changes and/or improvements in the Software without notice at any time. 2.IN NO EVENT WILL PRINTRONIX, INC. BE LIABLE FOR LOST PROFITS, LOST DATA, BUSINESS INTERRUPTIONS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF PRINTRONIX, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR ANY DAMAGES CAUSED BY THE ABUSE OR MANIPULATION OF THE SOFTWARE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. 3.Printronix, Inc. will not be liable for any loss or damage caused by delay in furnishing a Software Product or any other performance under this Agreement. 4.Our entire liability and your exclusive remedies for our liability of any kind (including liability for negligence except liability for personal injury caused solely by our negligence) for the Software Product covered by this Agreement and all other performance or nonperformance by us under or related to this Agreement are limited to the remedies specified by this Agreement. 5.California law governs this Agreement. Termination of License Agreement This License shall continue until terminated. This license may be terminated by agreement between you and Printronix, Inc. or by Printronix, Inc. if you fail to comply with the terms of this License and such failure is not corrected within thirty (30) days after notice. When this License is terminated, you shall return to the place you obtained them, the printer and …

Text truncated - open the document above for the full version.

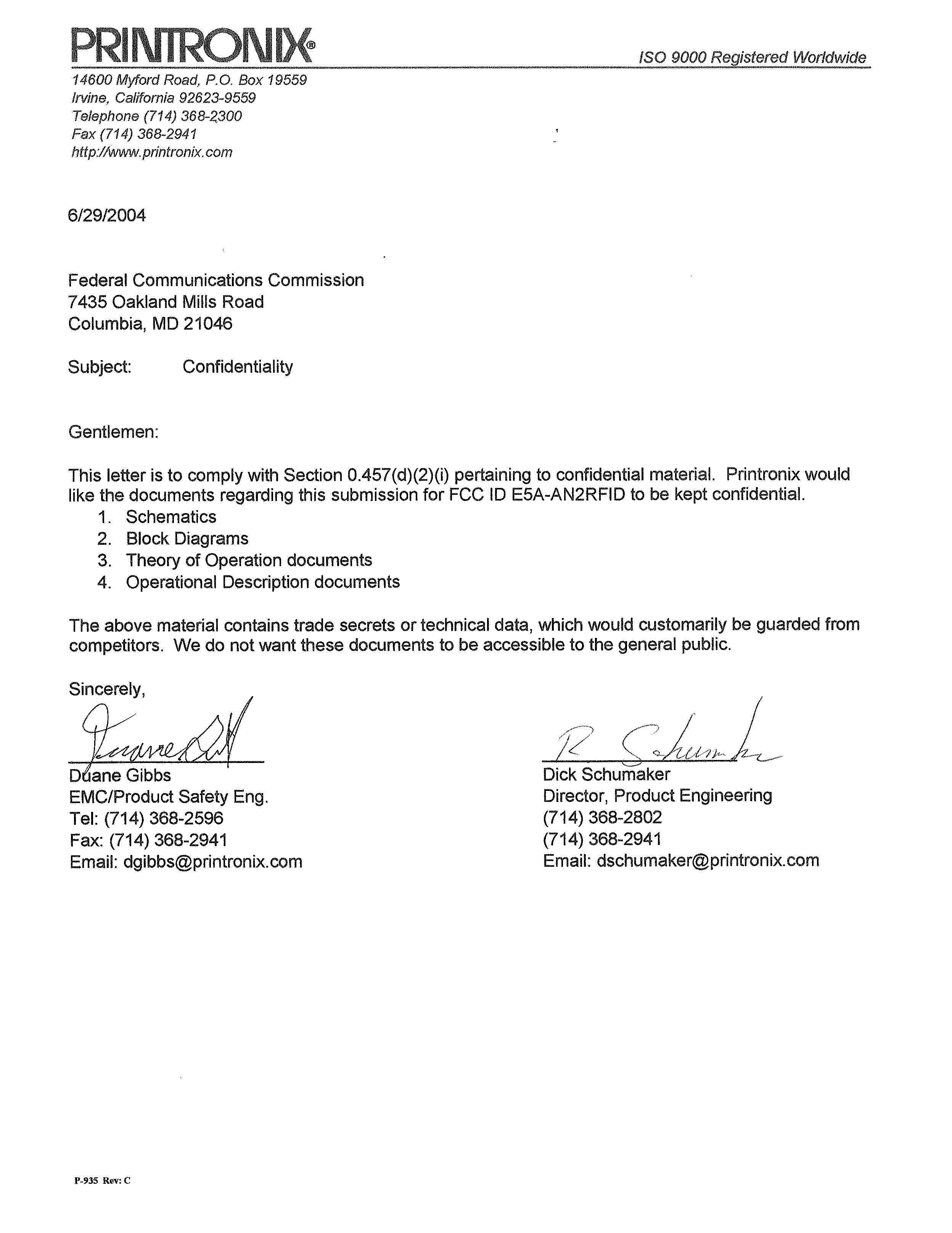

Response to E04-000063-1 1. The frequency range is 902-928 MHz. 2. The output power should be 205 mW. 3. A new confidentiality letter has been uploaded. 4. The output power is .205 Watts and is not variable. A new label and manual have been uploaded to match this information. The operational description lists the maximum power for the transmitter, but the EUT is software limited, so the 30 dBm does not apply for this application. 5. A revised test report has been uploaded with a new bandedge plot.

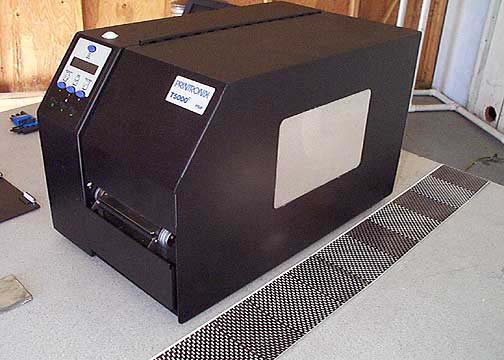

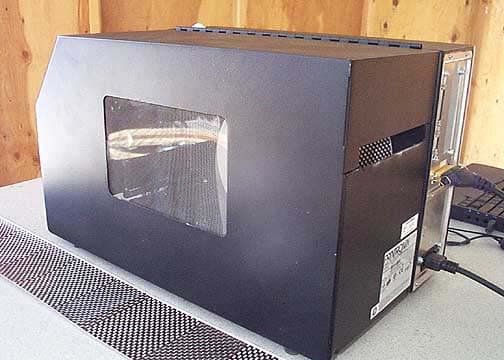

Front Back EUT Side EUT Panel EUT Screen 1 EUT Screen 2 EUT Screen 3

Ant 1 Ant Front 1 Ant Front 2 Ant Front 3 Ant Back Ant 1 Ant 2 Card Bracket 1 Card Bracket 2 Card Bracket 3 Card Bracket 4 DSCN2426 EUT Open 1 EUT open 2 EUT Screen 4 EUT Screen 5 EUT Card 1 EUT Card 2 EUT Card 3 EUT 1 EUT 2 EUT 3 Power Supply Front Power Supply Back TX Card Front TX Card Back TX Card Top Cover TX PCB Top TX PCB 1 TX PCB 2 TX PCB 3 TX PCB 4 TX PCB 5 TX PCB 6 TX PCB 7 TX PCB Bottom

5473A Clouds Rest Road : Mariposa, CA 95338 : Phone 209-966-5420 : Fax 209-742-6133 FCC 1.1310(b), Maximum Permissible Exposure Calculations RSS133 Sun clause 8 Exposure of Humans to RF Field Date of Report: 5/5/04 Calculations prepared for: Joshua Wisemna 14600 Myford Rd P.O. Box 19559 Irvine, Ca 92623-9559 Calculations prepared by: Eddie Wong 110 N. Olinda Place Brea, CA 9283 Model Number: T5204e, T5304e FCC Identification: E5AAN2RFID Fundamental Operating Frequency: 902-928 MHz Maximum Rated Output Power: 0.850 Watt Measured Output Power: 0.205 watts MPE Limit in accordance with 1.1310(b): Limits for general population/uncontrolled exposure MPE Limit for 902-928 MHz = 915/1500 mW/cm 2 = 0.61 mW/ cm 2 (6 W/m 2 ) Power Output (Watts) Power Density Limit (mW/cm 2 ) Minimum Distance (Meters) 0.205 0.61 0.04 P t = Power Delivered to the Antenna G = Antenna Gain d = Distance in meters Zo = Impedance of Free Space The antennas to be used with the EUT are mounted in the EUT’s enclosure which under normal operation has an a protected distance of 0.5 meter from the user As can be seen from the MPE result, this device passes the limit specified in 1.1310 at a distance of 0.04 meter. Calculation: 377 x 10 1 x 205.0 x 30 d= 0 2 t 2 x Zd G x P x 30 )(W/m Density Power= = 0.04 meter.

Page 1 of 53 Report No: FC04-036B PRINTRONIX ADDENDUM TEST REPORT TO FC04-036A FOR THE PRINTER, T5204E FCC PART 15 SUBPART C SECTION 15.247 AND SUBPART B SECTION 15.107 CLASS B COMPLIANCE DATE OF ISSUE: JULY 28, 2004 PREPARED FOR: Printronix P.O. Box 19559 Irvine, CA 92623-9559 PREPARED BY: Mary Ellen Clayton & Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: W.O. No.: 3503523 & 3503847 82001 Date of test:April 29 – June 16, 2004 Report No.: FC04-036B This report contains a total of 53 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 53 Report No: FC04-036B TABLE OF CONTENTS Administrative Information..............................................................................................4 Summary of Results.........................................................................................................5 Conditions for Compliance..............................................................................................5 Approvals.........................................................................................................................5 Equipment Under Test (EUT) Description......................................................................6 FCC 15.31(e) Voltage Variation......................................................................................6 FCC 15.31(m) Number of Channels................................................................................6 FCC 15.33(a) Frequency Ranges Tested..........................................................................6 FCC 15.35 Analyzer Bandwidth Settings........................................................................6 FCC 15.203 Antenna Requirements.................................................................................6 EUT Operating Frequency...............................................................................................6 Equipment Under Test (EUT) Description......................................................................7 Equipment Under Test.....................................................................................................7 Peripheral Devices............................................................................................................7 Report of Measurements..................................................................................................8 FCC 15.107 Six Highest Conducted Emission Levels.........................................8 FCC 15.247(a)(1) Number Of Hopping Frequencies...........................................9 FCC 15.247(a)(1) Frequency Separation.............................................................10 FCC 15.247(a)(1)(i) Average Time Of Occupancy.............................................11 FCC 15.247(a)(1) 20 dB Bandwidth....................................................................17 FCC 15.247(b)(2) RF Power Output....................................................................18 FCC 15.247(c) Six Highest Radiated Emission Levels – Antenna Conducted...19 Table 1: FCC 15.247(c) Six Highest Radiated Emission Levels.........................19 Antenna Conducted Bandedge - Low..................................................................20 Antenna Conducted Bandedge - High..................................................................21 Antenna Conducted Bandedge - Low Hopping...................................................22 Antenna Conducted Bandedge - High Hopping...................................................23 Radiated Bandedge - Low....................................................................................24 Radiated Bandedge - High...................................................................................25 Radiated Bandedge - Low Hopping.....................................................................26 Radiated Bandedge - High Hopping....................................................................27 RSS 210 99% Bandwidth.....................................................................................28 Temperature And Humidity During Testing....................................................................29 EUT Setup........................................................................................................................29 Correction Factors............................................................................................................29 Table A: Sample Calculations..............................................................................29 Test Instrumentation and Analyzer Settings....................................................................30 Spectrum Analyzer Detector Functions...............................................................30 Peak..........................................................................................................30 Quasi-Peak...............................................................................................30 Average....................................................................................................30 EUT Testing.....................................................................................................................31 Page 3 of 53 Report No: FC04-036B Mains Conducted Emissions................................................................................31 Antenna Conducted Emissions.............................................................................31 Radiated Emissions..............................................................................................31 Appendix A: Test Setup Photographs..............................................................................32 Photograph Showing Direct Connect Test Setup.................................................33 Photograph Showing Mains C…

Text truncated - open the document above for the full version.

PHOTOGRAPH SHOWING DIRECT CONNECT TEST SETUP PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Front View PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Side View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View - Loop Antenna PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Back View
