Contents About InterWrite MenuPad Technical support Installing MenuPad Overview of the installation process Parts checklist Installing batteries in the MenuPad Installing the receiver Installing InterWrite software Using MenuPad Basic operation Other information About MenuPad help Care and cleaning Specifications Radio frequency emission notices CE Certification - END – About InterWrite MenuPad InterWrite MenuPad is a wireless touch input tablet system. MenuPad consists of a touch tablet. One MenuPads communicate wirelessly with a PC through a small radio receiver (MenuPad Manager) attached to the PC. MenuPad works with the Software to move the mouse, and enter keystrokes a distance from their computer. MenuPad can also be used with InterWrite MeetingBoard to expand collaboration to any meeting participant anywhere in the room. InterWrite MenuPad and Software work with PCs running Windows 9x/ME/NT/2000. - END – Technical support For additional help in installing, configuring and using InterWrite products, contact GTCO CalComp Technical Service & Support: U.S. West Coast GTCO CalComp Inc. 14555 North 82nd Street Scottsdale, AZ 85260 E-mail: [email protected] Phone: 1-480-443-2414 Fax:1-480-948-5508 U.S. East Coast GTCO CalComp Inc. 7125 Riverwood Drive Columbia, MD 21046 E-mail: [email protected] Phone: 1-410-381-6688 Fax:1-410-290-9065 - END - Overview of the installation process Note: You will need to supply a Windows 9x/ME/NT/2000 PC. 1.Unpack MenuPad. 2.Install batteries in the tablet 3.Install the receiver (if your system doesn't already have a receiver). 4.Install InterWrite software. Start: Unpack MenuPad. - END – Unpack MenuPad and assure all parts are present. Tablet batteries CD-ROM containing InterWrite software, Windows drivers and this help file MeetingPad Manager receiver - END – Installing batteries in the tablet 1.Slide open the cover. 2.Insert the batteries with "+" matching the + on the tablet. 3.Set the rotary switch the same number as your MeetingPad Manager 4.Replace the cover Next: Install the receiver (if one isn't already installed). - END – Installing the MeetingPad Manager receiver An InterWrite system incorporating one MenuPads must have a MeetingPad Manager receiver. If your system doesn't have a MeetingPad Manager receiver (available separately), install one now: 1.Turn off the computer and disconnect the keyboard. 2.Using the Y-cable provided with the receiver, connect the receiver and the keyboard to the computer (as shown here). 3.If your system includes and InterWrite MeetingBoard or DrawingBoard Interactive, connect it to the receiver with a 9-pin serial cable. 4.If your facility has other MenuPad Manager receivers, set the rotary switch to a number different from the other receivers. 5.Place the receiver in an appropriate location. For best operation it should be: Away from metal objects. Directly visible (line of sight) from the MenuPads in the same room. 6.Turn on the computer. Tip: The LED on the receiver lights when data is passing through. Next: Install InterWrite software. - END – Installing InterWrite software 1.Remove any graphic tablet drivers installed on the PC. 2.Insert the InterWrite MenuPad CD-ROM into the computer’s CD-ROM drive. 3.Wait for the installation program to launch. Note: If the installation program does not start on its own, use Windows Explorer to locate and launch setup.exe on the CD-ROM. 4.Follow the instructions to install InterWrite. 5.Remove t he CD-ROM. 6.Restart the PC. The InterWrite icon should appear in the Taskbar. Next: Installation is complete. - END – Basic operation Note: One MenuPads can communicate with one receiver. Each MenuPad must be within 15 feet (4.5m) of its intended receiver. Reception depends on local conditions, and performance may vary in your facility. MenuPad receivers should be at least 100 feet (30m) apart. To do this...Do this... Turn MenuPad is only on when touching the surface and for sort time after that. Tip: "Quick start for InterWrite Software" and the InterWrite Software help file contain instructions for using that product to control the PC, annotate screens, save screens and distribute meeting notes. - END – About MenuPad help InterWrite MenuPad help, Rev. x0 4-26-01 © 2001 GTCO CalComp, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of GTCO CalComp, Inc. InterWrite, MenuPad, MeetingBoard and DrawingBoard Interactive are trademarks of GTCO CalComp, Inc. GTCO is a registered trademark of GTCO CalComp, Inc. - END – Care and cleaning Replacing pen batteries 1.Slide open the cover. 2.Insert the batteries with "+" matching the + on the tablet. 3.Replace the cover General care Follow these precautions at all times to avoid damaging MenuPad: Avoid discharging static electricity to the tablet. Do not place heavy objects on the tablet surface. Do not use sharp objects, like compasses or knives, on the tablet surface. Do not use the tablet surface for any purpose other than drawing with your finger. Cleaning the tablet Clean the tablet's surface with a slightly dampened cloth. CAUTION: Do not clean pencil lines with a soft cleanser or pencil eraser. This may create an undesirable shiny spot on the tablet's surface that cannot be removed. WARNING: Do not use abrasive cleaners, acrylic or lacquer paint thinners, or cleansers with an acetone or solvent base, such as MDC or EDC, on the tablet surface. They will damage t he tablet case. - END – Specifications Product specifications Platform SupportPC Software DriversWindows 95/98/ME/NT/2000 Hardware Interfaces915MHz (U.S.) or 433MHz (other countries) proprietary radio interface RS-232 to computer via MeetingPad Manager receiver Power Supply replaceable batteries CertificationFCC Part 15 Subpart B (Class B) and Subpart C EN55022, …

Text truncated - open the document above for the full version.

Radio frequency emission notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Reorient or coil cables.
If necessary, consult the dealer or an experienced radio/television technician for additional suggestions. Any cables the user adds to the device must be shielded to be in compliance with the FCC standards. Any unauthorized modification to this device could result in the revocation of the end user’s authority to operate this device. Electronic pen This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - END -

Transceiver Antenna 916MHz AddressLines SelectLines RefSignalCond. DataSignalCond. FCC ID: ECPMenuPad Block Diagram for Model MenuPad Touch Pad Micro LC Circuit3.8MHz A/D

Top

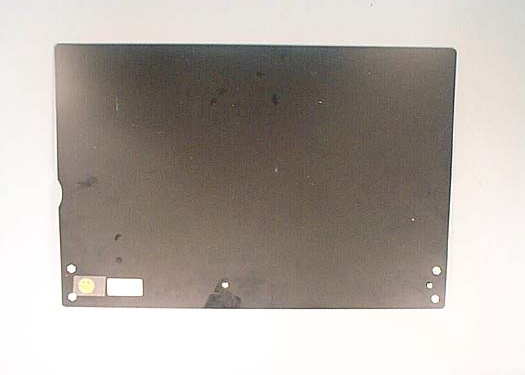

BACK VIEW FCC LABEL LOCATION FCC ID: ECPMENUPAD TOP VIEW GTCO CALCOMP PERIPHERALS MENUPAD

Cover off showing top of board Cover off showing back of board Close-up of top of board section 1 Close-up of top of board section 2 Close-up of top of board section 3 Close-up of top of board section 4 Back of top board left side Back side of top board right side

DISCRIPTION OF RF CIRCUITRY FOR THE MEETINGPAD, JUNCTION BOX. MENUPAD AND DRAWINGBOARD INTERACTIVE 4256 All four products, MeetingPad, JunctionBox, MenuPad and DrawingBoard Interactive use the same identical RF circuitry. The products employ an RFM amplifier-sequenced hybrid (ASH) transceiver, TR1000 (916MHz). Since the transceiver is a hybrid it only has only 20 passive external components. The receiver section of the TR1000 uses a wide dynamic range log detector in combination with digital AGC and a compound data slicer and has two stages of SAW filtering to provide excellent receiver out-of-band rejection. The transmitter section uses amplitude-shift keyed (ASK) modulation and employs SAW filtering to suppress output harmonics. This hybrid transceiver is specifically designed for short-range wireless data communication applications and the transmitter has a peak output power of 0.75mW. The antenna for the MeetingPad, DrawingBoard Interactive and MenuPad uses an embedded antenna on a PCB board that is soldered perpendicular to the main PCB board. The antenna for the JunctionBox is a tuned quarter wavelength helix antenna and is mounted perpendicular to the main PC board. Both the embedded and helix antenna are matched to the transceiver with a series tuning inductor along with a shunt tuning/ESD inductor. Control of the receiver and transmitter sections of the hybrid transceiver is controlled by a microprocessor

Page 1 of 31 Report No.: FC01-018A GTCO CALCOMP ADDENDUM TO FC01-018 FOR THE MENUPAD FCC PART 15 SUBPART B SECTION 15.109 CLASS B & FCC PART 15 SUBPART C SECTIONS 15.209 AND 15.249 COMPLIANCE DATE OF ISSUE: MAY 2, 2001 PREPARED FOR: GTCO CalComp 14555 N. 82nd Street Scottsdale, AZ 85260 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: JD10684 W.O. No.: 75747 Date of test: February 1-14, 2001 & May 1, 2001 Report No.: FC01-018A This report contains a total of 31 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 31 Report No.: FC01-018A TABLE OF CONTENTS Administrative Information ............................................................................................. 4 Summary of Results......................................................................................................... 5 Test Overview..................................................................................................................5 Modifications Required for Compliance ......................................................................... 5 Approvals......................................................................................................................... 5 Equipment Under Test (EUT) Description...................................................................... 6 Equipment Under Test..................................................................................................... 6 Peripheral Devices ........................................................................................................... 6 Mode of Operation........................................................................................................... 7 15.33 Frequency Range Tested ....................................................................................... 7 15.249(a)(c) Radiated Emissions......................................................................... 7 15.109/15.209 Radiated Emissions ..................................................................... 7 EUT Operating Frequency............................................................................................... 7 Temperature and Humidity During Testing .................................................................... 7 Report of Measurements.................................................................................................. 8 Table 1: 15.249(a) Field Strength of Fundamental Frequency - Transmitter .............................. 8 Table 2: 15.209/15.249(c) Six Highest Spurious Radiated Emission Levels - Transmitter......... 9 Table 3: 15.109/15.209 Six Highest Radiated Emission Levels - Receiver................................. 10 Measurement Uncertainty................................................................................................ 11 EUT Setup .......................................................................................................................11 Correction Factors ........................................................................................................... 12 Table A: Sample Calculations ............................................................................. 12 Test Instrumentation and Analyzer Settings.................................................................... 13 Table B: 15.35 Analyzer Bandwidth Settings Per Frequency Range.................. 13 Spectrum Analyzer Detector Functions............................................................... 14 Peak ......................................................................................................... 14 Quasi-Peak............................................................................................... 14 Average.................................................................................................... 14 EUT Testing ....................................................................................................................15 Radiated Emissions ............................................................................................. 15 Transmitter Characteristics.............................................................................................. 16 15.203 Antenna Requirements ............................................................................ 16 15.205 Restricted Bands ...................................................................................... 16 15.215 Additional Provisions to the General Radiated Emission Limitations .... 16 15.249(a) Power Output ...................................................................................... 16 Appendix A : Information About The Equipment Under Test........................................ 17 I/O Ports............................................................................................................... 18 Crystal Oscillators ............................................................................................... 18 Printed Circuit Boards ......................................................................................... 18 Cable Information................................................................................................ 18 Photograph Showing Radiated Emissions ........................................................... 19 Photograph Showing Radiated Emissions ........................................................... 20 Page 3 of 31 Report No.: FC01-018A Photograph Showing Radiated Emissions ........................................................... 21 Photograph Showing Radiated Emissions ........................................................... 22 Appendix B: Test Equipment List ................................................................................... 23 Appendix C: Measurement Data Sheets .......................................................................... 24 Page 4 of 31 Report No.: …

Text truncated - open the document above for the full version.

PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View, Face Up Orthagonal PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View, Face Down Orthagonal PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Back View, Face Up Orthagonal PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions – Front View, Vertical Orthagonal
