EHK049646REVENFLONURSERY MONITER

25708470 10/01 WhisperConnect TM Nursery Monitor Monitor infantil ©Evenflo Company, Inc. 2003 Important: Read and keep these instructions for future reference. Importante: Lea y guarde estas instrucciones para consulta futura. 25709730 11/03 Table of Contents Índice Answers. Advice. Affirmation. ™ 1 por comprar el Monitor infantil WhisperConnect de Evenflo.Para obtener el nivel más alto de rendimiento es necesario que comprenda cómofunciona el monitor. Antes de configurar y usar su Monitor infantilWhisperConnect, por favor lea por completo este Manual del Propietario que leproporciona sugerencias útiles para asegurar las mejores circunstancias deoperación para monitorear a su hijo.La mayoría de los problemas se solucionan rápidamente llamando gratis porteléfono. Para que podamos ayudarle, por favor tenga a la mano o incluya en sucorrespondencia toda la información respectiva al producto, como el número demodelo, la fecha de fabricación, el tipo de problema, etc. Si tiene alguna preguntao problema con su Monitor infantil WhisperConnect de Evenflo, por favor no lo devuelva a la tienda; llame a la línea de ayuda de Evenflo ParentLink al 01- 800-706-12-00 , de lunes a viernes de 8:00 AM a 7:00 PM hora del Este. Números de modelo:• Si su WhisperConnect tiene una unidad para padres (receptor), su número de modelo es 6461100 . • Si su WhisperConnect tiene dos unidades para padres (receptor), su número de modelo es 6461200 . Gracias Warnings ................................................................................... 2 Important Safety Instructions ...................................................... 4 Helpful Hints .............................................................................. 6 Features ..................................................................................... 8 Using Your Monitor .................................................................. 10 Troubleshooting Guide ............................................................. 14 Limited Warranty ......................................................... Back cover Advertencias .............................................................................. 3 Instrucciones importantes de seguridad ....................................... 5 Sugerencias ú tiles ....................................................................... 7 Funciones .................................................................................. 9 Uso de su monitor .................................................................... 12 Gu í a para resolver problemas .................................................... 16 Garant í a Limitada ................................................... Contraportada • www.evenflo.com • USA & Canada: 1-800-233-5921• México: 01-800-706-12-00 for purchasing the Evenflo WhisperConnect Nursery Monitor.Understanding how your monitor works helps you obtain the highest performancelevels. Before setting up and using your WhisperConnect Nursery Monitor, pleaseread this Owner’s Manual completely. It provides helpful tips to ensure the bestoperating circumstances for assisting you in monitoring your child.Most problems can be handled promptly with a toll-free phone call. To help us helpyou, please have available or include in your correspondence all relative informationsuch as the Model Number (see below), Date of Manufacture, nature of theproblem, etc. If you have any questions or problems with your EvenfloWhisperConnect Nursery Monitor please do not return it to the store; call Evenflo’s ParentLink at 1-800-233-5921 , Monday through Friday 8:00 AM to 7:00 PM EST.Model Numbers: • If your WhisperConnect has one Parent’s Unit (receiver), your model number is 6461100 . • If your WhisperConnect has two Parent’s Units (receiver) your model number is 6461200 . Thank You • DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK. MAY CAUSE INJURY, FIRE, OR DEATH. • DO NOT use near water. • DO NOT place furniture on cord. • NEVER place the baby’s unit or its adapter in the crib or playpen, or within the child’s reach. • DO NOT hang this monitor near or on a crib. The cord can present a strangulation hazard. • Always keep the unit out of children’s reach.• DO NOT use this monitor if it is broken or missing parts. • This product is designed and intended to be used solely to monitor the actions of a sleeping child. • DO NOT use this monitor with products that warn the user: “NEVER LEAVE CHILD UNATTENDED.” • This product does not replace responsible adult supervision of a child.• You should check your child regularly as this product will not detect your child’s quiet activities. • This product is not intended to be used as a medical monitor, and its use should not replace adult supervision. • Make sure the Parent’s and Baby’s units are functioning properly, on the same channel, and within reception range of each other. • It is essential to check the sound reception regularly. • NO LO ABRA. NO TIENE PARTES REPARABLES EN EL INTERIOR.RIESGO DE CHOQUE ELÉCTRICO. PUEDE CAUSAR LESIÓN,INCENDIO O MUERTE. • NO lo use cerca del agua. • NO ponga muebles sobre el cable. • NUNCA coloque la unidad del bebé o su adaptador en la cuna o corral, ni al alcance del niño. • NO cuelgue este monitor cerca de o en la cuna. El cordón puede presentar un peligro de estrangulación. • Siempre mantenga la unidad fuera del alcance de los niños.• NO use este monitor si está roto o le faltan partes. • Este producto está diseñado para usarse únicamente para monitorear las acciones de un niño mientras duerme. • NO use este monitor con productos que advierten al usuario: “NUNCA DEJE AL NIÑO SIN SUPERVISIÓN.” • Este producto no substituye la supervisión de un niño por un adulto responsable. • Debe ver al niño con regularidad ya puesto que este producto no detecta las actividades que el niño realiza silencio. • Este producto no está diseñado para usarse como un monitor médico, y su uso no debe sustituir la supervisión por un adulto. • As…

Text truncated - open the document above for the full version.

PDF created with pdfFactory trial version www.pdffactory.com

FCC ID: EHK049646REVENFLO Canada 210 4 x 1.2 AAA

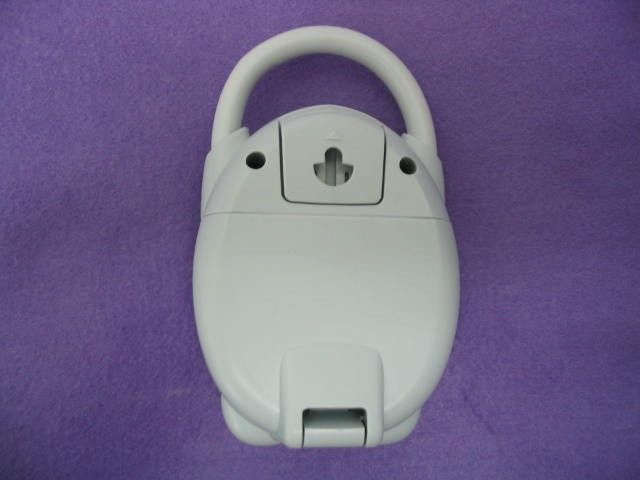

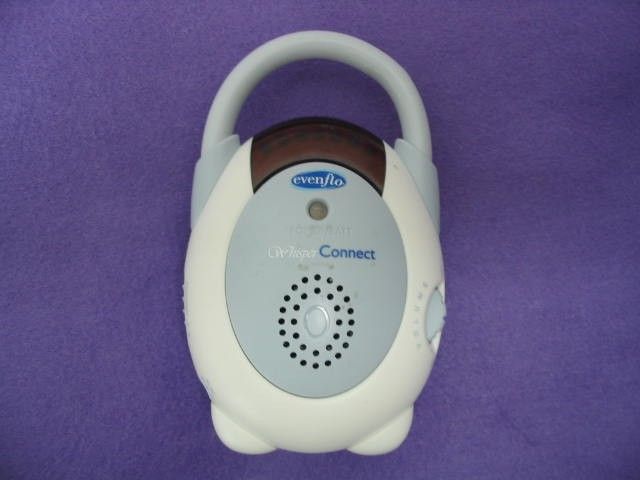

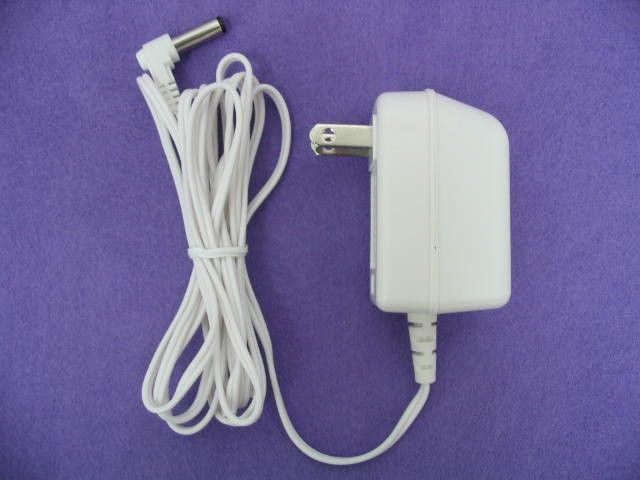

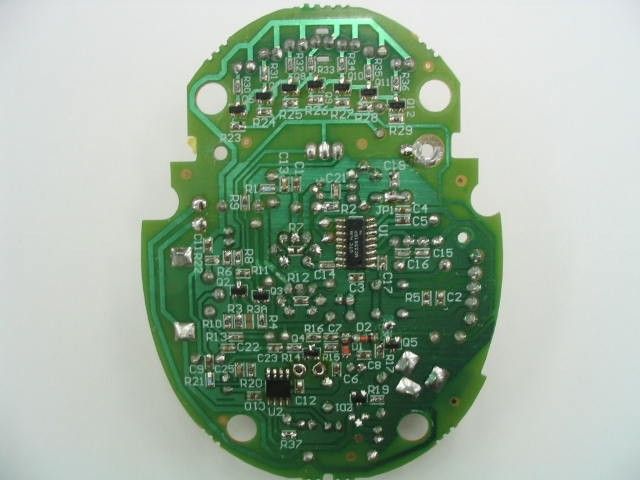

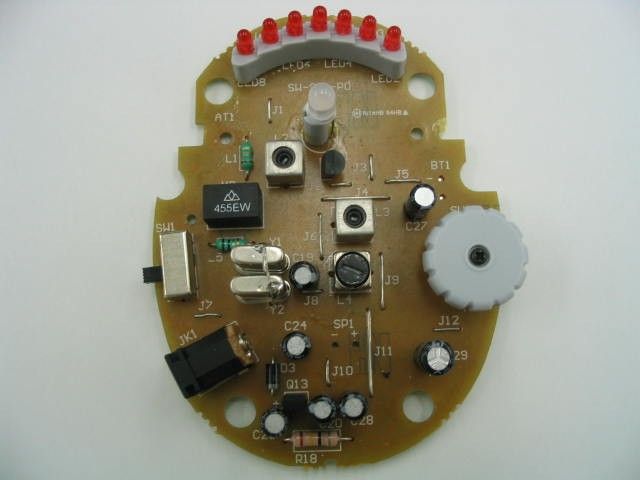

1 Parent Unit Circuit Description The Parent Unit consists of 7 functional parts as shown on the block diagram and the functional description as follows : 1. Low Noise Amplifier The Low Noise Amplifier response to amplifies the signal output from the receiving antenna. It’s main components including coil L2, L3, capacitor C21 and transistor Q1 2. FM Demodulation System The FM Demodulation System (integrated circuit 3361), reference number of U1, response to perform all the functions of mixer, local oscillator, intermediate frequency amplifier and demodulator 3. Channel Selection Switch The Channel Selection Switch, SW1, is used to select one of the two frequencies 49.845MHz or 49.890MHz 4. Sound Light The Sound Light circuit response to control the LED array display in accordance to the audio signal output strength from the FM Demodulation System. The stronger the audio signal causes more LED to be turned on. It give the user a visual indication in additional to the speaker output. The Sound Light circuit includes diodes D1 and D2, transistor Q4 to Q12, LED 2 to LED 8 5. Audio Amplifier The Audio Amplifier, U2, function as audio power amplification of the weak output signal from the FM Demodulation System and send the output signal to the speaker directly 6. Low Battery Detector The Low Battery Detector detects the pre-determined low voltage point of the battery. When the battery voltage reached the low voltage point then the LED light color will change from green to orange to indicate the low battery status. The Low Battery Detector includes the main components of resistors R3, R3A, R10, R8, R6, R11, R4, R9, Transistors Q2 and Q3 PDF created with pdfFactory trial version www.pdffactory.com 2 7. Low Battery LED Indicator The Low Battery LED Indicator, LED1, is a bicolor LED which light the green color for normal battery state and change to orange while at low battery state END PDF created with pdfFactory trial version www.pdffactory.com

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:5-Nov-2003 Sheet of File:D:\FCC DOC\Protel\SW-901-FCC.DdbDrawn By: CONFIDENTIAL SOLAR WIDE INDUSTRIAL LTD. EVENFLO BABY MONITOR 1.0 SW-901 Parent Unit C21 270pF C16 27p R1 1.2k L1 2.2uH AT1 ANTENNA C17 47p C13 10n Y1 49.390MHz R13 3.3k R12 22k C14 1n C22 0.022u R2 100k C15 1n L5 1uH Q1 2SC1674 Audio Name 901P-02.SCH C4 0.1u C5 0.1u V1 OSC 1 1 OSC 2 2 MIXER OUTPUT 3 VCC 4 LIMITER INPUT 5 DECOUPLING 1 6 DECOUPLING 2 7 QUAD COIL 8 DEMODULATOR OUTPUT 9 FILTER INPUT 10 FILTER OUTPUT 11 SQUELCH INPUT 12 SCAN CONTROL 13 AUDIO MUTE 14 GROUND 15 MIXER INPUT 16 U1 MC3361 Y2 49.435MHz V1 R5 4.7k V1 12 V1 C3 0.1u + C19 47u C2 0.1u I N 1 G N D 2 G N D 3 G N D 4 O U T 5 Y3 CF455-5PIN C1 0.1u Audio V1 R8 1K R3 3.3K R10 10K R4 10k R11 4.7K GREENORANGE LED1 LED-DUAL Q2 3906 Q3 3906 R9 1K C18 3p JP1 JUMPER R6 4.7K 6 4 2 3 1 L2 6 4 2 3 1 L3 64 231 L4 2 13 SW1 1P2T R3A 3.9K PDF created with pdfFactory trial version www.pdffactory.com

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:5-Nov-2003 Sheet of File:D:\FCC DOC\Protel\SW-901-FCC.DdbDrawn By: CONFIDENTIAL SOLAR WIDE INDUSTRIAL LTD. EVENFLO BABY MONITOR 1.0SW-901 Parent Unit R20 56k + C28 100u + C20 47u R21 68k R37 10 + C29 220u V1 C25 4.7n C10 0.1u C12 0.1u SP1 TDR3608-A015063 R31 2.4k R32 2.4k R23 5.6k R30 2.4k LED2 RED LED3 RED LED4 RED LED5 RED R24 5.6k R33 2.4k R25 5.6k Q8 3904 Q9 3904 R26 5.6k Q7 3904 Q6 3904 R14 75K D2 1N4148 C7 0.1u R15 820k V1 C23 33n R16 10k V1 R17 10K C8 0.1u D1 1N4148 Q5 3904 Q4 3904 C9 0.1u R22 20K BT1 4.8V + C26 100u R18 24 V1 + C27 100u C11 0.1u VCC Q13 8050 R19 1.5k Audio R34 2.4k LED6 RED LED7 RED R35 2.4k R27 5.6k Q10 3904 Q11 3904 R28 5.6k GAIN 1 -INPUT 2 +INPUT 3 GND 4 OUTPUT 5 V+ 6 BYPASS 7 GAIN 8 U2 NJM386 C6 0.1u LED8 RED R36 2.4k Q12 3904 R29 5.6k JK 1 DC JACK Audio D3 1N5817 +C24 100uF ZD1 6.8V Rechargeable Battery Pack 42 3 15 SW2 100K PDF created with pdfFactory trial version www.pdffactory.com

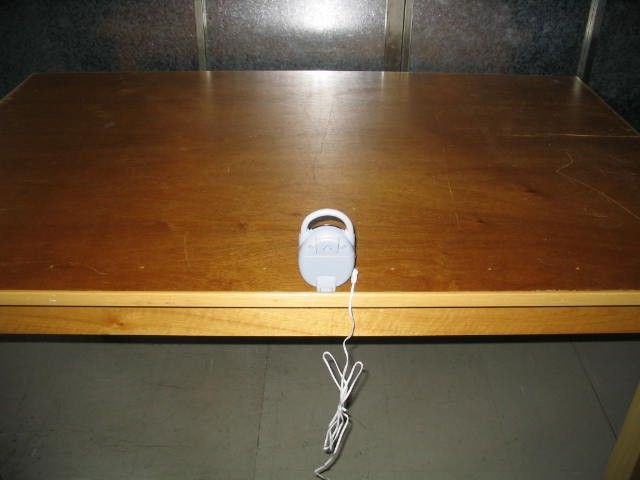

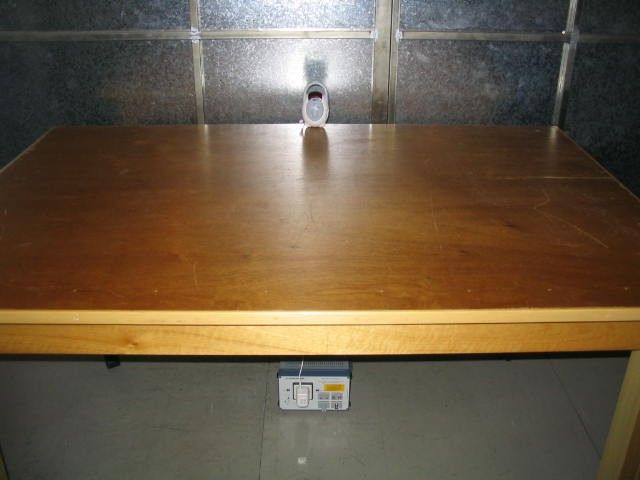

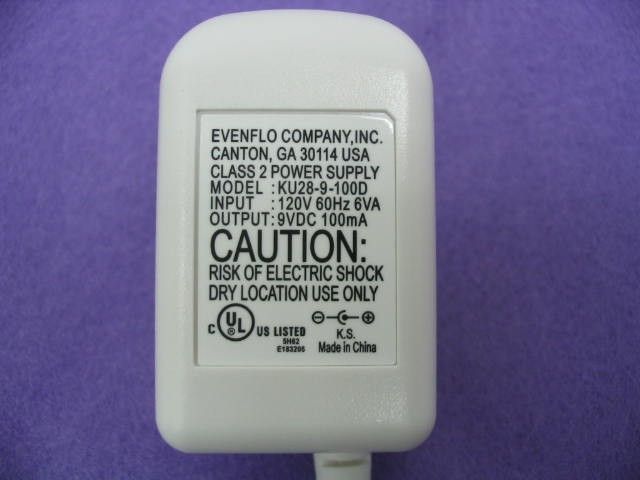

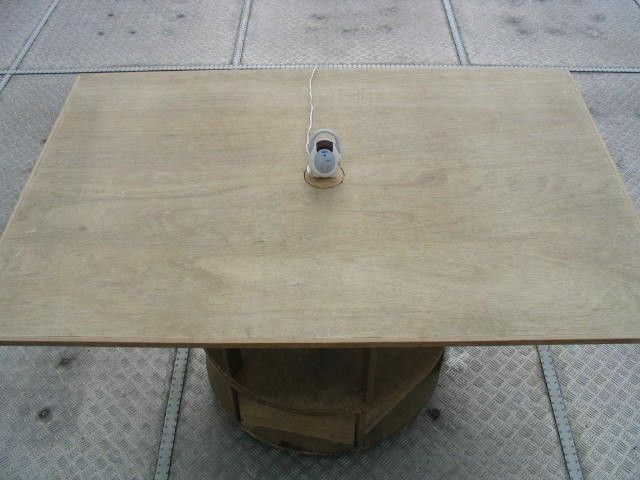

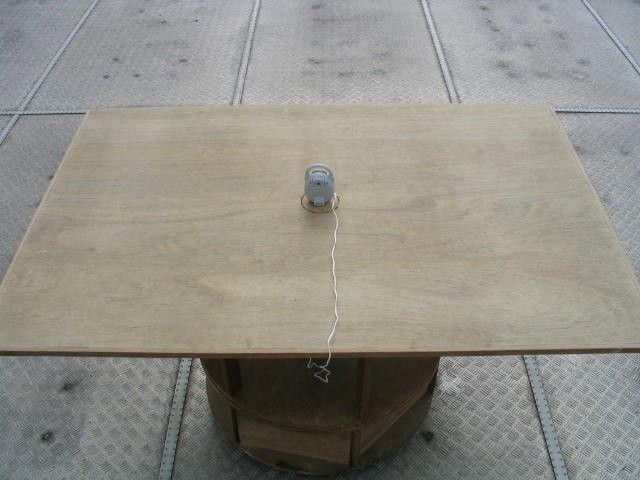

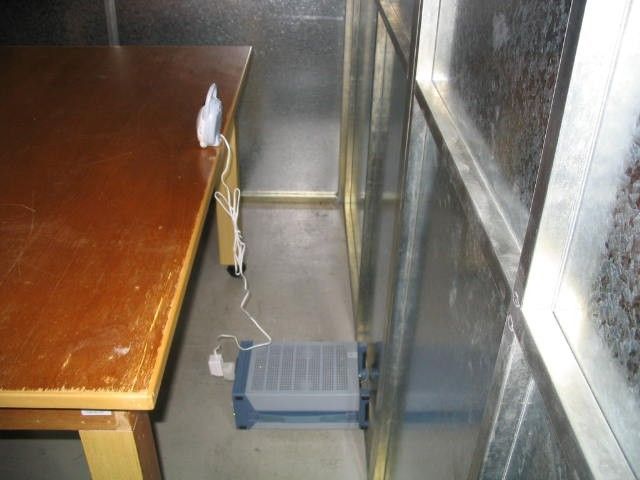

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019689-2 Date : 2003 November 21 Client : Evenflo Company Inc. 707 Crossroads Court, Vandalia, OHIO 45377, U.S.A. Sample Description : One(1) submitted sample stated to be Nursery Monitor of Model No. 6461100, 6461150 and 6461200 . Brand Name : Whisper Connect Rating : DC 9 V and 4.8 V Ni-Cd rechargeable battery pack Testing Voltage : AC 120 V and DC 4.8 V No. of sample(s) : Two(2) sets *** Date Received : 2003 November 03. Test Period : 2003 November 03 – 2003 November 21. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All three models are the same in circuitry and components; and therefore model 6461100 was chosen to be the representative of the test sample. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : EHK049646REVENFLO TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019689-2 Date : 2003 November 21 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 2.3 Radiated Emission Measurement Data....................................................................................... 8 3 Description of the Line-conducted Test............................................................................................ 9 3.1 Test Procedure......................................................................................................................... 9 3.2 Test Result............................................................................................................................... 9 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 9 4 Photograph................................................................................................................................... 10 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................ 10 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 10 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : EHK049646REVENFLO TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019689-2 Date : 2003 November 21 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for Nursery Monitor operating at 49.390 or 49.435 MHz which is controlled by a crystal. The EUT is powered by an AC 120 V to DC 9 V adaptor or 4.8 V Ni-Cd rechargeable battery pack. There are speaker and channel selector in front of the EUT. When channel A (49.390 MHz) or channel B (49.435 MHz) is selected, it will receive a radio voice signal from the transmitter and amplify it to the speaker. The brief circuit description is saved with filename : OpDes.pdf The models 6461150 and 6461200 are the same as model 6461100 in hardware aspect. The difference in model numbers serves as marketing strategy. 1.2 Related Submittal Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. Page 3 of 11 FCC ID : EHK049646REVENFLO TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA…

Text truncated - open the document above for the full version.
