EHK049646TEVENFLONURSERY MONITOR

25708470 10/01 WhisperConnect TM Nursery Monitor Monitor infantil ©Evenflo Company, Inc. 2003 Important: Read and keep these instructions for future reference. Importante: Lea y guarde estas instrucciones para consulta futura. 25709730 11/03 Table of Contents Índice Answers. Advice. Affirmation. ™ 1 por comprar el Monitor infantil WhisperConnect de Evenflo.Para obtener el nivel más alto de rendimiento es necesario que comprenda cómofunciona el monitor. Antes de configurar y usar su Monitor infantilWhisperConnect, por favor lea por completo este Manual del Propietario que leproporciona sugerencias útiles para asegurar las mejores circunstancias deoperación para monitorear a su hijo.La mayoría de los problemas se solucionan rápidamente llamando gratis porteléfono. Para que podamos ayudarle, por favor tenga a la mano o incluya en sucorrespondencia toda la información respectiva al producto, como el número demodelo, la fecha de fabricación, el tipo de problema, etc. Si tiene alguna preguntao problema con su Monitor infantil WhisperConnect de Evenflo, por favor no lo devuelva a la tienda; llame a la línea de ayuda de Evenflo ParentLink al 01- 800-706-12-00 , de lunes a viernes de 8:00 AM a 7:00 PM hora del Este. Números de modelo:• Si su WhisperConnect tiene una unidad para padres (receptor), su número de modelo es 6461100 . • Si su WhisperConnect tiene dos unidades para padres (receptor), su número de modelo es 6461200 . Gracias Warnings ................................................................................... 2 Important Safety Instructions ...................................................... 4 Helpful Hints .............................................................................. 6 Features ..................................................................................... 8 Using Your Monitor .................................................................. 10 Troubleshooting Guide ............................................................. 14 Limited Warranty ......................................................... Back cover Advertencias .............................................................................. 3 Instrucciones importantes de seguridad ....................................... 5 Sugerencias ú tiles ....................................................................... 7 Funciones .................................................................................. 9 Uso de su monitor .................................................................... 12 Gu í a para resolver problemas .................................................... 16 Garant í a Limitada ................................................... Contraportada • www.evenflo.com • USA & Canada: 1-800-233-5921• México: 01-800-706-12-00 for purchasing the Evenflo WhisperConnect Nursery Monitor.Understanding how your monitor works helps you obtain the highest performancelevels. Before setting up and using your WhisperConnect Nursery Monitor, pleaseread this Owner’s Manual completely. It provides helpful tips to ensure the bestoperating circumstances for assisting you in monitoring your child.Most problems can be handled promptly with a toll-free phone call. To help us helpyou, please have available or include in your correspondence all relative informationsuch as the Model Number (see below), Date of Manufacture, nature of theproblem, etc. If you have any questions or problems with your EvenfloWhisperConnect Nursery Monitor please do not return it to the store; call Evenflo’s ParentLink at 1-800-233-5921 , Monday through Friday 8:00 AM to 7:00 PM EST.Model Numbers: • If your WhisperConnect has one Parent’s Unit (receiver), your model number is 6461100 . • If your WhisperConnect has two Parent’s Units (receiver) your model number is 6461200 . Thank You • DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK. MAY CAUSE INJURY, FIRE, OR DEATH. • DO NOT use near water. • DO NOT place furniture on cord. • NEVER place the baby’s unit or its adapter in the crib or playpen, or within the child’s reach. • DO NOT hang this monitor near or on a crib. The cord can present a strangulation hazard. • Always keep the unit out of children’s reach.• DO NOT use this monitor if it is broken or missing parts. • This product is designed and intended to be used solely to monitor the actions of a sleeping child. • DO NOT use this monitor with products that warn the user: “NEVER LEAVE CHILD UNATTENDED.” • This product does not replace responsible adult supervision of a child.• You should check your child regularly as this product will not detect your child’s quiet activities. • This product is not intended to be used as a medical monitor, and its use should not replace adult supervision. • Make sure the Parent’s and Baby’s units are functioning properly, on the same channel, and within reception range of each other. • It is essential to check the sound reception regularly. • NO LO ABRA. NO TIENE PARTES REPARABLES EN EL INTERIOR.RIESGO DE CHOQUE ELÉCTRICO. PUEDE CAUSAR LESIÓN,INCENDIO O MUERTE. • NO lo use cerca del agua. • NO ponga muebles sobre el cable. • NUNCA coloque la unidad del bebé o su adaptador en la cuna o corral, ni al alcance del niño. • NO cuelgue este monitor cerca de o en la cuna. El cordón puede presentar un peligro de estrangulación. • Siempre mantenga la unidad fuera del alcance de los niños.• NO use este monitor si está roto o le faltan partes. • Este producto está diseñado para usarse únicamente para monitorear las acciones de un niño mientras duerme. • NO use este monitor con productos que advierten al usuario: “NUNCA DEJE AL NIÑO SIN SUPERVISIÓN.” • Este producto no substituye la supervisión de un niño por un adulto responsable. • Debe ver al niño con regularidad ya puesto que este producto no detecta las actividades que el niño realiza silencio. • Este producto no está diseñado para usarse como un monitor médico, y su uso no debe sustituir la supervisión por un adulto. • As…

Text truncated - open the document above for the full version.

PDF created with pdfFactory trial version www.pdffactory.com

49MHz Receiver FCC ID: EHK049646REVENFLO Canada 210 FCC ID & IC is engraved inside the battery compartment -All text to be molded, 0.16mm height FCC ID: EHK049646REVENFLO Canada 210 FCC ID & IC is engraved on the battery door -All text to be molded, 0.16mm height 49MHz Transmitter FCC ID: EHK049646TEVENFLO WHISPER CONNECT NURSERY MONITOR THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFENCE RECEIVED, INCLUDING INTERFENCE THAT MAY CAUSE UNDESIRED OPERATION. Canada 210 NEVER place the transmitter or its adapter in the crib or play yard, or within reach of the child! Questions? Please call 1-800-233-5921 www.evenflo.com EVENFLO COMPANY, INC. VANDALIA, OHIO 45377 MADE IN CHINA

1 Baby Unit Circuit Description The Baby Unit consists of 8 functional parts as shown on the block diagram and the functional description as follows : 1. Audio Amplifier The Audio Amplifier response to amplify the input signal sensing by the microphone and the main components including the operational amplifier U1B, U1C 2. Frequency Modulator The Frequency Modulator response to change the oscillator frequency in accordance to the audio signal output from the Audio Amplifier in order to generate the modulated carrier signal frequency. The main components includes resistor R7 and variable capacitance diode D2 3. Oscillator The Oscillator is oscillating in the frequency 16.615MHz or 16.630MHz as selected by the Channel Selection Switch. It includes the main components of crystal Y1 and Y2, Transistor Q2, Coil L6. 4. Channel Selection Switch The Channel Selection Switch, SW1, are used to select one of the two carrier frequencies 49.845MHz and 49.890MHz which feed to the antenna and radiating into the free space 5. Frequency Tripler The Frequency Tripler response to generate the triple times frequency signals of 49.845MHz and 49.890MHz based on the fundamental oscillation frequencies 16.615MHz and 16.630MHz. The Frequency Tripler can reject the unwanted harmonic frequencies while emphasize the desired triple times of the fundamental frequencies. It includes the main components of coil L5 and capacitor C33 PDF created with pdfFactory trial version www.pdffactory.com 2 6. Resonant Amplifier The Resonant Amplifier provides further improvement of the harmonic frequencies suppression and amplifies the desired frequency only. Its main components including transistor Q1, coil L4, capacitor C23 7. Harmonic Filter The Harmonic Filter aims at suppressing the harmonic frequencies to the lowest level and the main components consists of coil L2 and L3, capacitor C20, C21, C19 and C22 8. Antenna Matching Network Antenna Matching Network serves as the purpose of impedance matching with the antenna and resonance at the 49MHz frequency only. The Antenna Matching Network includes of the components L1 and C1 END PDF created with pdfFactory trial version www.pdffactory.com

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:5-Nov-2003 Sheet of File:D:\FCC DOC\Protel\SW-901-FCC.DdbDrawn By: CONFIDENTIAL SOLAR WIDE INDUSTRIAL LTD. EVENFLO BABY MONITOR 1.0SW-901 Baby Unit C22 68p + C34 100u R18 2.2K C20 15p R11 68k C1 5p R1 390 C21 82p L1 1.8u AT1 ANTENNA Q1 KSP10 C19 15p V1 C23 22p LED1 5mm GREEN Q2 KSP10 C17 0.1u 9VDC + C32 4.7u C13 270p R8 390k R20 82k + C35 100u C14 0.1u C31 1.5p R15 5.6k R10 3.3k R12 470 R3 1k + C9 47u + C10 47u MIC1 EM-80H-62M R13 4.7k R6 47k Q3 8050 R14 5.6k + C11 1u R2 20k R26 270 L2 10.5T L3 8.5T C15 0.1u C18 0.1u V1 10 9 8 + - U1C LM324 3 2 1 4 1 1 + - U1A LM324 V1 5 6 7 + - U1B LM324 C28 4.7n C16 0.1u V1 V1 C12 22n R16 150k R9 3.3k R17 33k C36 100p C37 47p R19 82k R4 1k V1 C33 18p R21 10k Y2 16.630MHz Y1 16.615MHz R7 47k R22 330K R23 120k V1 R5 33k + C8 47u C2 0.1u C3 0.1u C6 0.1u D2 BBY31 6 4 2 3 1 L4 0.33uH 6 4 2 3 1 L5 0.5uH C26 10n C27 10n C4 0.1u C7 0.1u 64 231 L6 7.2uH B B3 B2 A3 A A1 B1 A2 SW1 2P3T +9VVCC +9VVCC D1 1N5817 R24 5.6K R25 5.6K JP1 Short Pad ZD1 5.6V BT1 9V Adaptor PDF created with pdfFactory trial version www.pdffactory.com

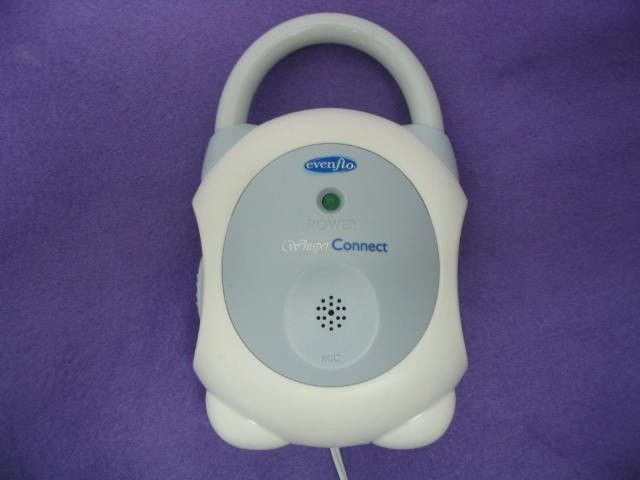

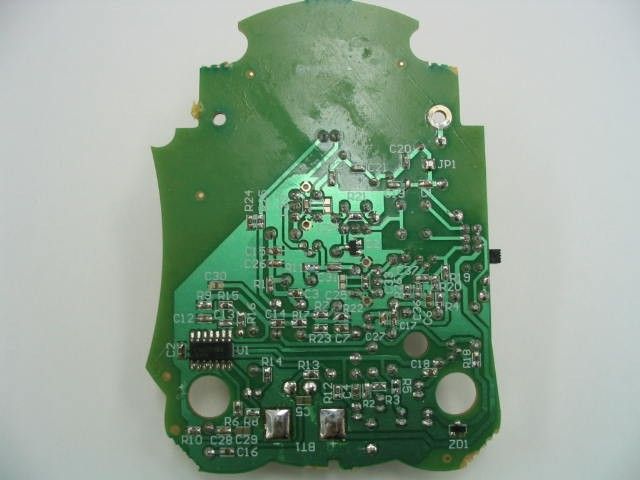

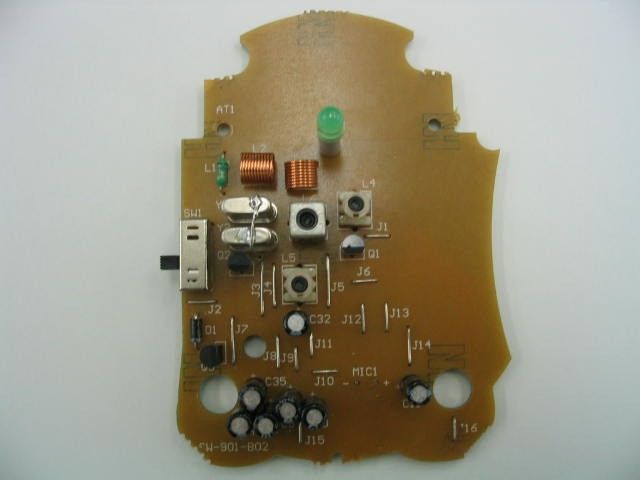

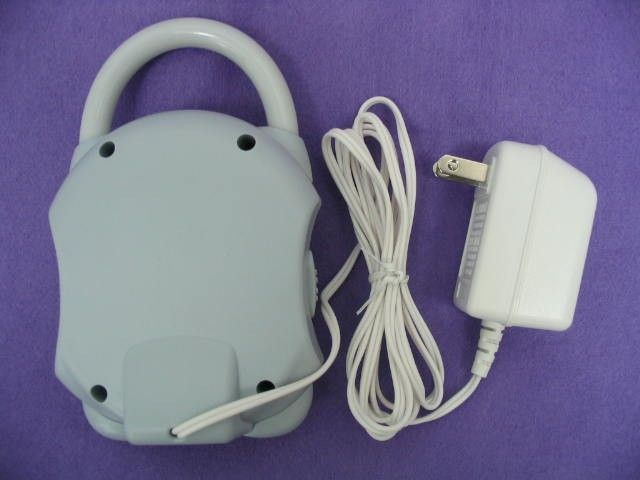

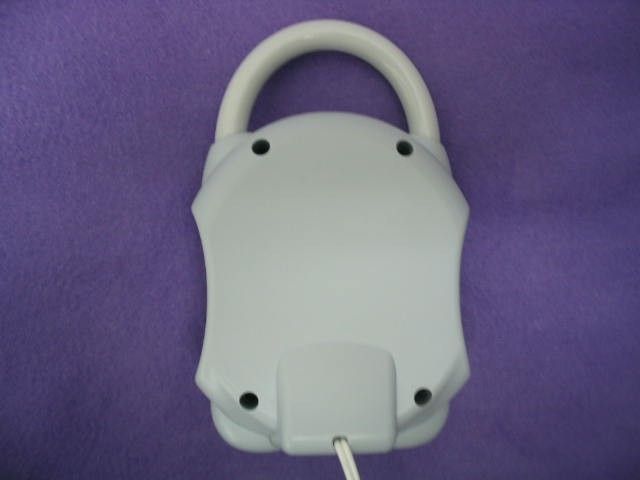

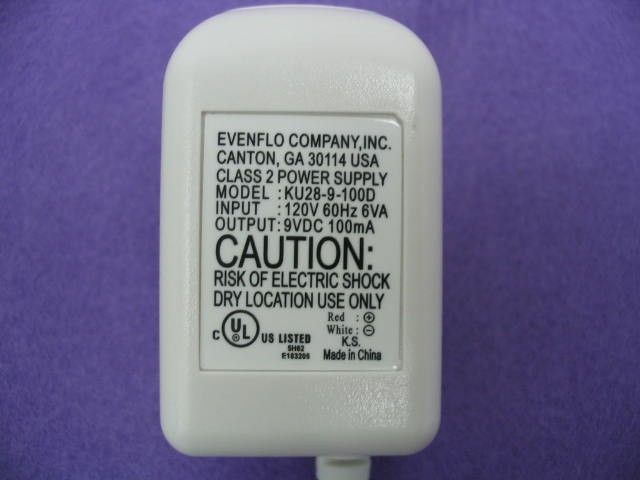

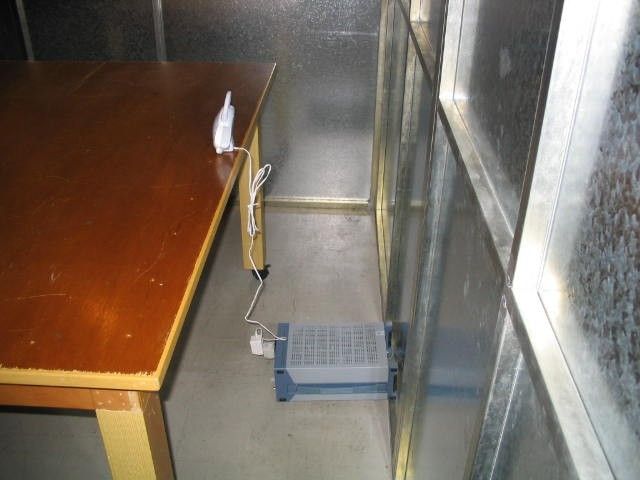

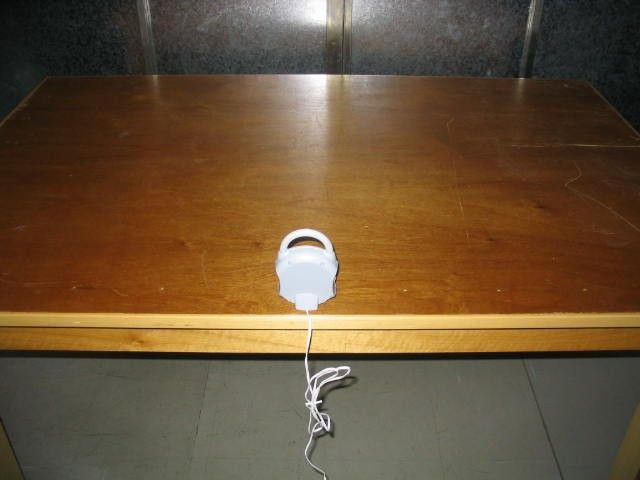

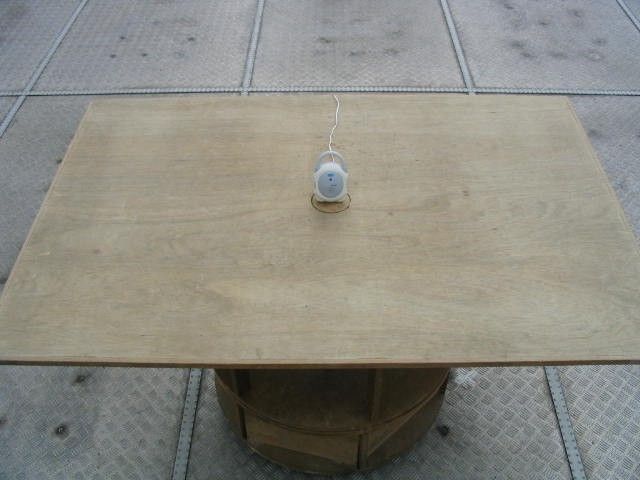

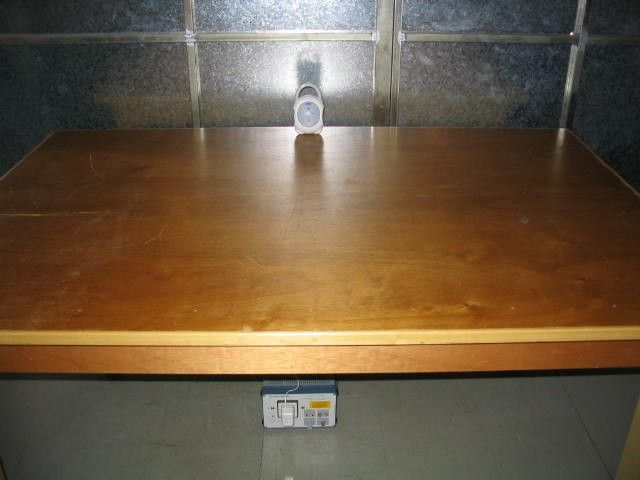

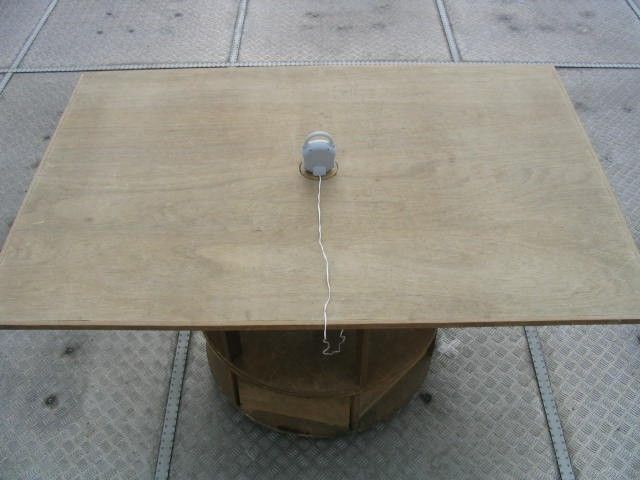

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019689-1 Date : 2003 November 21 Client : Evenflo Company Inc. 707 Crossroads Court, Vandalia, OHIO 45377, U.S.A. Sample Description : One(1) submitted sample stated to be Nursery Monitor of Model No. 6461100, 6461150 and 6461200 . Brand Name : Whisper Connect Rating : DC 9 V Testing Voltage : AC 120 V No. of sample(s) : Two(2) sets *** Date Received : 2003 November 03. Test Period : 2003 November 03 – 2003 November 21. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All three models are the same in circuitry and components; and therefore model 6461100 was chosen to be the representative of the test sample. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : EHK049646TEVENFLO TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019689-1 Date : 2003 November 21 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 2.3 Radiated Emission Measurement Data....................................................................................... 8 3 Description of the Line-conducted Test............................................................................................ 9 3.1 Test Procedure......................................................................................................................... 9 3.2 Test Result............................................................................................................................... 9 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 9 4 Photograph................................................................................................................................... 10 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................ 10 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 10 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : EHK049646TEVENFLO TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019689-1 Date : 2003 November 21 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Nursery Monitor operating at 49.845 or 49.890 MHz which is controlled by a crystal. The EUT is powered by an AC 120 V to DC 9 V adaptor. There are a microphone and a channel selector in front of the EUT. When channel A (49.845 MHz) or channel B (49.890 MHz) is selected, it will transmit a radio voice signal to receiver. The brief circuit description is saved with filename : OpDes.pdf The models 6461150 and 6461200 are the same as model 6461100 in hardware aspect. The difference in model numbers serves as marketing strategy. 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : EHK049646TEVENFLO TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD019689-1 Bandwidth Plot Bandwidth 1 Un-modulated Carrier Channel A Bandwidth 2 Un-modulated Carrier Channel B CMA Testing and Certification Laboratories P. of Report No.: AD019689-1 Modulated Carrier Channel A Modulated Carrier Channel A Modulated Carrier Channel A Modulated Carrier Channel A CMA Testing and Certification Laboratories P. of Report No.: AD019689-1 Modulated Carrier Channel B Modulated Carrier Channel B
